Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

23 part groups · 3 illustrations

Illustrations

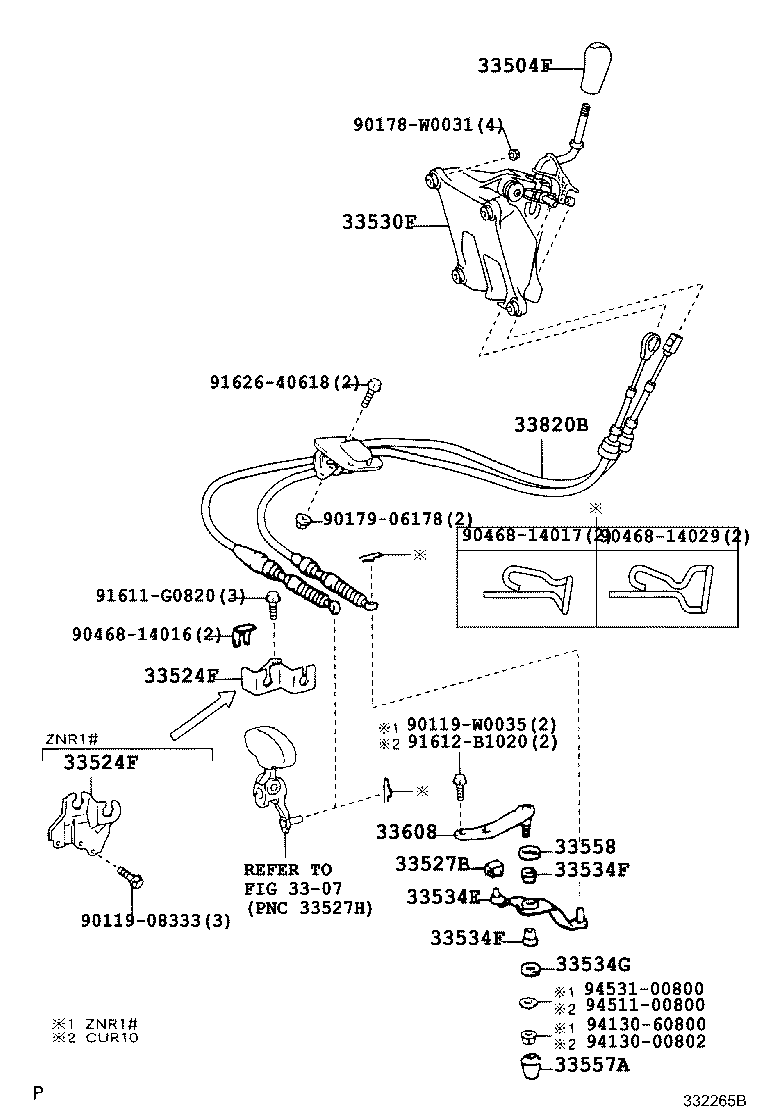

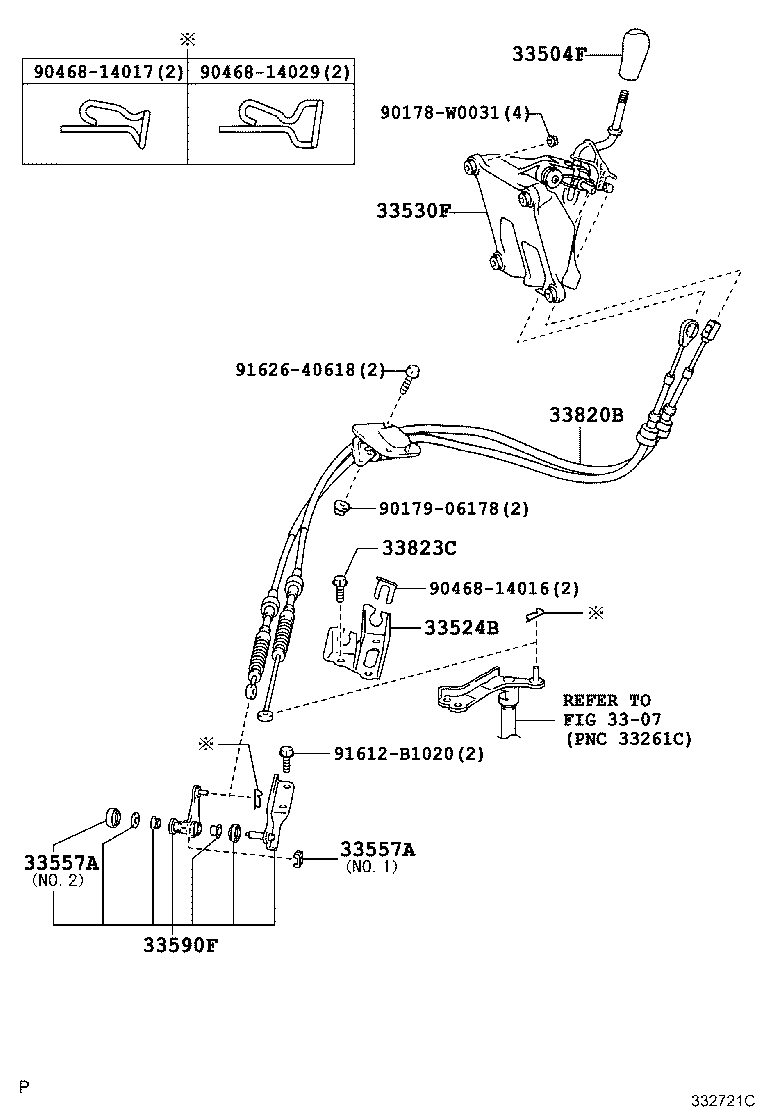

Figure 332264B 332264B 2004-02 → — Figure 332265B 332265B 2004-02 → — Figure 332721C 332721C 2005-08 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33524F Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33527B Bush (FOR CONTROL SHIFT LEVER)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33534E Crank, Selecting Bell, NO.2
33534F Bush (FOR SELECTING BELLCRANK NO.2)
33534G Washer, Plate (FOR SELECTING BELLCRANK NO.2)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33557A Cover, Selecting Bellcrank Dust, NO.1
33558 Cover, Selecting Bellcrank Dust, NO.2
33560 Unit Assy, Shift Lock Control
33563 Button, Shift Lock Release
33590F Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
33608 Support Sub-assy, Selecting Bellcrank
33820B Cable Assy, Transmission Control
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35906 Wire Sub-assy, Indicator Lamp
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35953 Guide, Position Indicator Light
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
