Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

10 part groups · 2 illustrations

Illustrations

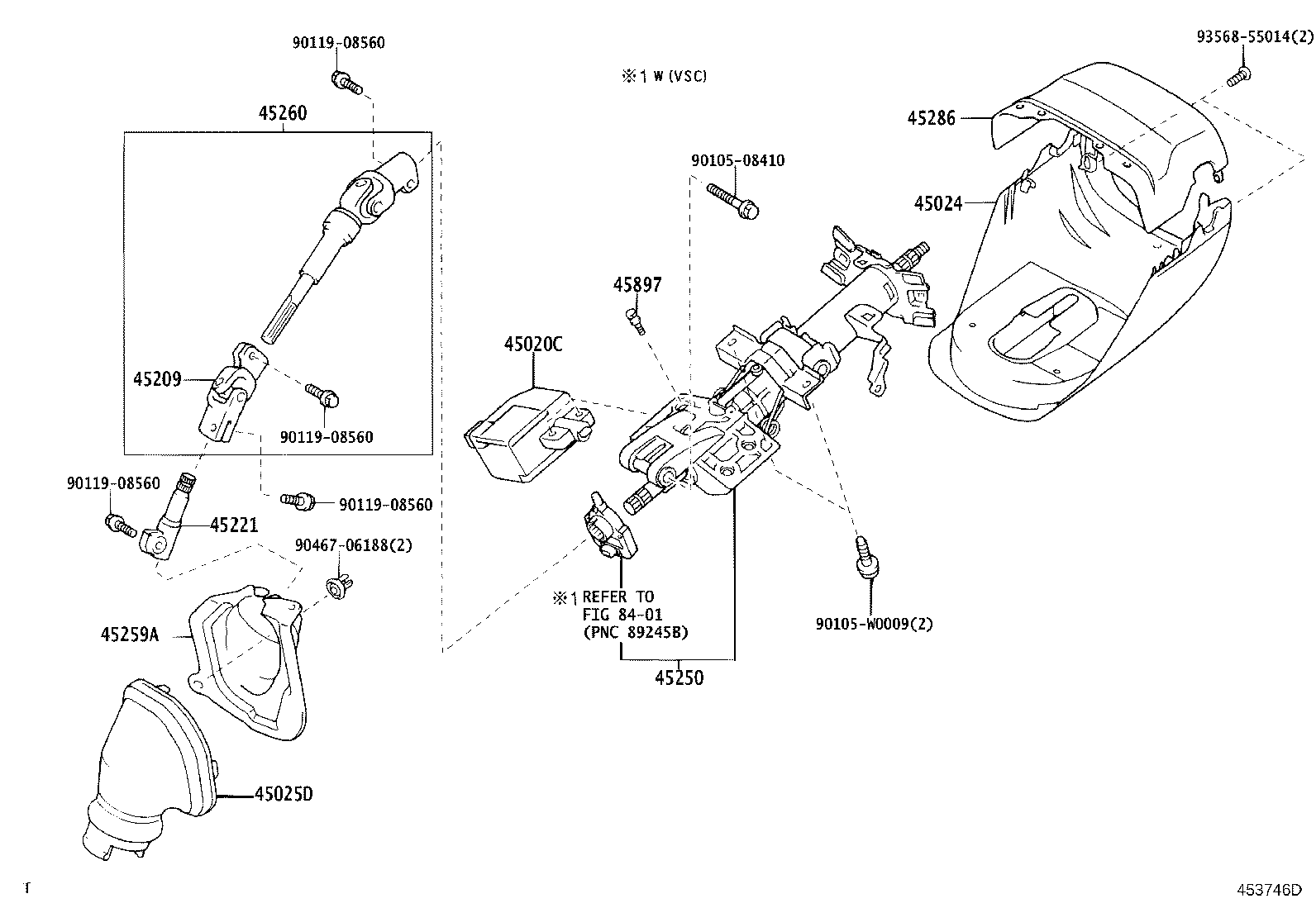

Figure 453745D 453745D 2004-02 → — Figure 453746D 453746D 2004-02 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45209 Yoke Sub-assy, Steering Sliding
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
