Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

9 part groups · 6 illustrations

Illustrations

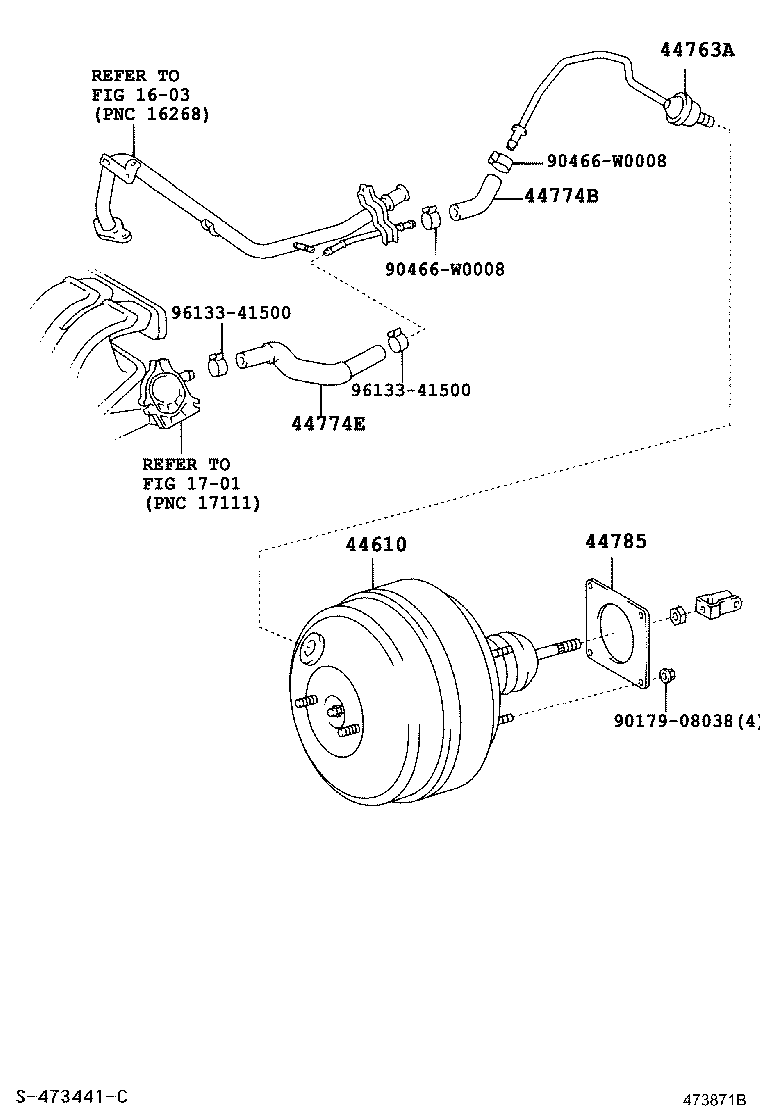

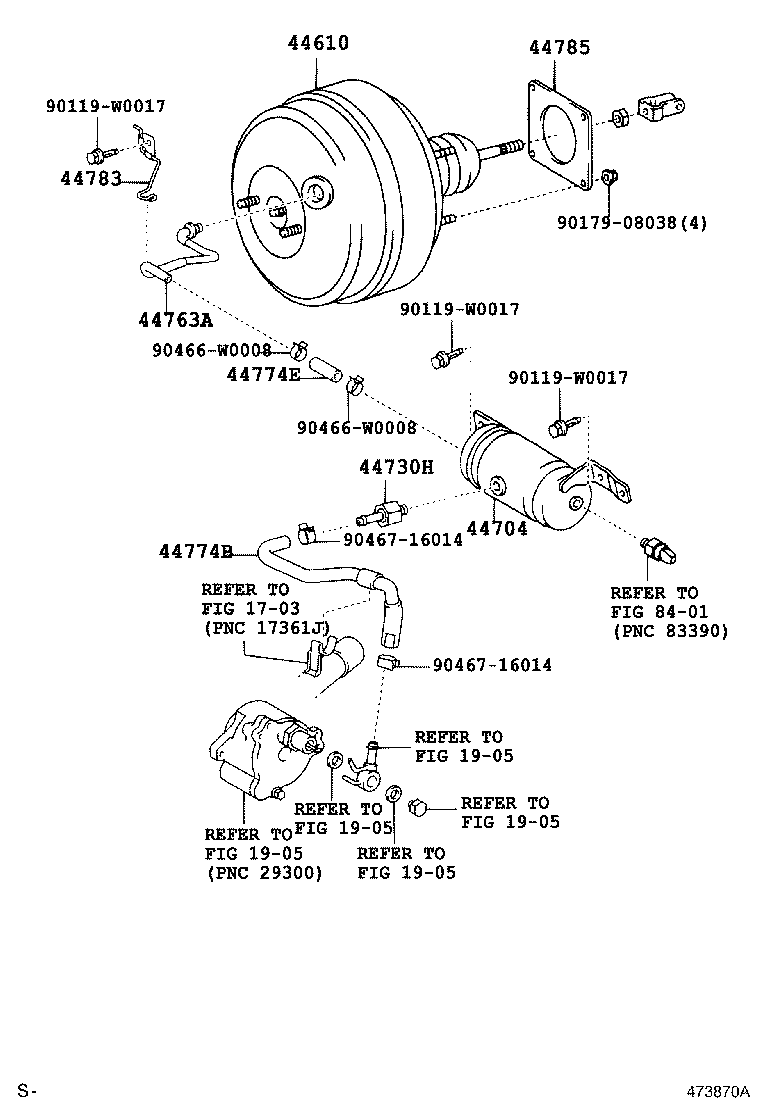

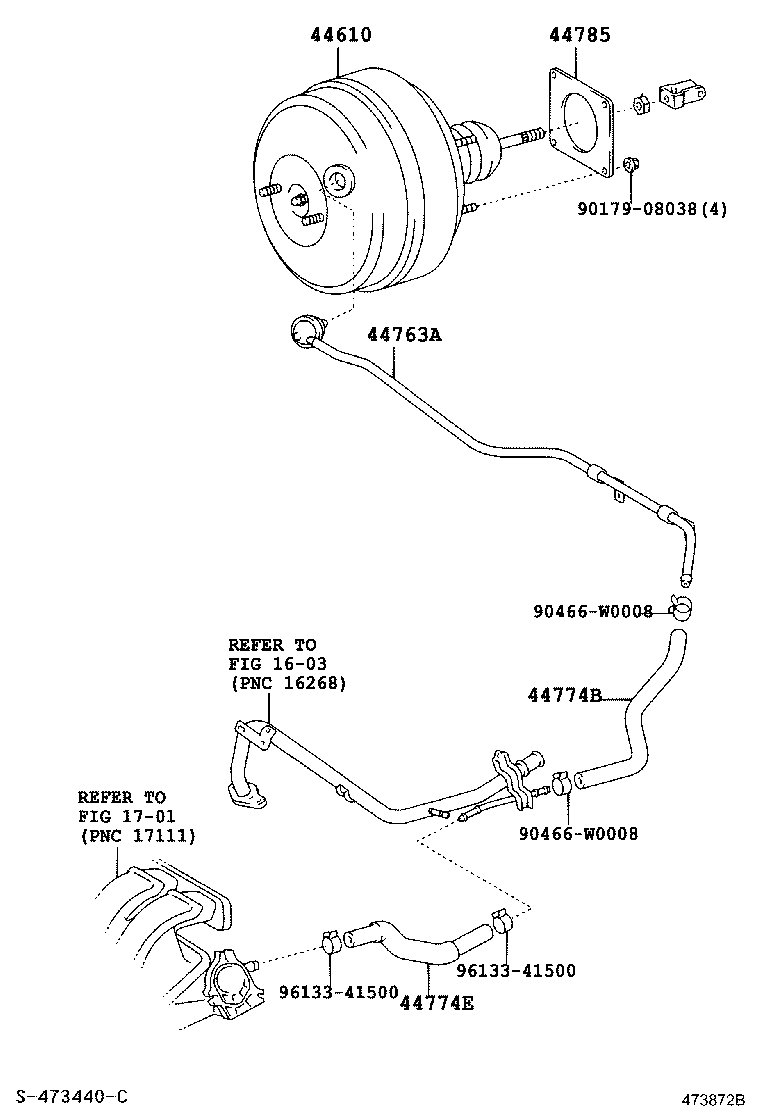

Figure 473869A 473869A 2004-02 → 2005-08 Figure 473870A 473870A 2004-02 → 2005-08 Figure 473871B 473871B 2004-02 → — Figure 473872B 473872B 2004-02 → — Figure 474723A 474723A 2005-08 → — Figure 474724A 474724A 2005-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44763A Tube, Hose TO Hose, NO.1
44773F Hose, Union TO Check Valve
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
