Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

13 part groups · 2 illustrations

Illustrations

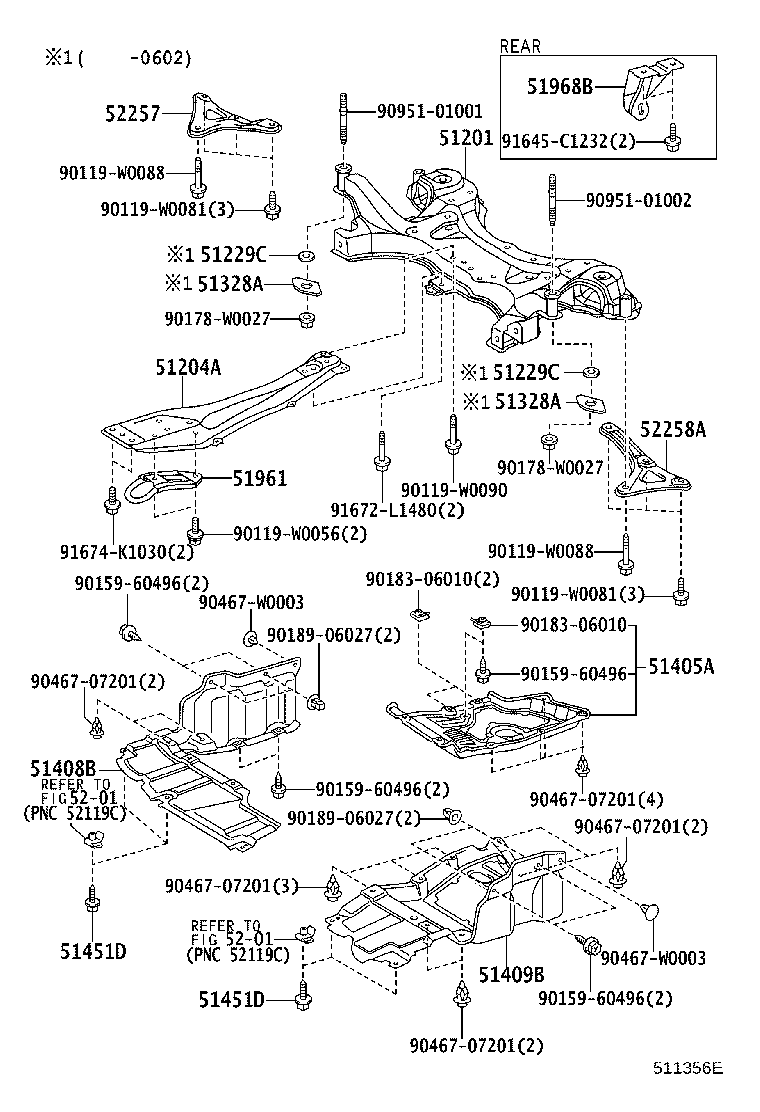

Figure 511040C 511040C 2004-02 → — Figure 511356E 511356E 2005-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51227B Damper, Front Suspension Member Dynamic
51229C Plate, Suspension Member Set
51328A Support, Front Suspension Member, Front
51405A Cover Sub-assy, Engine Under, NO.1
51408B Cover Sub-assy, Engine Under, RH
51409B Cover Sub-assy, Engine Under, LH
51451D Screw, NO.1
51961 Hook, NO.1
51968B Hook, Transport, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
