Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07

Roof Panel & Back Window Glass

39 part groups · 3 illustrations

PNC	Description
63102A	Panel Sub-assy, Windshield Header
63103A	Reinforcement Sub-assy, Roof Panel
63104D	Reinforcement Sub-assy, Roof Panel, NO.2
63105D	Frame Sub-assy, Back Window, Upper
63111	Panel, Roof
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63138	Bracket, Dome Lamp, NO.2
63141G	Reinforcement, Roof Panel, NO.1
63143B	Reinforcement, Roof Panel, NO.3
63144B	Reinforcement, Roof Panel, NO.4
63148A	Reinforcement, Roof Panel, NO.7
63175D	Reinforcement, Back Door Hinge Female, RH
63176D	Reinforcement, Back Door Hinge Female, LH
63185A	Bracket, Roof Rack, Front RH
63186A	Bracket, Roof Rack, Front LH
63187C	Bracket, Roof Rack, NO.1 Rear RH
63188B	Bracket, Roof Rack, NO.1 Rear LH

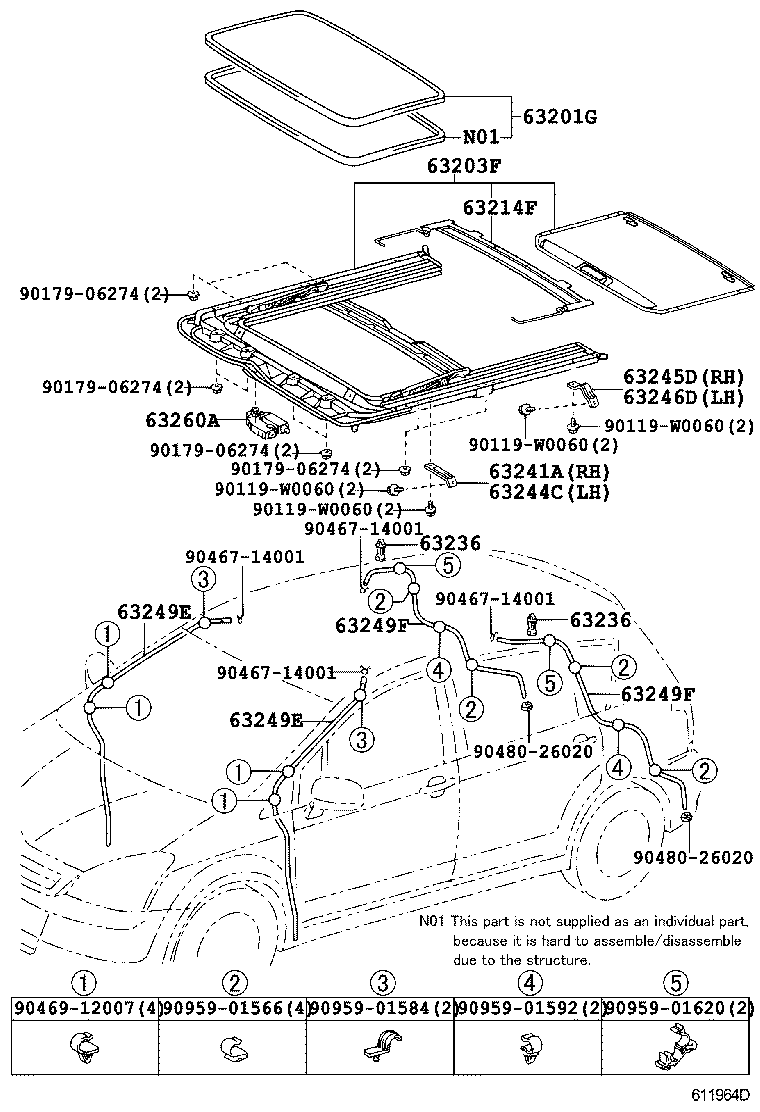

63201G	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63214F	Channel, Roof Drip, Rear
63236	Clamp, Sliding Roof OR Removable Roof Drain Hose
63241A	Bracket, Sliding Roof Housing Front Mounting, RH
63244C	Bracket, Sliding Roof Housing Center Mounting, LH
63245D	Bracket, Sliding Roof Housing Rear Mounting, RH
63246D	Bracket, Sliding Roof Housing Rear Mounting, LH
63249E	Hose, Sliding Roof Drain
63249F	Hose, Sliding Roof Drain
63260A	Gear Sub-assy, Sliding Roof Drive

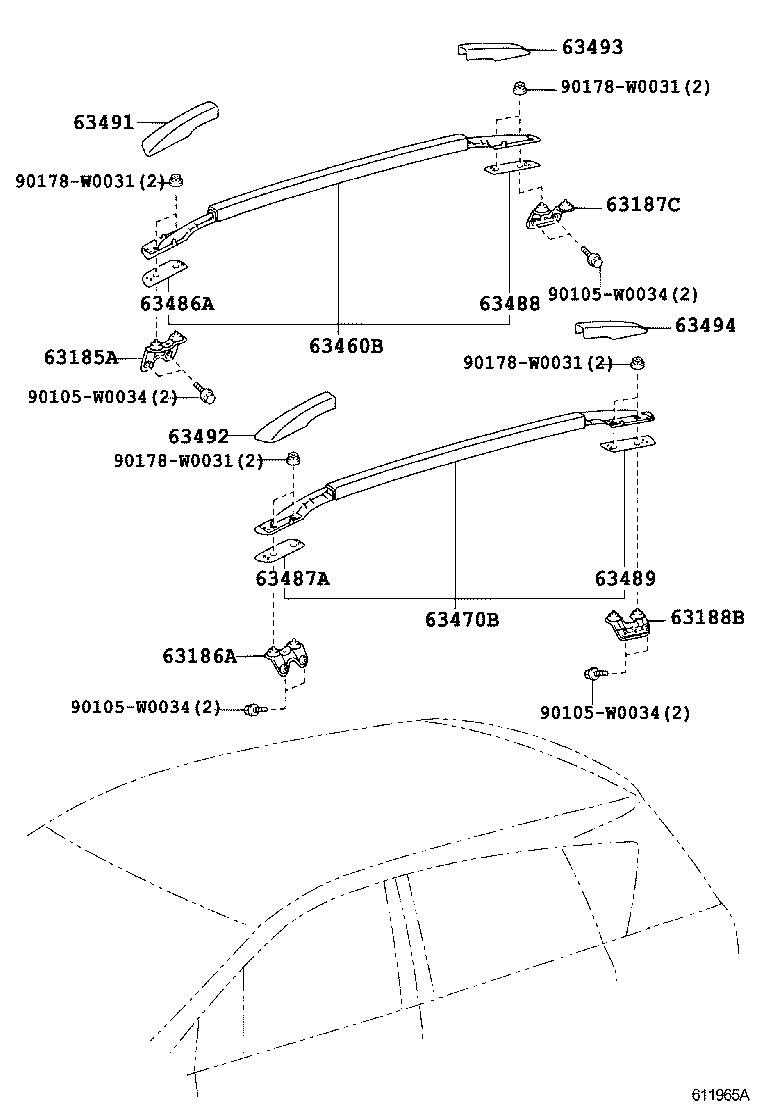

63460B	Rack Assy, Roof, RH
63470B	Rack Assy, Roof, LH
63486A	Cushion, Roof Rack Leg, Front RH
63487A	Cushion, Roof Rack Leg, Front LH
63488	Cushion, Roof Rack Leg, Rear RH
63489	Cushion, Roof Rack Leg, Rear LH
63491	Cover, Roof Rack Leg, Front RH
63492	Cover, Roof Rack Leg, Front LH
63493	Cover, Roof Rack Leg, Rear RH
63494	Cover, Roof Rack Leg, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
