Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 4 illustrations

Illustrations

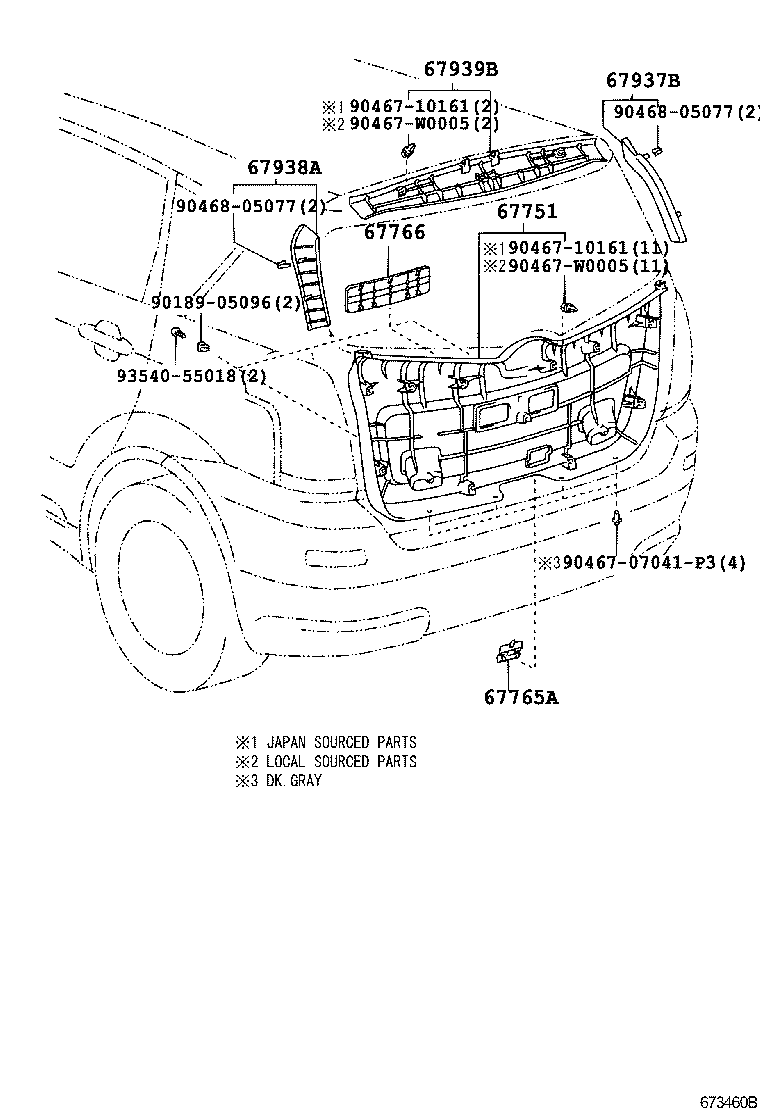

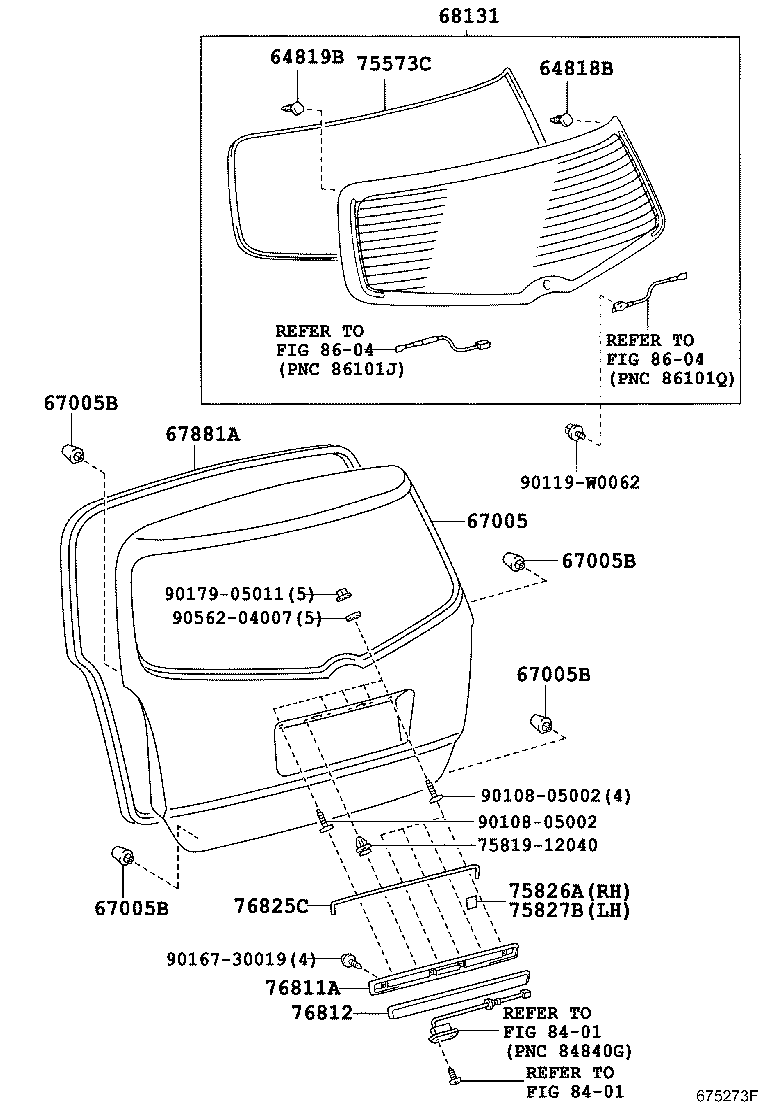

Figure 673453G 673453G 2004-02 → 2007-05 Figure 673453G 673453G 2007-05 → — Figure 675273F 675273F 2007-05 → — Figure 673460B 673460B 2004-02 → —

Part groups

PNCDescription
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67751 Board, Back Door Trim
67765A Cover, Back Door Service Hole, NO.1
67766 Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
68131 Glass, Back Door
75573C Moulding, Back Window, Outside
75826A Pad, Back Door Outside Moulding, RH
75827B Pad, Back Door Outside Moulding, LH
76811A Garnish, Back Door, Outside
76812 Garnish, Back Door, Outside Lower
76825C Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
