Toyota Corolla Verso
2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe
Supported model
Data version 2009-07

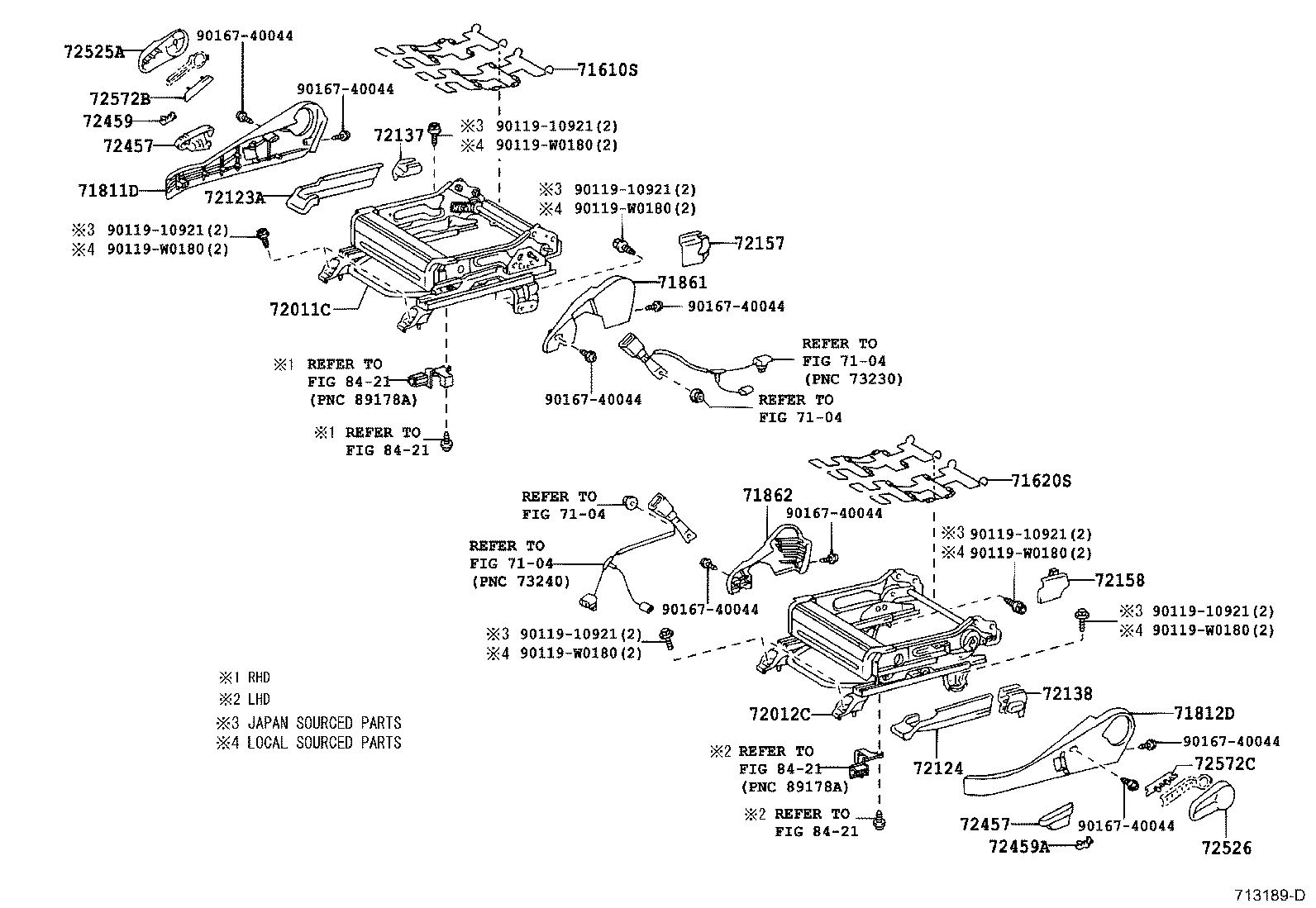

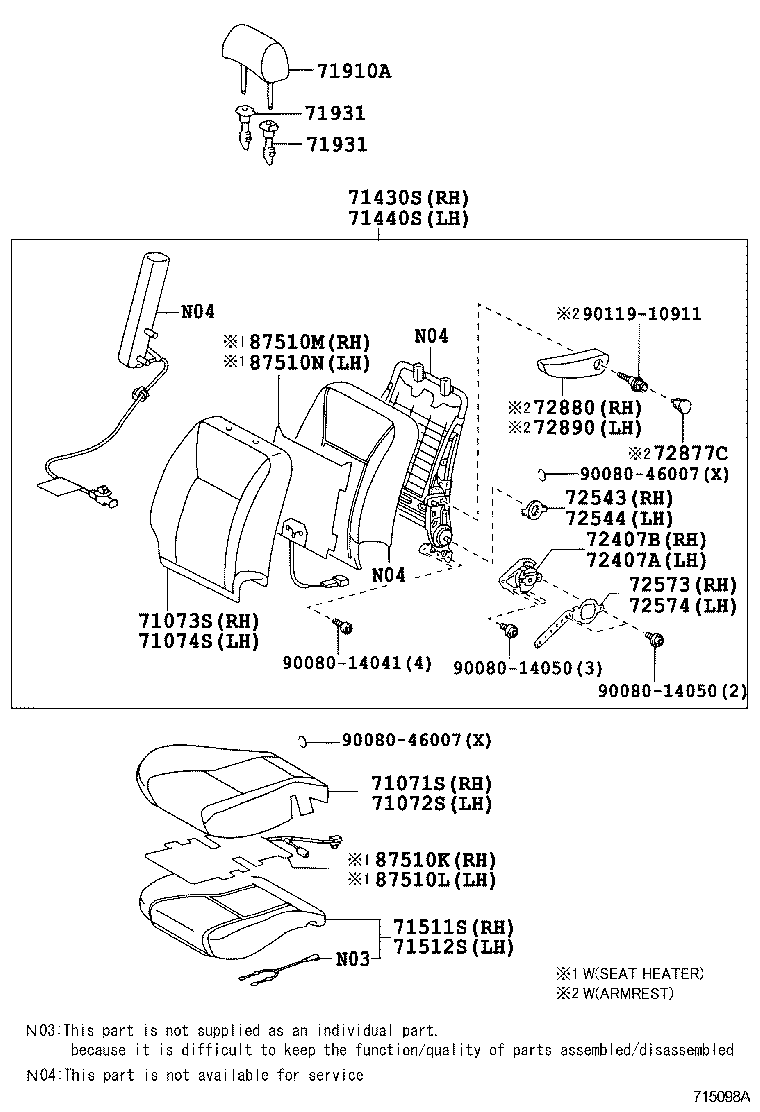

Front Seat & Seat Track
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72407A | Housing Sub-assy, Front Seat Reclining, LH |
| 72407B | Housing Sub-assy, Front Seat Reclining RH |
| 72457 | Knob, Vertical Seat Adjuster |
| 72459 | Cap, Vertical Seat Adjuster Knob |
| 72459A | Cap, Vertical Seat Adjuster Knob |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72543 | Plate, Reclining Control, RH |
| 72544 | Plate, Reclining Control, LH |
| 72572B | Cap, Reclining Adjuster Knob, RH |
| 72572C | Cap, Reclining Adjuster Knob, LH |
| 72573 | Lever, Reclining Control, RH |
| 72574 | Lever, Reclining Control, LH |
| 72877C | Cover, Seat Armrest |
| 72880 | Armrest Assy, Seat, C RH |
| 72890 | Armrest Assy, Seat, C LH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
