Toyota Corolla Verso
2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe
Supported model
Data version 2009-07

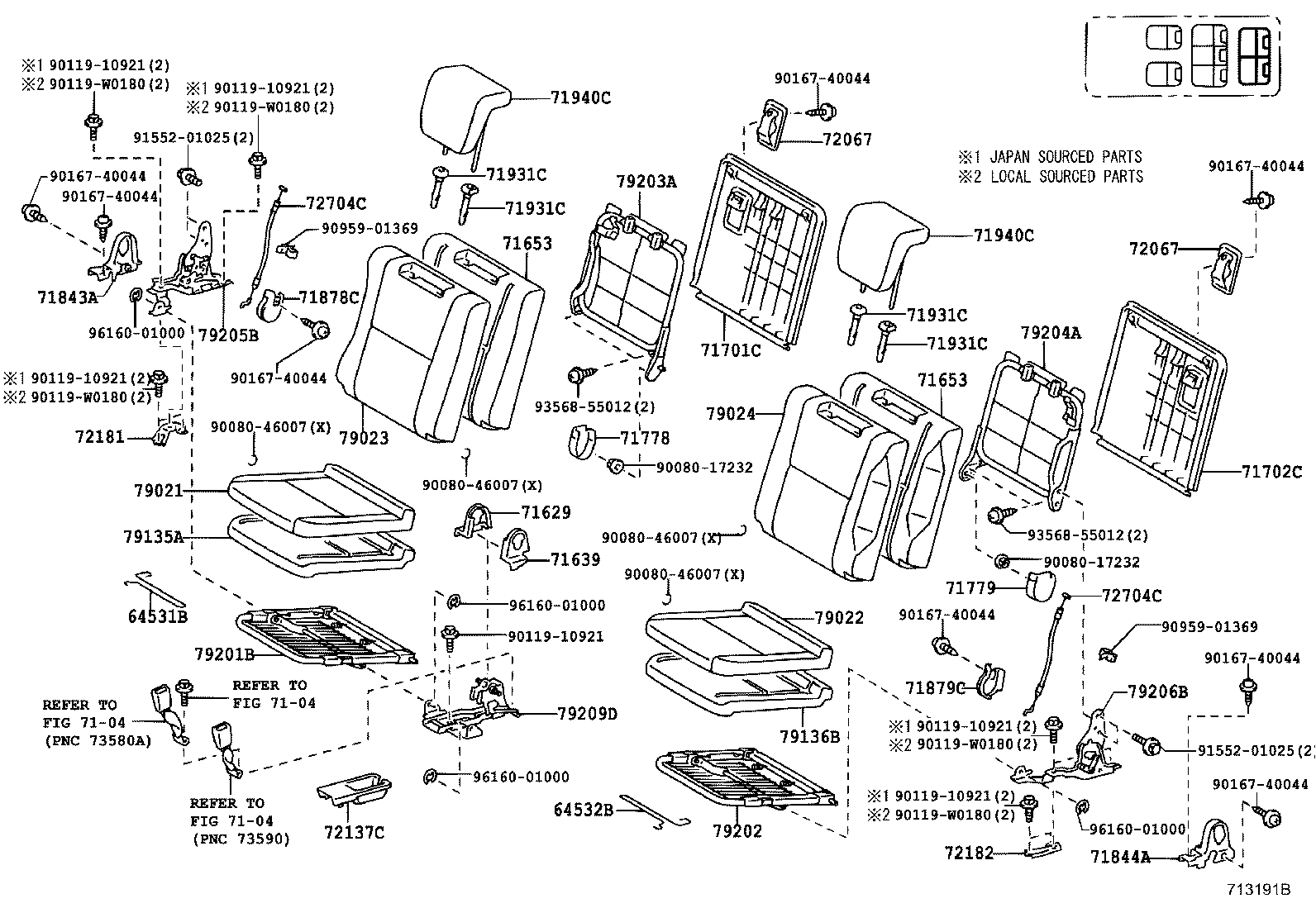

Rear Seat & Seat Track
69 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64531B | Bar, Hinge Torsion, RH |
| 64532B | Bar, Hinge Torsion, LH |
| 71031S | Cover Sub-assy, Center Seat Cushion |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71095S | Cover Sub-assy, Center Seatback |
| 71358 | Pad, Center Seatback |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71614 | Pad, Rear Seat Cushion, Center |
| 71629 | Cover, Rear Seat Cushion Hinge |
| 71639 | Cover, Rear Seat Cushion Hinge, LH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71653 | Pad, Rear NO.2 Seatback |
| 71701B | Board Sub-assy, Rear Seatback, RH |
| 71701C | Board Sub-assy, Rear Seatback, RH |
| 71702B | Board Sub-assy, Rear Seatback, LH |
| 71702C | Board Sub-assy, Rear Seatback, LH |
| 71703B | Board, Rear Seatback, Center |
| 71778 | Cover, Rear Seat Side Hinge Male, RH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71878C | Cover, Rear Seat Reclining, Inner RH |
| 71879C | Cover, Rear Seat Reclining, Inner LH |
| 71931A | Support, Rear Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71940C | Headrest Assy, Rear NO.1 Seat, RH |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72030 | Adjuster Assy, Rear NO.1 Seat |
| 72040 | Adjuster Assy, Rear NO.2 Seat |
| 72050B | Adjuster, Rear NO.1 Seat, Center |
| 72067 | Lever Sub-assy, Rear Back Lock Control, RH |
| 72067A | Lever, Rear Back Lock Control, Center |
| 72068 | Lever Sub-assy, Rear Back Lock Control, LH |
| 72123C | Cover, Seat Track Bracket, Outer Front RH |
| 72127G | Cover, Seat Track Bracket, Inner Front RH |
| 72137C | Cover, Seat Track Inner, RH |
| 72137D | Cover, Rear Seat Track, RH |
| 72138A | Cover, Rear Seat Track, LH |
| 72157B | Cover, Rear Seat Track Bracket, Inner RH |
| 72181 | Bracket, Rear Outer Seat Track, Lower Front RH |
| 72182 | Bracket, Rear Outer Seat Track, Lower Front LH |
| 72704C | Cable, Rear NO.2 Seat Reclining Control |
| 72727A | Knob, Rear Seat Reclining Control Lever |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79135A | Pad, NO.1 Seat Cushion, RH |
| 79136B | Pad, NO.1 Seat Cushion, LH |
| 79201B | Frame Sub-assy, NO.2 Seat Cushion, RH |
| 79202 | Frame Sub-assy, NO.2 Seat Cushion, LH |
| 79203A | Frame Sub-assy, NO.2 Seatback, RH |
| 79204A | Frame Sub-assy, NO.2 Seatback, LH |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79206B | Leg Sub-assy, NO.2 Seat, LH |
| 79209D | Leg Sub-assy, NO.2 Seat, Inner |
| 79895 | Spring, Rear NO.1 Seatback |
| 79956B | Cover, Rear Seat Leg Side, RH |
| 79956C | Cover, Rear Seat Leg Side, LH |
| 79959A | Cover, Rear Seat Leg, RH |
| 79959B | Cover, Rear Seat Leg, LH |
| 79965A | Cover, Rear Seat Leg Side, NO.2 |
| 79965B | Cover, Rear Seat Leg Side, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
