Toyota Corolla Verso
2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe
Supported model
Data version 2009-07

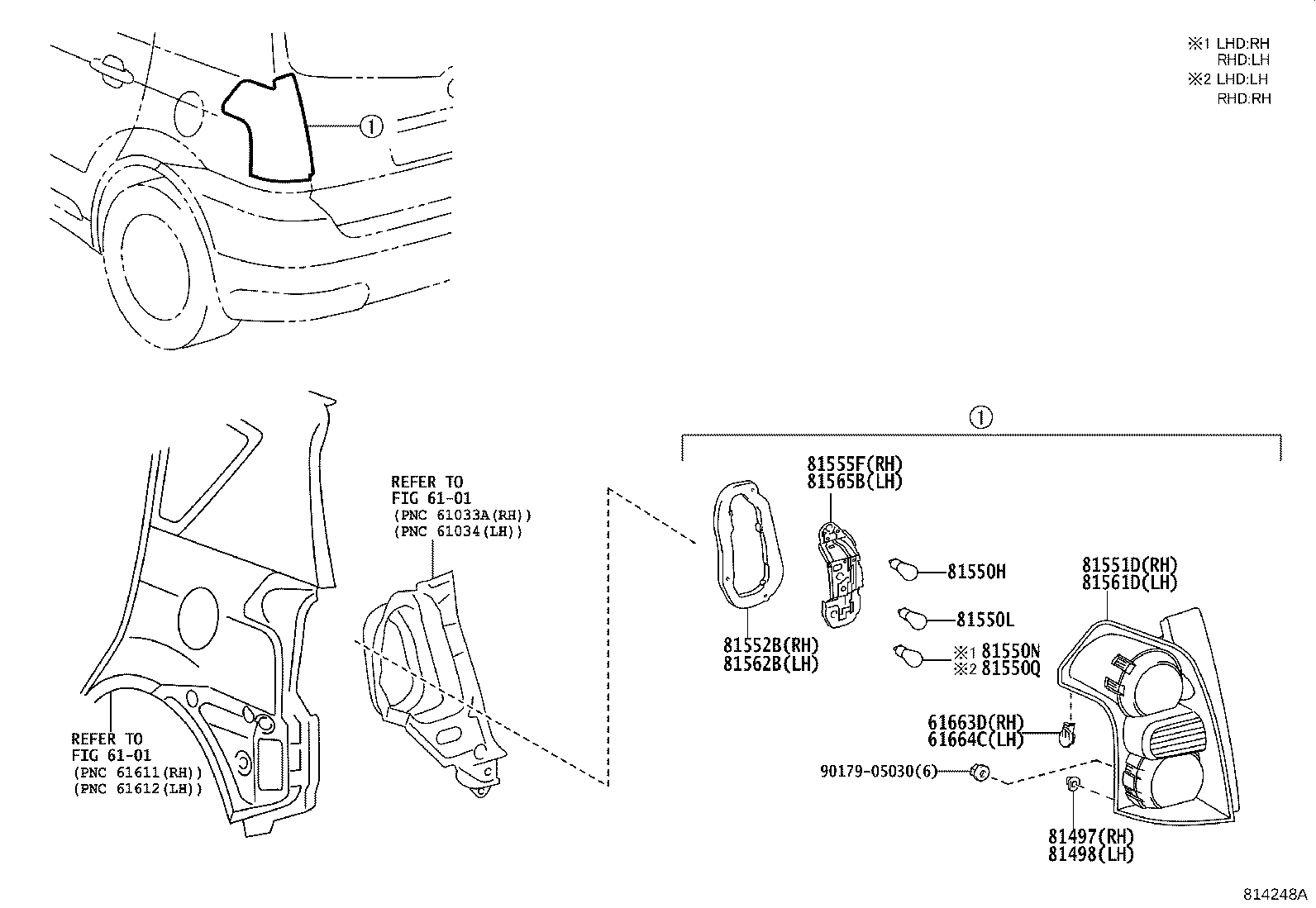

Rear Combination Lamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61663D | Support, Rear Combination Lamp, RH |
| 61664C | Support, Rear Combination Lamp, LH |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550D | Bulb(FOR REAR COMBINATION LAMP) |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552B | Packing, Rear Combination Lamp Body, RH |
| 81555F | Holder, Rear Combination Lamp Bulb, RH |
| 81558 | Shade, Rear Combination Lamp, NO.1 RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562B | Packing, Rear Combination Lamp Body, LH |
| 81565B | Holder, Rear Combination Lamp Bulb, LH |
| 81568 | Shade, Rear Combination Lamp, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
