Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 17 illustrations

Illustrations

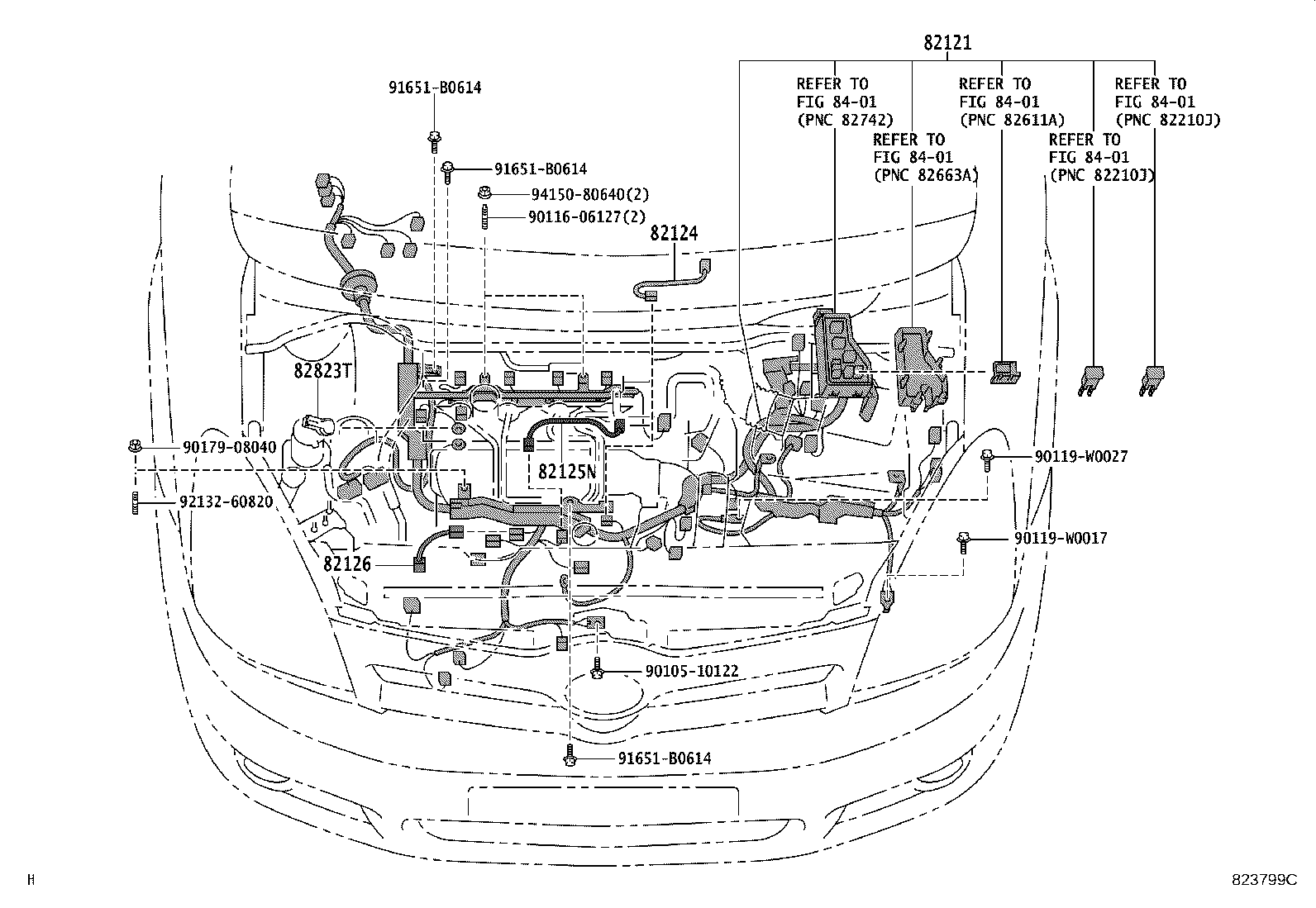

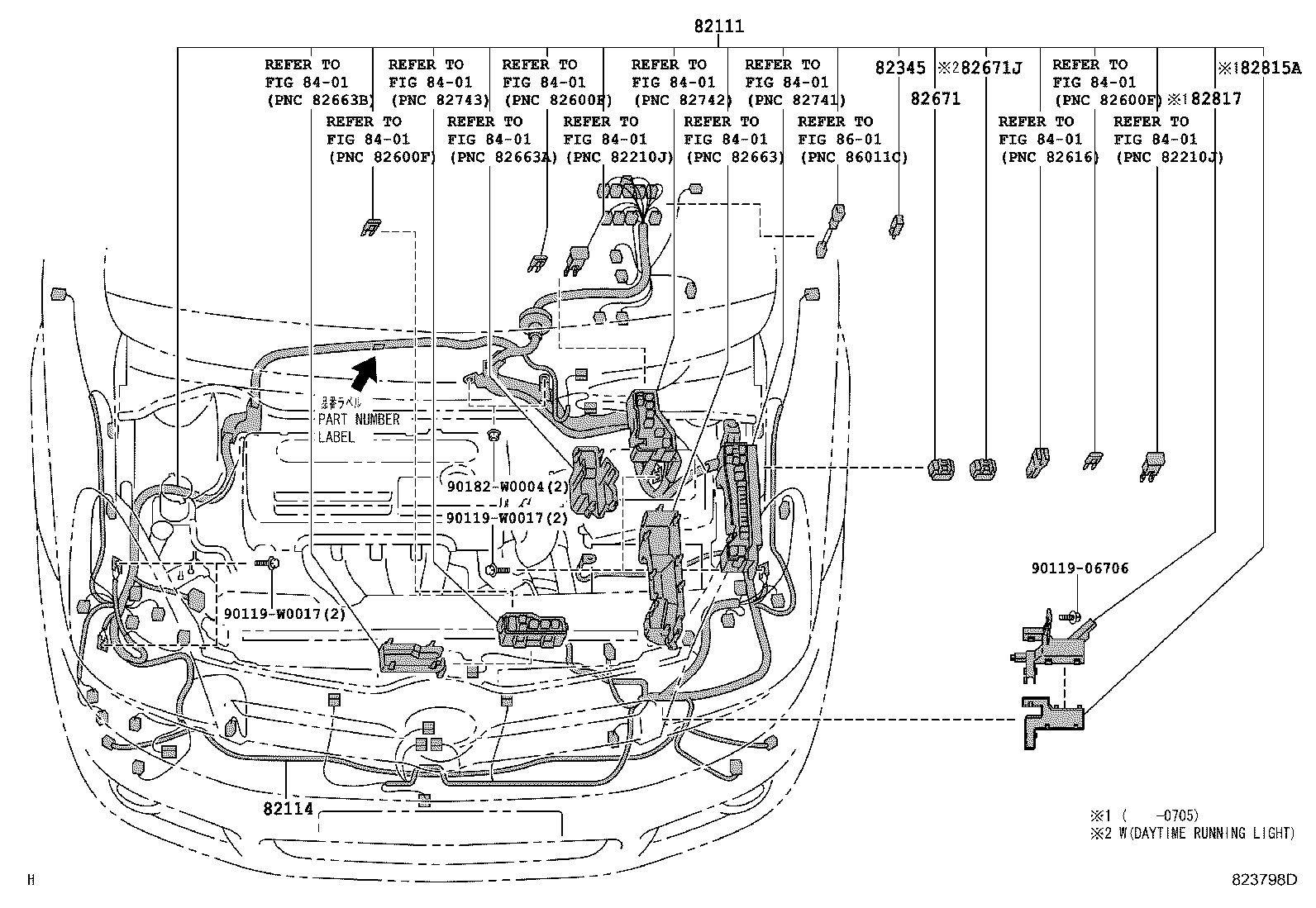

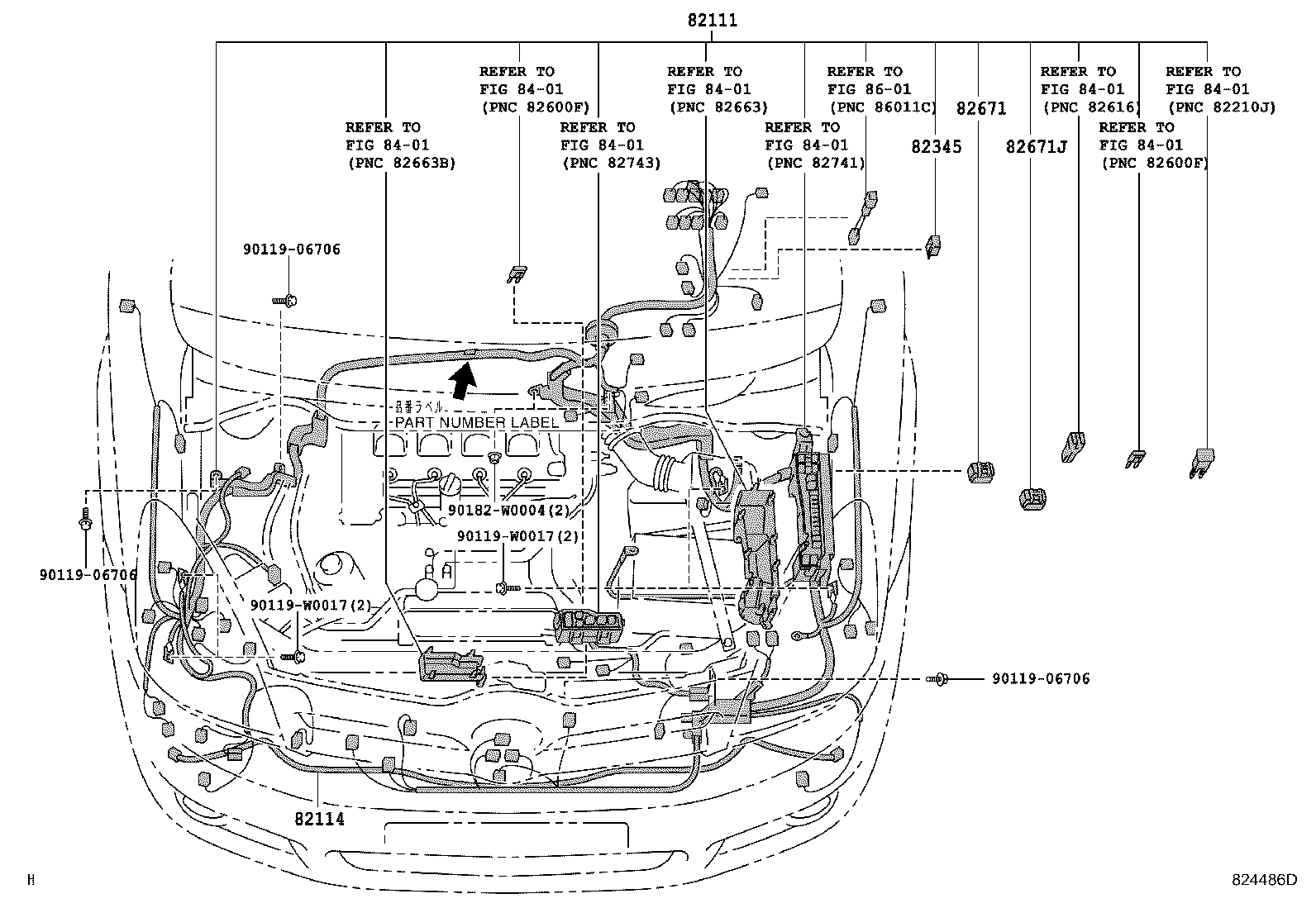

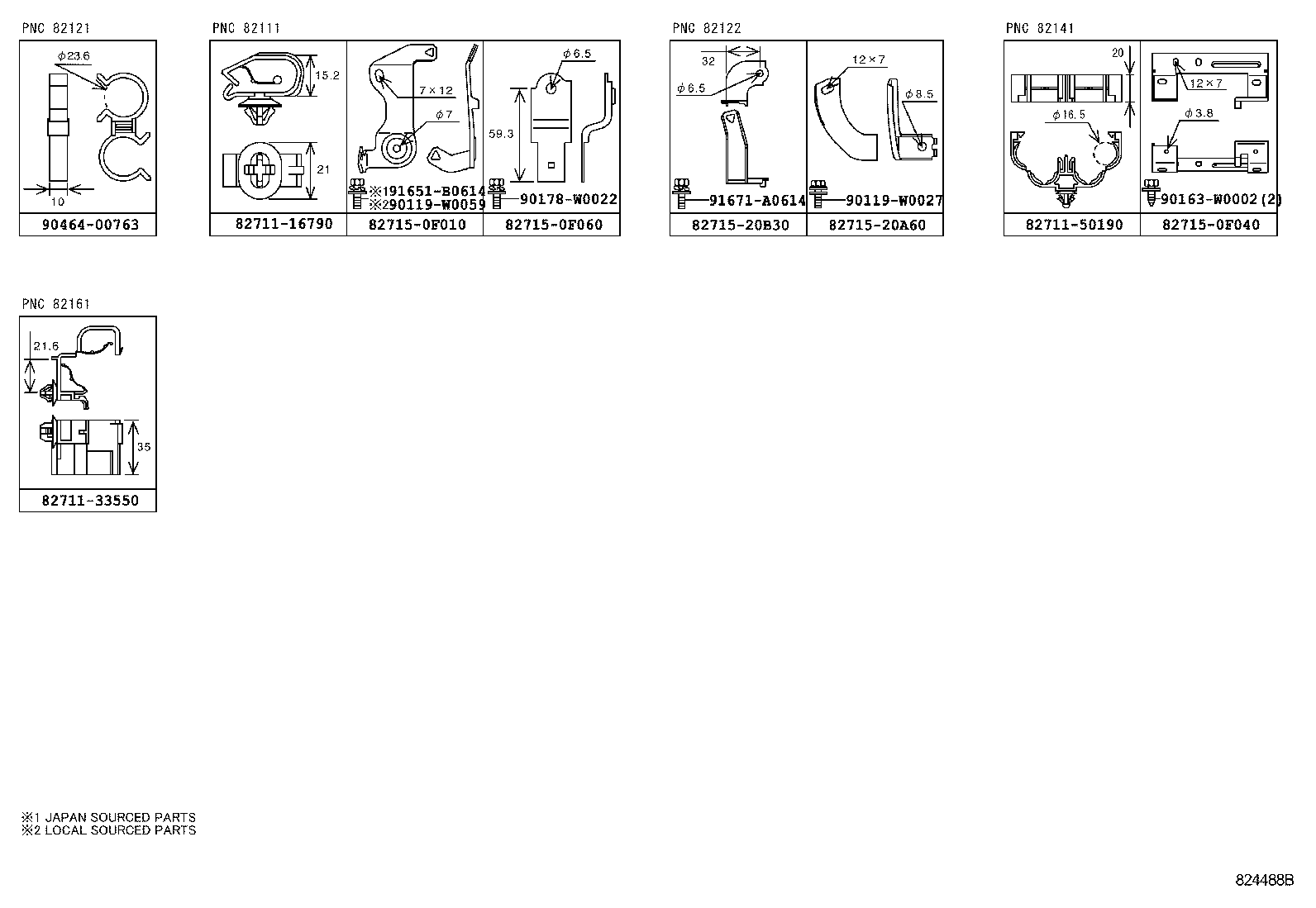

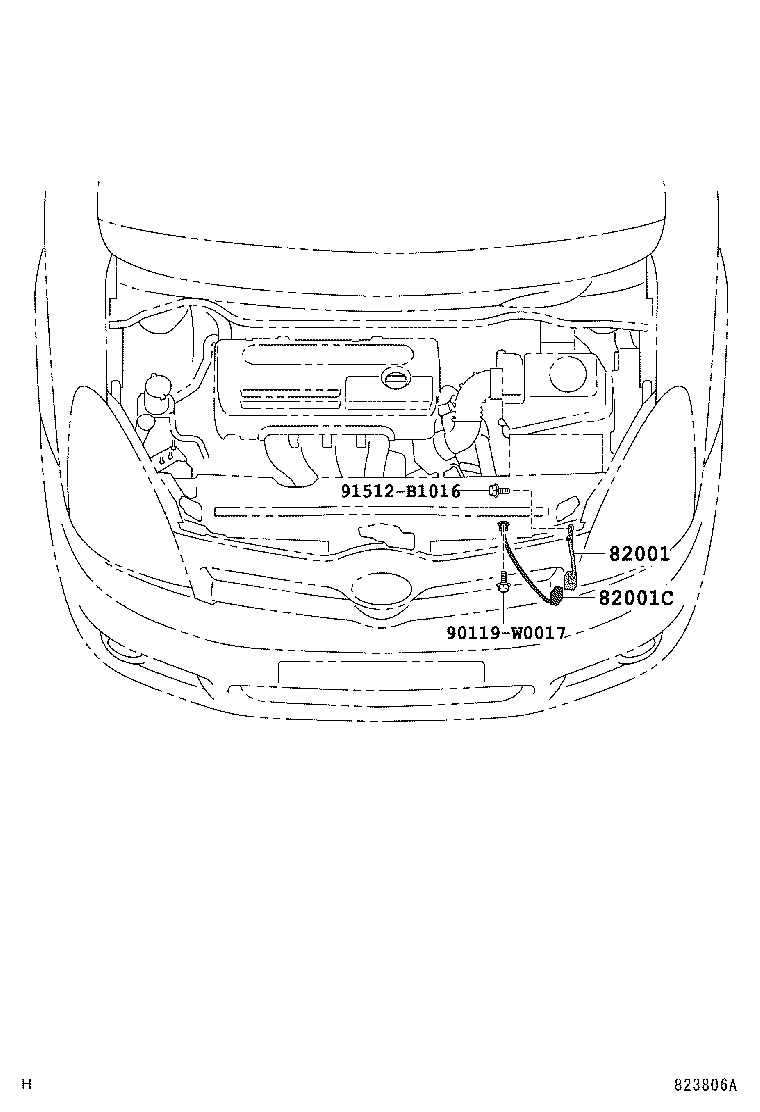

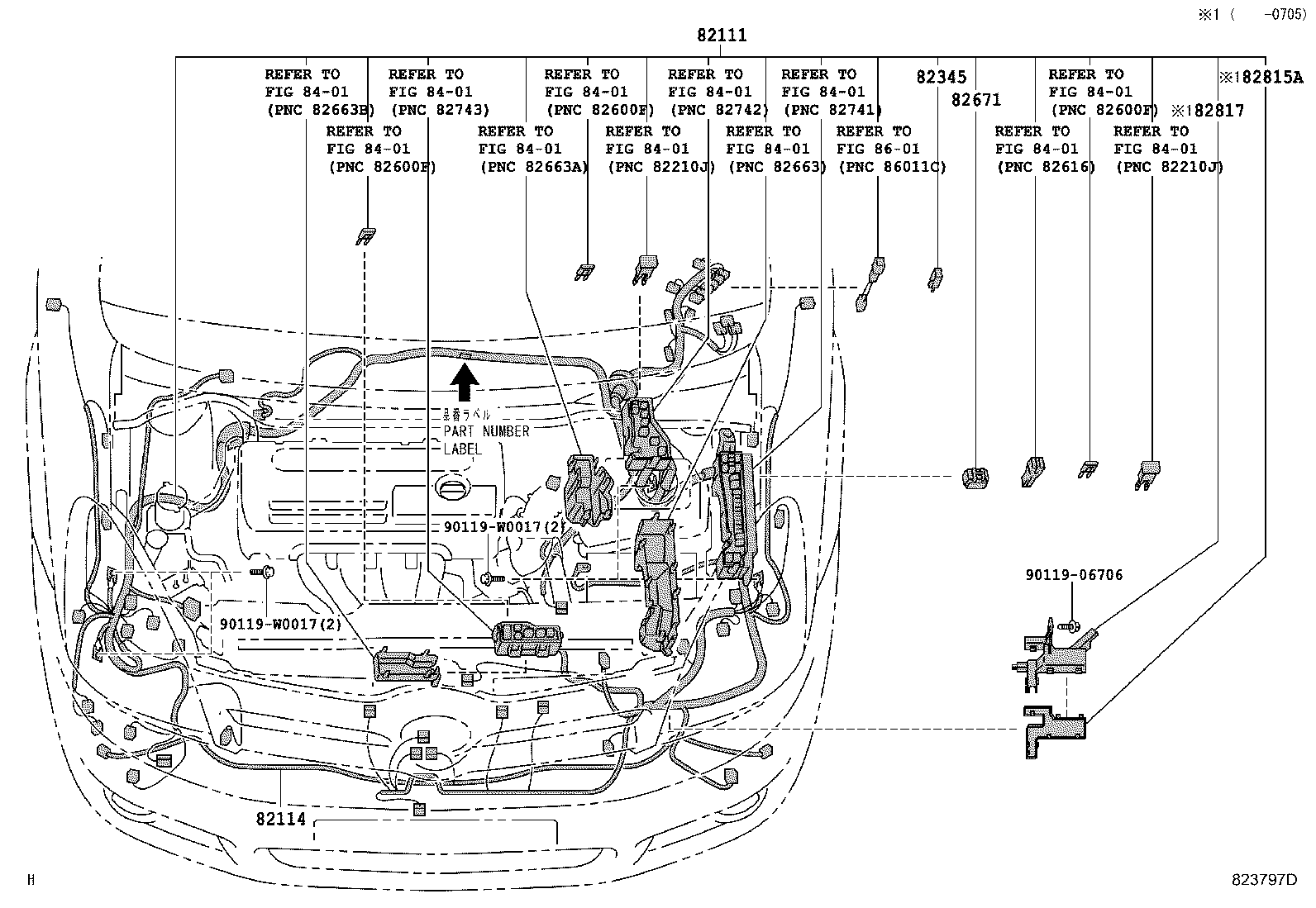

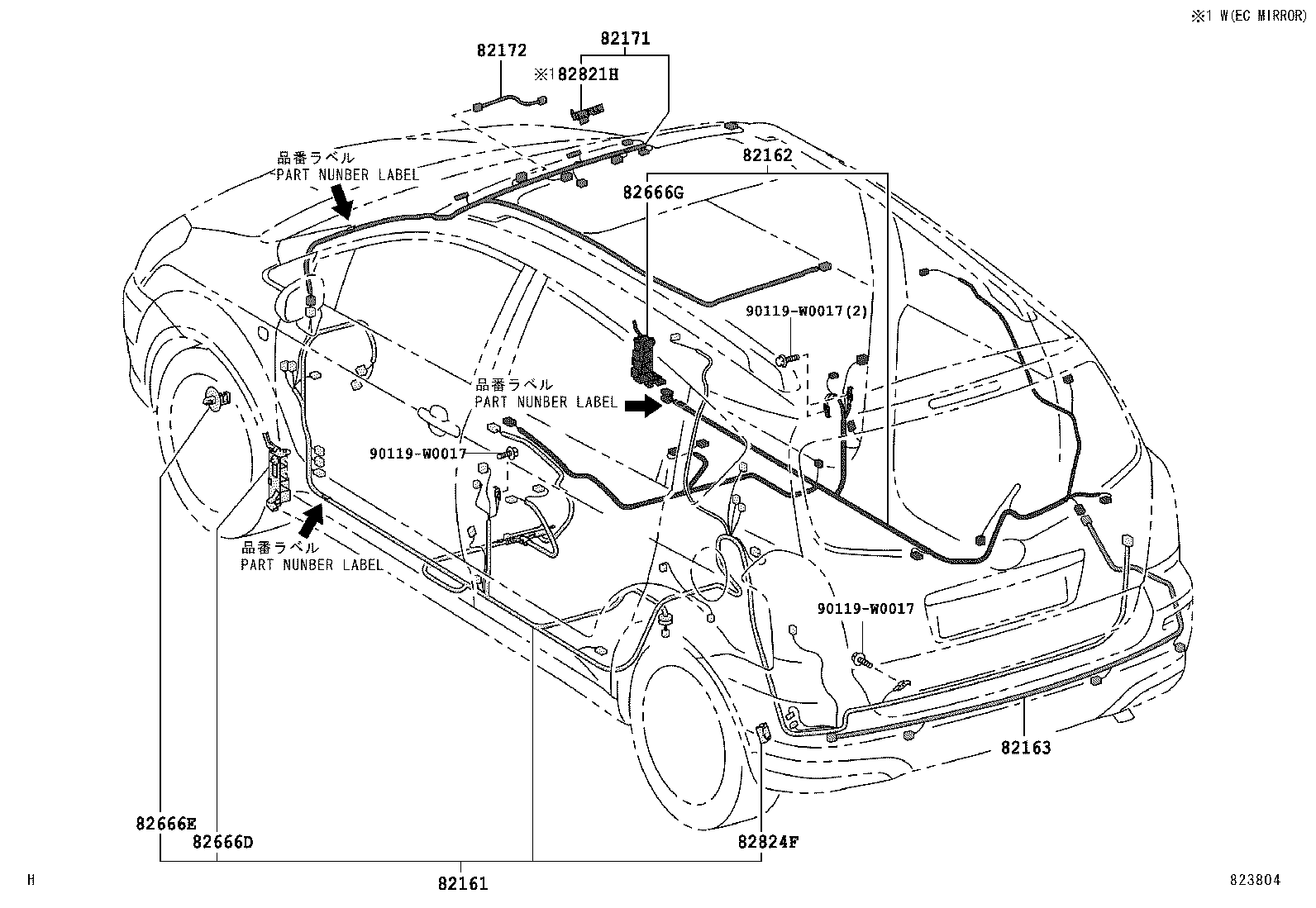

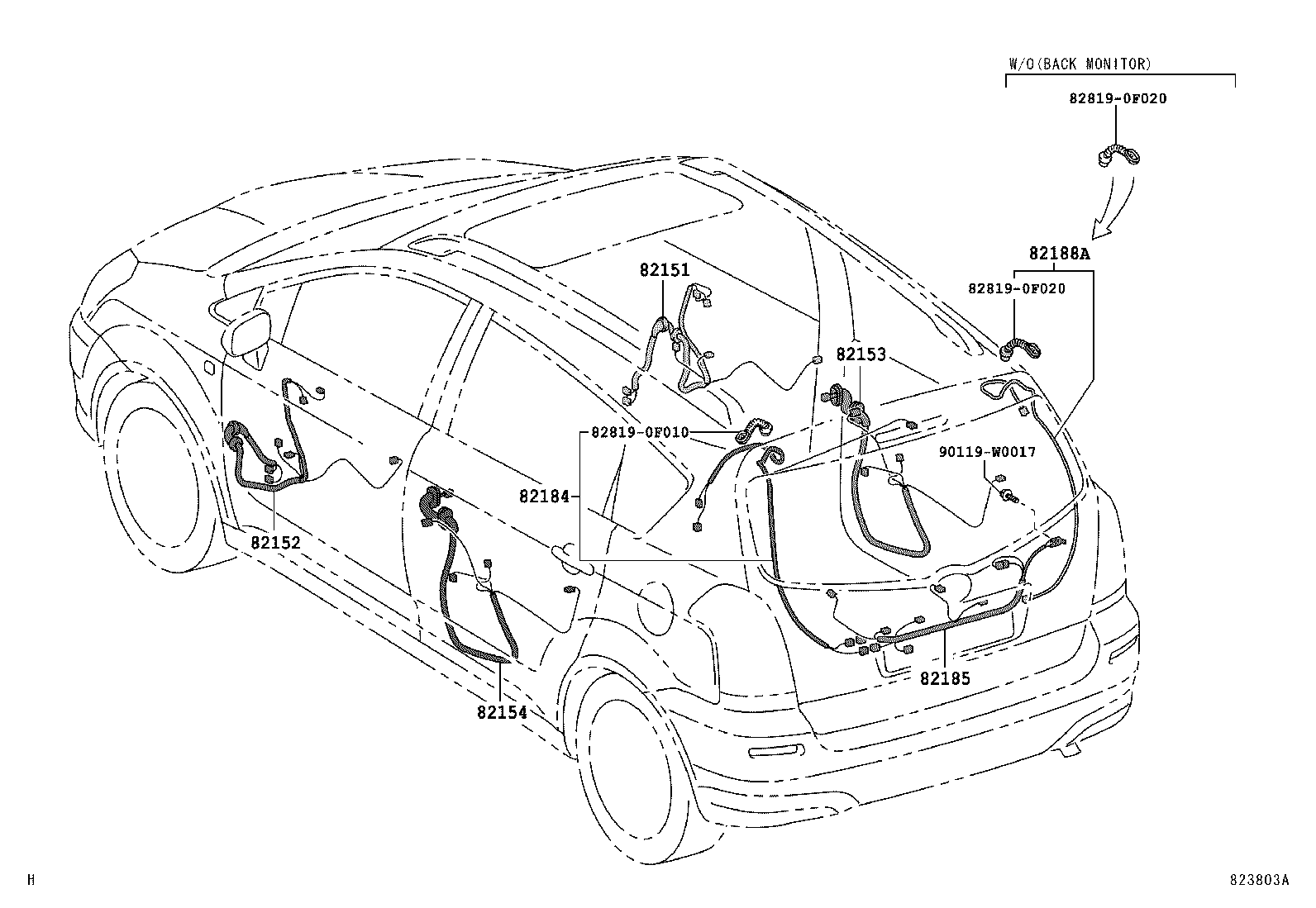

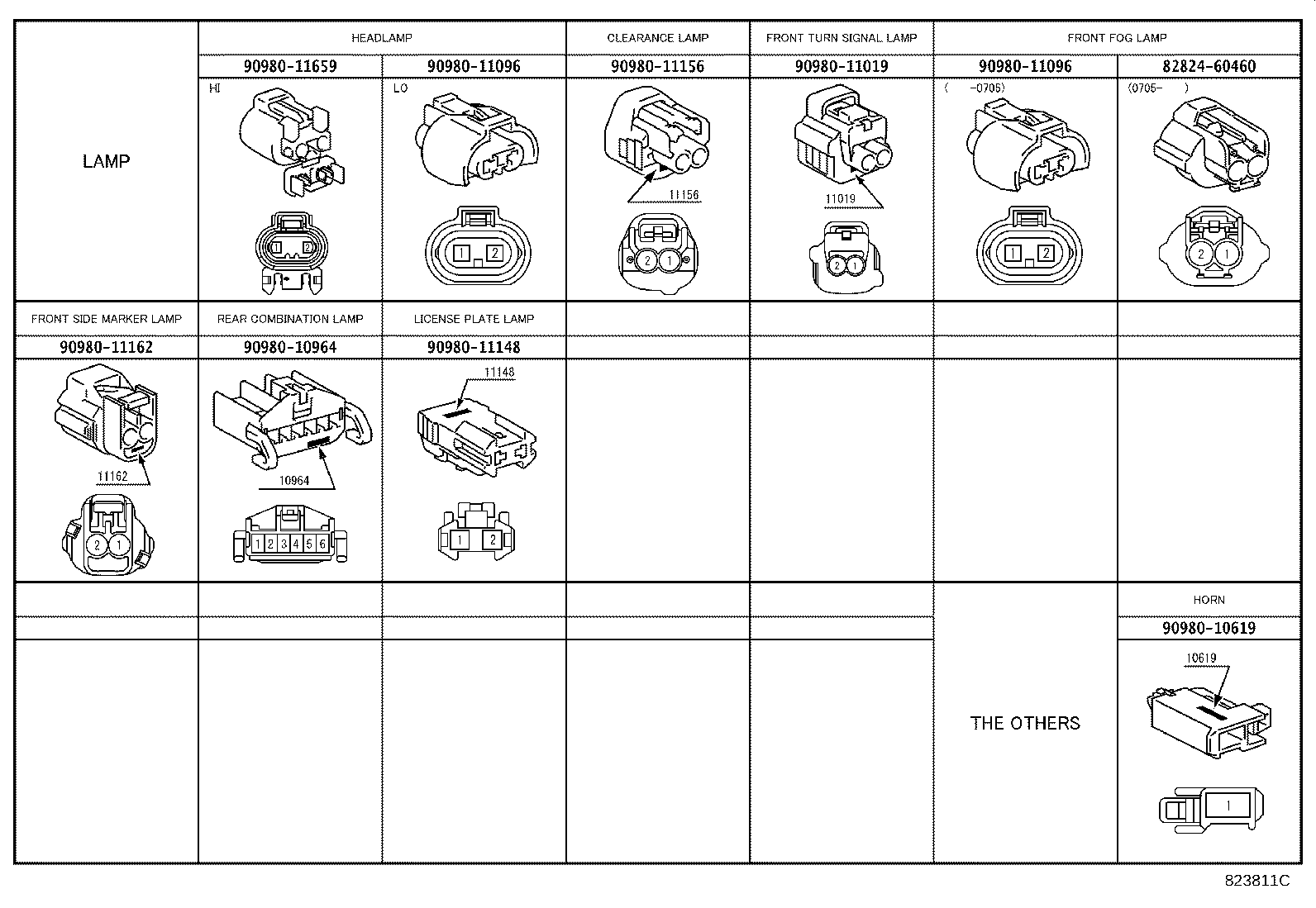

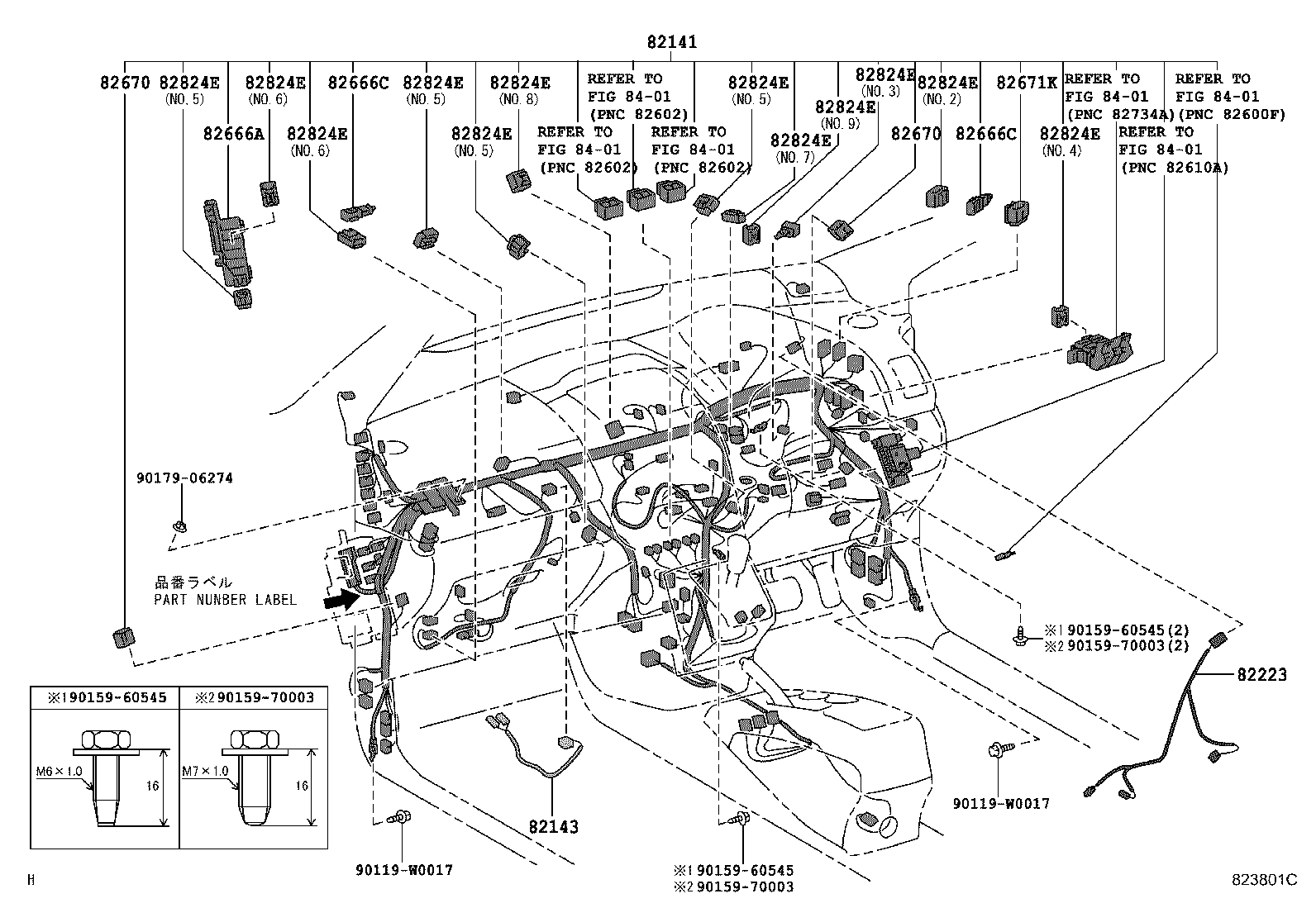

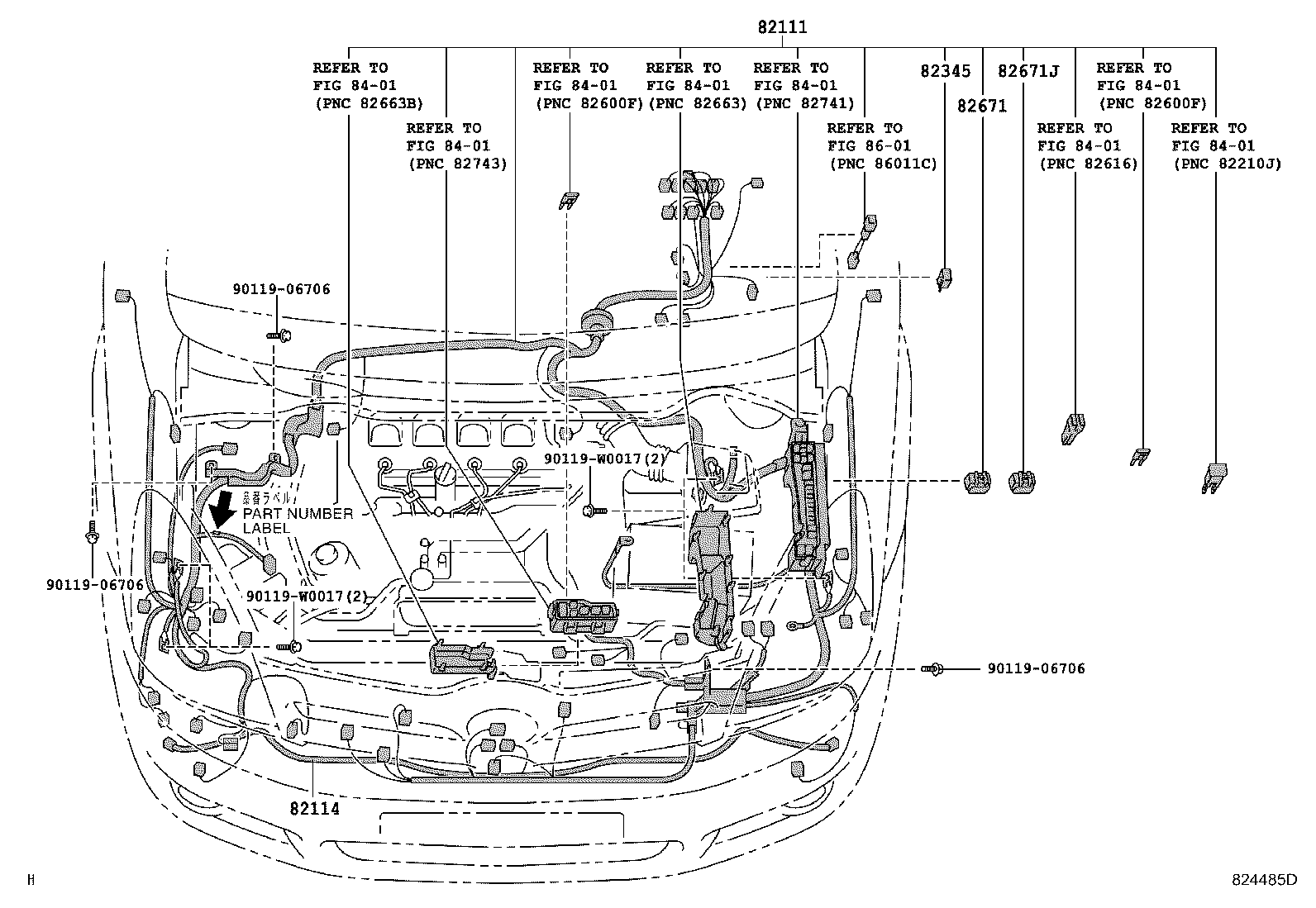

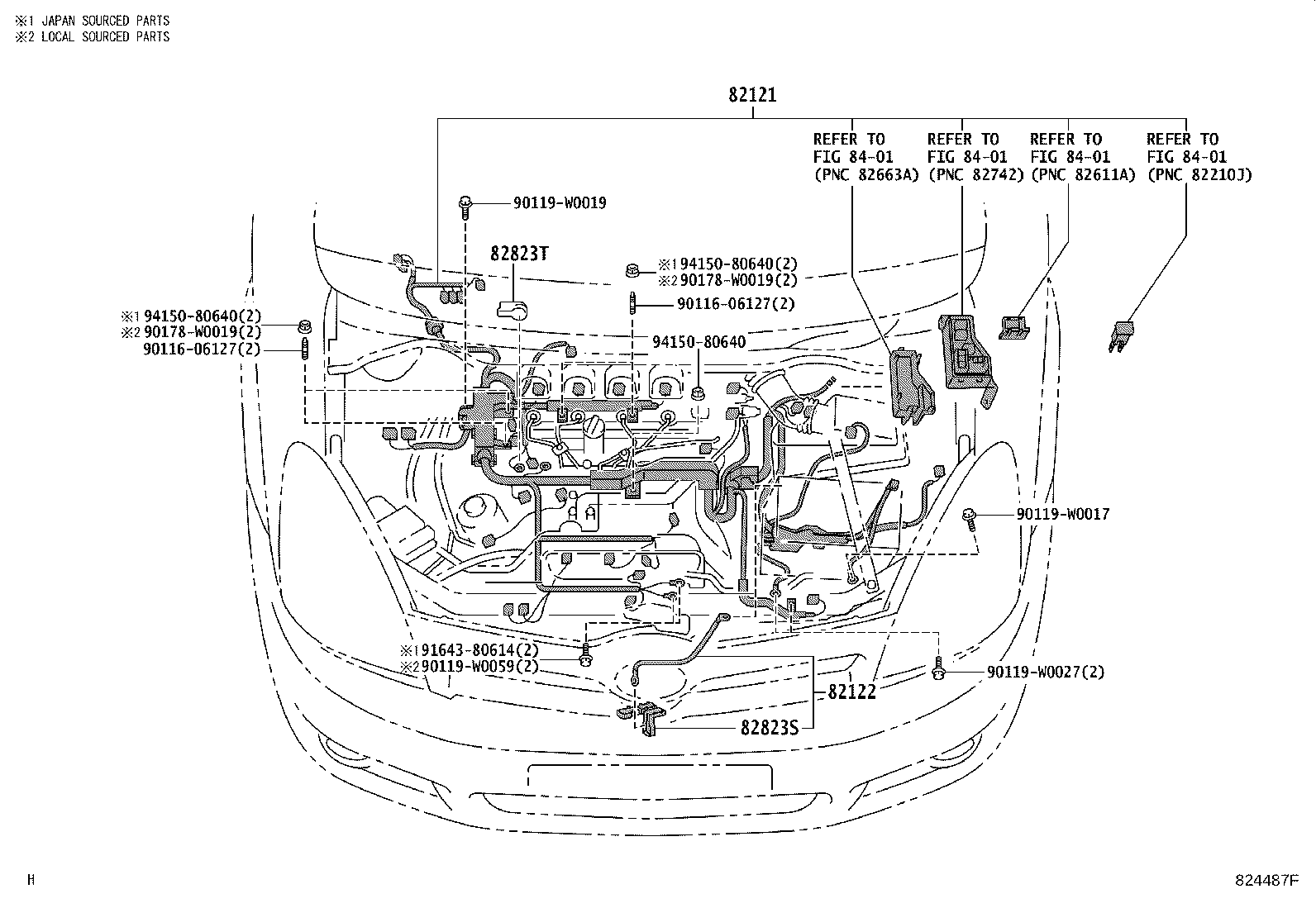

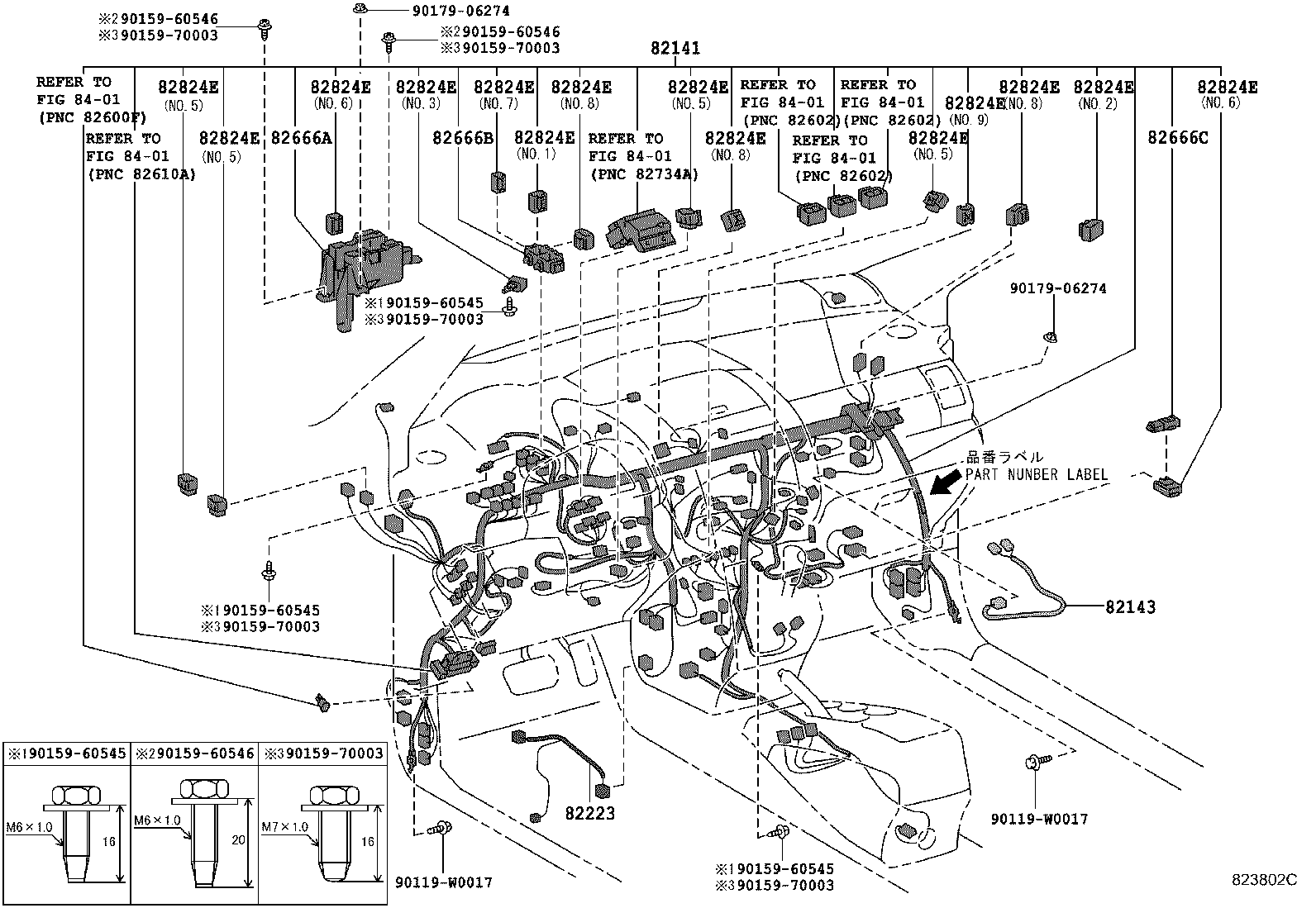

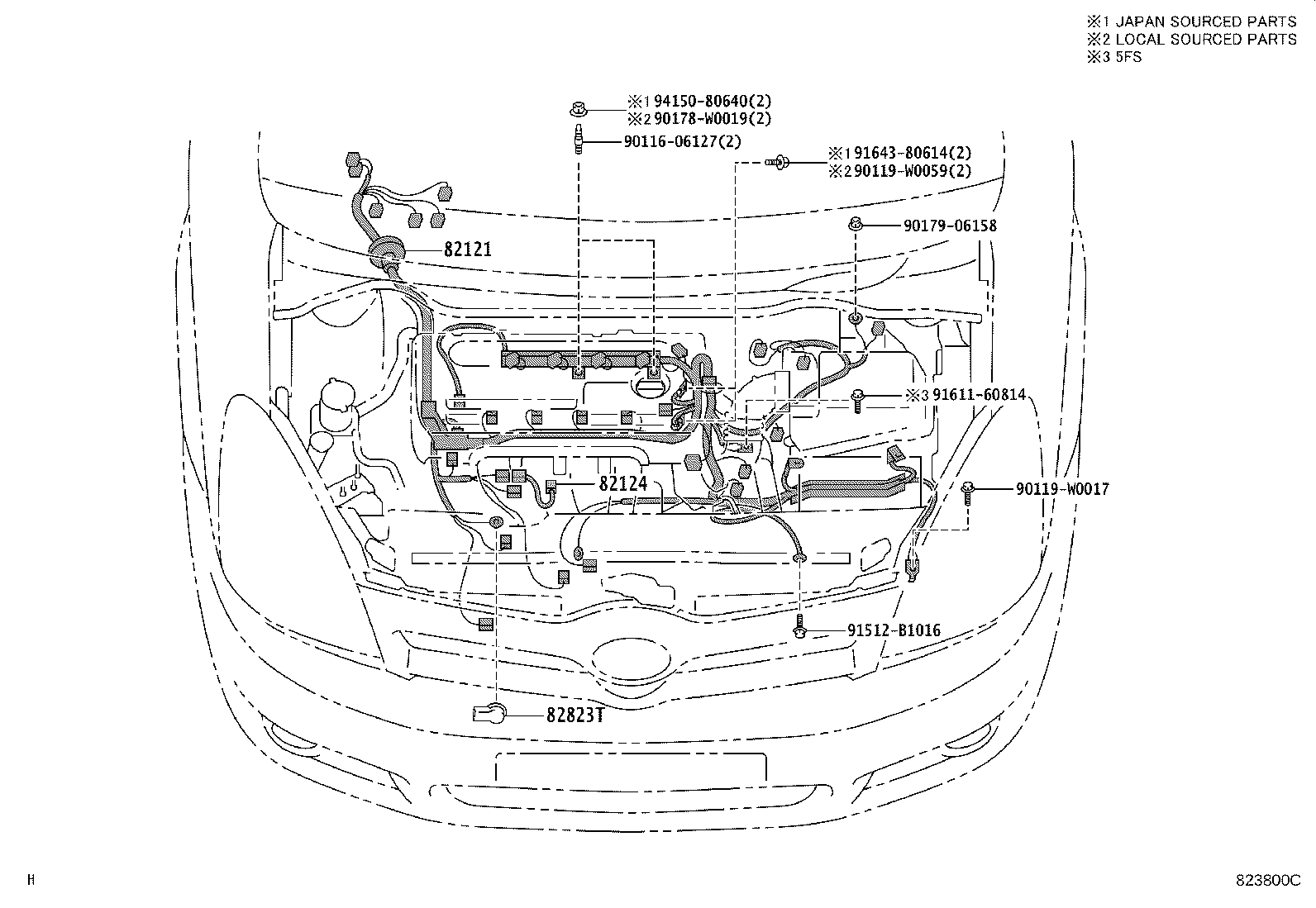

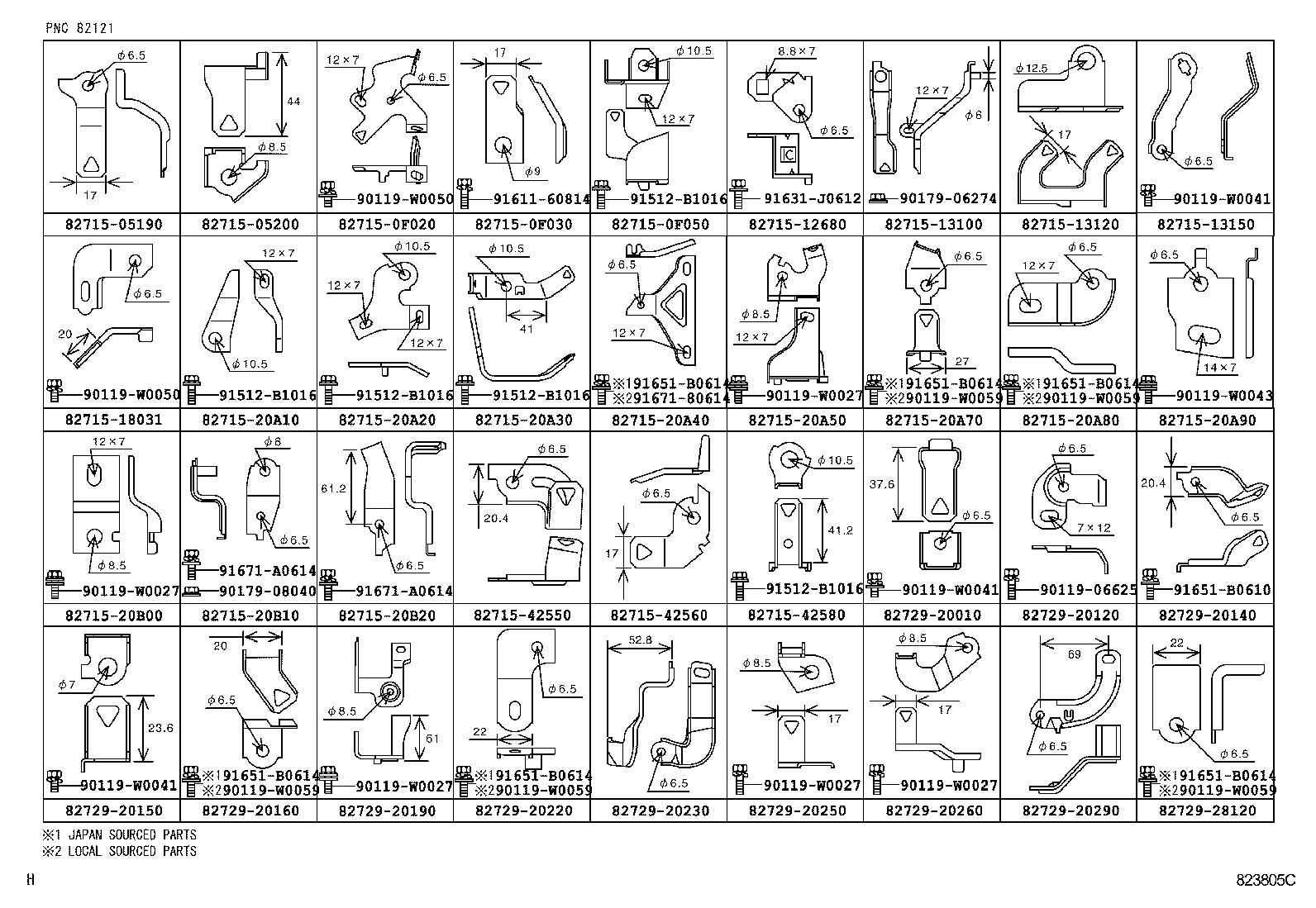

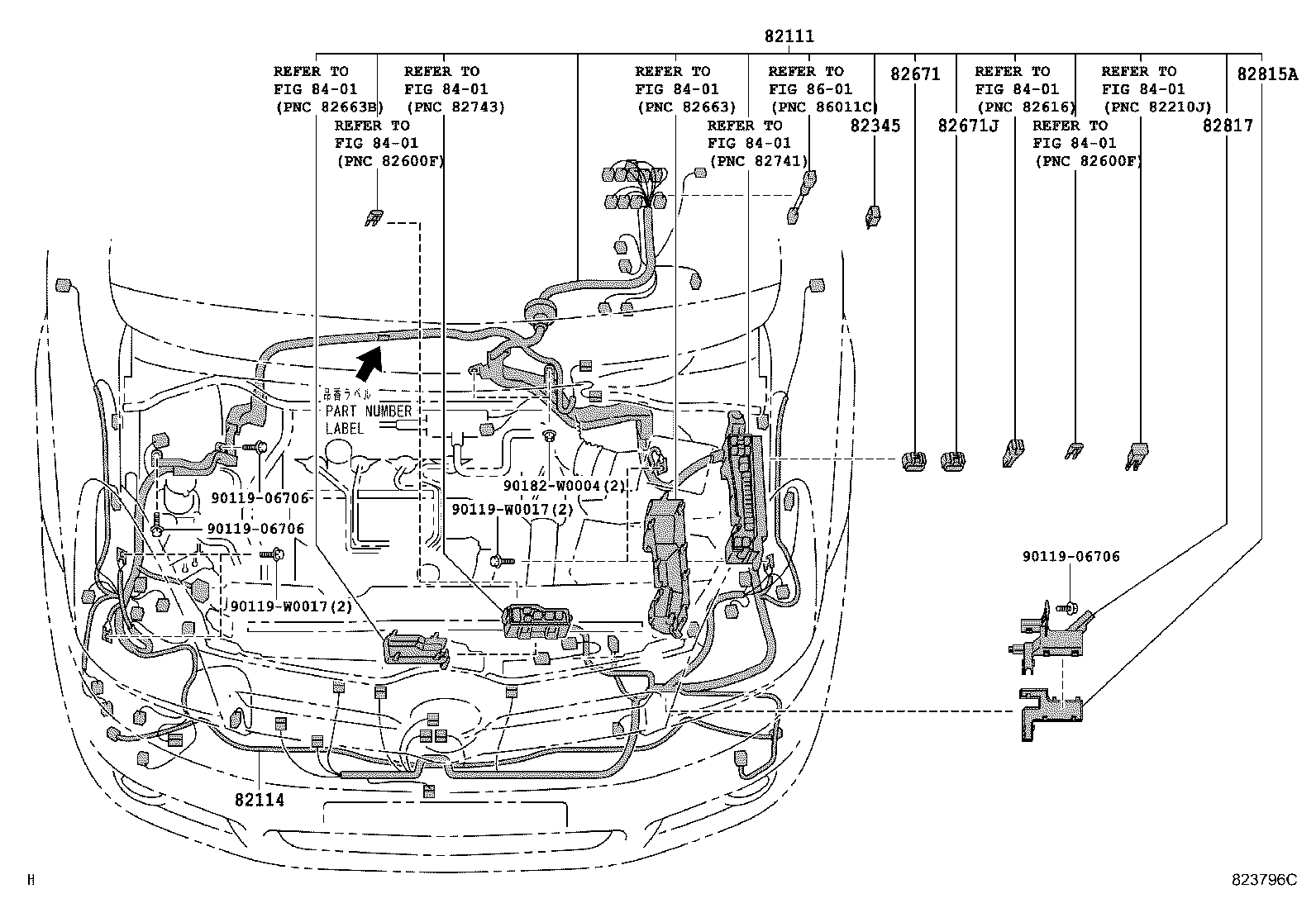

Figure 823795C 823795C 2004-02 → 2005-08 Figure 823796C 823796C 2004-02 → 2005-08 Figure 823797D 823797D 2004-02 → — Figure 823798D 823798D 2004-02 → — Figure 824485D 824485D 2005-08 → — Figure 824486D 824486D 2005-08 → — Figure 823799C 823799C 2004-02 → 2005-08 Figure 823800C 823800C 2004-02 → — Figure 824487F 824487F 2005-08 → — Figure 823801C 823801C 2004-02 → — Figure 823802C 823802C 2004-02 → — Figure 823803A 823803A 2004-02 → — Figure 823804C 823804C 2004-02 → — Figure 823805C 823805C 2004-02 → — Figure 824488B 824488B 2004-02 → — Figure 823806A 823806A 2004-02 → — Figure 823811C 823811C 2004-02 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82223 Wire, Switch
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666G Holder, Connector NO.8
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
