Toyota Corolla Verso
2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe
Supported model
Data version 2009-07
Switch & Relay & Computer
102 part groups · 13 illustrations
Illustrations
Part groups

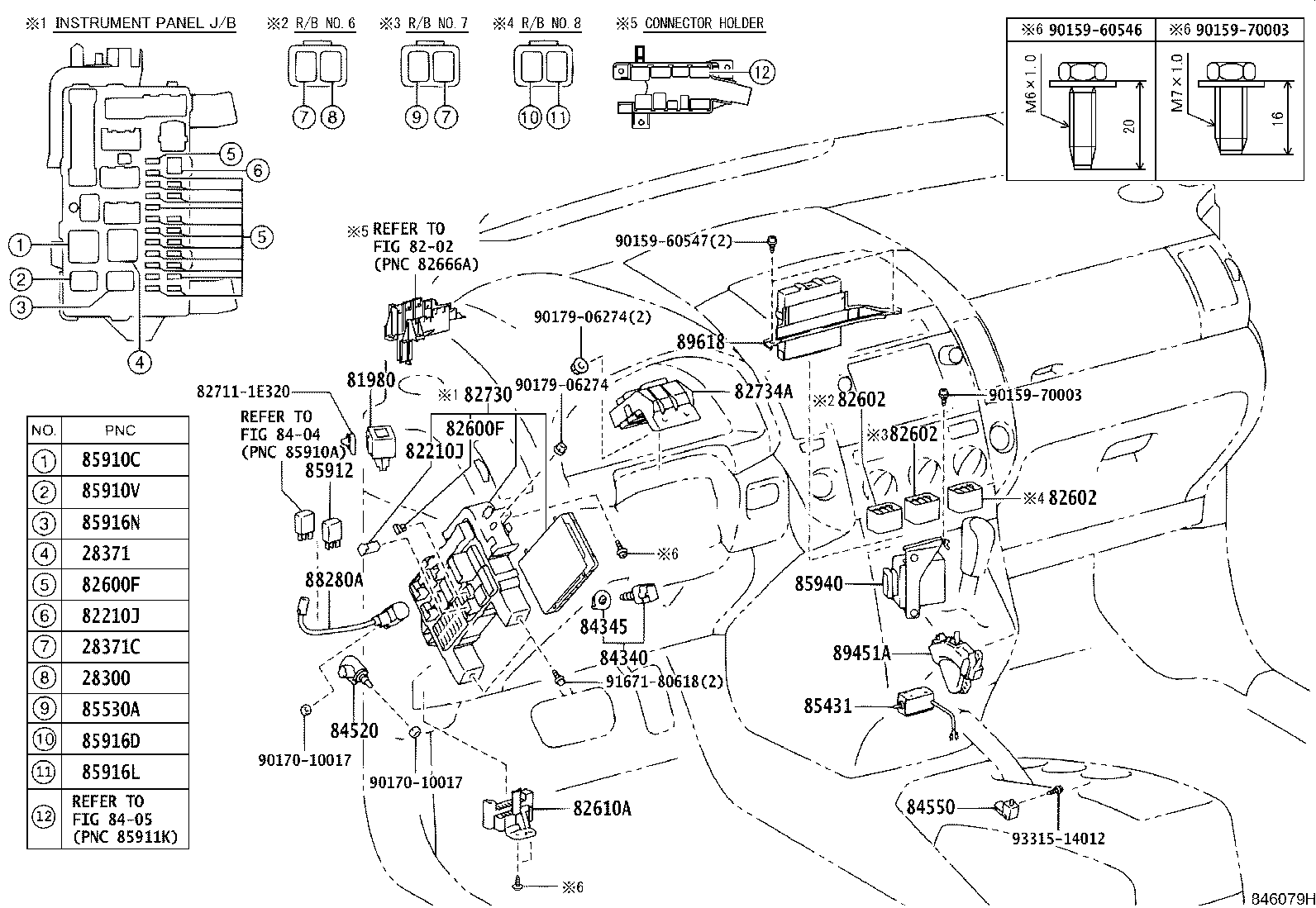

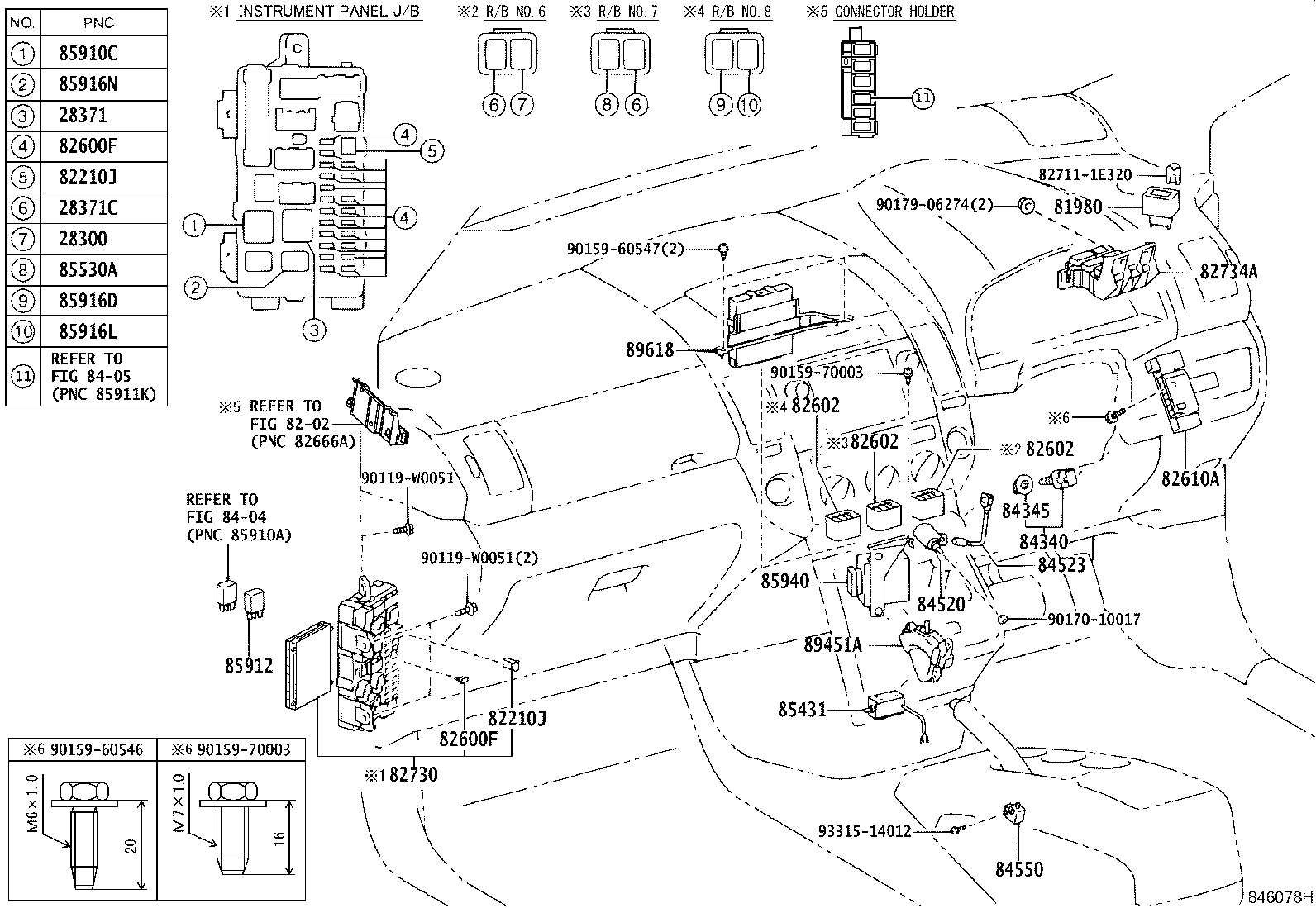

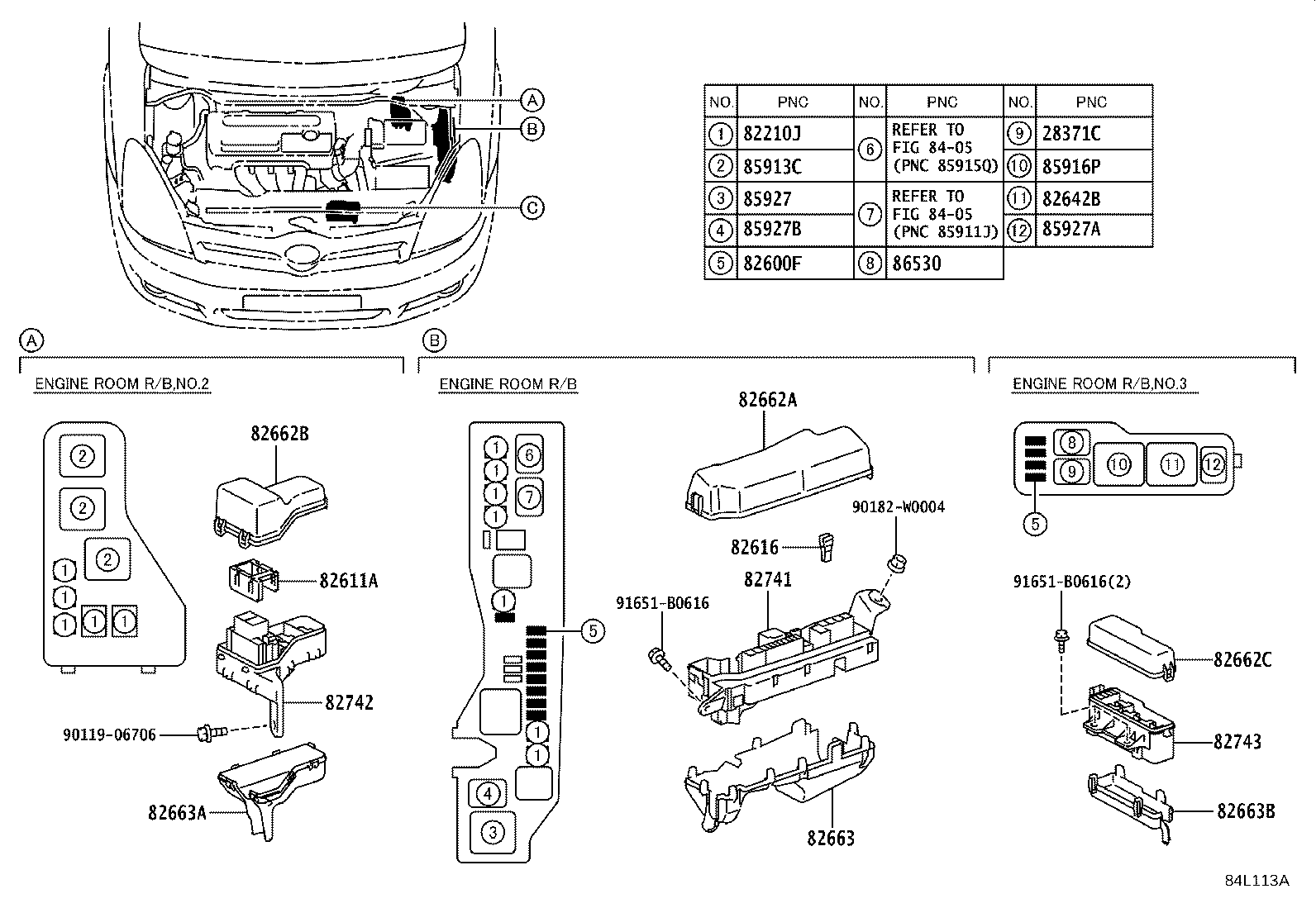

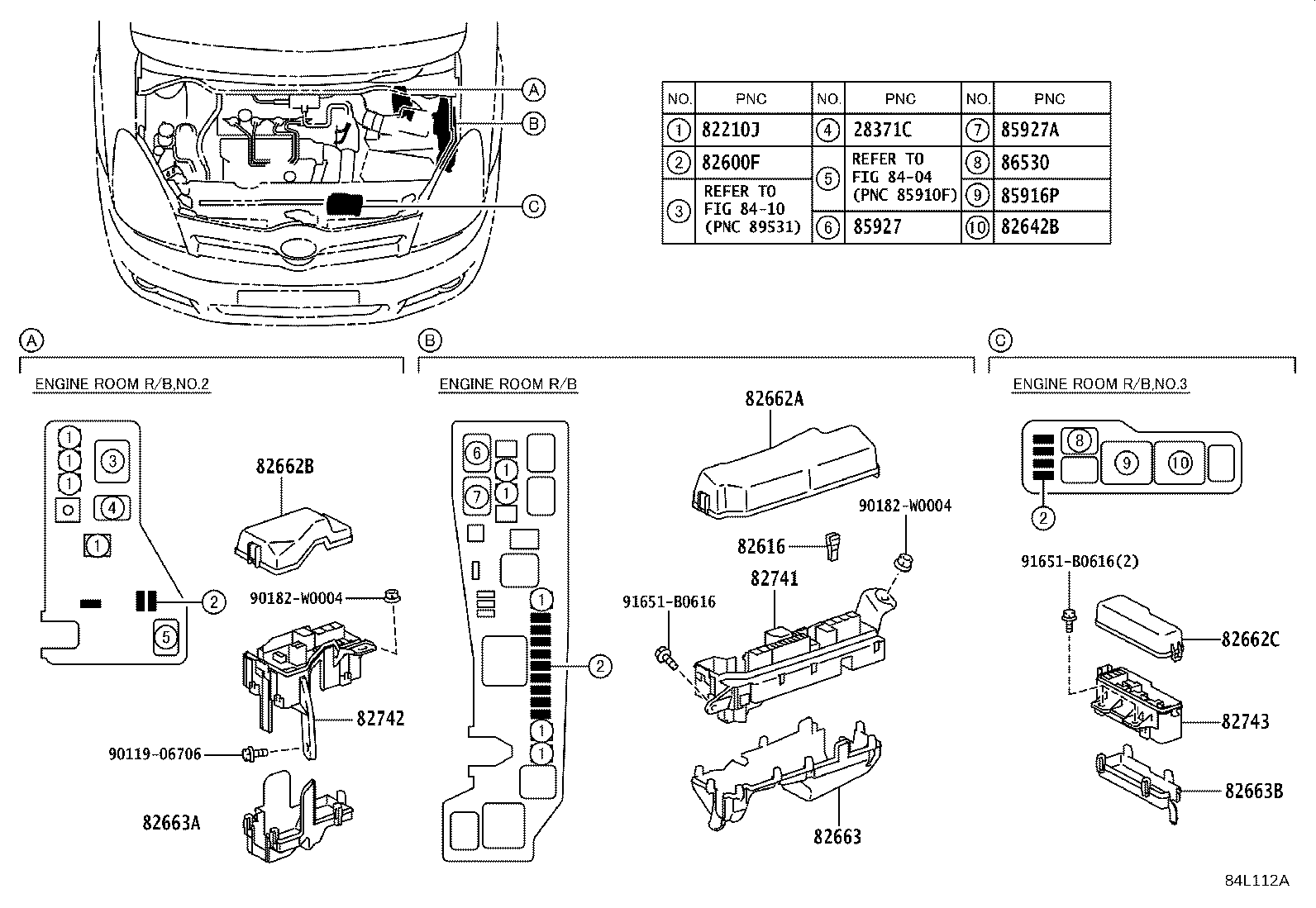

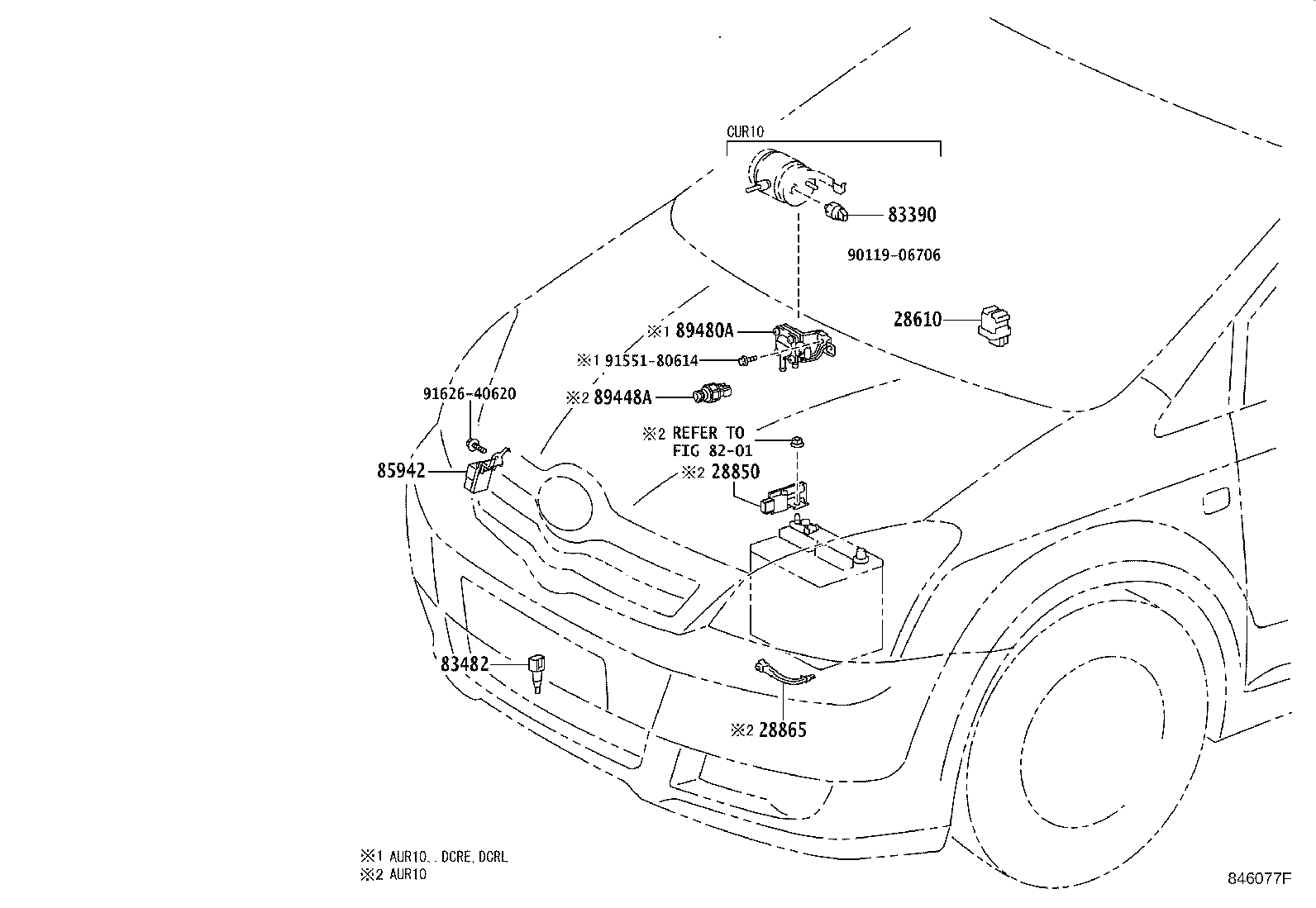

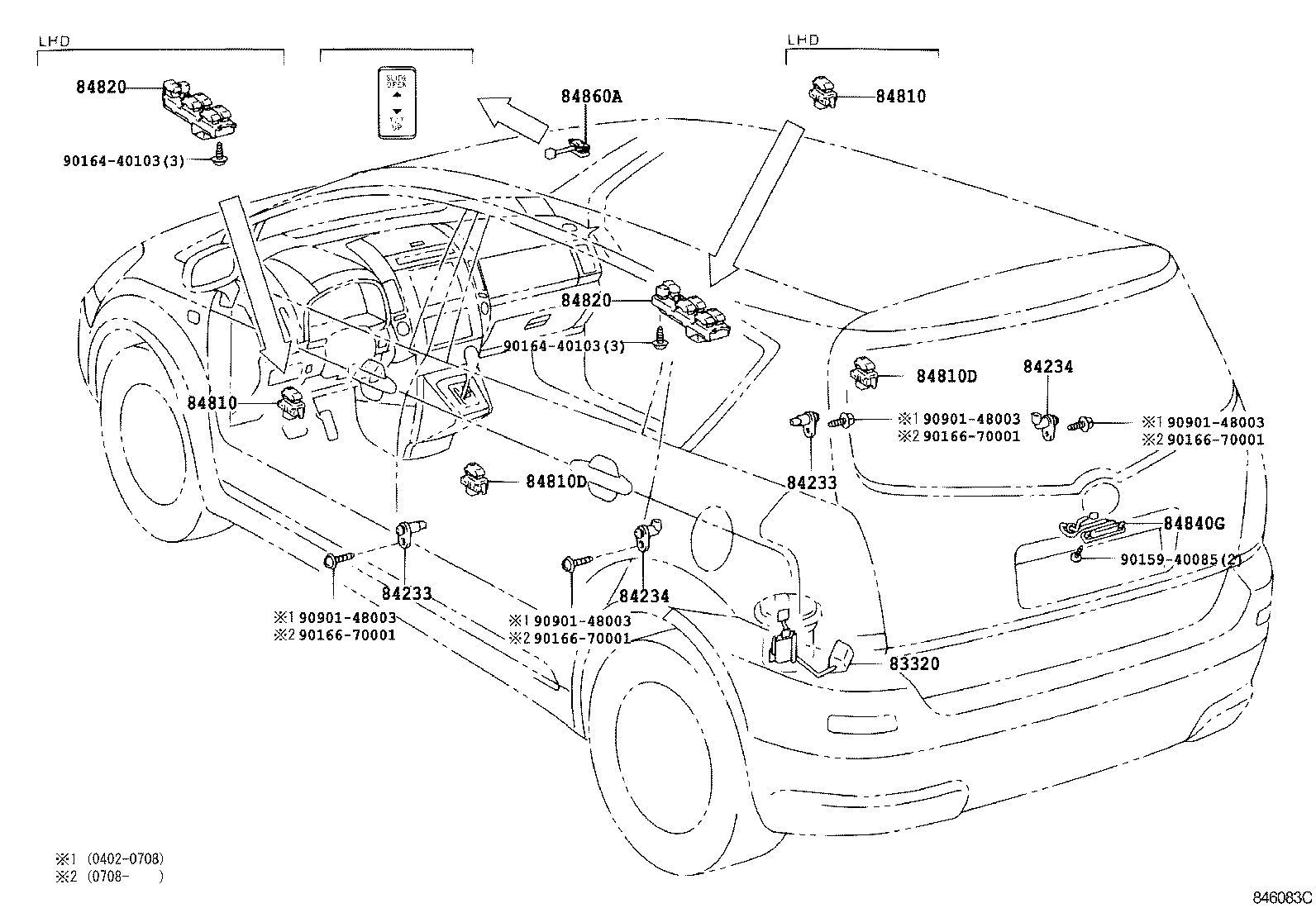

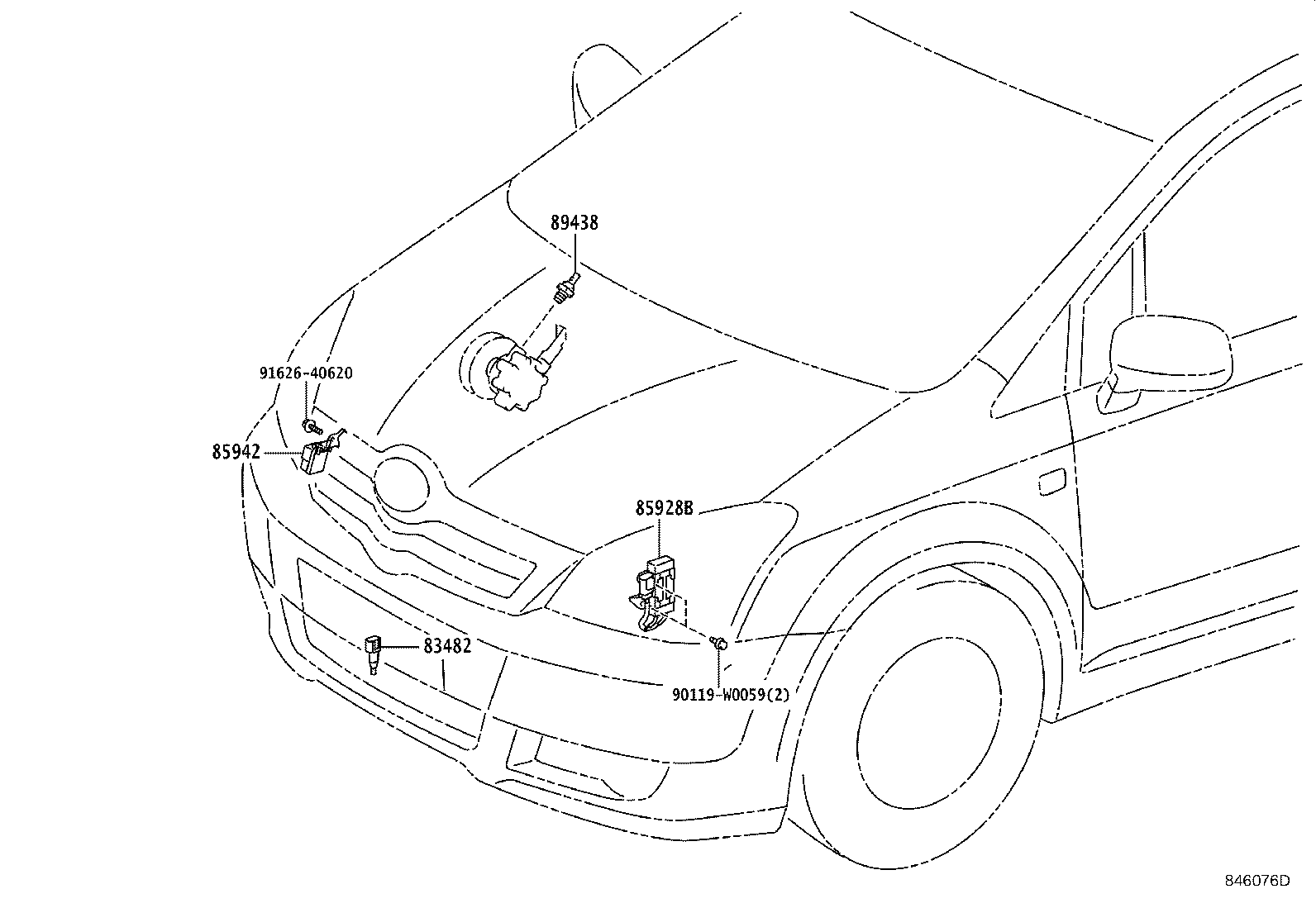

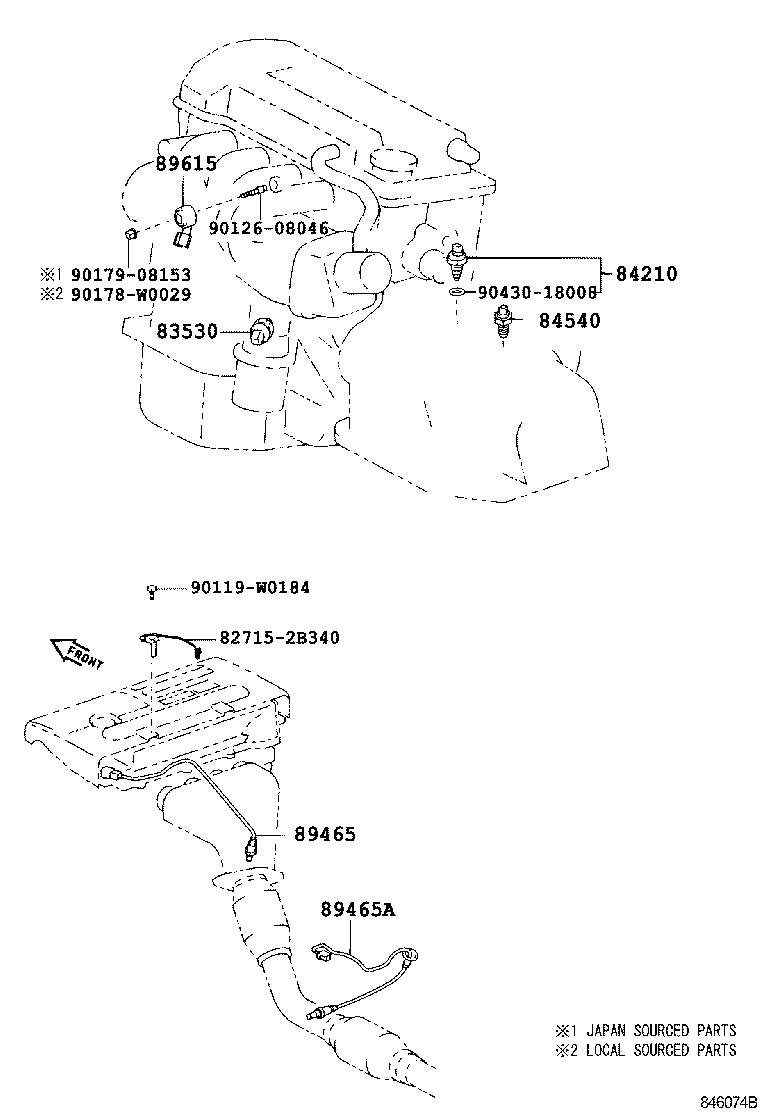

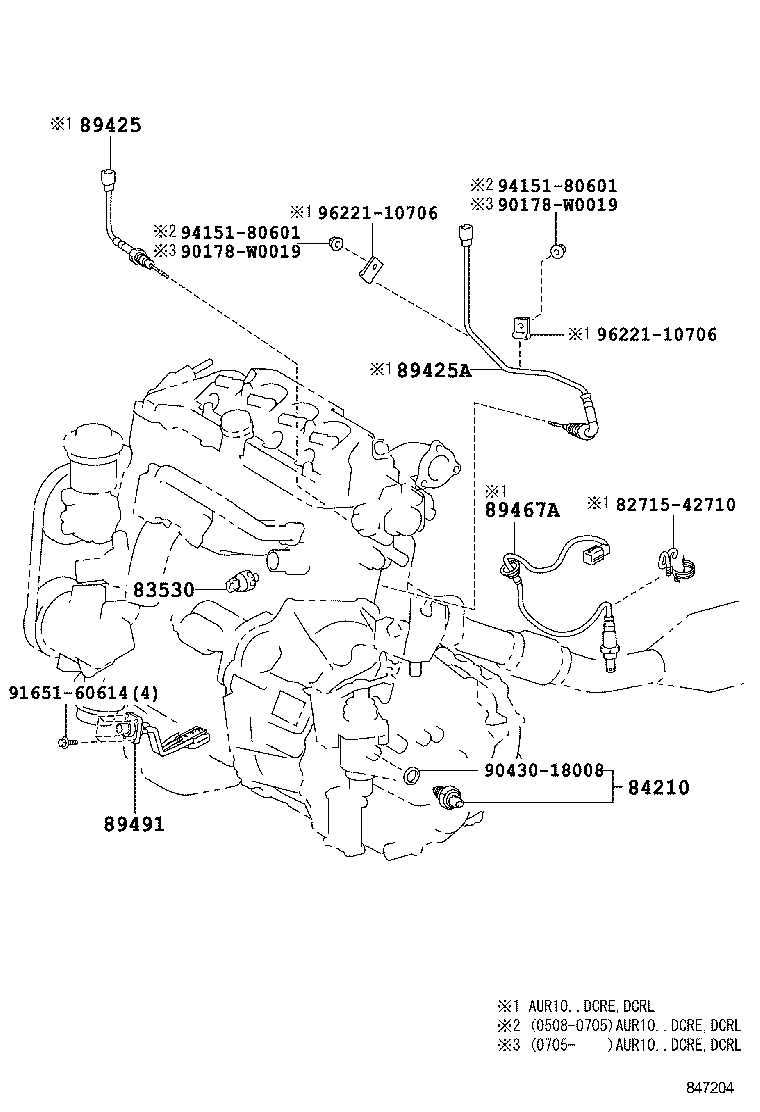

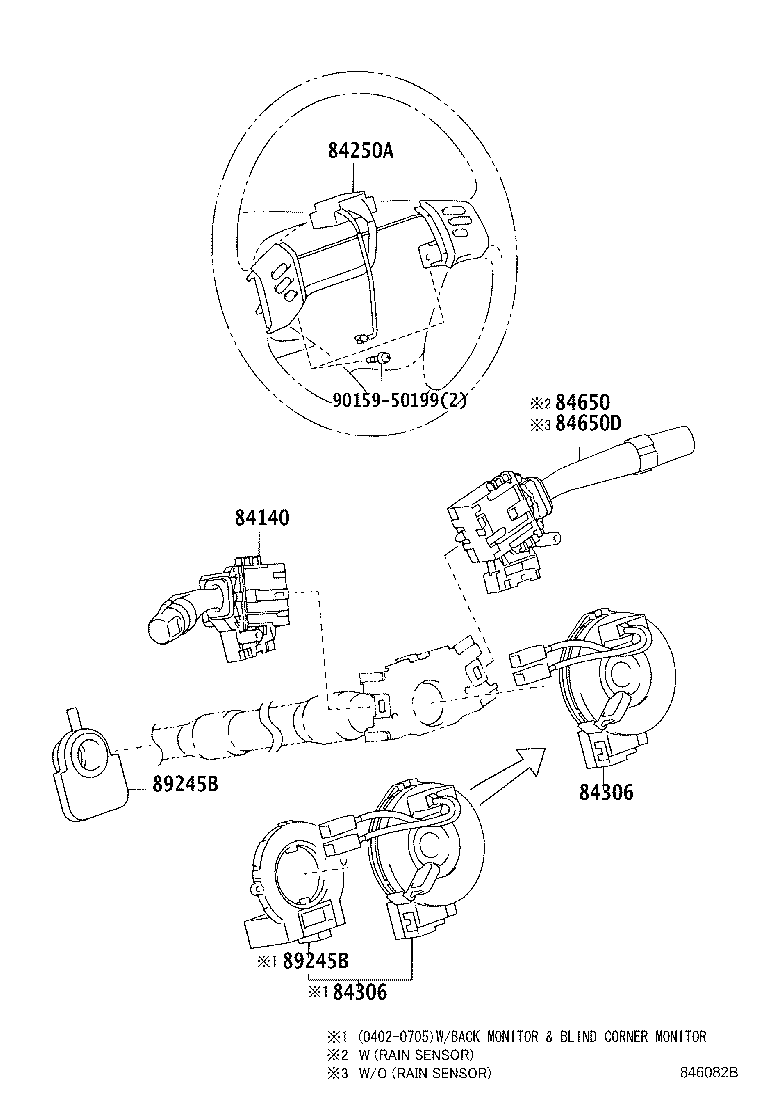

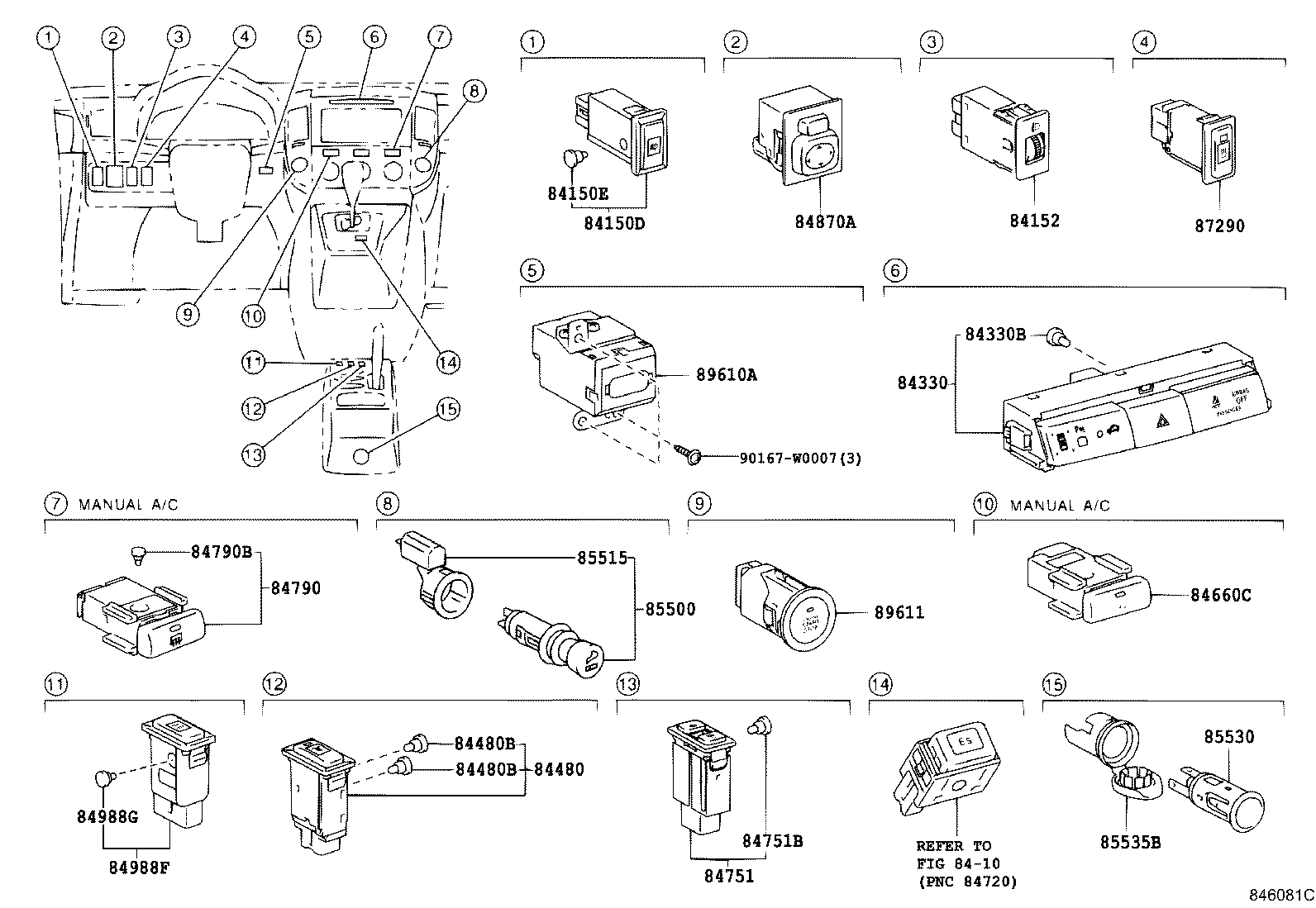

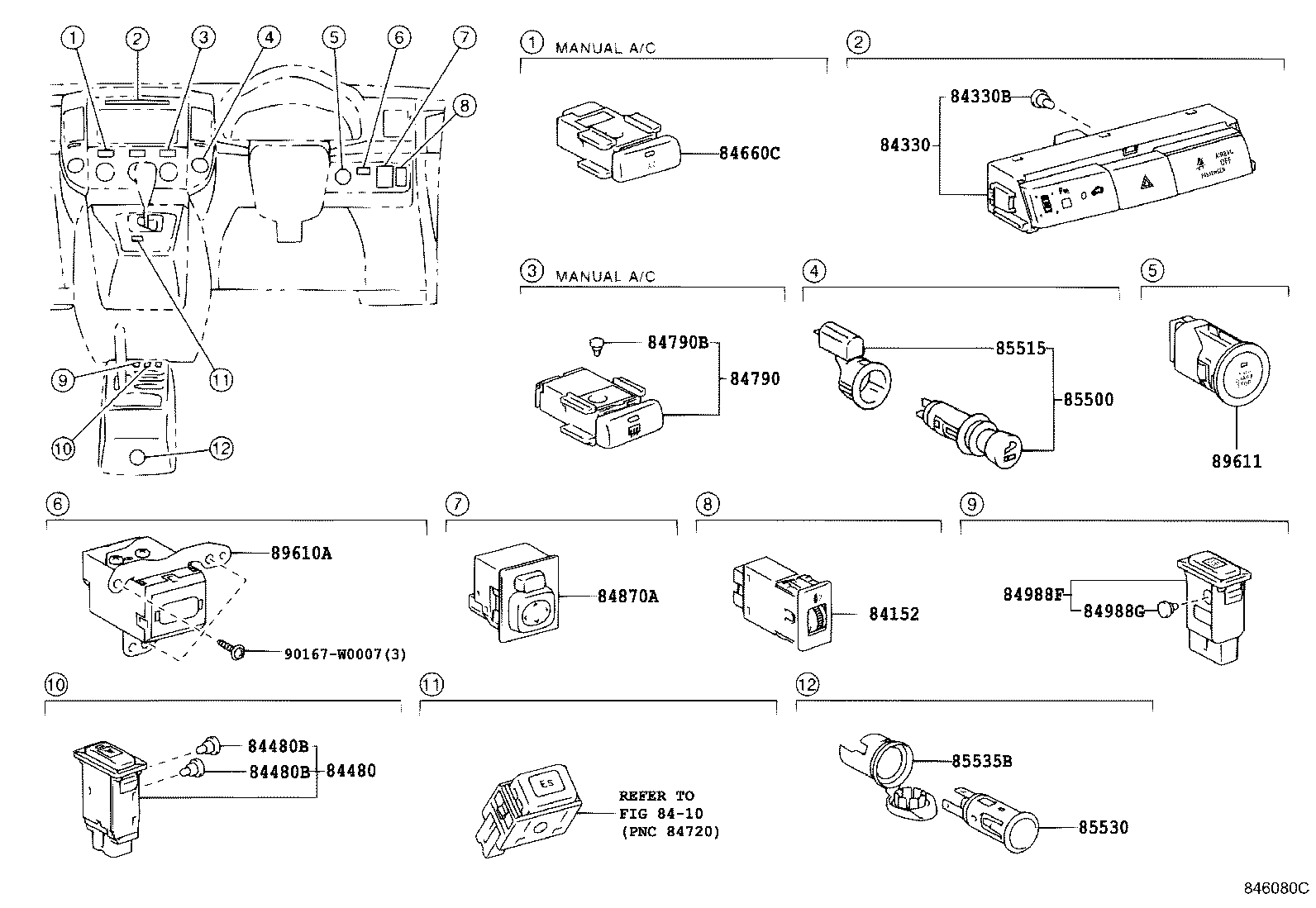

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28371C | Relay, Ignition, NO.2 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28850 | Sensor Assy, Battery Current |
| 28865 | Sensor, Battery Thermometer |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82602 | Block Sub-assy, Relay |
| 82610A | Block Assy, Fuse |
| 82611A | Cover, Fuse Block, NO.2 |
| 82616 | Puller, Fuse |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82730 | Block Assy, Instrument Panel Junction |
| 82734A | Block, Center Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83482 | Sensor, Outer Ambient Temperature |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84150E | Bulb, Headlamp Cleaner Switch |
| 84152 | Switch, Headlamp Leveling |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84480 | Switch Assy, Main |
| 84480B | Bulb, Main Switch Assy |
| 84520 | Switch Assy, Clutch Start |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84660C | Switch, Cooler |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84860A | Switch Assy, Sliding Roof |
| 84870A | Switch Assy, Outer Mirror |
| 84988F | Switch, Traction Control |
| 84988G | Bulb, Traction Control Switch |
| 85431 | Solenoid, Shift Lock |
| 85500 | Lighter Assy, Cigarette |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910V | Relay, Seat Heater |
| 85912 | Relay, Defogger |
| 85913C | Relay, Heater, NO.1 |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85928B | Resistor, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 85942 | Relay, Headlamp Cleaner Control |
| 86530 | Relay Assy, Horn |
| 87290 | Switch Assy, Heater |
| 88280A | Switch Assy, Clutch |
| 89245B | Sensor, Steering |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |
| 89448A | Sensor, Power Steering Oil Pressure |
| 89451A | Sensor, Shift Lever Position |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467A | Sensor, Wide Range Air Fuel Ratio |
| 89480A | Sensor Assy, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89610A | Holder Assy, Electrical Key |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89618 | Computer, Ignition Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
