Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

27 part groups · 12 illustrations

Illustrations

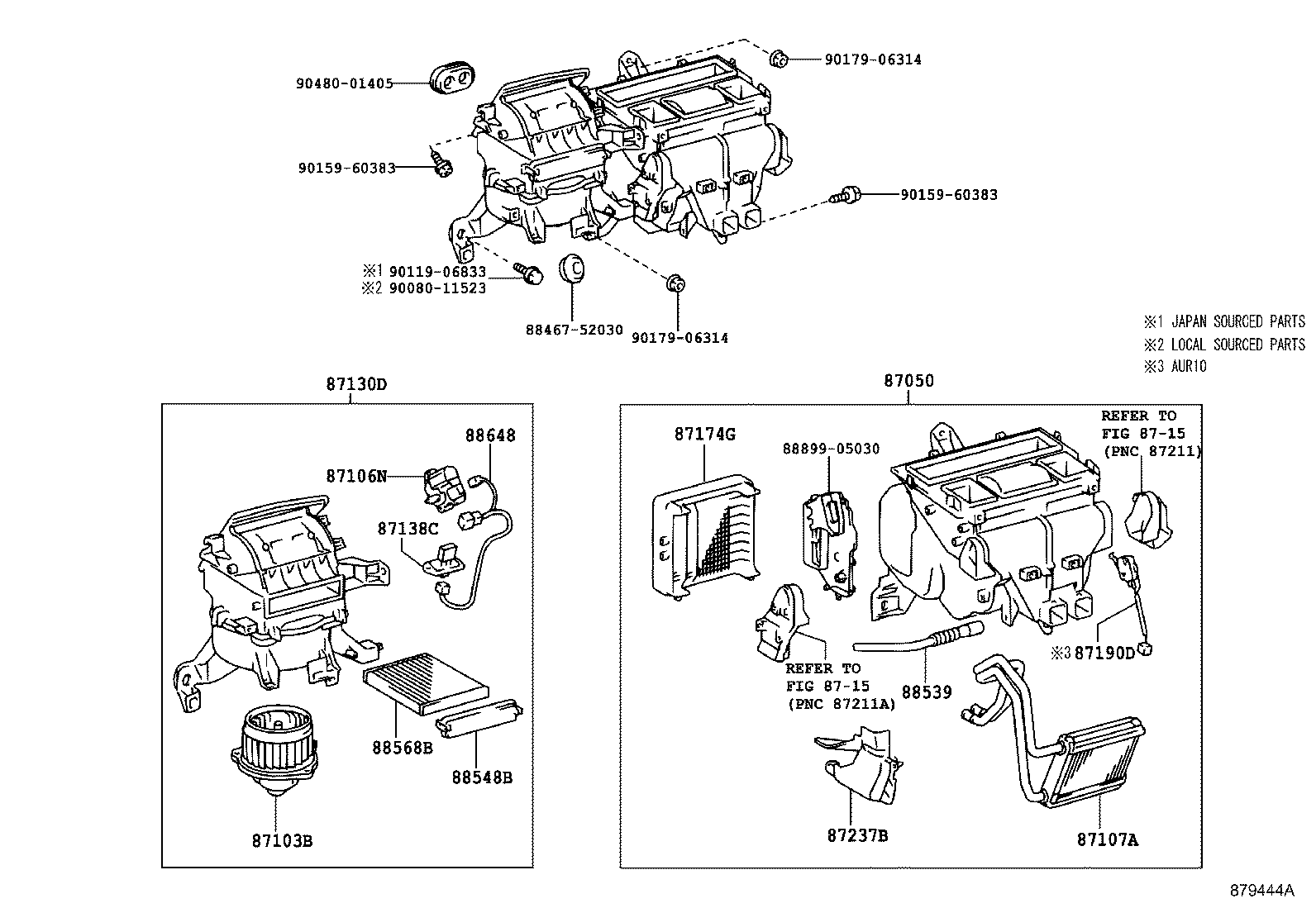

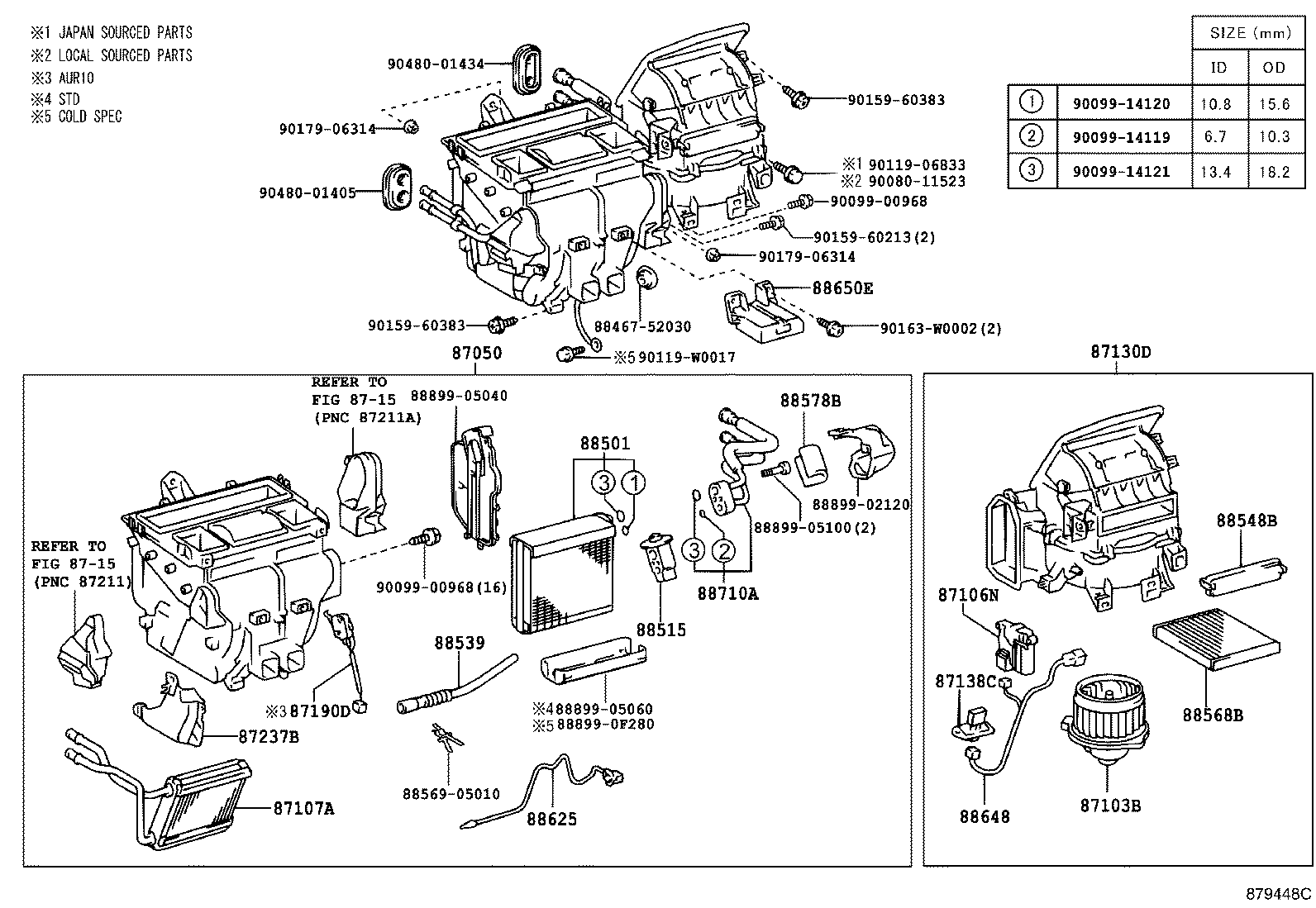

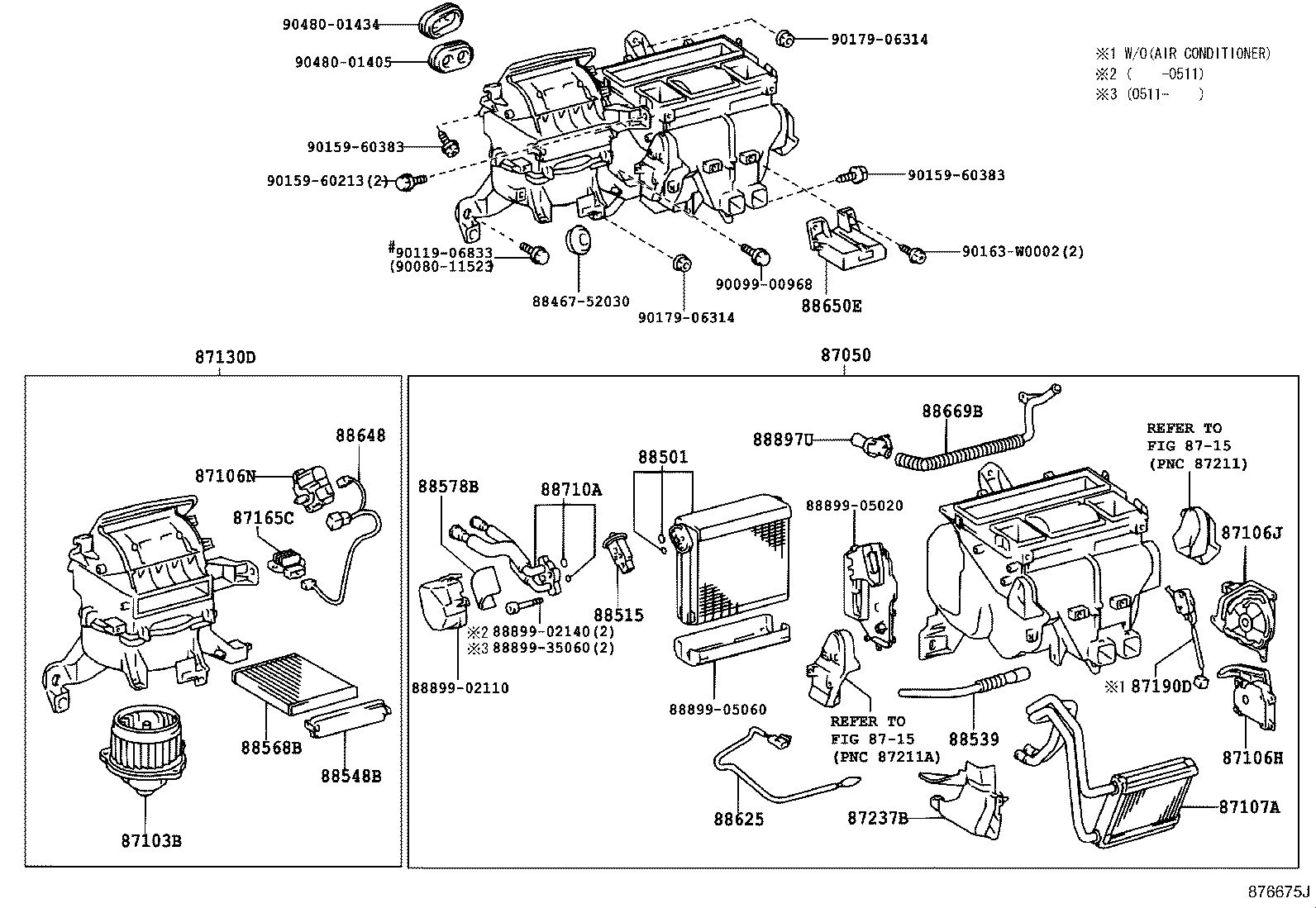

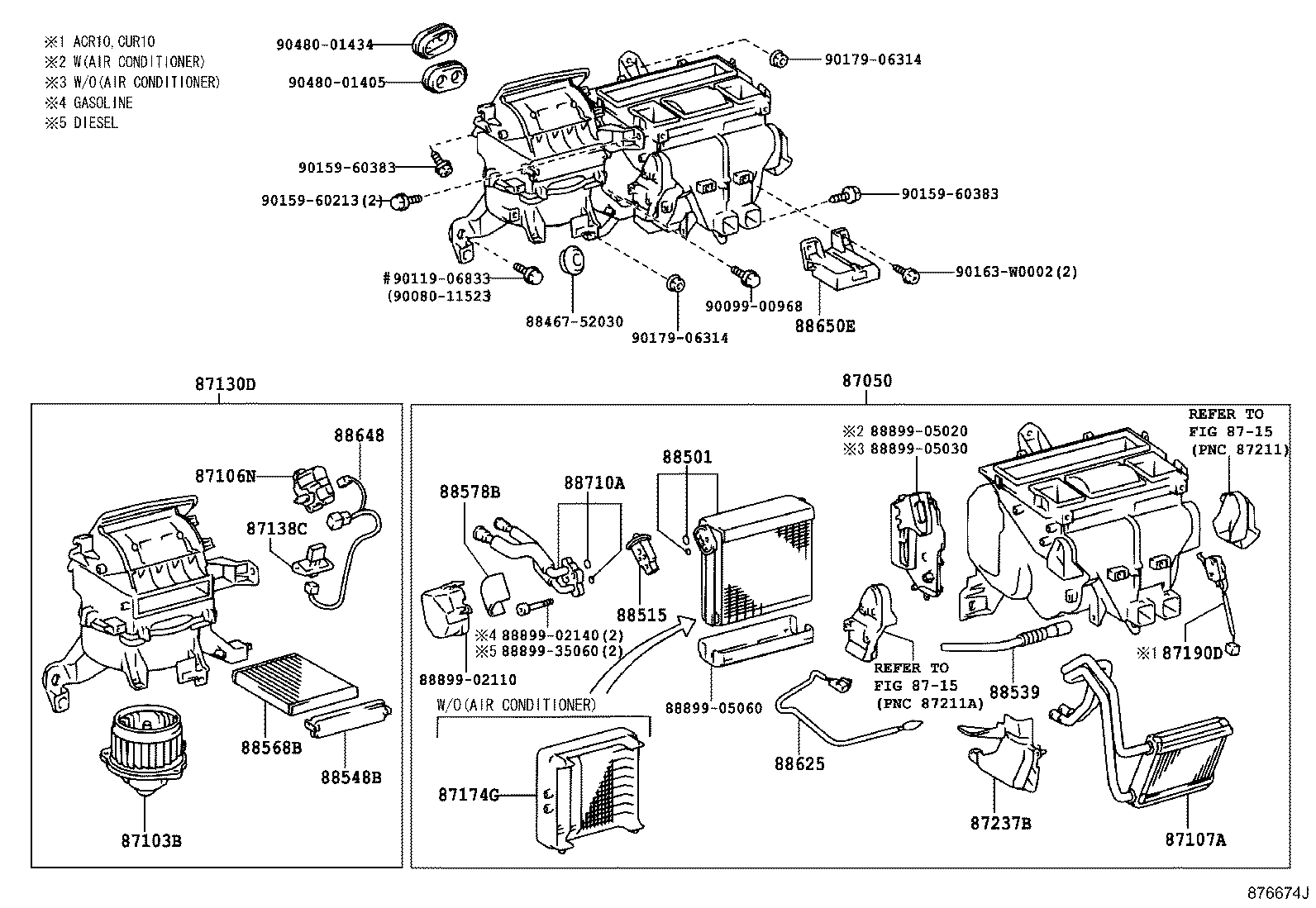

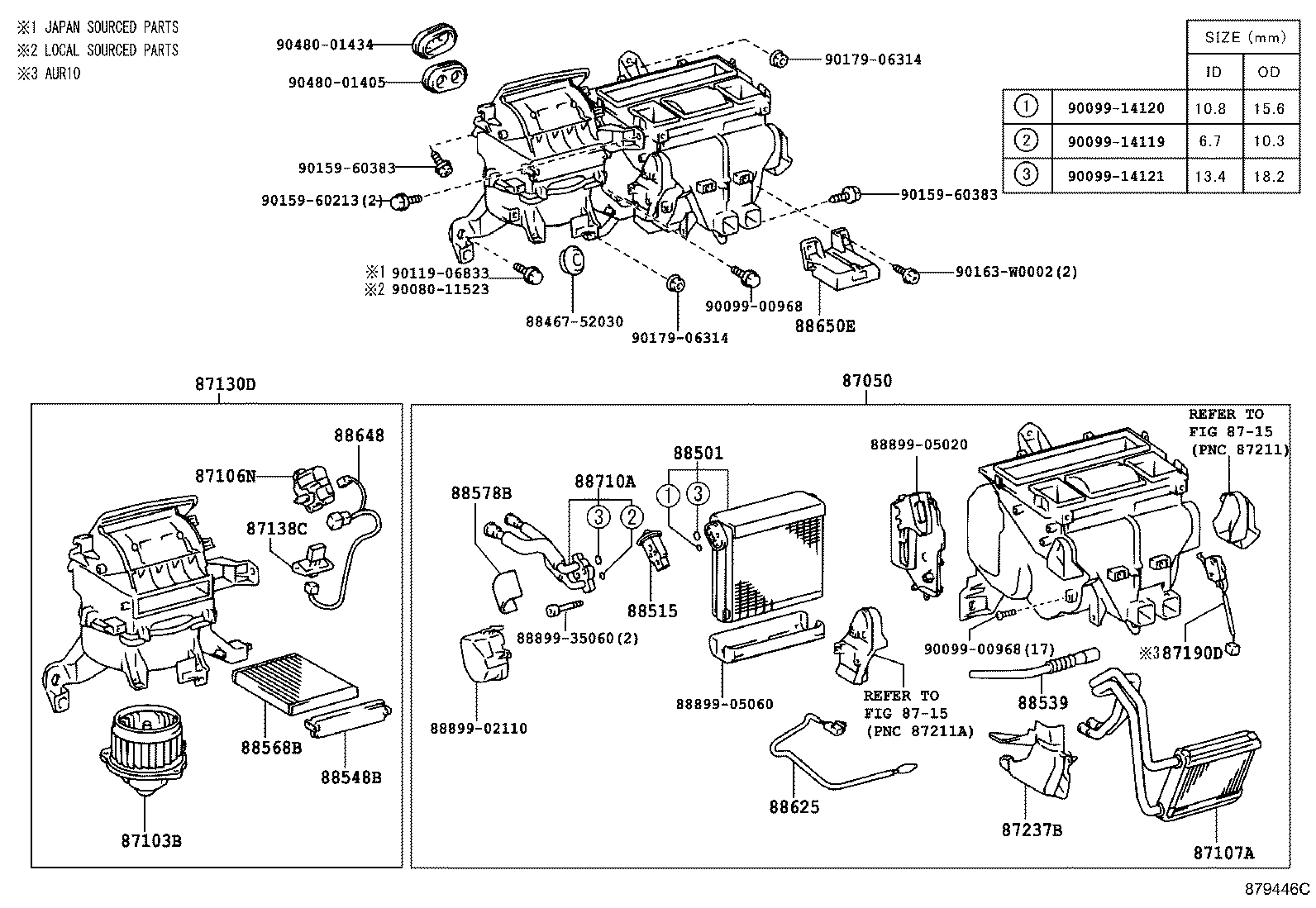

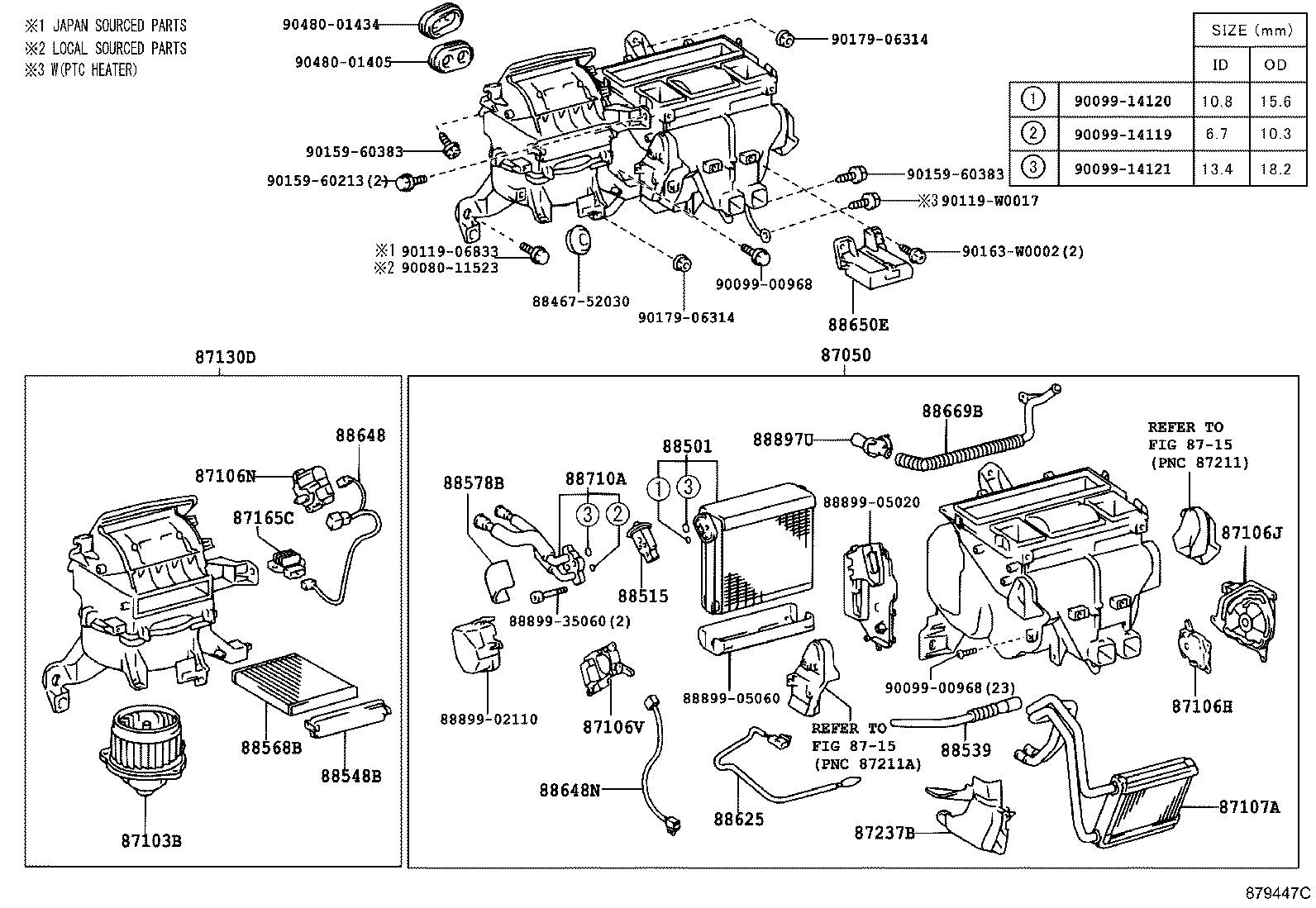

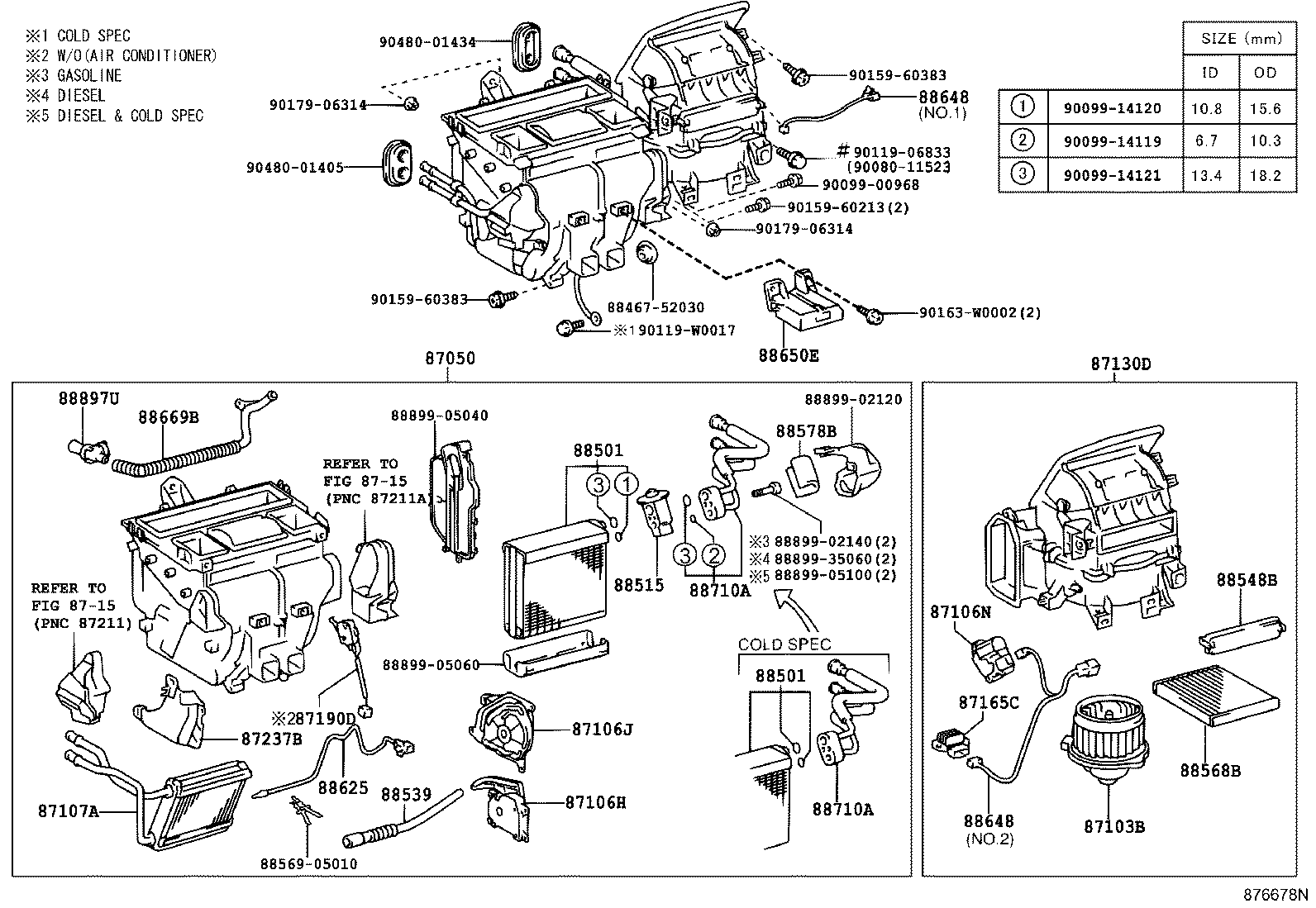

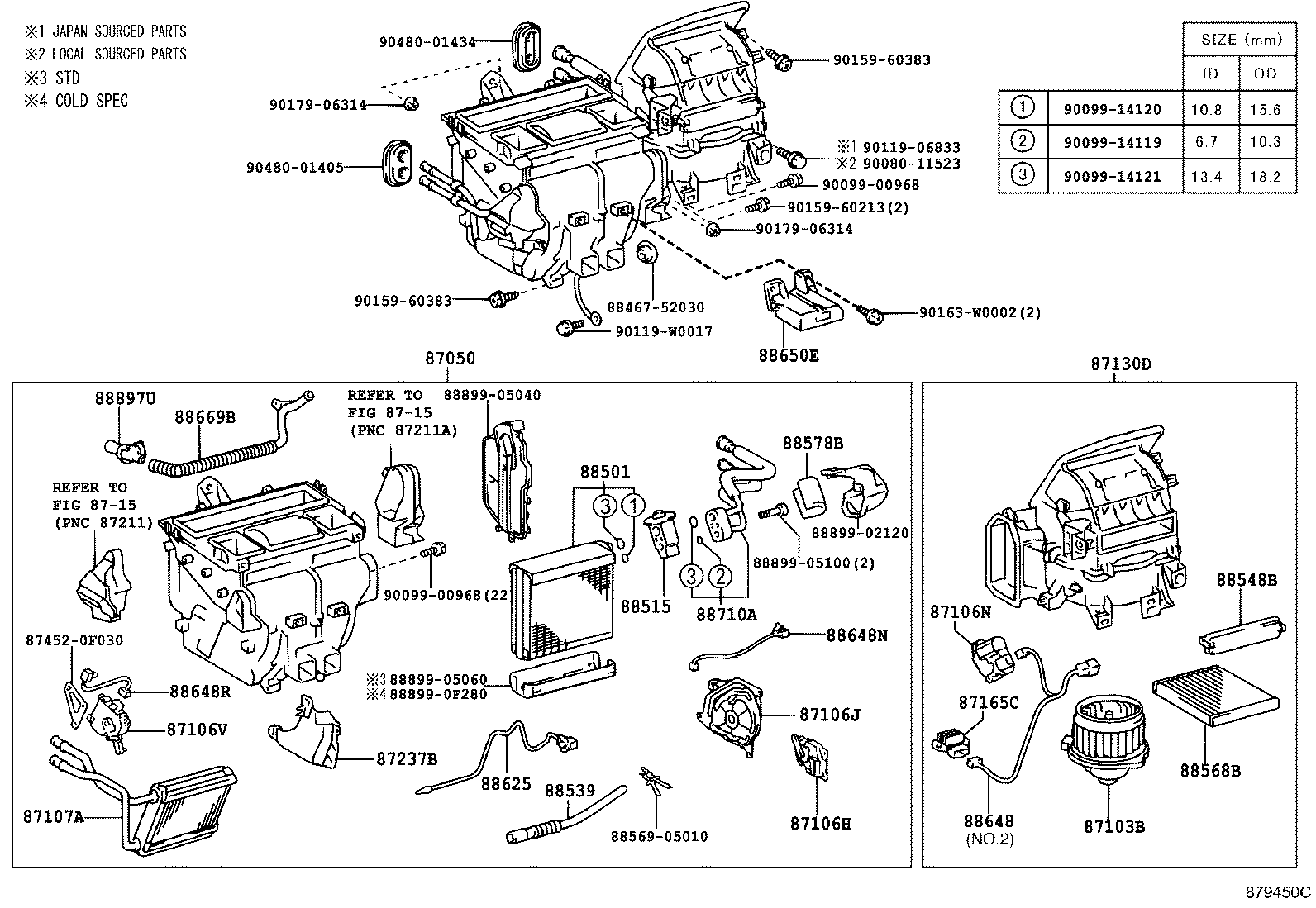

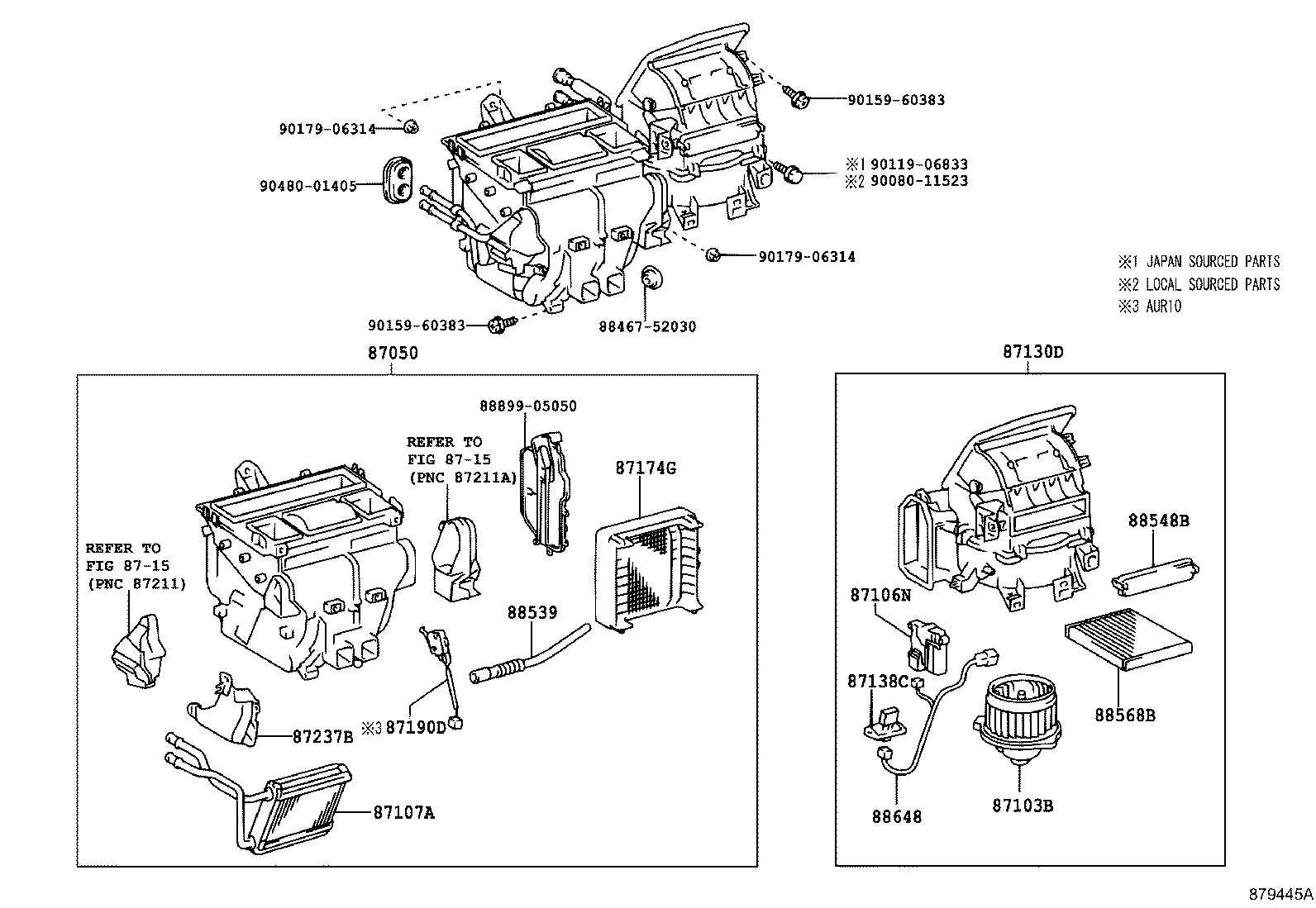

Figure 876677N 876677N 2004-02 → 2007-05 Figure 876677N 876677N 2005-08 → 2007-05 Figure 876678N 876678N 2004-02 → 2007-05 Figure 876674J 876674J 2004-02 → 2007-05 Figure 876674J 876674J 2005-08 → 2007-05 Figure 876675J 876675J 2004-02 → 2007-05 Figure 879445A 879445A 2007-05 → — Figure 879448C 879448C 2007-05 → — Figure 879450C 879450C 2007-05 → — Figure 879444A 879444A 2007-05 → — Figure 879446C 879446C 2007-05 → — Figure 879447C 879447C 2007-05 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87106V Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87165C Control, Blower Motor
87174G Guide, Air Heater
87190D Switch Assy, Temperature Control
87237B Cover, Heater Piping
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88568B Filter, Air
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88648 Wiring, Cooler, NO.1
88648N Wiring, Cooler, NO.2
88648R Wiring, Cooler, NO.3
88650E Amplifier Assy, Air Conditioner, NO.1
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
