Toyota Corolla Verso
2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe
Supported model
Data version 2009-07
Heating & Air Conditioning - Control & Air Duct
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

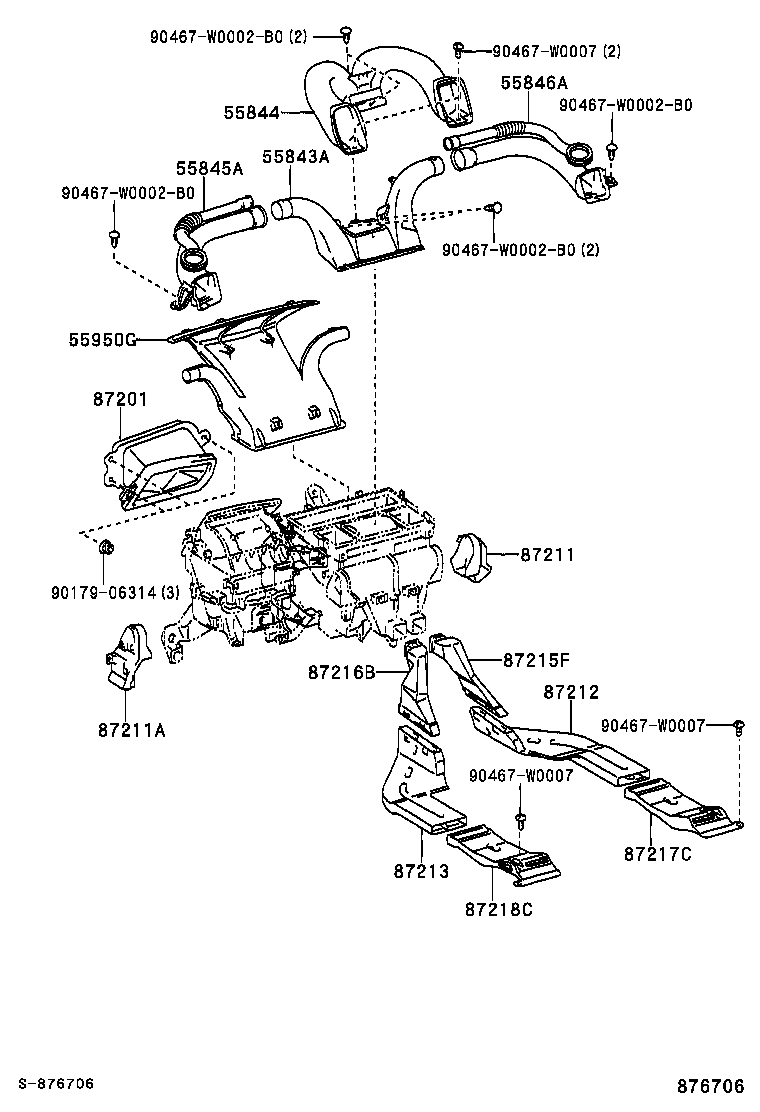

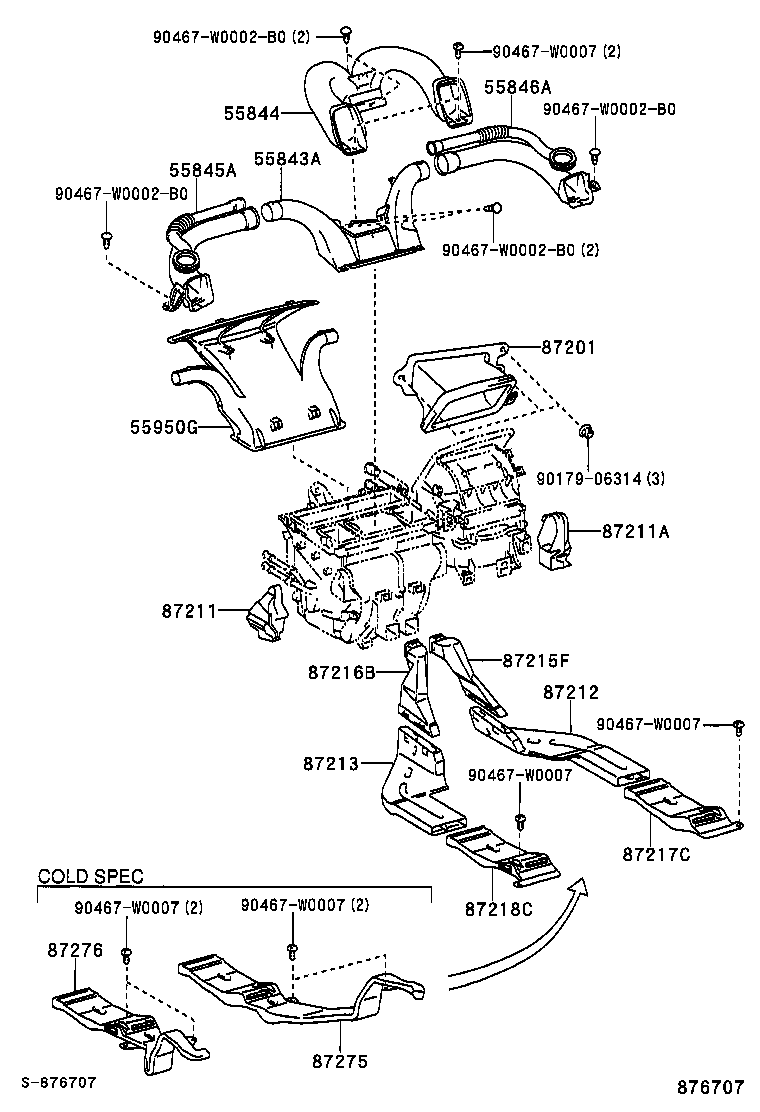

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |

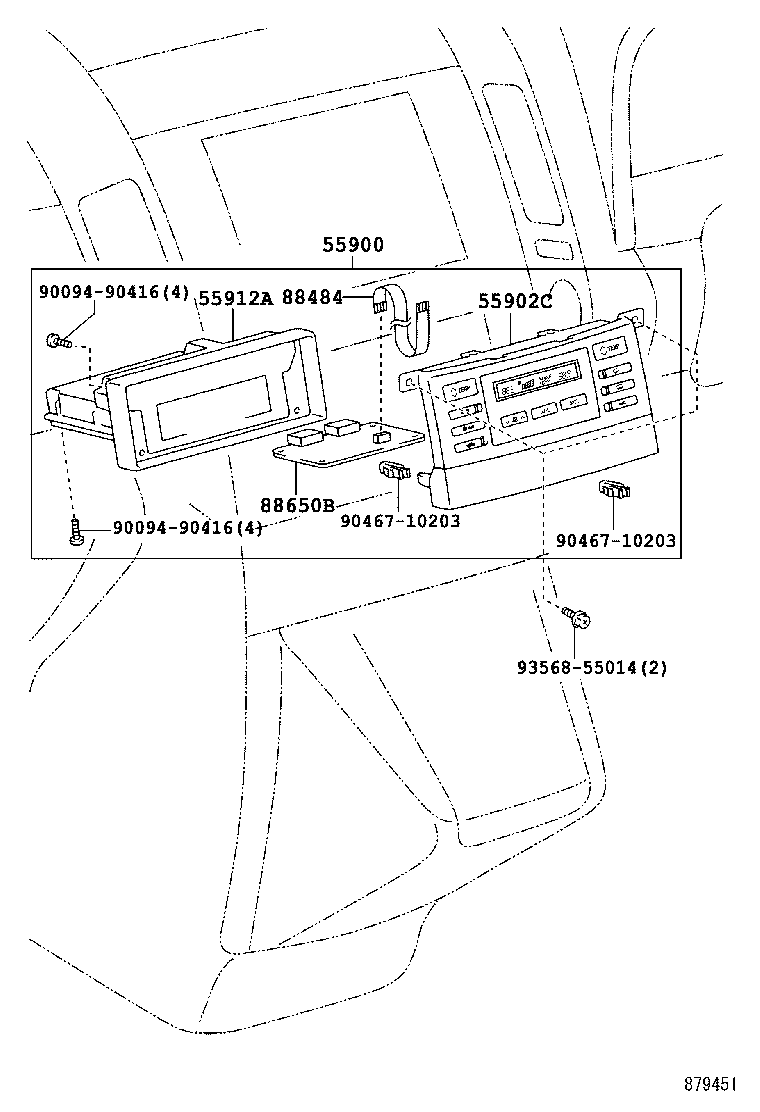

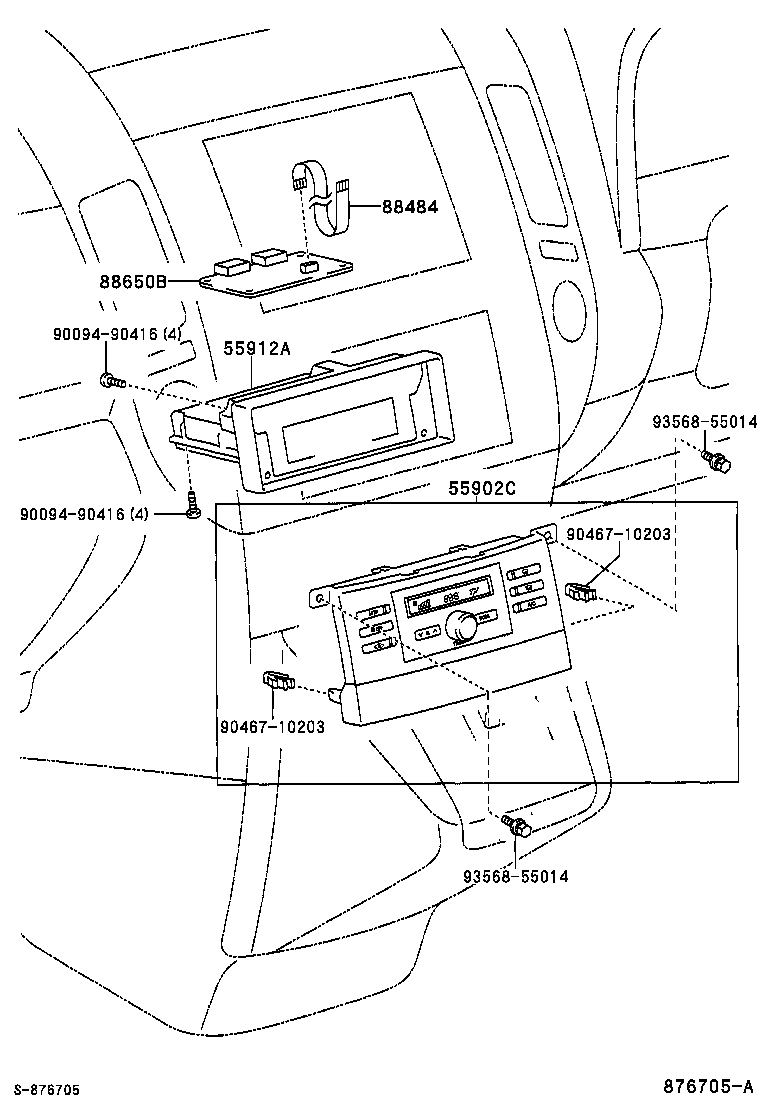

| 55900 | Control Assy, Air Conditioner |
| 55900A | Control & Accessory Assy, Heater |
| 55900B | Bulb, Air Conditioner Control |
| 55902C | Panel Sub-assy, Air Conditioner |
| 55905D | Knob Sub-assy, Control |
| 55906 | Cable Sub-assy, Heater Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55912A | Housing, Heater Control |
| 55933A | Clamp, Heater Control Cable |
| 55950G | Nozzle Assy, Defroster |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87216B | Duct, Air, Rear NO.4 |
| 87217C | Duct, Air, Rear NO.5 |
| 87218C | Duct, Air, Rear NO.6 |
| 87275 | Duct, Floor Heater Air, NO.1 RH |
| 87276 | Duct, Floor Heater Air, NO.1 LH |
| 88484 | Wire, Cooler, NO.1 |

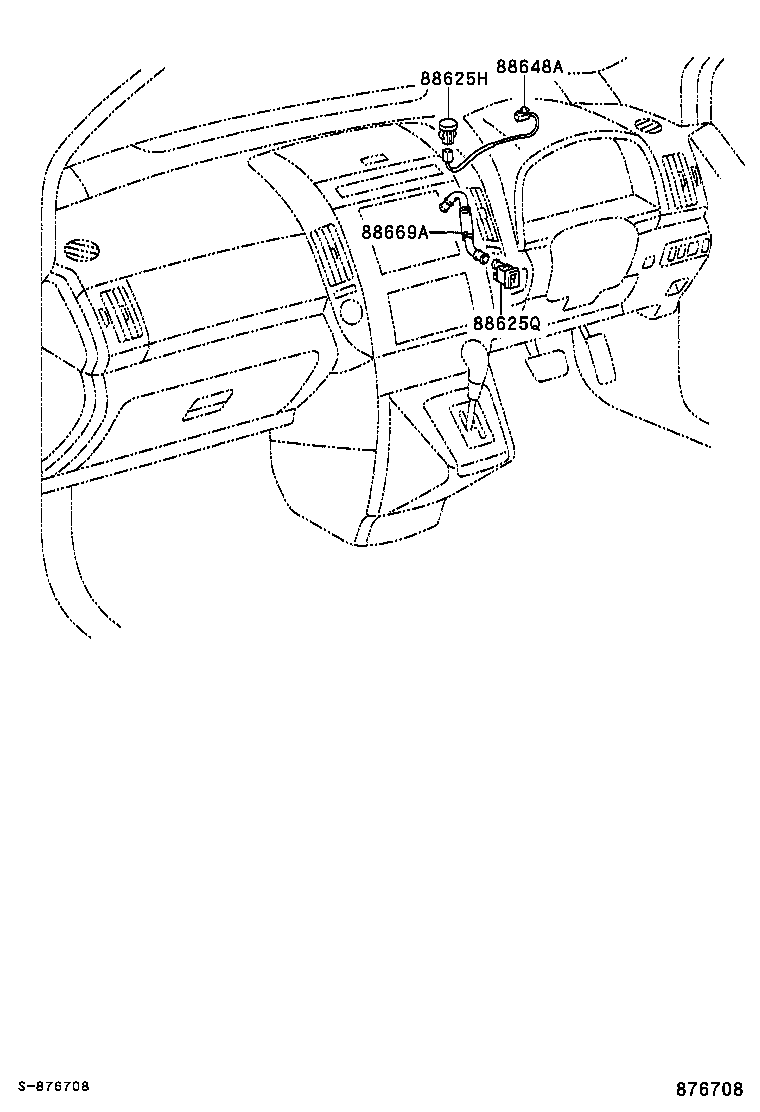

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88648A | Wiring, Cooler |
| 88650B | Amplifier Assy, Airconditioner |
| 88669A | Hose (FOR COOLER THERMISTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
