Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

30 part groups · 8 illustrations

Illustrations

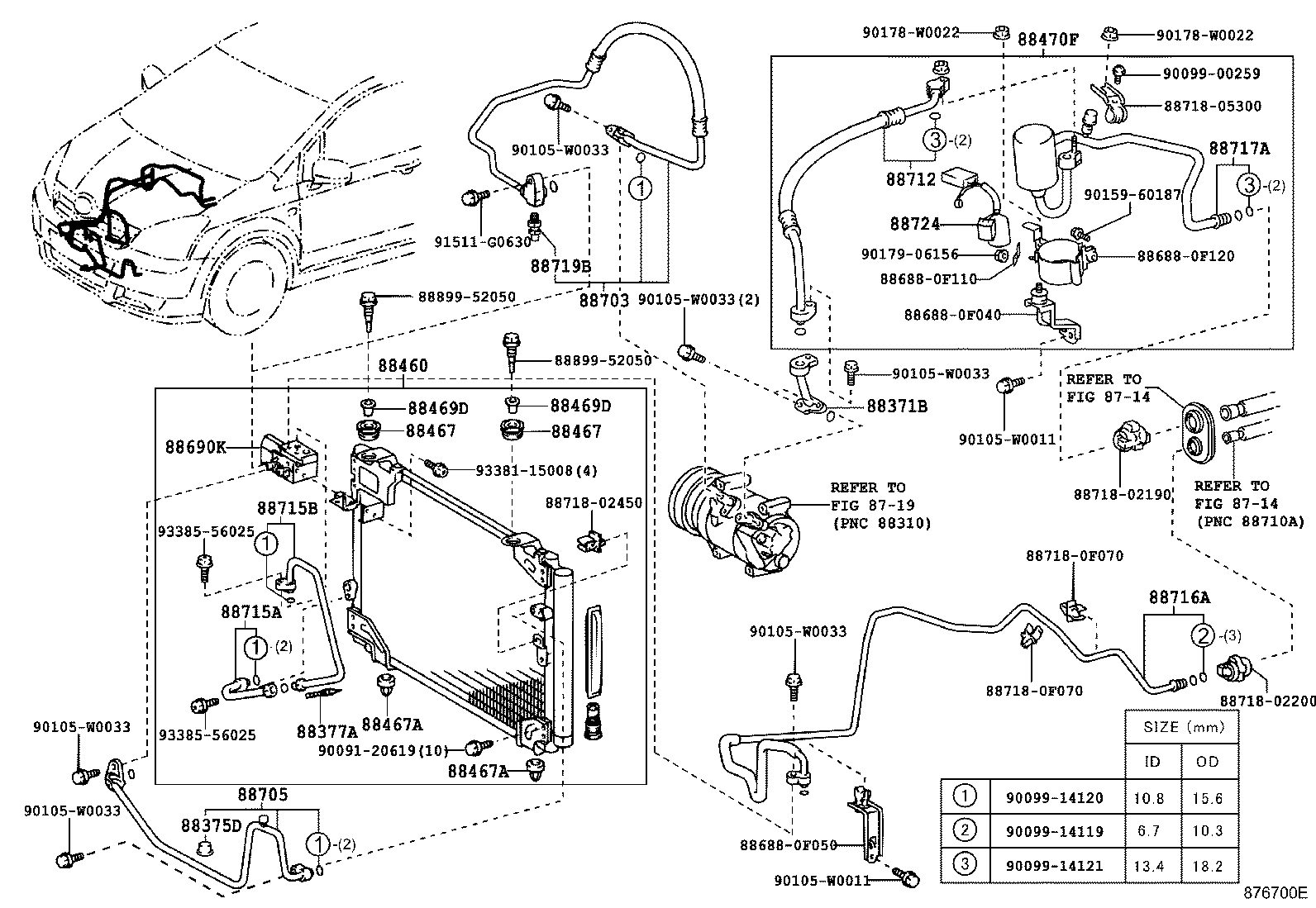

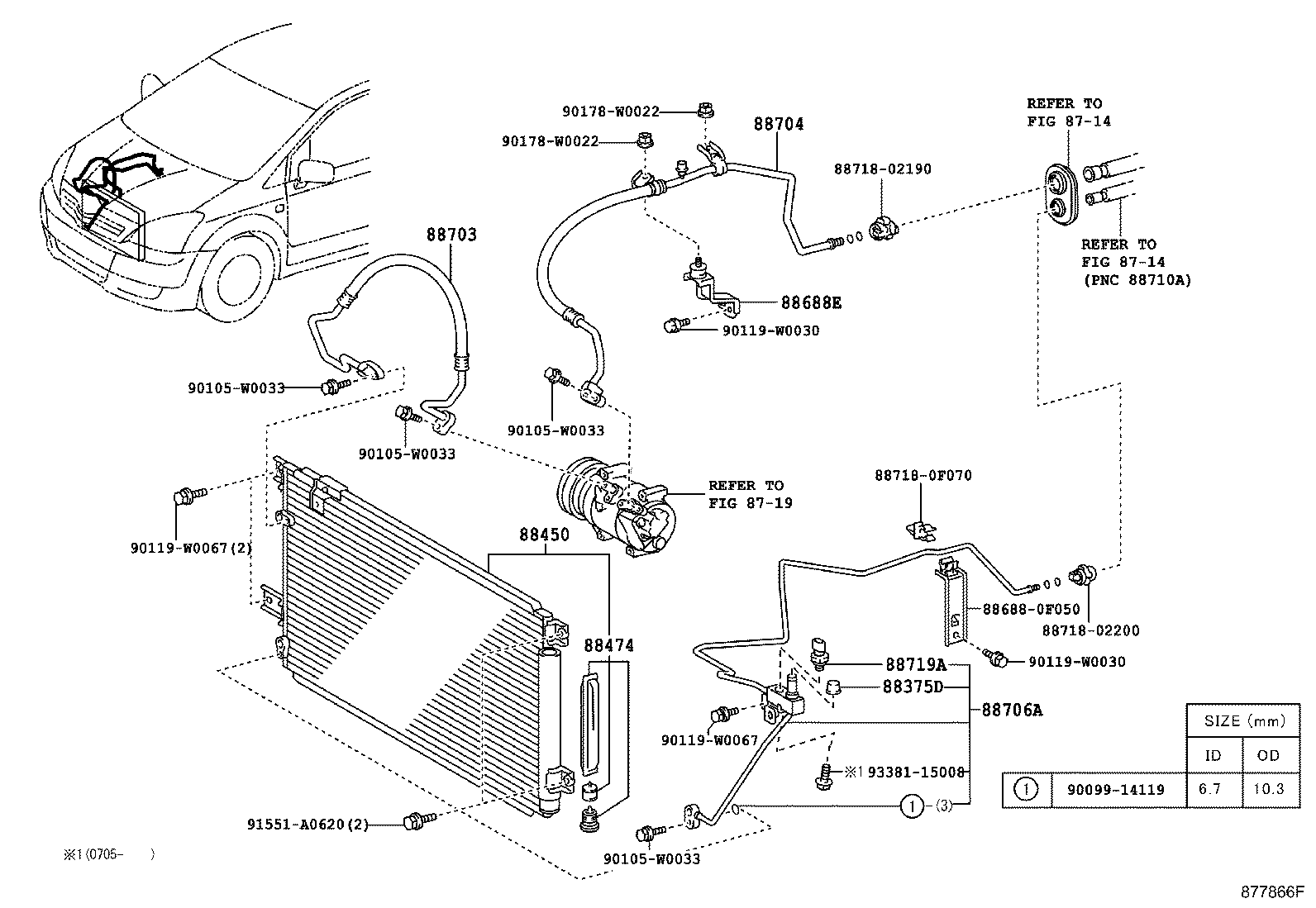

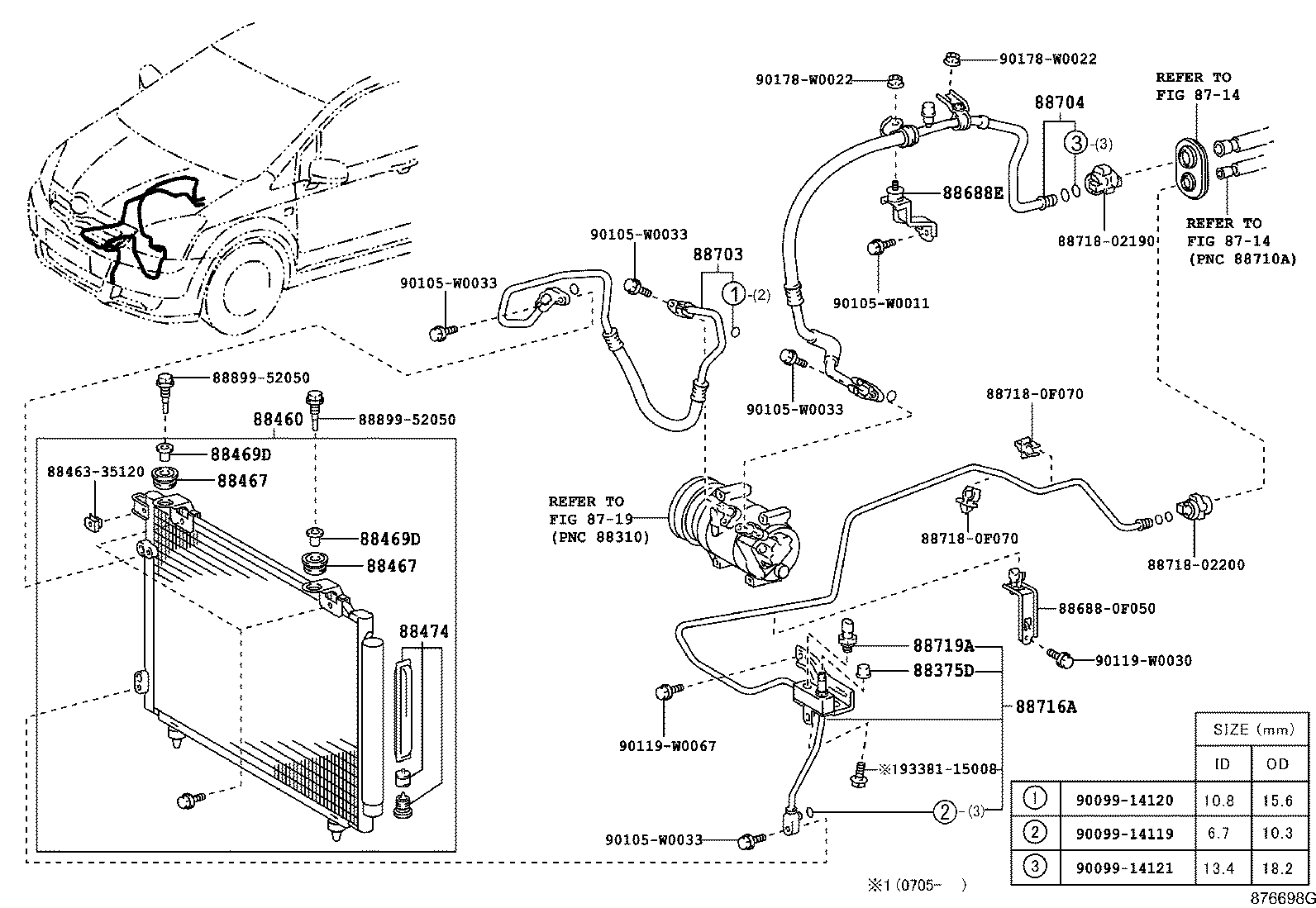

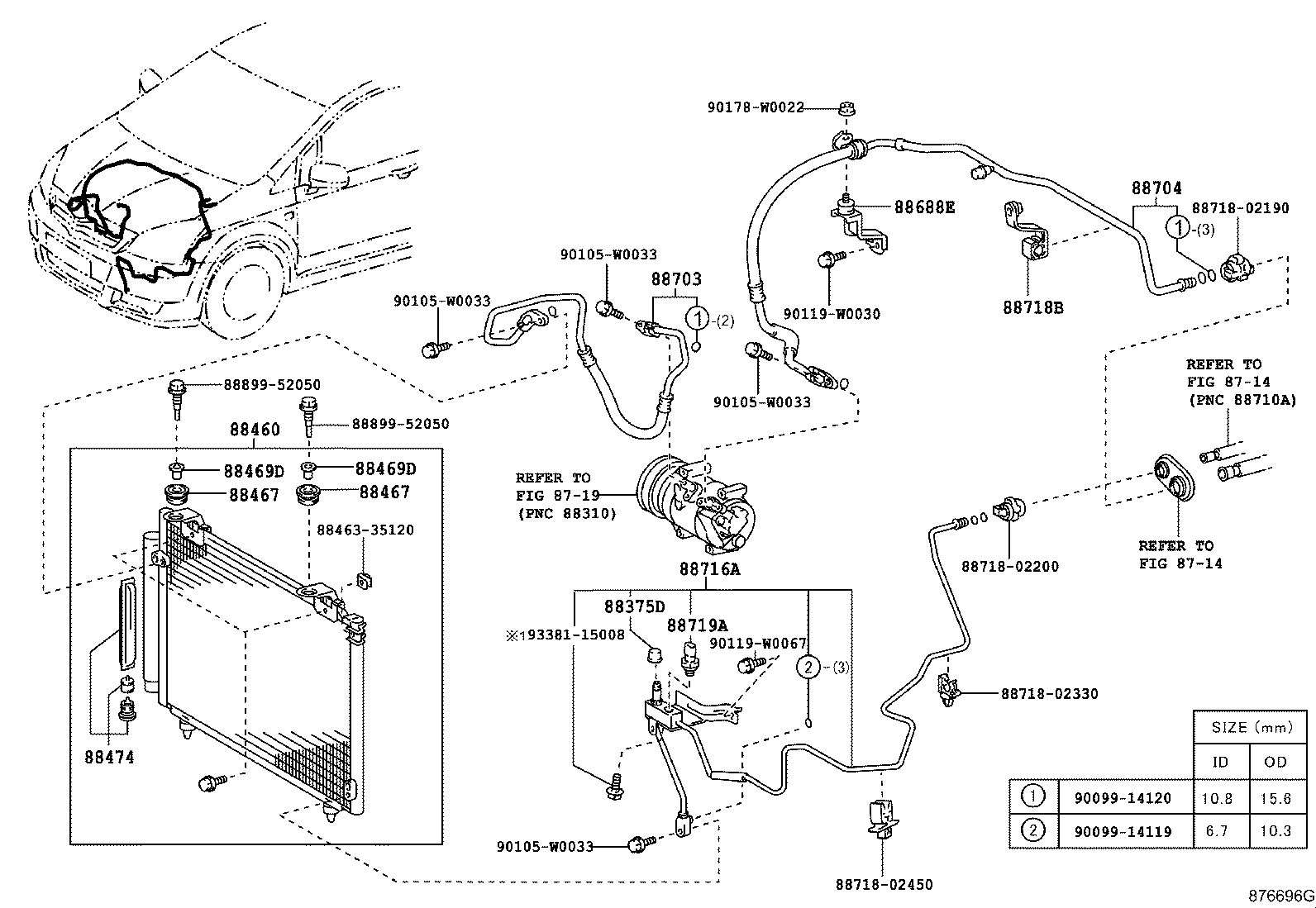

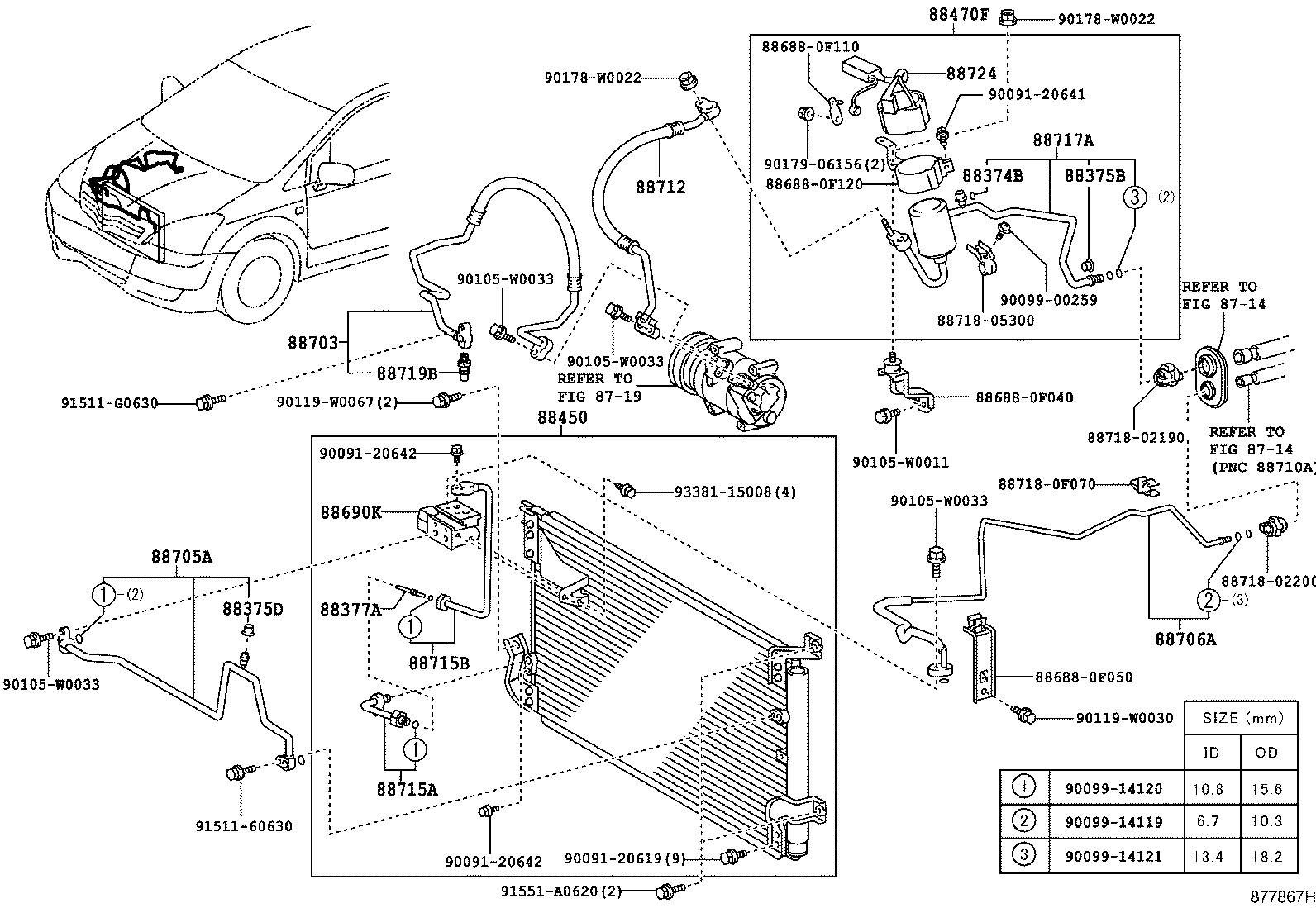

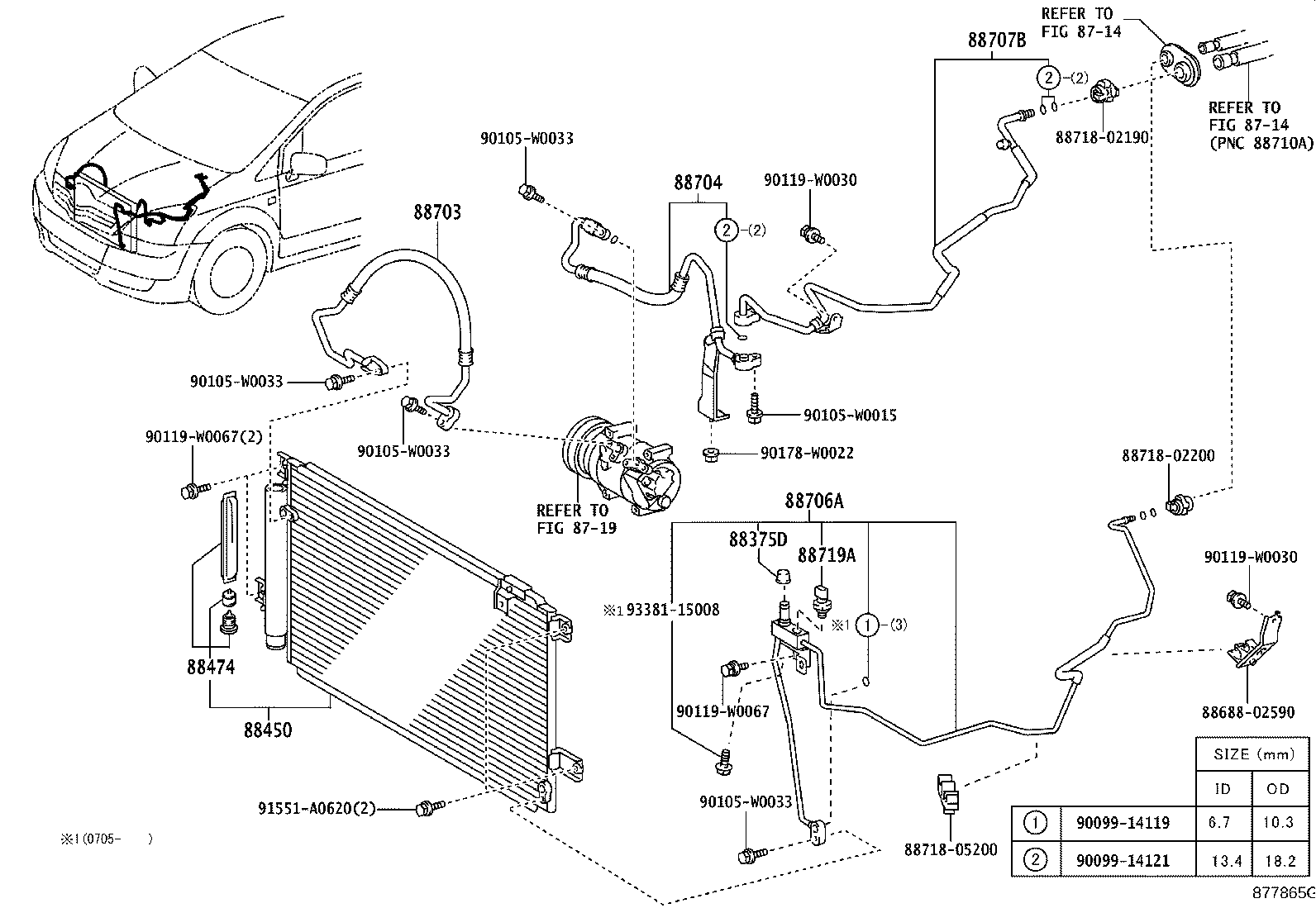

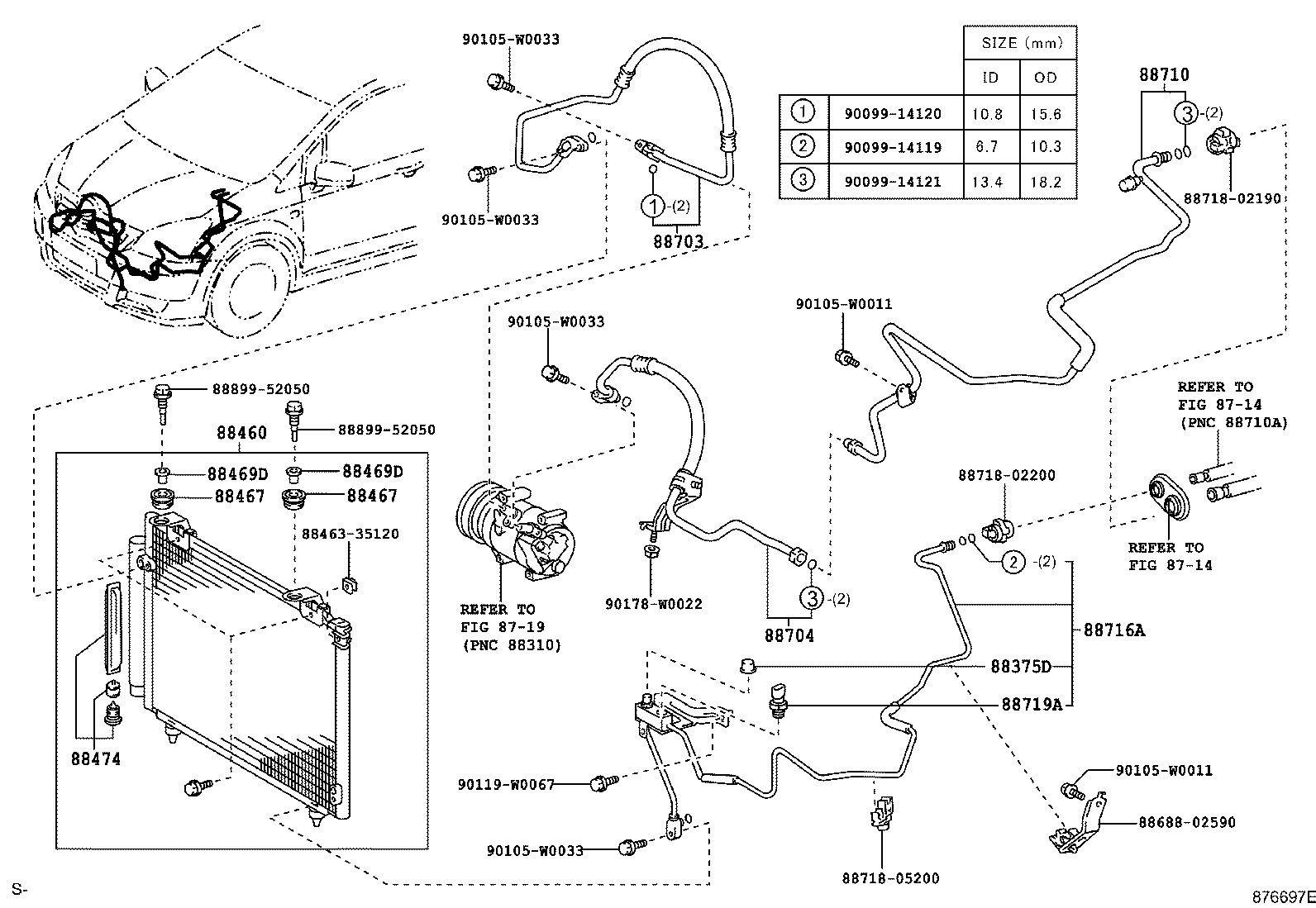

Figure 876699D 876699D 2004-02 → 2005-08 Figure 876700E 876700E 2004-02 → 2005-08 Figure 876697E 876697E 2004-02 → 2005-08 Figure 876698G 876698G 2004-02 → — Figure 876696G 876696G 2004-02 → — Figure 877866F 877866F 2005-08 → — Figure 877867H 877867H 2005-08 → — Figure 877865G 877865G 2005-08 → —

Part groups

PNCDescription
88371B Valve, Suction Service
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88377A Filter, Refrigerant
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88470F Accumulator & Accessory Assy
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88690K Valve Assy, Magnet
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705 Pipe Sub-assy, Discharge
88705A Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88710 Tube Assy, Air Conditioner
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88717A Pipe, Cooler Refrigerant Suction, A
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88719B Sensor, Air Conditioner Pressure, NO.2
88724 Heater, Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
