Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

2 part groups · 3 illustrations

Illustrations

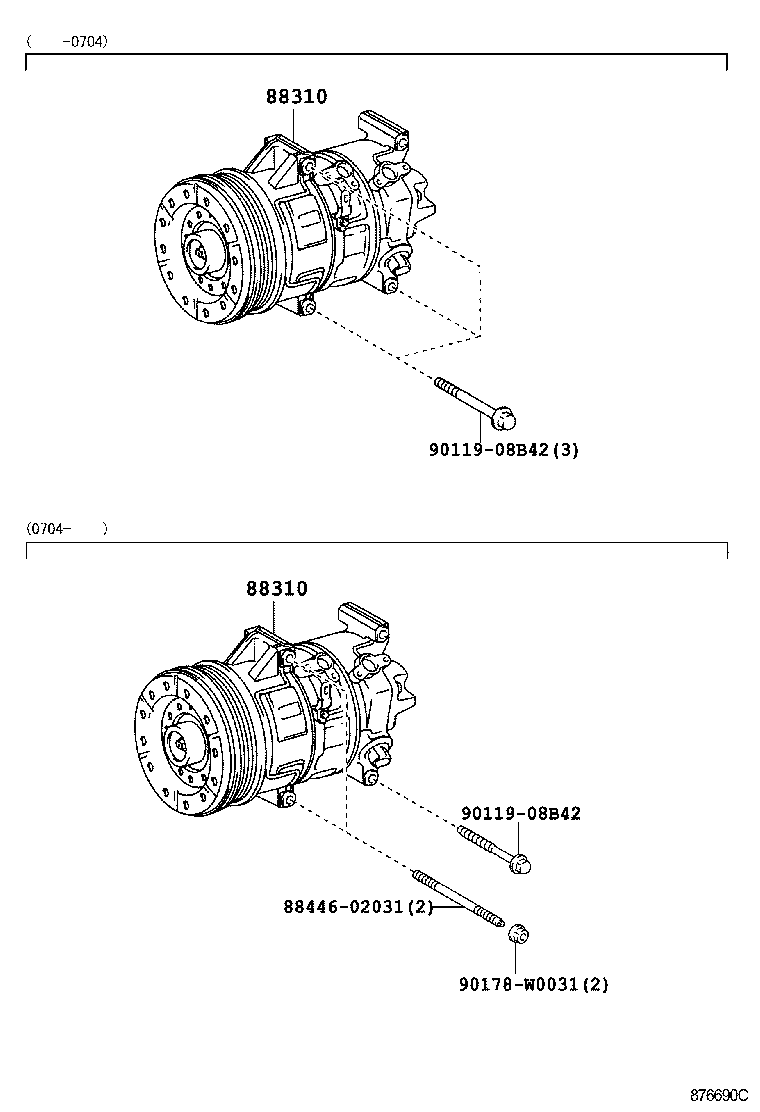

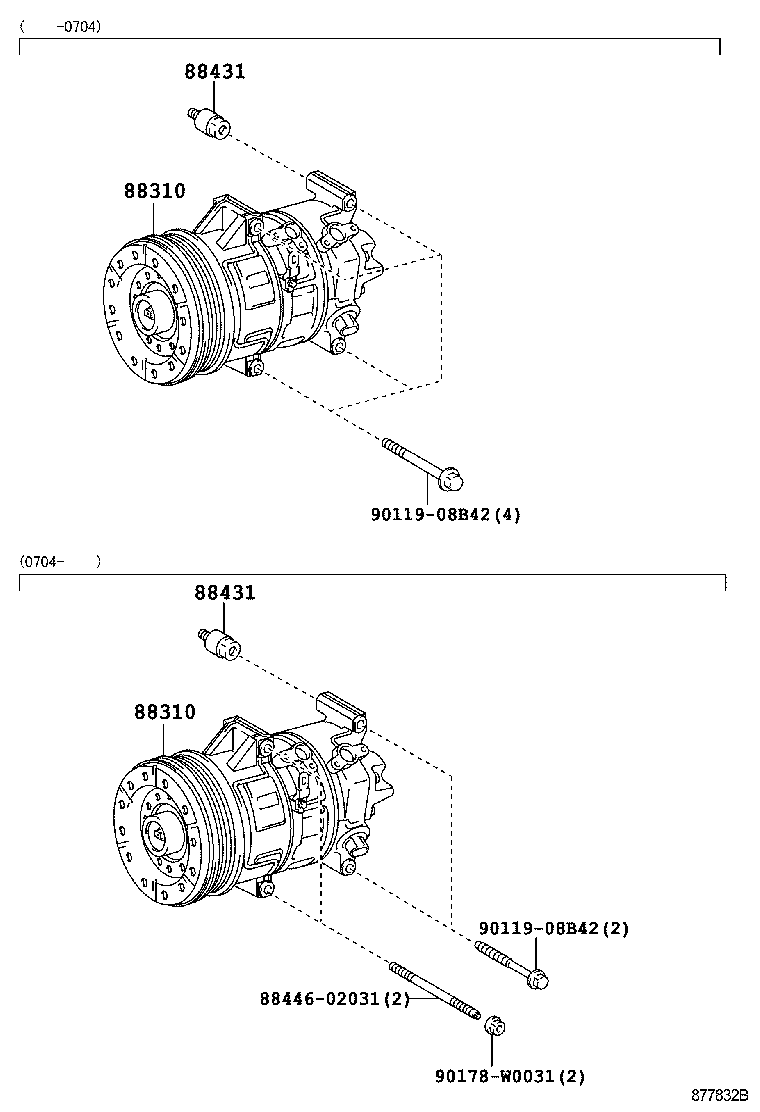

Figure 876691A 876691A 2004-02 → — Figure 876690C 876690C 2004-02 → — Figure 877832B 877832B 2005-08 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88431 Bracket, Compressor Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
