Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

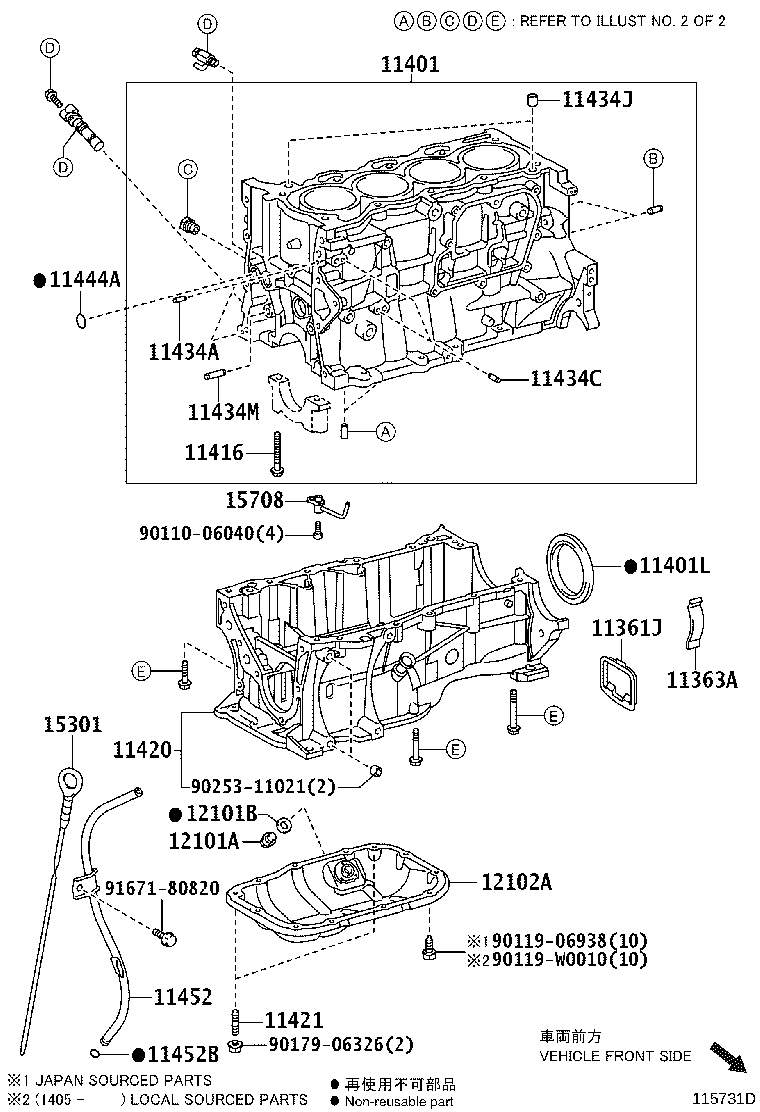

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11361J — Cover, Flywheel Housing Under | ||||
| 11361-21011 |
Cover, Flywheel Housing Under
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11361-21011 |
Cover, Flywheel Housing Under
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11361-21011 |
Cover, Flywheel Housing Under
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11361-21011 |
Cover, Flywheel Housing Under
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11361-21011 |
Cover, Flywheel Housing Under
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11363A — Cover, Flywheel Housing Side | ||||
| 11363-33010 |
Cover, Flywheel Housing Side
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11363-33010 |
Cover, Flywheel Housing Side
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11363-33010 |
Cover, Flywheel Housing Side
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11363-33010 |
Cover, Flywheel Housing Side
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11363-33010 |
Cover, Flywheel Housing Side
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11401 — Block Sub-assy, Cylinder | ||||
| 11410-09300 note |
Block Sub-assy, Cylinder
2009-02 → 2009-06
ended
|
1ZRFAE ZGR20 | — | |
| 11410-09301 note |
Block Sub-assy, Cylinder
2009-06 → 2010-06
ended
|
1ZRFAE ZGR20 | — | |
| 11410-09310 note |
Block Sub-assy, Cylinder
2009-02 → 2009-06
ended
|
2ZRFAE ZGR21 | — | |
| 11410-09311 note |
Block Sub-assy, Cylinder
2009-06 → 2010-06
ended
|
2ZRFAE ZGR21 | — | |
| 11410-09405 note |
Block Sub-assy, Cylinder
2009-02 → 2010-07
ended
|
1ADFTV AUR20 | — | |
| 11410-09415 note |
Block Sub-assy, Cylinder
2009-02 → 2010-07
ended
|
2ADFHV AUR21 | — | |
| 11410-09445 note |
Block Sub-assy, Cylinder
2010-06 → 2010-07
ended
|
1ZRFAE ZGR20 | — | |
| 11410-09455 note |
Block Sub-assy, Cylinder
2010-06 → 2010-07
ended
|
2ZRFAE ZGR21 | — | |
| 11410-29405 note |
Block Sub-assy, Cylinder
2009-02 → 2010-07
ended
|
1ADFTV AUR20 | — | |
| 11410-29415 note |
Block Sub-assy, Cylinder
2009-02 → 2010-07
ended
|
2ADFHV AUR21 | — | |
| 11410-39045 note |
Block Sub-assy, Cylinder
2009-02 → 2009-04
ended
|
1ZRFAE ZGR20 | — | |
| 11410-39047 note |
Block Sub-assy, Cylinder
2009-04 → 2010-07
ended
|
1ZRFAE ZGR20 | — | |
| 11410-39055 note |
Block Sub-assy, Cylinder
2009-02 → 2009-04
ended
|
2ZRFAE ZGR21 | — | |
| 11410-39057 note |
Block Sub-assy, Cylinder
2009-04 → 2010-07
ended
|
2ZRFAE ZGR21 | — | |
| 11410-09405 note |
Block Sub-assy, Cylinder
2010-07 → 2011-03
ended
|
1ADFTV AUR20 | — | |
| 11410-09406 note |
Block Sub-assy, Cylinder
2011-03 → 2012-11
ended
|
1ADFTV AUR20 | — | |
| 11410-09415 note |
Block Sub-assy, Cylinder
2010-07 → 2011-03
ended
|
2ADFHV AUR21 | — | |
| 11410-09416 note |
Block Sub-assy, Cylinder
2011-03 → 2012-11
ended
|
2ADFHV AUR21 | — | |
| 11410-09445 note |
Block Sub-assy, Cylinder
2010-07 → 2012-11
ended
|
1ZRFAE ZGR20 | — | |
| 11410-09455 note |
Block Sub-assy, Cylinder
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11410-09455 note |
Block Sub-assy, Cylinder
2010-07 → 2012-11
ended
|
2ZRFAE ZGR21 E;2ZRFAE ZGR21 +6 | — | |
| 11410-29405 note |
Block Sub-assy, Cylinder
2010-07 → 2011-03
ended
|
1ADFTV AUR20 | — | |
| 11410-29406 note |
Block Sub-assy, Cylinder
2011-03 → 2012-11
ended
|
1ADFTV AUR20 | — | |
| 11410-29415 note |
Block Sub-assy, Cylinder
2010-07 → 2011-03
ended
|
2ADFHV AUR21 | — | |
| 11410-29416 note |
Block Sub-assy, Cylinder
2011-03 → 2012-11
ended
|
2ADFHV AUR21 | — | |
| 11410-39047 note |
Block Sub-assy, Cylinder
2010-09 → 2012-11
ended
|
1ZRFAE ZGR20 | — | |
| 11410-39048 note |
Block Sub-assy, Cylinder
2010-07 → 2010-08
ended
|
1ZRFAE ZGR20 | — | |
| 11410-39057 note |
Block Sub-assy, Cylinder
2010-09 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11410-39057 note |
Block Sub-assy, Cylinder
2010-09 → 2012-11
ended
|
2ZRFAE ZGR21 E;2ZRFAE ZGR21 +6 | — | |
| 11410-39058 note |
Block Sub-assy, Cylinder
2010-07 → 2010-08
ended
|
2ZRFAE ZGR21 | — | |
| 11401-WA010 |
Block Sub-assy, Cylinder
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 11410-09406 note |
Block Sub-assy, Cylinder
2013-09 → —
|
1ADFTV AUR20 | — | |
| 11410-09406 note |
Block Sub-assy, Cylinder
2012-11 → 2013-09
ended
|
1ADFTV AUR20 | — | |
| 11410-09416 note |
Block Sub-assy, Cylinder
2012-11 → 2013-09
ended
|
2ADFHV AUR21 | — | |
| 11410-09416 note |
Block Sub-assy, Cylinder
2013-09 → —
|
2ADFHV AUR21 | — | |
| 11410-09445 note |
Block Sub-assy, Cylinder
2012-11 → 2015-03
ended
|
1ZRFAE ZGR20 | — | |
| 11410-09455 note |
Block Sub-assy, Cylinder
2012-11 → 2015-03
ended
|
2ZRFAE ZGR21 | — | |
| 11410-29406 note |
Block Sub-assy, Cylinder
2012-11 → 2013-09
ended
|
1ADFTV AUR20 | — | |
| 11410-29416 note |
Block Sub-assy, Cylinder
2012-11 → 2013-09
ended
|
2ADFHV AUR21 | — | |
| 11410-39047 note |
Block Sub-assy, Cylinder
2012-11 → 2015-03
ended
|
1ZRFAE ZGR20 | — | |
| 11410-39057 note |
Block Sub-assy, Cylinder
2012-11 → 2015-03
ended
|
2ZRFAE ZGR21 | — | |
| 11401-WA020 |
Block Sub-assy, Cylinder
2015-03 → —
|
1WW WAR20 | — | |
| 11410-09445 note |
Block Sub-assy, Cylinder
2015-03 → 2016-12
ended
|
1ZRFAE ZGR20 | — | |
| 11410-09446 note |
Block Sub-assy, Cylinder
2016-12 → —
|
1ZRFAE ZGR20 | — | |
| 11410-09455 note |
Block Sub-assy, Cylinder
2015-03 → 2016-12
ended
|
2ZRFAE ZGR21 | — | |
| 11410-09456 note |
Block Sub-assy, Cylinder
2016-12 → —
|
2ZRFAE ZGR21 | — | |
| 11410-39047 note |
Block Sub-assy, Cylinder
2015-03 → 2016-12
ended
|
1ZRFAE ZGR20 | — | |
| 11410-39057 note |
Block Sub-assy, Cylinder
2015-03 → 2016-12
ended
|
2ZRFAE ZGR21 | — | |
| 11410-39235 note |
Block Sub-assy, Cylinder
2016-12 → —
|
1ZRFAE ZGR20 | — | |
| 11410-39245 note |
Block Sub-assy, Cylinder
2016-12 → —
|
2ZRFAE ZGR21 | — | |
| 11401L — Seal, Engine Rear Oil | ||||
| 90311-76002 note |
Seal, Engine Rear Oil
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-W0010 |
Seal, Engine Rear Oil
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90311-W0011 note |
Seal, Engine Rear Oil
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-76002 note |
Seal, Engine Rear Oil
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90311-76002 note |
Seal, Engine Rear Oil
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90311-W0010 |
Seal, Engine Rear Oil
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90311-W0011 note |
Seal, Engine Rear Oil
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90311-W0011 note |
Seal, Engine Rear Oil
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90069-38023 |
Seal, Engine Rear Oil
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 90311-76002 note |
Seal, Engine Rear Oil
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-W0010 |
Seal, Engine Rear Oil
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90311-W0011 note |
Seal, Engine Rear Oil
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90069-38023 |
Seal, Engine Rear Oil
2015-03 → —
|
1WW WAR20 | — | |
| 90311-76002 |
Seal, Engine Rear Oil
2015-03 → 2016-09
ended
|
1ZRFAE ZGR20 | — | |
| 90311-78002 |
Seal, Engine Rear Oil
2015-03 → —
|
2ZRFAE ZGR21 | — | |
| 90311-78008 note |
Seal, Engine Rear Oil
2016-10 → —
|
1ZRFAE ZGR20 | — | |
| 90311-W0011 note |
Seal, Engine Rear Oil
2015-03 → —
|
1ZRFAE ZGR20 | — | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90069-31084 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2014-01 → 2014-08
ended
|
1WW WAR20 | — | |
| 90069-31092 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2014-08 → 2015-03
ended
|
1WW WAR20 | — | |
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2013-09 → —
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2012-11 → 2013-09
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90069-31092 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-03 → —
|
1WW WAR20 | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11420 — Crankcase Assy, Stiffening | ||||
| 11420-0T030 note |
Crankcase Assy, Stiffening
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11420-37010 note |
Crankcase Assy, Stiffening
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11420-0T030 note |
Crankcase Assy, Stiffening
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11420-0T030 note |
Crankcase Assy, Stiffening
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11420-37010 note |
Crankcase Assy, Stiffening
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11420-37010 note |
Crankcase Assy, Stiffening
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11420-0T030 note |
Crankcase Assy, Stiffening
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11420-37010 note |
Crankcase Assy, Stiffening
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11420-0T030 note |
Crankcase Assy, Stiffening
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11420-37010 note |
Crankcase Assy, Stiffening
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11421 — Bolt, Stud(FOR OIL PAN) | ||||
| 90116-06134 |
Bolt, Stud(FOR OIL PAN)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90126-06015 |
Bolt, Stud(FOR OIL PAN)
2009-02 → 2010-06
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90126-06028 |
Bolt, Stud(FOR OIL PAN)
2010-06 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90116-06134 |
Bolt, Stud(FOR OIL PAN)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90126-06028 |
Bolt, Stud(FOR OIL PAN)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90126-06028 |
Bolt, Stud(FOR OIL PAN)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90116-06134 |
Bolt, Stud(FOR OIL PAN)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90126-06028 |
Bolt, Stud(FOR OIL PAN)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90126-06028 |
Bolt, Stud(FOR OIL PAN)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11434A — Pin, Straight(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-08120 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-10030 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-04097 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90250-04097 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90250-08120 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-10030 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-04097 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-08120 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90250-10030 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90250-04097 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11434C — Pin, Straight (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-08074 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-04097 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90250-04097 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90250-08074 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-04097 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-08074 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90250-04097 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11434J — Pin, Ring (FOR CYLINDER HEAD SET) | ||||
| 90253-13001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90253-13001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90253-13001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90253-13001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90253-13001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11434M — Pin, Straight(FOR CHAIN TENSIONER) | ||||
| 90250-10030 |
Pin, Straight(FOR CHAIN TENSIONER)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-10030 |
Pin, Straight(FOR CHAIN TENSIONER)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90250-10030 |
Pin, Straight(FOR CHAIN TENSIONER)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90250-10030 |
Pin, Straight(FOR CHAIN TENSIONER)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-10030 |
Pin, Straight(FOR CHAIN TENSIONER)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11444A — Ring, O | ||||
| 96723-24020 |
Ring, O
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 96723-24020 |
Ring, O
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 96723-24020 |
Ring, O
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 96723-24020 |
Ring, O
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 96723-24020 |
Ring, O
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11452 — Guide, Oil Level Gage | ||||
| 11452-26030 |
Guide, Oil Level Gage
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11452-37010 |
Guide, Oil Level Gage
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11452-26030 |
Guide, Oil Level Gage
2010-07 → 2011-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11452-26060 |
Guide, Oil Level Gage
2011-11 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11452-37010 |
Guide, Oil Level Gage
2010-07 → 2011-01
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11452-37011 |
Guide, Oil Level Gage
2011-01 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11452-37011 |
Guide, Oil Level Gage
2011-01 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11452-26060 |
Guide, Oil Level Gage
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 11452-37011 |
Guide, Oil Level Gage
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11452-37011 |
Guide, Oil Level Gage
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2009-09 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 96741-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2009-02 → 2009-09
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90069-38029 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90069-38029 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-03 → —
|
1WW WAR20 | — | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 12101A — Plug(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90069-39020 |
Plug(FOR OIL PAN DRAIN)
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90069-39020 |
Plug(FOR OIL PAN DRAIN)
2015-03 → —
|
1WW WAR20 | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 12101B — Gasket(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90069-38021 |
Gasket(FOR OIL PAN DRAIN PLUG)
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90069-38021 |
Gasket(FOR OIL PAN DRAIN PLUG)
2015-03 → —
|
1WW WAR20 | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 12102A — Pan Sub-assy, Oil, NO.2 | ||||
| 12102-0R020 |
Pan Sub-assy, Oil, NO.2
2009-02 → 2009-08
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 12102-0R021 |
Pan Sub-assy, Oil, NO.2
2009-08 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 12102-37010 |
Pan Sub-assy, Oil, NO.2
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 12102-0R021 |
Pan Sub-assy, Oil, NO.2
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 12102-37010 |
Pan Sub-assy, Oil, NO.2
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 12102-37010 |
Pan Sub-assy, Oil, NO.2
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 12101-26030 |
Pan Sub-assy, Oil, NO.2
2012-11 → —
|
1ADFTV AUR20 | — | |
| 12102-0R021 |
Pan Sub-assy, Oil, NO.2
2012-11 → 2013-02
ended
|
2ADFHV AUR21 | — | |
| 12102-0R021 note |
Pan Sub-assy, Oil, NO.2
2012-11 → 2013-02
ended
|
1ADFTV AUR20 | — | |
| 12102-0R022 |
Pan Sub-assy, Oil, NO.2
2013-02 → —
|
2ADFHV AUR21 | — | |
| 12102-0R022 note |
Pan Sub-assy, Oil, NO.2
2013-02 → —
|
1ADFTV AUR20 | — | |
| 12102-37010 |
Pan Sub-assy, Oil, NO.2
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 12102-0T040 note |
Pan Sub-assy, Oil, NO.2
2016-05 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 12102-37010 |
Pan Sub-assy, Oil, NO.2
2015-03 → 2016-05
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 12102-37010 note |
Pan Sub-assy, Oil, NO.2
2016-05 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15301 — Gage Sub-assy, Oil Level | ||||
| 15301-26070 |
Gage Sub-assy, Oil Level
2009-02 → 2010-07
ended
|
2ADFHV AUR21 | — | |
| 15301-26080 |
Gage Sub-assy, Oil Level
2009-02 → 2010-07
ended
|
1ADFTV AUR20 | — | |
| 15301-37010 |
Gage Sub-assy, Oil Level
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15301-26070 |
Gage Sub-assy, Oil Level
2010-07 → 2012-11
ended
|
2ADFHV AUR21 | — | |
| 15301-26080 |
Gage Sub-assy, Oil Level
2010-07 → 2012-11
ended
|
1ADFTV AUR20 | — | |
| 15301-37010 |
Gage Sub-assy, Oil Level
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 15301-37010 |
Gage Sub-assy, Oil Level
2010-07 → 2012-08
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 15301-37030 |
Gage Sub-assy, Oil Level
2012-08 → 2012-11
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15301-26070 |
Gage Sub-assy, Oil Level
2012-11 → —
|
2ADFHV AUR21 6FC;2ADFHV AUR21 +2 | — | |
| 15301-26080 |
Gage Sub-assy, Oil Level
2012-11 → —
|
1ADFTV AUR20 | — | |
| 15301-37010 |
Gage Sub-assy, Oil Level
2013-06 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15301-37030 |
Gage Sub-assy, Oil Level
2012-11 → 2013-06
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15301-YV030 |
Gage Sub-assy, Oil Level
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 15301-37010 |
Gage Sub-assy, Oil Level
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15301-YV030 |
Gage Sub-assy, Oil Level
2015-03 → —
|
1WW WAR20 | — | |
| 15708 — Nozzle Sub-assy, Oil, NO.1 | ||||
| 15708-0R010 |
Nozzle Sub-assy, Oil, NO.1
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 15708-37011 |
Nozzle Sub-assy, Oil, NO.1
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15708-0R010 |
Nozzle Sub-assy, Oil, NO.1
2010-07 → 2011-03
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 15708-0R011 |
Nozzle Sub-assy, Oil, NO.1
2011-03 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 15708-37011 |
Nozzle Sub-assy, Oil, NO.1
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 15708-37011 |
Nozzle Sub-assy, Oil, NO.1
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 15708-0R011 |
Nozzle Sub-assy, Oil, NO.1
2012-11 → —
|
2ADFHV AUR21 6FC;2ADFHV AUR21 +2 | — | |
| 15708-0R011 note |
Nozzle Sub-assy, Oil, NO.1
2012-11 → —
|
1ADFTV AUR20 | — | |
| 15708-0R020 |
Nozzle Sub-assy, Oil, NO.1
2012-11 → —
|
1ADFTV AUR20 | — | |
| 15708-37012 |
Nozzle Sub-assy, Oil, NO.1
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15708-WA010 |
Nozzle Sub-assy, Oil, NO.1
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 15708-37012 |
Nozzle Sub-assy, Oil, NO.1
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 15708-WA010 |
Nozzle Sub-assy, Oil, NO.1
2015-03 → —
|
1WW WAR20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
