Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

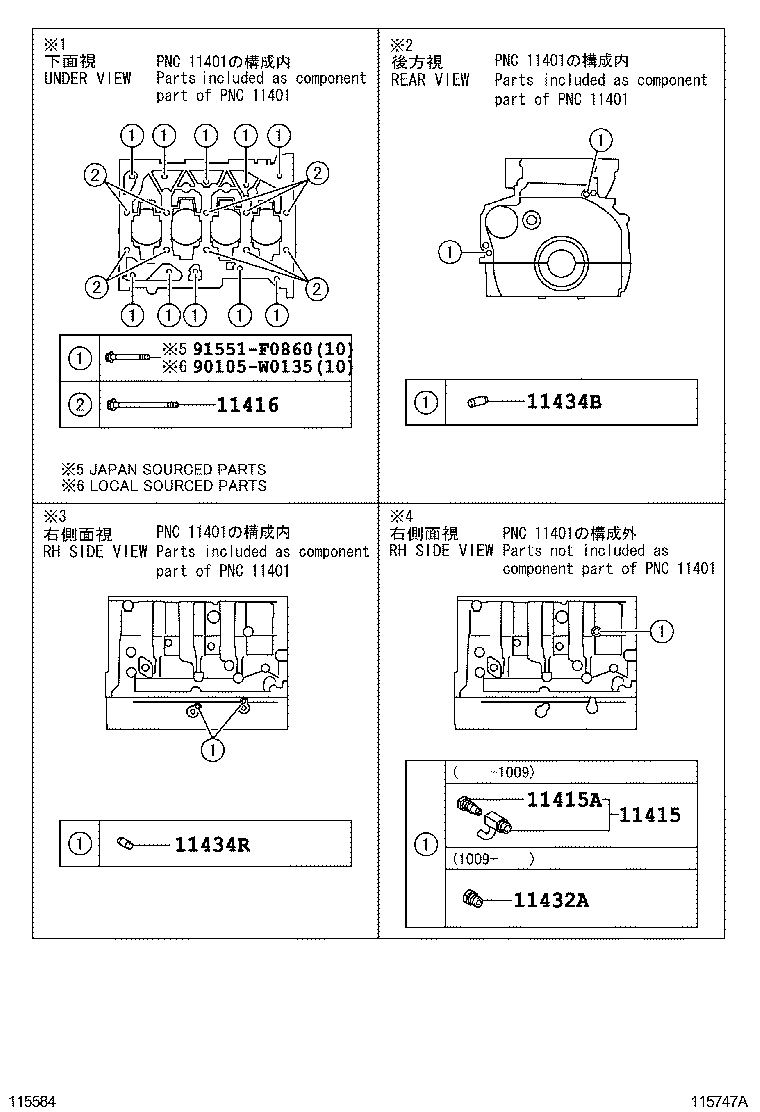

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) | ||||
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2009-02 → 2010-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2010-07 → 2010-09
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2009-02 → 2010-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2010-07 → 2010-09
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90069-31084 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2014-01 → 2014-08
ended
|
1WW WAR20 | — | |
| 90069-31092 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2014-08 → 2015-03
ended
|
1WW WAR20 | — | |
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2012-11 → 2013-09
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02157 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2013-09 → —
|
1ADFTV,2ADFHV AUR2# | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90069-31092 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-03 → —
|
1WW WAR20 | — | |
| 90910-02163 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11432A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-03 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90345-52001 |
Plug, W/Head Taper Screw, NO.1
2010-09 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90345-52001 |
Plug, W/Head Taper Screw, NO.1
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2015-03 → 2016-08
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11434B — Pin, Straight(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11434R — Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90250-08120 |
Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-08120 |
Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90250-08120 |
Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
