Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

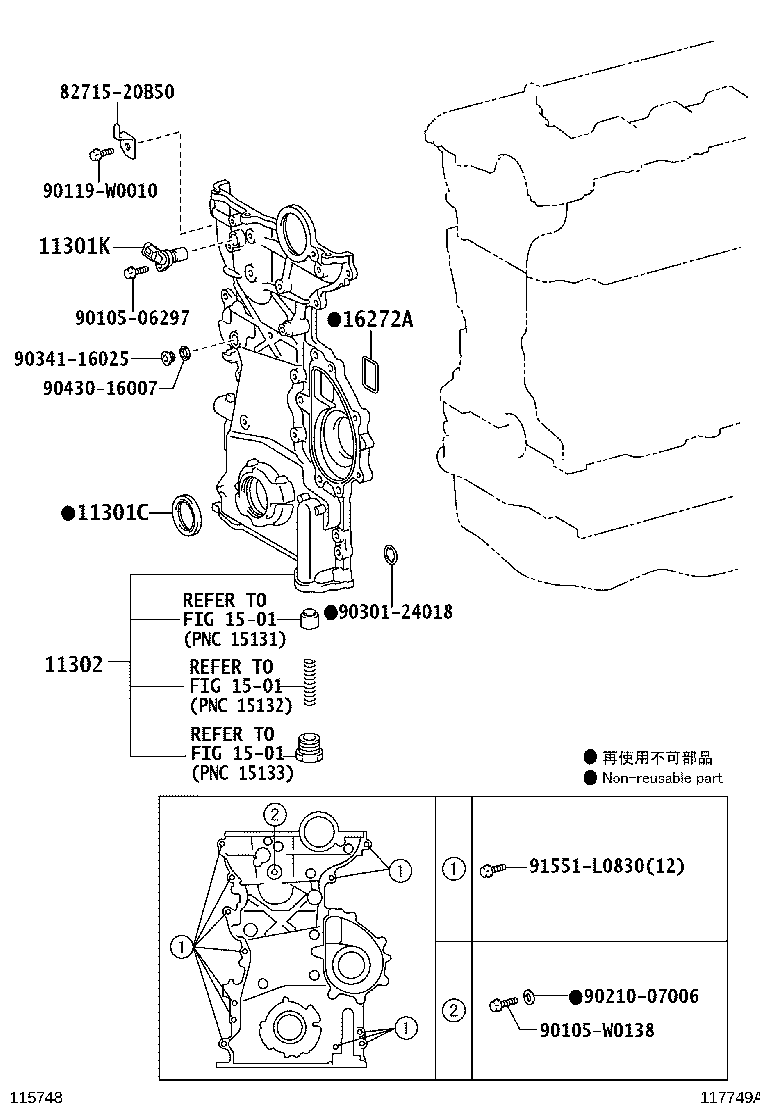

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-W0009 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90311-W0009 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90069-38025 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 90311-W0009 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90069-38025 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2015-03 → —
|
1WW WAR20 | — | |
| 11301K — Sensor, Crank Position | ||||
| 90919-05029 |
Sensor, Crank Position
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90919-05029 |
Sensor, Crank Position
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90919-05029 |
Sensor, Crank Position
2012-11 → —
|
2ADFHV AUR21 6FC;2ADFHV AUR21 +2 | — | |
| 90919-05029 note |
Sensor, Crank Position
2012-11 → —
|
1ADFTV AUR20 | — | |
| 90919-05061 |
Sensor, Crank Position
2012-11 → —
|
1ADFTV AUR20 | — | |
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2012-01
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2012-01 → 2012-11
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11302-0R020 note |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → —
|
1ADFTV AUR20 | — | |
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → —
|
2ADFHV AUR21 6FC;2ADFHV AUR21 +2 | — | |
| 11302-0R030 |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → —
|
1ADFTV AUR20 | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → 2014-09
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-0T071 note |
Cover Sub-assy, Timing Chain OR Belt
2014-10 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-0T071 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
1ZRFAE ZGR20 | — | |
| 11310-0T110 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
2ZRFAE ZGR21 | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
1ZRFAE ZGR20 | — | |
| 11310-37040 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
2ZRFAE ZGR21 | — | |
| 16272A — Gasket, Water Pump NO.2 | ||||
| 16272-26010 |
Gasket, Water Pump NO.2
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 16272-26010 |
Gasket, Water Pump NO.2
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 16272-26010 |
Gasket, Water Pump NO.2
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
