Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

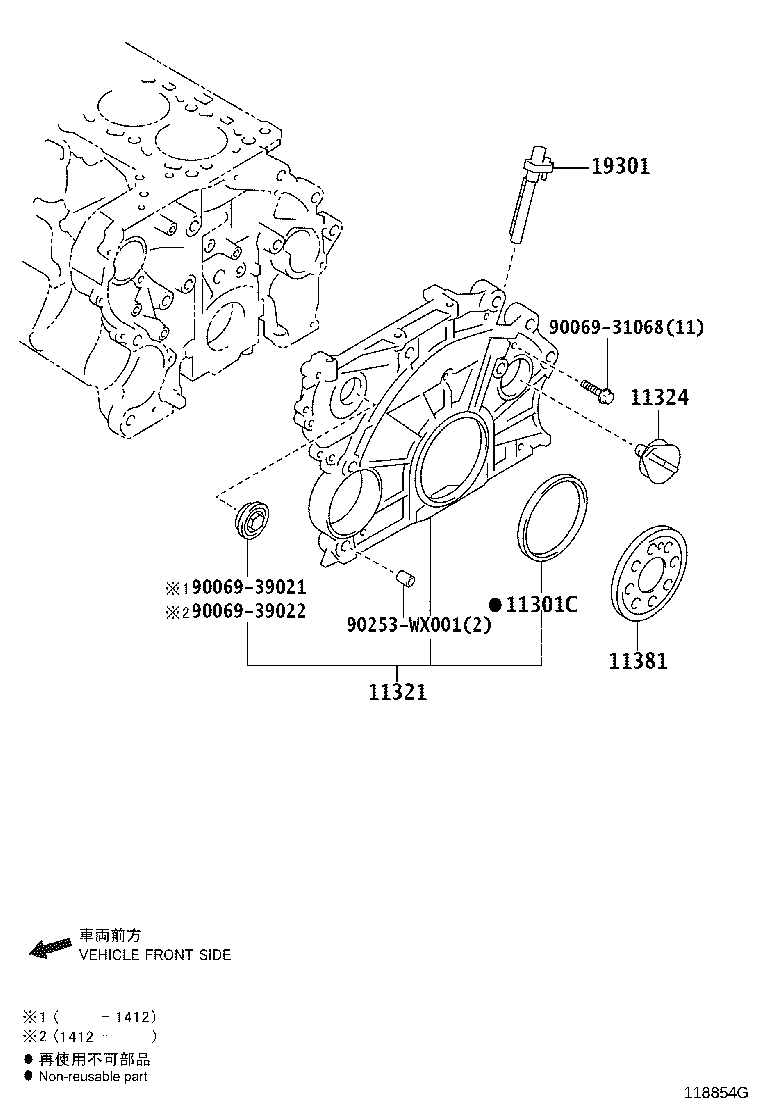

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-W0009 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90311-W0009 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90069-38025 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 90311-W0009 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2012-11 → —
|
1ADFTV AUR20;2ADFHV AUR21 6FC;2ADFHV +3 | — | |
| 90069-38025 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2015-03 → —
|
1WW WAR20 | — | |
| 11321 — Case, Timing Gear | ||||
| 11321-WA010 |
Case, Timing Gear
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 11321-WA010 |
Case, Timing Gear
2015-03 → —
|
1WW WAR20 | — | |
| 11324 — Plate, Timing Chain Cover | ||||
| 11324-WA010 |
Plate, Timing Chain Cover
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 11324-WA010 |
Plate, Timing Chain Cover
2015-03 → —
|
1WW WAR20 | — | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-WA010 |
Retainer, Engine Rear Oil Seal
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 11381-WA010 |
Retainer, Engine Rear Oil Seal
2015-03 → 2017-09
ended
|
1WW WAR20 | — | |
| 19301 — Sensor Assy, Crank Position | ||||
| 19301-WA010 |
Sensor Assy, Crank Position
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 19301-WA010 |
Sensor Assy, Crank Position
2015-03 → —
|
1WW WAR20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
