Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

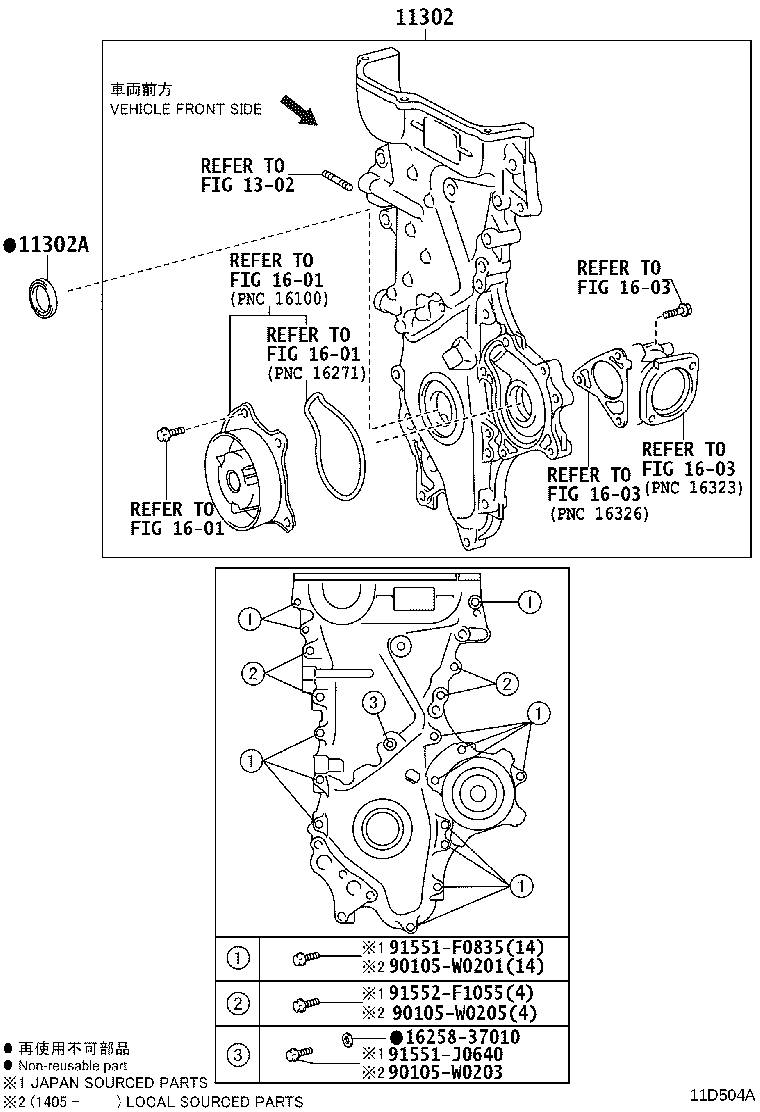

| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2010-07 → 2012-01
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2012-01 → 2012-11
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11302-0R020 note |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → —
|
1ADFTV AUR20 | — | |
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → —
|
2ADFHV AUR21 6FC;2ADFHV AUR21 +2 | — | |
| 11302-0R030 |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → —
|
1ADFTV AUR20 | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → 2014-09
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-0T071 note |
Cover Sub-assy, Timing Chain OR Belt
2014-10 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 11310-0T071 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
1ZRFAE ZGR20 | — | |
| 11310-0T110 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
2ZRFAE ZGR21 | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
1ZRFAE ZGR20 | — | |
| 11310-37040 note |
Cover Sub-assy, Timing Chain OR Belt
2015-03 → —
|
2ZRFAE ZGR21 | — | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2012-11 → 2014-06
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-06 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2012-11 → 2014-06
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
