Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

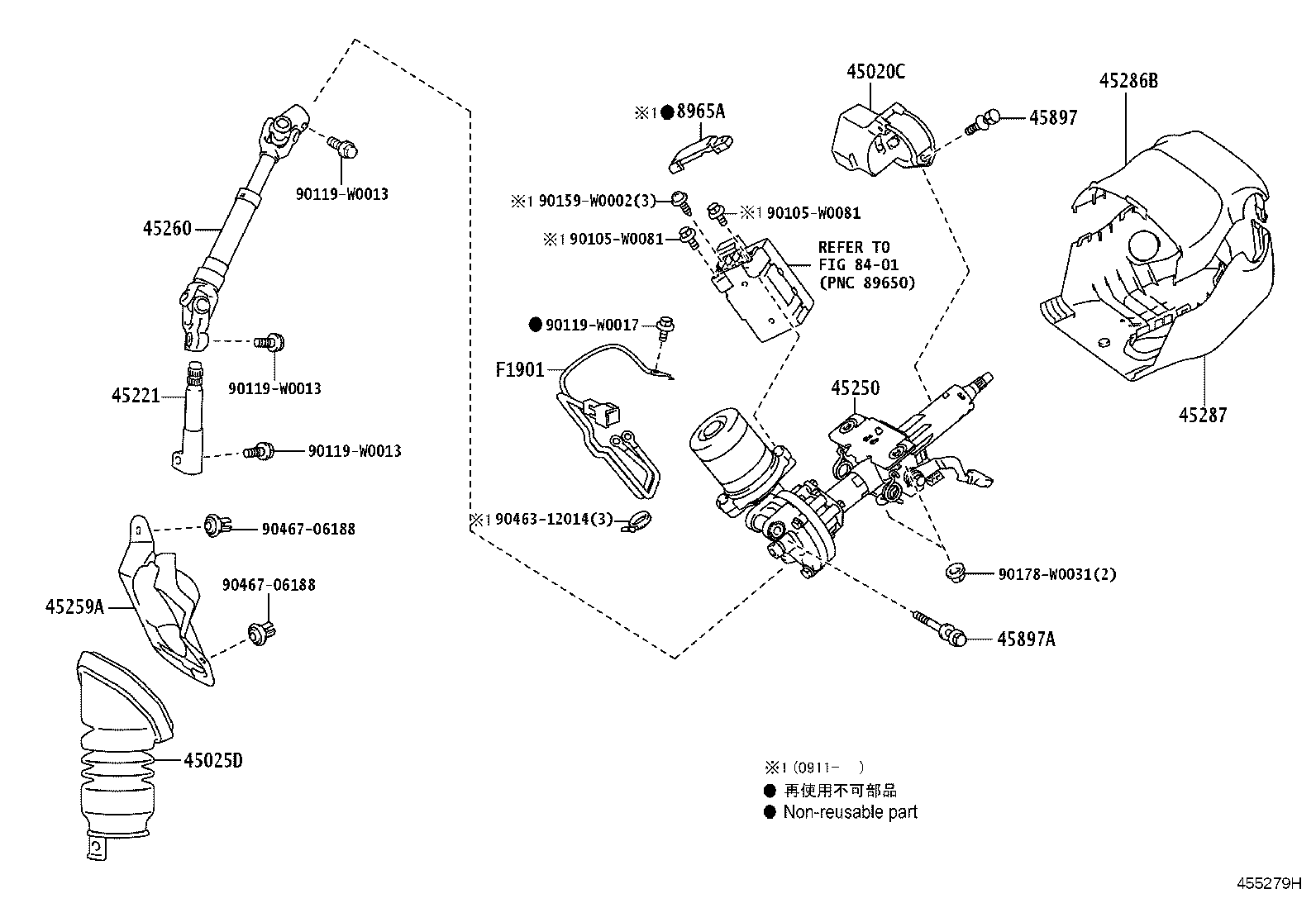

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45020C — Actuator Assy, Steering Lock(W/ECU) | ||||
| 45020-0F020 note |
Actuator Assy, Steering Lock(W/ECU)
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD E | — | |
| 45020-0F030 note |
Actuator Assy, Steering Lock(W/ECU)
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD E | — | |
| 45020-0F020 note |
Actuator Assy, Steering Lock(W/ECU)
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# LHD E | — | |
| 45020-0F030 note |
Actuator Assy, Steering Lock(W/ECU)
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# RHD E | — | |
| 45020-0F020 note |
Actuator Assy, Steering Lock(W/ECU)
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# LHD E | — | |
| 45020-0F030 note |
Actuator Assy, Steering Lock(W/ECU)
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# RHD E | — | |
| 45020-0F020 note |
Actuator Assy, Steering Lock(W/ECU)
2015-03 → 2017-10
ended
|
WAR20,ZGR2# LHD E | — | |
| 45020-0F030 note |
Actuator Assy, Steering Lock(W/ECU)
2015-03 → 2017-10
ended
|
WAR20,ZGR2# RHD E | — | |
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD | — | |
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2010-07 → 2012-11
ended
|
ZGR21 RHD E;AUR2#,ZGR20 RHD;ZGR21 +3 | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# LHD | — | |
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# RHD | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# LHD | — | |
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2015-03 → —
|
WAR20,ZGR2# RHD | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2015-03 → —
|
WAR20,ZGR2# LHD | — | |
| 45221 — Shaft, Steering Intermediate | ||||
| 45221-0F010 |
Shaft, Steering Intermediate
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 45221-0F010 |
Shaft, Steering Intermediate
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45221-0F010 |
Shaft, Steering Intermediate
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 45221-0F010 |
Shaft, Steering Intermediate
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 45221-0F010 |
Shaft, Steering Intermediate
2015-03 → —
|
WAR20,ZGR2# | — | |
| 45250 — Column Assy, Steering | ||||
| 45250-0F110 note |
Column Assy, Steering
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD E | — | |
| 45250-0F120 |
Column Assy, Steering
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD | — | |
| 45250-0F130 note |
Column Assy, Steering
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD E | — | |
| 45250-0F140 |
Column Assy, Steering
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD | — | |
| 45250-0F110 note |
Column Assy, Steering
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# LHD E | — | |
| 45250-0F120 |
Column Assy, Steering
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# LHD | — | |
| 45250-0F130 note |
Column Assy, Steering
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# RHD E | — | |
| 45250-0F140 |
Column Assy, Steering
2010-07 → 2012-11
ended
|
ZGR21 RHD E;AUR2#,ZGR20 RHD;ZGR21 +3 | — | |
| 45250-0F140 |
Column Assy, Steering
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45250-0F110 note |
Column Assy, Steering
2012-11 → 2015-02
ended
|
AUR2#,WAR20,ZGR2# LHD E | — | |
| 45250-0F120 |
Column Assy, Steering
2012-11 → 2015-02
ended
|
AUR2#,WAR20,ZGR2# LHD | — | |
| 45250-0F130 note |
Column Assy, Steering
2012-11 → 2015-02
ended
|
AUR2#,WAR20,ZGR2# RHD E | — | |
| 45250-0F140 |
Column Assy, Steering
2012-11 → 2015-02
ended
|
AUR2#,WAR20,ZGR2# RHD | — | |
| 45250-0F111 note |
Column Assy, Steering
2015-03 → —
|
WAR20,ZGR2# LHD E | — | |
| 45250-0F121 |
Column Assy, Steering
2015-03 → —
|
WAR20,ZGR2# LHD | — | |
| 45250-0F131 note |
Column Assy, Steering
2015-03 → —
|
WAR20,ZGR2# RHD E | — | |
| 45250-0F141 |
Column Assy, Steering
2015-03 → —
|
WAR20,ZGR2# RHD | — | |
| 45259A — Sheet, Column Hole Cover Silencer | ||||
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD | — | |
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2010-07 → 2012-11
ended
|
ZGR21 RHD E;AUR2#,ZGR20 RHD;ZGR21 +3 | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# LHD | — | |
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# RHD | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# LHD | — | |
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2015-03 → —
|
WAR20,ZGR2# RHD | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2015-03 → —
|
WAR20,ZGR2# LHD | — | |
| 45260 — Shaft Assy, Steering Intermediate, NO.2 | ||||
| 45260-0F030 |
Shaft Assy, Steering Intermediate, NO.2
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 45260-0F030 |
Shaft Assy, Steering Intermediate, NO.2
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45260-0F030 |
Shaft Assy, Steering Intermediate, NO.2
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 45260-0F030 |
Shaft Assy, Steering Intermediate, NO.2
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 45260-0F030 |
Shaft Assy, Steering Intermediate, NO.2
2015-03 → —
|
WAR20,ZGR2# | — | |
| 45286B — Cover, Steering Column, Upr | ||||
| 45286-0F020-B0 note |
Cover, Steering Column, Upr
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# E | — | |
| 45286-0F030-B0 note |
Cover, Steering Column, Upr
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 45286-0F020-B0 note |
Cover, Steering Column, Upr
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# E | — | |
| 45286-0F030-B0 note |
Cover, Steering Column, Upr
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 45286-0F030-B0 note |
Cover, Steering Column, Upr
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45286-0F020-B0 note |
Cover, Steering Column, Upr
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# E | — | |
| 45286-0F030-B0 note |
Cover, Steering Column, Upr
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 45286-0F020-B0 note |
Cover, Steering Column, Upr
2015-03 → 2016-01
ended
|
WAR20,ZGR2# E | — | |
| 45286-0F021-C0 note |
Cover, Steering Column, Upr
2016-01 → 2017-10
ended
|
WAR20,ZGR2# E | — | |
| 45286-0F030-B0 note |
Cover, Steering Column, Upr
2015-03 → 2016-01
ended
|
WAR20,ZGR2# | — | |
| 45286-0F031-C0 note |
Cover, Steering Column, Upr
2016-01 → 2017-10
ended
|
WAR20,ZGR2# | — | |
| 45287 — Cover, Steering Column, Lwr | ||||
| 45287-0F020-B0 note |
Cover, Steering Column, Lwr
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# E | — | |
| 45287-0F030-B0 note |
Cover, Steering Column, Lwr
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 45287-0F020-B0 note |
Cover, Steering Column, Lwr
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# E | — | |
| 45287-0F030-B0 note |
Cover, Steering Column, Lwr
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 45287-0F030-B0 note |
Cover, Steering Column, Lwr
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45287-0F020-B0 note |
Cover, Steering Column, Lwr
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# E | — | |
| 45287-0F030-B0 note |
Cover, Steering Column, Lwr
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 45287-0F020-B0 note |
Cover, Steering Column, Lwr
2015-03 → 2016-01
ended
|
WAR20,ZGR2# E | — | |
| 45287-0F021-C0 note |
Cover, Steering Column, Lwr
2016-01 → 2017-10
ended
|
WAR20,ZGR2# E | — | |
| 45287-0F030-B0 note |
Cover, Steering Column, Lwr
2015-03 → 2016-01
ended
|
WAR20,ZGR2# | — | |
| 45287-0F031-C0 note |
Cover, Steering Column, Lwr
2016-01 → 2017-10
ended
|
WAR20,ZGR2# | — | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-12020 |
Bolt, Steering Lock Set
2009-02 → 2009-11
ended
|
AUR2#,ZGR2# LHD 6F | — | |
| 45897-12020 |
Bolt, Steering Lock Set
2009-02 → 2010-03
ended
|
AUR21,ZGR21 LHD (ATM,CVT) | — | |
| 45897-12020 note |
Bolt, Steering Lock Set
2009-02 → 2010-03
ended
|
AUR2#,ZGR2# RHD E | — | |
| 45897-12020 note |
Bolt, Steering Lock Set
2009-11 → 2010-03
ended
|
AUR2#,ZGR2# LHD 6F E | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2010-04 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2009-02 → 2010-03
ended
|
AUR2#,ZGR2# RHD | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2009-11 → 2010-03
ended
|
AUR2#,ZGR2# LHD 6F | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2015-03 → —
|
WAR20,ZGR2# | — | |
| 45897A — Bolt, Tilt Steering Pawl Set | ||||
| 45897-20020 |
Bolt, Tilt Steering Pawl Set
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 45897-20020 |
Bolt, Tilt Steering Pawl Set
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 45897-20020 |
Bolt, Tilt Steering Pawl Set
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 45897-20020 |
Bolt, Tilt Steering Pawl Set
2012-11 → 2012-12
ended
|
AUR2#,ZGR2# | — | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2013-01 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2015-03 → 2016-10
ended
|
WAR20,ZGR2# | — | |
| 90119-10981 note |
Bolt, Tilt Steering Pawl Set
2016-10 → —
|
WAR20,ZGR2# | — | |
| 90119-W0215 note |
Bolt, Tilt Steering Pawl Set
2016-10 → —
|
WAR20,ZGR2# | — | |
| 8965A — Protector, Power Steering Computer | ||||
| 8965A-0F010 |
Protector, Power Steering Computer
2009-11 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 8965A-0F010 |
Protector, Power Steering Computer
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 8965A-0F010 |
Protector, Power Steering Computer
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 8965A-0F010 |
Protector, Power Steering Computer
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 8965A-0F010 |
Protector, Power Steering Computer
2015-03 → —
|
WAR20,ZGR2# | — | |
| F1901 — Wire Sub-assy, Computer | ||||
| F1901-0F010 |
Wire Sub-assy, Computer
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD | — | |
| F1901-0F020 |
Wire Sub-assy, Computer
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD | — | |
| F1901-0F010 |
Wire Sub-assy, Computer
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# LHD | — | |
| F1901-0F020 |
Wire Sub-assy, Computer
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| F1901-0F020 |
Wire Sub-assy, Computer
2010-07 → 2012-11
ended
|
ZGR21 RHD E;AUR2#,ZGR20 RHD;ZGR21 +3 | — | |
| F1901-0F010 |
Wire Sub-assy, Computer
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# LHD | — | |
| F1901-0F020 |
Wire Sub-assy, Computer
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# RHD | — | |
| F1901-0F010 |
Wire Sub-assy, Computer
2015-03 → 2017-10
ended
|
WAR20,ZGR2# LHD | — | |
| F1901-0F020 |
Wire Sub-assy, Computer
2015-03 → 2017-10
ended
|
WAR20,ZGR2# RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
