Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

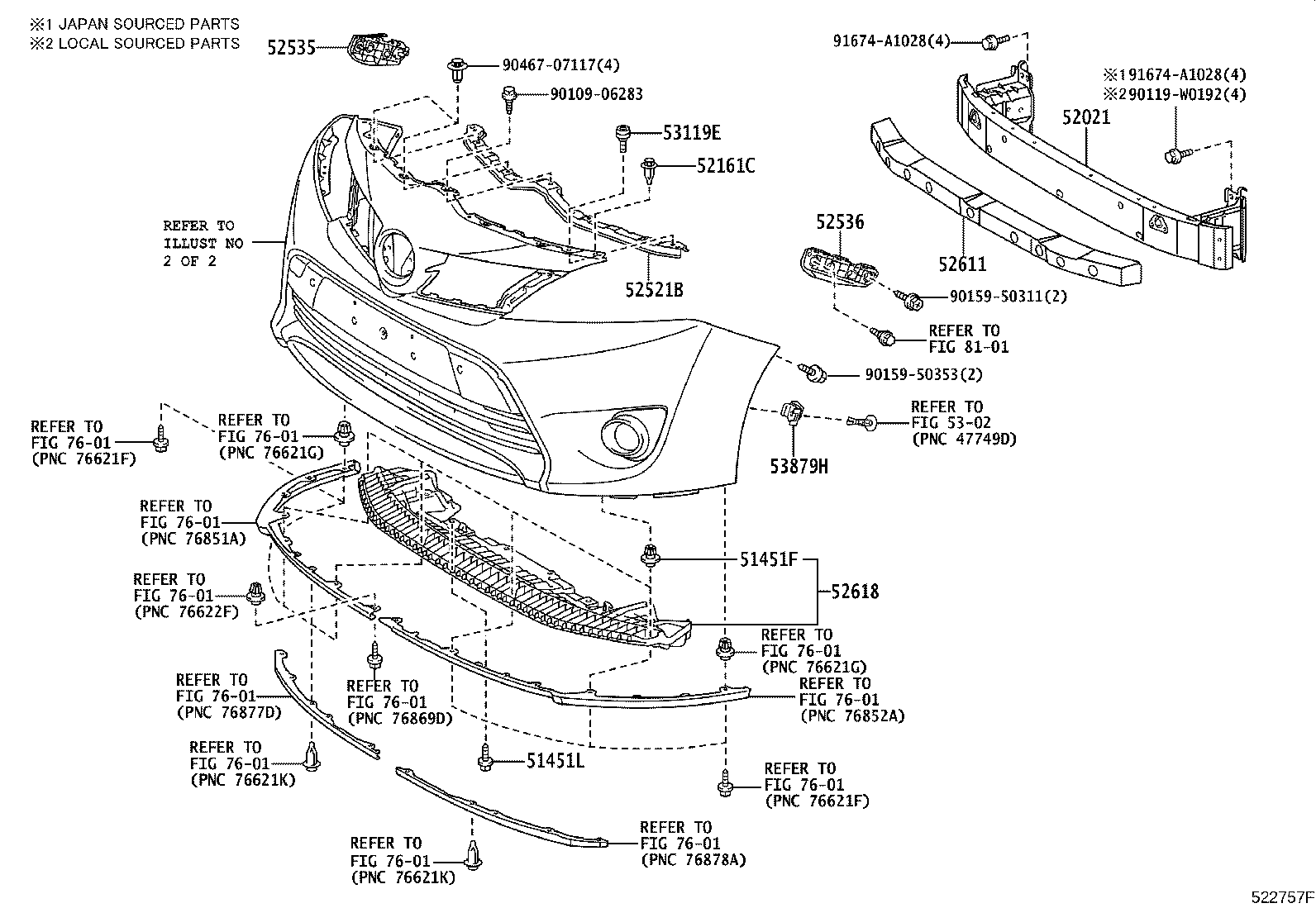

Exploded illustration 522757F 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (5 parts) 52161C — PIECE, FRONT BUMPER (10 parts) 52521B — RETAINER, FRONT BUMPER, UPPER (5 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (5 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (5 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (5 parts) 53119E — PROTECTOR, RADIATOR GRILLE (5 parts) 9010906283 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950353 — not listed in this catalogue 9046707117 — not listed in this catalogue 91674A1028 — not listed in this catalogue 91674A1028 — not listed in this catalogue 5302 — not listed in this catalogue 8101 — not listed in this catalogue 53879H — RETAINER, FRONT FENDER LINER (5 parts) 90119W0192 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 52618 — ABSORBER, FRONT BUMPER, LOWER (5 parts) 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 51451L — BOLT, NO.1 (5 parts) 7601 — not listed in this catalogue 7601 — not listed in this catalogue 51451F — GROMMET, NO.1 (4 parts)
522757F · 11 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
51451F — Grommet, NO.1
90189-05144 Grommet, NO.1
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
90189-05144 Grommet, NO.1
2010-07 → 2012-11 ended
AUR2#,ZGR2# —
90189-05144 Grommet, NO.1
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
90189-05144 Grommet, NO.1
2015-03 → 2017-10 ended
WAR20,ZGR2# —
51451L — Bolt, NO.1
90119-06767 Bolt, NO.1
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
90119-06767 Bolt, NO.1
2010-07 → 2010-09 ended
AUR2#,ZGR2# —
90119-W0089 Bolt, NO.1
2010-10 → 2012-11 ended
AUR2#,ZGR2# —
90119-W0089 Bolt, NO.1
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
90119-W0089 Bolt, NO.1
2015-03 → 2017-10 ended
WAR20,ZGR2# —
52021 — Reinforcement Sub-assy, Front Bumper
52021-0F021 Reinforcement Sub-assy, Front Bumper
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52021-0F021 Reinforcement Sub-assy, Front Bumper
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52021-0F021 Reinforcement Sub-assy, Front Bumper
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52021-0F021 Reinforcement Sub-assy, Front Bumper
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52021-0F021 Reinforcement Sub-assy, Front Bumper
2015-03 → 2017-10 ended
WAR20,ZGR2# —
52161C — Piece, Front Bumper
52161-02030 note Piece, Front Bumper
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52161-16010 note Piece, Front Bumper
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52161-02030 note Piece, Front Bumper
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52161-02030 note Piece, Front Bumper
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52161-16010 note Piece, Front Bumper
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52161-16010 note Piece, Front Bumper
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52161-02030 note Piece, Front Bumper
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52161-16010 note Piece, Front Bumper
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52161-02030 note Piece, Front Bumper
2015-03 → —
WAR20,ZGR2# —
52161-16010 note Piece, Front Bumper
2015-03 → —
WAR20,ZGR2# —
52521B — Retainer, Front Bumper, Upper
52521-0F010 Retainer, Front Bumper, Upper
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52521-0F010 Retainer, Front Bumper, Upper
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52521-0F010 Retainer, Front Bumper, Upper
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52521-0F010 Retainer, Front Bumper, Upper
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52521-0F010 Retainer, Front Bumper, Upper
2015-03 → —
WAR20,ZGR2# —
52535 — Retainer, Front Bumper Side, RH
52535-0F020 Retainer, Front Bumper Side, RH
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52535-0F020 Retainer, Front Bumper Side, RH
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52535-0F020 Retainer, Front Bumper Side, RH
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52535-0F020 Retainer, Front Bumper Side, RH
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52535-0F020 Retainer, Front Bumper Side, RH
2015-03 → —
WAR20,ZGR2# —
52536 — Retainer, Front Bumper Side, LH
52536-0F020 Retainer, Front Bumper Side, LH
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52536-0F020 Retainer, Front Bumper Side, LH
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52536-0F020 Retainer, Front Bumper Side, LH
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52536-0F020 Retainer, Front Bumper Side, LH
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52536-0F020 Retainer, Front Bumper Side, LH
2015-03 → —
WAR20,ZGR2# —
52611 — Absorber, Front Bumper Energy
52611-0F010 Absorber, Front Bumper Energy
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52611-0F010 Absorber, Front Bumper Energy
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52611-0F010 Absorber, Front Bumper Energy
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52611-0F010 Absorber, Front Bumper Energy
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52611-0F010 Absorber, Front Bumper Energy
2015-03 → —
WAR20,ZGR2# —
52618 — Absorber, Front Bumper, Lower
52618-0F010 Absorber, Front Bumper, Lower
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
52618-0F010 Absorber, Front Bumper, Lower
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
52618-0F010 Absorber, Front Bumper, Lower
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
52618-0F010 Absorber, Front Bumper, Lower
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
52618-0F010 Absorber, Front Bumper, Lower
2015-03 → —
WAR20,ZGR2# —
53119E — Protector, Radiator Grille
53119-20120 Protector, Radiator Grille
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
53119-20120 Protector, Radiator Grille
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
53119-20120 Protector, Radiator Grille
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
53119-20120 Protector, Radiator Grille
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
53119-20120 Protector, Radiator Grille
2015-03 → —
WAR20,ZGR2# —
53879H — Retainer, Front Fender Liner
53879-50020 Retainer, Front Fender Liner
2009-02 → 2010-07 ended
AUR2#,ZGR2# —
53879-50020 Retainer, Front Fender Liner
2010-07 → 2011-11 ended
ZGR21 RHD CVT ENTRY —
53879-50020 Retainer, Front Fender Liner
2010-07 → 2012-11 ended
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 —
53879-50020 Retainer, Front Fender Liner
2012-11 → 2015-03 ended
AUR2#,WAR20,ZGR2# —
53879-50020 Retainer, Front Fender Liner
2015-03 → —
WAR20,ZGR2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
