Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

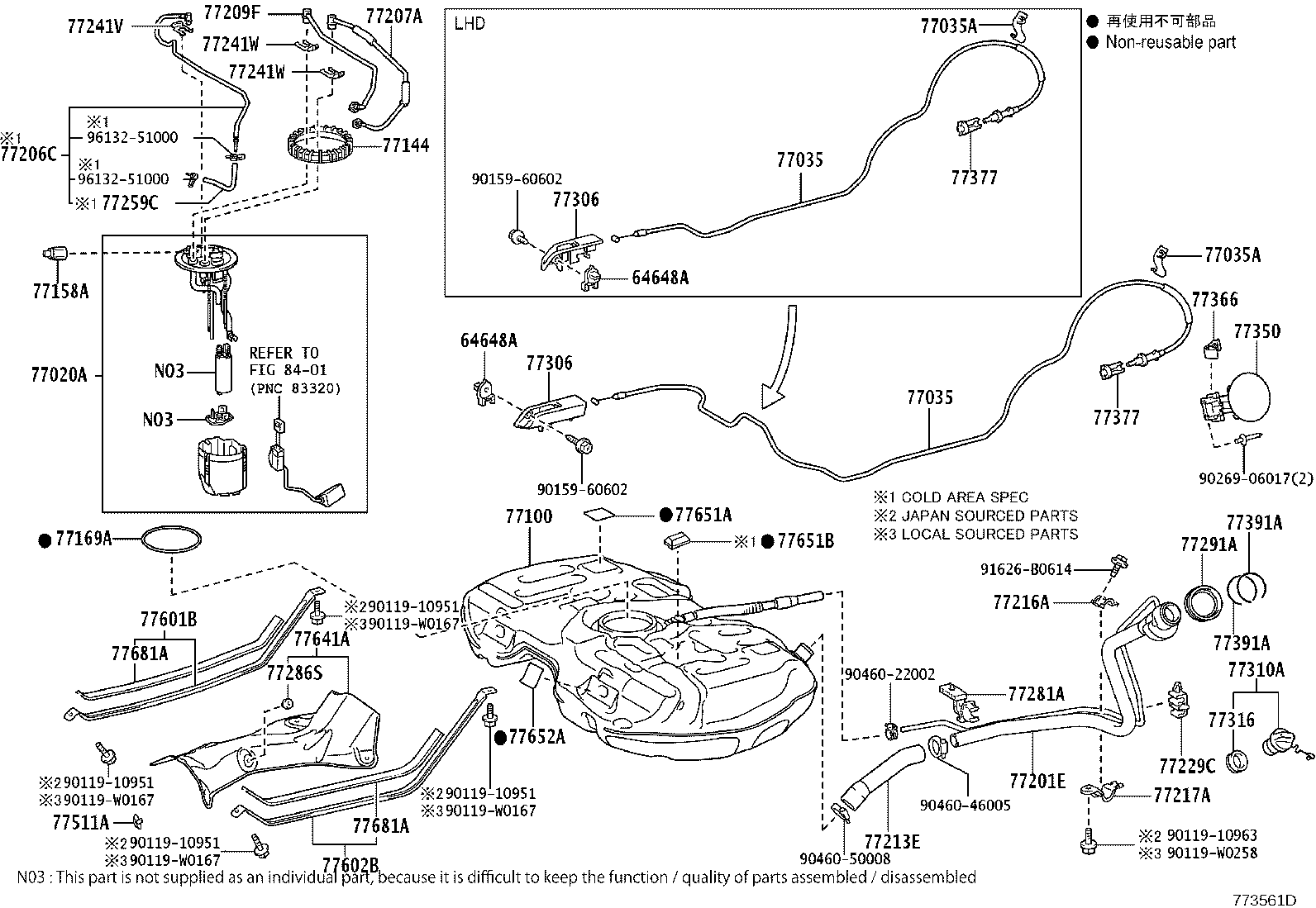

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64648A — Grommet, Luggage Door Lock Opener | ||||
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-0F030 |
Tube Assy, Fuel Suction W/Pump & Gage
2009-02 → 2010-07
ended
|
ZGR20 | — | |
| 77020-0F040 |
Tube Assy, Fuel Suction W/Pump & Gage
2009-02 → 2010-07
ended
|
ZGR21 | — | |
| 77020-0F030 |
Tube Assy, Fuel Suction W/Pump & Gage
2010-07 → 2012-11
ended
|
ZGR20 | — | |
| 77020-0F040 |
Tube Assy, Fuel Suction W/Pump & Gage
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77020-0F040 |
Tube Assy, Fuel Suction W/Pump & Gage
2010-07 → 2012-11
ended
|
ZGR21 E;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77020-0F030 |
Tube Assy, Fuel Suction W/Pump & Gage
2012-11 → 2015-03
ended
|
ZGR20 | — | |
| 77020-0F040 |
Tube Assy, Fuel Suction W/Pump & Gage
2012-11 → 2015-03
ended
|
ZGR21 | — | |
| 77020-0F070 |
Tube Assy, Fuel Suction W/Pump & Gage
2014-01 → 2015-03
ended
|
WAR20 | — | |
| 77020-0F080 note |
Tube Assy, Fuel Suction W/Pump & Gage
2014-01 → 2015-03
ended
|
WAR20 LHD | — | |
| 77020-0F030 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-03 → 2015-04
ended
|
ZGR20 | — | |
| 77020-0F031 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-04 → —
|
ZGR20 | — | |
| 77020-0F040 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-03 → 2015-04
ended
|
ZGR21 | — | |
| 77020-0F041 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-04 → —
|
ZGR21 | — | |
| 77020-0F070 |
Tube Assy, Fuel Suction W/Pump & Gage
2015-03 → —
|
WAR20 | — | |
| 77020-0F080 note |
Tube Assy, Fuel Suction W/Pump & Gage
2015-03 → —
|
WAR20 LHD | — | |
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-0F030 |
Cable Sub-assy, Fuel Lid Lock Control
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD | — | |
| 77035-0F040 |
Cable Sub-assy, Fuel Lid Lock Control
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD | — | |
| 77035-0F030 |
Cable Sub-assy, Fuel Lid Lock Control
2010-07 → 2012-11
ended
|
AUR2#,ZGR2# LHD | — | |
| 77035-0F040 |
Cable Sub-assy, Fuel Lid Lock Control
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77035-0F040 |
Cable Sub-assy, Fuel Lid Lock Control
2010-07 → 2012-11
ended
|
ZGR21 RHD E;AUR2#,ZGR20 RHD;ZGR21 +3 | — | |
| 77035-0F030 |
Cable Sub-assy, Fuel Lid Lock Control
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# LHD | — | |
| 77035-0F040 |
Cable Sub-assy, Fuel Lid Lock Control
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# RHD | — | |
| 77035-0F030 |
Cable Sub-assy, Fuel Lid Lock Control
2015-03 → 2015-12
ended
|
WAR20,ZGR2# LHD | — | |
| 77035-0F031 |
Cable Sub-assy, Fuel Lid Lock Control
2016-01 → —
|
WAR20,ZGR2# LHD | — | |
| 77035-0F040 |
Cable Sub-assy, Fuel Lid Lock Control
2015-03 → 2015-12
ended
|
WAR20,ZGR2# RHD | — | |
| 77035-0F041 |
Cable Sub-assy, Fuel Lid Lock Control
2016-01 → —
|
WAR20,ZGR2# RHD | — | |
| 77035A — Clamp (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-07005 |
Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 90469-07005 |
Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 90469-07005 |
Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 90469-07005 |
Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 90469-07005 |
Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-0F030 |
Tank Assy, Fuel
2009-02 → 2010-07
ended
|
ZGR2# | — | |
| 77001-0F040 |
Tank Assy, Fuel
2009-02 → 2010-07
ended
|
AUR2# | — | |
| 77001-0F030 |
Tank Assy, Fuel
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77001-0F030 |
Tank Assy, Fuel
2010-07 → 2012-11
ended
|
ZGR20;ZGR21 E;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77001-0F040 |
Tank Assy, Fuel
2010-07 → 2012-11
ended
|
AUR2# | — | |
| 77001-0F030 |
Tank Assy, Fuel
2012-11 → 2015-03
ended
|
ZGR2# | — | |
| 77001-0F040 |
Tank Assy, Fuel
2012-11 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77001-0F030 |
Tank Assy, Fuel
2015-03 → —
|
ZGR2# | — | |
| 77001-0F040 |
Tank Assy, Fuel
2015-03 → —
|
WAR20 | — | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77144-0H010 |
Retainer, Fuel Pump Gauge
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77158A — Support, Tank Suction Tube | ||||
| 77158-0D020 |
Support, Tank Suction Tube
2009-02 → 2010-07
ended
|
AUR2# | — | |
| 77158-0D020 |
Support, Tank Suction Tube
2010-07 → 2012-11
ended
|
AUR2# | — | |
| 77158-0D020 |
Support, Tank Suction Tube
2012-11 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77158-0D020 |
Support, Tank Suction Tube
2015-03 → —
|
WAR20 | — | |
| 77169A — Gasket, Fuel Suction Tube Set | ||||
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77169-0D030 |
Gasket, Fuel Suction Tube Set
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77201E — Pipe Sub-assy, Fuel Tank Filler | ||||
| 77201-64010 |
Pipe Sub-assy, Fuel Tank Filler
2009-02 → 2010-07
ended
|
ZGR2# | — | |
| 77201-64020 |
Pipe Sub-assy, Fuel Tank Filler
2009-02 → 2010-07
ended
|
AUR2# | — | |
| 77201-64010 |
Pipe Sub-assy, Fuel Tank Filler
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77201-64010 |
Pipe Sub-assy, Fuel Tank Filler
2010-07 → 2012-11
ended
|
ZGR20;ZGR21 E;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77201-64020 |
Pipe Sub-assy, Fuel Tank Filler
2010-07 → 2012-11
ended
|
AUR2# | — | |
| 77201-0F040 |
Pipe Sub-assy, Fuel Tank Filler
2013-10 → 2015-03
ended
|
ZGR2# | — | |
| 77201-0F050 |
Pipe Sub-assy, Fuel Tank Filler
2014-05 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77201-64010 |
Pipe Sub-assy, Fuel Tank Filler
2012-11 → 2013-10
ended
|
ZGR2# | — | |
| 77201-64020 |
Pipe Sub-assy, Fuel Tank Filler
2012-11 → 2014-05
ended
|
AUR2#,WAR20 | — | |
| 77201-0F040 |
Pipe Sub-assy, Fuel Tank Filler
2015-03 → —
|
ZGR2# | — | |
| 77201-0F050 |
Pipe Sub-assy, Fuel Tank Filler
2015-03 → —
|
WAR20 | — | |
| 77206C — Tube Sub-assy, Fuel Main, NO.2 | ||||
| 77206-0F010 note |
Tube Sub-assy, Fuel Main, NO.2
2014-01 → 2015-03
ended
|
WAR20 LHD | — | |
| 77206-0F010 note |
Tube Sub-assy, Fuel Main, NO.2
2015-03 → —
|
WAR20 LHD | — | |
| 77207A — Tube Sub-assy, Fuel Return | ||||
| 77204-0F040 |
Tube Sub-assy, Fuel Return
2009-02 → 2010-07
ended
|
AUR2# | — | |
| 77204-0F040 |
Tube Sub-assy, Fuel Return
2010-07 → 2012-11
ended
|
AUR2# | — | |
| 77204-0F050 |
Tube Sub-assy, Fuel Return
2012-11 → 2015-03
ended
|
AUR2# | — | |
| 77204-0F070 |
Tube Sub-assy, Fuel Return
2014-01 → 2015-03
ended
|
WAR20 | — | |
| 77204-0F070 |
Tube Sub-assy, Fuel Return
2015-03 → —
|
WAR20 | — | |
| 77209F — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-0F020 |
Tube Sub-assy, Fuel Tank Main
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77209-0F020 |
Tube Sub-assy, Fuel Tank Main
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77209-0F020 |
Tube Sub-assy, Fuel Tank Main
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77209-0F020 |
Tube Sub-assy, Fuel Tank Main
2012-11 → 2015-03
ended
|
ZGR2# | — | |
| 77209-0F030 |
Tube Sub-assy, Fuel Tank Main
2012-11 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77209-0F020 |
Tube Sub-assy, Fuel Tank Main
2015-03 → —
|
ZGR2# | — | |
| 77209-0F030 |
Tube Sub-assy, Fuel Tank Main
2015-03 → —
|
WAR20 | — | |
| 77213E — Hose, Fuel Tank TO Filler Pipe | ||||
| 77213-64030 |
Hose, Fuel Tank TO Filler Pipe
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77213-64030 |
Hose, Fuel Tank TO Filler Pipe
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77213-64030 |
Hose, Fuel Tank TO Filler Pipe
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77213-0F020 note |
Hose, Fuel Tank TO Filler Pipe
2012-12 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77213-64030 note |
Hose, Fuel Tank TO Filler Pipe
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77213-0F020 note |
Hose, Fuel Tank TO Filler Pipe
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77213-64030 note |
Hose, Fuel Tank TO Filler Pipe
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77216A — Support, Fuel Tank Filler Pipe, NO.1 | ||||
| 77216-02170 note |
Support, Fuel Tank Filler Pipe, NO.1
2013-10 → 2015-03
ended
|
ZGR2# | — | |
| 77216-02170 note |
Support, Fuel Tank Filler Pipe, NO.1
2014-05 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77216-02170 |
Support, Fuel Tank Filler Pipe, NO.1
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77217A — Support, Fuel Tank Filler Pipe, NO.2 | ||||
| 77217-0F040 note |
Support, Fuel Tank Filler Pipe, NO.2
2013-10 → 2015-03
ended
|
ZGR2# | — | |
| 77217-0F040 note |
Support, Fuel Tank Filler Pipe, NO.2
2014-05 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77217-0F040 |
Support, Fuel Tank Filler Pipe, NO.2
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77229C — Clamp, Breather Tube | ||||
| 77229-12070 |
Clamp, Breather Tube
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77229-12070 |
Clamp, Breather Tube
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77229-12070 |
Clamp, Breather Tube
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77229-12070 |
Clamp, Breather Tube
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77229-12070 |
Clamp, Breather Tube
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77241V — Clip, Tube Joint | ||||
| 77241-35450 |
Clip, Tube Joint
2014-01 → 2015-03
ended
|
WAR20 | — | |
| 77241-35450 |
Clip, Tube Joint
2015-03 → —
|
WAR20 | — | |
| 77241W — Clip, Tube Joint | ||||
| 77241-32060 |
Clip, Tube Joint
2009-02 → 2010-07
ended
|
ZGR2# | — | |
| 77241-32060 |
Clip, Tube Joint
2009-02 → 2010-07
ended
|
AUR2# | — | |
| 77241-32060 |
Clip, Tube Joint
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77241-32060 |
Clip, Tube Joint
2010-07 → 2012-11
ended
|
ZGR20;ZGR21 E;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77241-32060 |
Clip, Tube Joint
2010-07 → 2012-11
ended
|
AUR2# | — | |
| 77241-32060 note |
Clip, Tube Joint
2014-01 → 2015-03
ended
|
WAR20 LHD | — | |
| 77241-32060 |
Clip, Tube Joint
2012-11 → 2015-03
ended
|
WAR20,ZGR2# | — | |
| 77241-32060 |
Clip, Tube Joint
2012-11 → 2015-03
ended
|
AUR2# | — | |
| 77241-32060 note |
Clip, Tube Joint
2015-03 → —
|
WAR20 LHD | — | |
| 77241-32060 |
Clip, Tube Joint
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77259C — Hose, Fuel | ||||
| 77259-64030 note |
Hose, Fuel
2014-01 → 2015-03
ended
|
WAR20 LHD | — | |
| 77259-64030 note |
Hose, Fuel
2015-03 → —
|
WAR20 LHD | — | |
| 77281A — Clamp, Fuel Filler Pipe | ||||
| 77281-64010 |
Clamp, Fuel Filler Pipe
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77281-64010 |
Clamp, Fuel Filler Pipe
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77281-64010 |
Clamp, Fuel Filler Pipe
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77281-64010 |
Clamp, Fuel Filler Pipe
2013-10 → 2015-03
ended
|
ZGR2# | — | |
| 77281-64010 |
Clamp, Fuel Filler Pipe
2014-05 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77281-64010 |
Clamp, Fuel Filler Pipe
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77286S — Cushion, Fuel Tank Protector | ||||
| 77286-12110 |
Cushion, Fuel Tank Protector
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2012-08 → 2012-11
ended
|
AUR2#,ZGR2# | — | |
| 77286-12110 |
Cushion, Fuel Tank Protector
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77286-12110 |
Cushion, Fuel Tank Protector
2010-07 → 2012-07
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77286-02070 |
Cushion, Fuel Tank Protector
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-02080 |
Shield, Fuel Tank Filler Pipe
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77291-02080 |
Shield, Fuel Tank Filler Pipe
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77291-02080 |
Shield, Fuel Tank Filler Pipe
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77291-02080 |
Shield, Fuel Tank Filler Pipe
2012-11 → 2014-04
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2014-05 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77291-02240 |
Shield, Fuel Tank Filler Pipe
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77306-52030 |
Lever Sub-assy, Fuel Lid Lock Open
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# RHD | — | |
| 77306-52040 |
Lever Sub-assy, Fuel Lid Lock Open
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# LHD | — | |
| 77306-52030 |
Lever Sub-assy, Fuel Lid Lock Open
2010-07 → 2010-09
ended
|
AUR2#,ZGR2# RHD | — | |
| 77306-52040 |
Lever Sub-assy, Fuel Lid Lock Open
2010-07 → 2010-09
ended
|
AUR2#,ZGR2# LHD | — | |
| 77306-52050 |
Lever Sub-assy, Fuel Lid Lock Open
2010-09 → 2012-11
ended
|
ZGR21 RHD E;AUR2#,ZGR20 RHD;ZGR21 +3 | — | |
| 77306-52050 |
Lever Sub-assy, Fuel Lid Lock Open
2010-09 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77306-52060 |
Lever Sub-assy, Fuel Lid Lock Open
2010-09 → 2012-11
ended
|
AUR2#,ZGR2# LHD | — | |
| 77306-52050 |
Lever Sub-assy, Fuel Lid Lock Open
2012-11 → 2015-02
ended
|
AUR2#,WAR20,ZGR2# RHD | — | |
| 77306-52060 |
Lever Sub-assy, Fuel Lid Lock Open
2012-11 → 2015-02
ended
|
AUR2#,WAR20,ZGR2# LHD | — | |
| 77306-0D110 note |
Lever Sub-assy, Fuel Lid Lock Open
2015-03 → —
|
WAR20,ZGR2# RHD | — | |
| 77306-0D120 note |
Lever Sub-assy, Fuel Lid Lock Open
2015-03 → —
|
WAR20,ZGR2# LHD | — | |
| 77306-52050 note |
Lever Sub-assy, Fuel Lid Lock Open
2015-03 → —
|
WAR20,ZGR2# RHD | — | |
| 77306-52060 note |
Lever Sub-assy, Fuel Lid Lock Open
2015-03 → —
|
WAR20,ZGR2# LHD | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-20020 |
Cap Assy, Fuel Tank
2009-02 → 2010-07
ended
|
AUR2# | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2009-02 → 2010-07
ended
|
ZGR2# | — | |
| 77300-20020 |
Cap Assy, Fuel Tank
2010-07 → 2012-11
ended
|
AUR2# | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2010-07 → 2012-11
ended
|
ZGR20;ZGR21 E;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77300-12020 |
Cap Assy, Fuel Tank
2013-10 → 2015-03
ended
|
ZGR2# | — | |
| 77300-12030 |
Cap Assy, Fuel Tank
2013-10 → 2015-03
ended
|
AUR2#,WAR20 | — | |
| 77300-20020 |
Cap Assy, Fuel Tank
2012-11 → 2013-10
ended
|
AUR2# | — | |
| 77300-52030 |
Cap Assy, Fuel Tank
2012-11 → 2013-10
ended
|
ZGR2# | — | |
| 77300-12020 |
Cap Assy, Fuel Tank
2015-03 → —
|
ZGR2# | — | |
| 77300-12030 |
Cap Assy, Fuel Tank
2015-03 → —
|
WAR20 | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52040 |
Gasket, Fuel Tank Cap
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-64020 |
Lid Assy, Fuel Filler Opening
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77350-64020 |
Lid Assy, Fuel Filler Opening
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77350-64020 |
Lid Assy, Fuel Filler Opening
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77350-64020 |
Lid Assy, Fuel Filler Opening
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77350-64020 |
Lid Assy, Fuel Filler Opening
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-12060 |
Retainer, Fuel Filler Opening Lid Lock
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77377-12060 |
Retainer, Fuel Filler Opening Lid Lock
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77377-12060 |
Retainer, Fuel Filler Opening Lid Lock
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2013-05 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77377-12060 |
Retainer, Fuel Filler Opening Lid Lock
2012-11 → 2013-04
ended
|
AUR2#,ZGR2# | — | |
| 77377-0D060 |
Retainer, Fuel Filler Opening Lid Lock
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77391A — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77391-12020 |
Ring, Fuel Inlet Box
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77511A — Bracket, Fuel Tank | ||||
| 77512-35140 |
Bracket, Fuel Tank
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77512-35140 |
Bracket, Fuel Tank
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77512-35140 |
Bracket, Fuel Tank
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77512-35140 |
Bracket, Fuel Tank
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77512-35140 |
Bracket, Fuel Tank
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77601B — Band Sub-assy, Fuel Tank, NO.1 RH | ||||
| 77601-0F020 |
Band Sub-assy, Fuel Tank, NO.1 RH
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77601-0F020 |
Band Sub-assy, Fuel Tank, NO.1 RH
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77601-0F020 |
Band Sub-assy, Fuel Tank, NO.1 RH
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77601-0F020 |
Band Sub-assy, Fuel Tank, NO.1 RH
2012-11 → 2014-09
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77601-0F040 |
Band Sub-assy, Fuel Tank, NO.1 RH
2014-10 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77601-0F040 |
Band Sub-assy, Fuel Tank, NO.1 RH
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77602B — Band Sub-assy, Fuel Tank, NO.1 LH | ||||
| 77602-0F020 |
Band Sub-assy, Fuel Tank, NO.1 LH
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77602-0F020 |
Band Sub-assy, Fuel Tank, NO.1 LH
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77602-0F020 |
Band Sub-assy, Fuel Tank, NO.1 LH
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77602-0F020 |
Band Sub-assy, Fuel Tank, NO.1 LH
2012-11 → 2014-09
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77602-0F040 |
Band Sub-assy, Fuel Tank, NO.1 LH
2014-10 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77602-0F040 |
Band Sub-assy, Fuel Tank, NO.1 LH
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77641A — Protector, Fuel Tank, NO.1 | ||||
| 77641-0F020 |
Protector, Fuel Tank, NO.1
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77641-0F020 |
Protector, Fuel Tank, NO.1
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77641-0F020 |
Protector, Fuel Tank, NO.1
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77641-0F020 |
Protector, Fuel Tank, NO.1
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77641-0F020 |
Protector, Fuel Tank, NO.1
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77651A — Cushion, Fuel Tank, NO.1 | ||||
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77651-12070 |
Cushion, Fuel Tank, NO.1
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77651B — Cushion, Fuel Tank | ||||
| 77651-02110 note |
Cushion, Fuel Tank
2014-01 → 2015-03
ended
|
WAR20 LHD | — | |
| 77651-02110 note |
Cushion, Fuel Tank
2015-03 → —
|
WAR20 LHD | — | |
| 77652A — Cushion, Fuel Tank, NO.2 | ||||
| 77652-45030 |
Cushion, Fuel Tank, NO.2
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77652-45030 |
Cushion, Fuel Tank, NO.2
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77652-45030 |
Cushion, Fuel Tank, NO.2
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77652-45030 |
Cushion, Fuel Tank, NO.2
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77652-45030 |
Cushion, Fuel Tank, NO.2
2015-03 → —
|
WAR20,ZGR2# | — | |
| 77681A — Seat, Fuel Tank Band | ||||
| 77681-0F010 |
Seat, Fuel Tank Band
2009-02 → 2010-07
ended
|
AUR2#,ZGR2# | — | |
| 77681-0F010 |
Seat, Fuel Tank Band
2010-07 → 2011-11
ended
|
ZGR21 RHD CVT ENTRY | — | |
| 77681-0F010 |
Seat, Fuel Tank Band
2010-07 → 2012-11
ended
|
ZGR21 E;AUR2#,ZGR20;ZGR21 6F ENTRY;ZGR21 +3 | — | |
| 77681-0F010 |
Seat, Fuel Tank Band
2012-11 → 2015-03
ended
|
AUR2#,WAR20,ZGR2# | — | |
| 77681-0F010 |
Seat, Fuel Tank Band
2015-03 → —
|
WAR20,ZGR2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
