Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

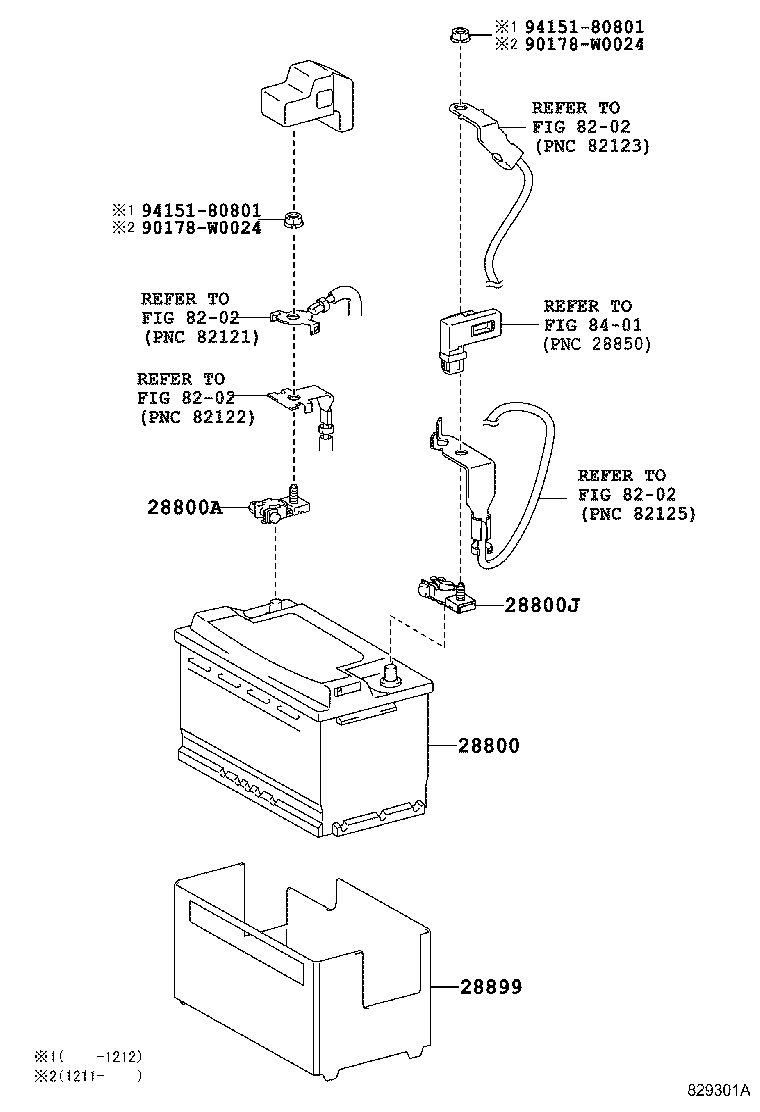

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-0D140 note |
Battery
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 28800-0R050 note |
Battery
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 28800-0Y010 note |
Battery
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# LHD | — | |
| 28800-0D140 note |
Battery
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 28800-0D140 note |
Battery
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 28800-0R050 note |
Battery
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 28800-0Y010 note |
Battery
2010-07 → 2012-05
ended
|
1ZRFAE,2ZRFAE ZGR2# LHD | — | |
| 28800-0D140 note |
Battery
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 28800-0R050 note |
Battery
2012-11 → 2015-03
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 28800-0R090 note |
Battery
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 28800-0T060 note |
Battery
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# LHD | — | |
| 28800-0D140 note |
Battery
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 28800-0R090 note |
Battery
2015-03 → —
|
1WW WAR20 | — | |
| 28800-0T060 note |
Battery
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# LHD | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05054 |
Terminal, Battery Positive
2009-02 → 2010-07
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90982-05056 |
Terminal, Battery Positive
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90982-05054 |
Terminal, Battery Positive
2010-07 → 2012-11
ended
|
1ZRFAE NTRY ZGR20;2ZRFAE ZGR21 +8 | — | |
| 90982-05054 |
Terminal, Battery Positive
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90982-05056 |
Terminal, Battery Positive
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90982-05053 |
Terminal, Battery Positive
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 90982-05054 |
Terminal, Battery Positive
2012-11 → 2015-03
ended
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 90982-05056 |
Terminal, Battery Positive
2012-11 → 2015-03
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 90982-05053 |
Terminal, Battery Positive
2015-03 → —
|
1WW WAR20 | — | |
| 90982-05054 |
Terminal, Battery Positive
2015-03 → —
|
1ZRFAE,2ZRFAE ZGR2# | — | |
| 28800J — Terminal, Battery Negative | ||||
| 90982-06070 |
Terminal, Battery Negative
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV,1ZRFAE,2ZRFAE AUR2#,ZGR2# | — | |
| 90982-06070 |
Terminal, Battery Negative
2010-07 → 2011-11
ended
|
2ZRFAE ZGR21 RHD CVT +1 | — | |
| 90982-06070 |
Terminal, Battery Negative
2010-07 → 2012-11
ended
|
2ZRFAE DFHV,1ZRFAE ZGR21 AUR2#,ZGR20 +8 | — | |
| 90982-06070 |
Terminal, Battery Negative
2012-11 → 2015-03
ended
|
1ADFTV,2ADFHV,1WW,1ZRFAE,2ZRFAE AUR2#,WAR20,ZGR2# | — | |
| 90982-06070 |
Terminal, Battery Negative
2015-03 → —
|
1WW,1ZRFAE,2ZRFAE WAR20,ZGR2# | — | |
| 28899 — Insulator, Battery | ||||
| 28899-26050 |
Insulator, Battery
2009-02 → 2010-07
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 28899-26050 |
Insulator, Battery
2010-07 → 2012-11
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 28899-26050 |
Insulator, Battery
2012-11 → 2015-03
ended
|
1ADFTV,2ADFHV AUR2# | — | |
| 28899-26100 |
Insulator, Battery
2014-01 → 2015-03
ended
|
1WW WAR20 | — | |
| 28899-26100 |
Insulator, Battery
2015-03 → —
|
1WW WAR20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
