Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04

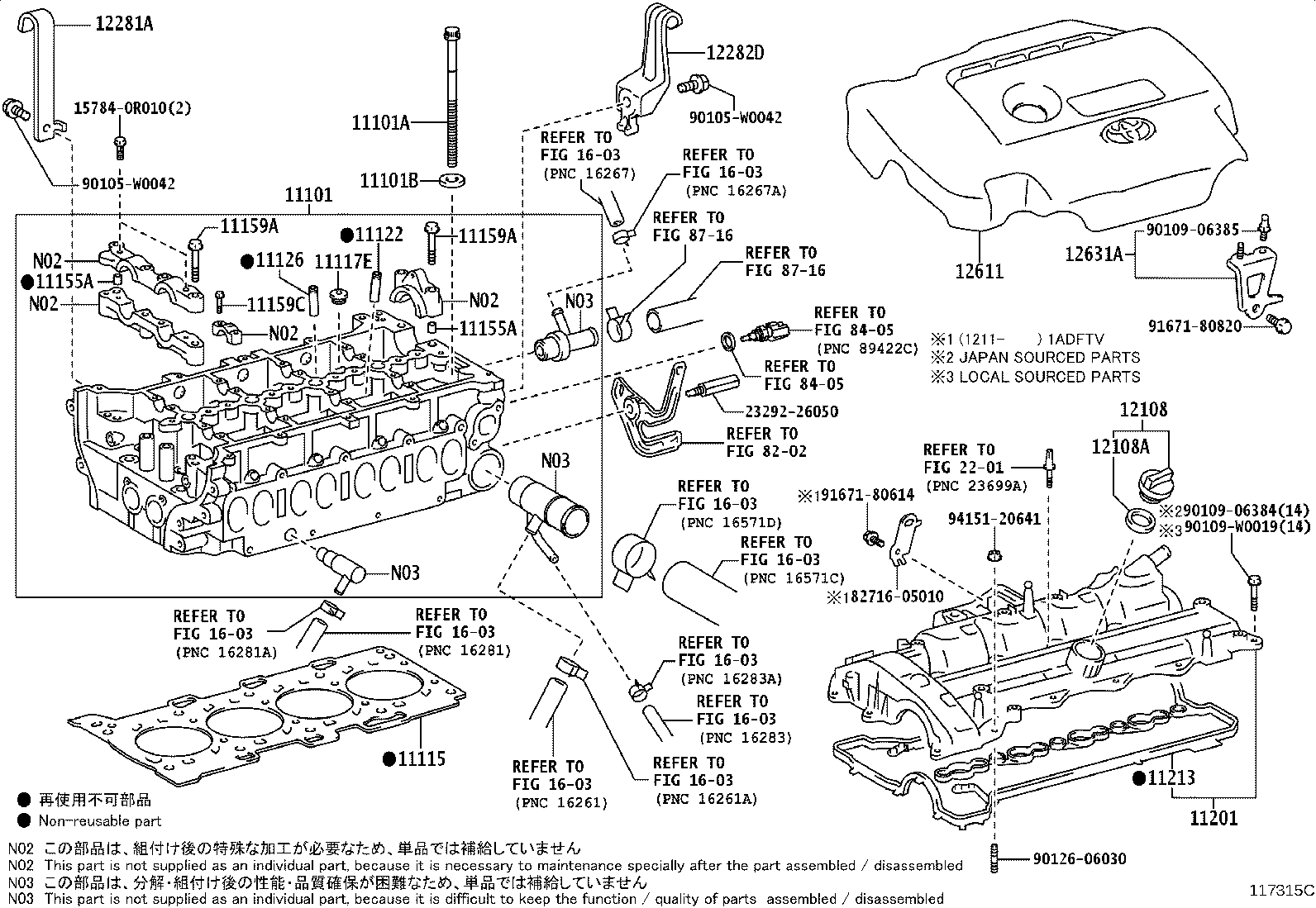

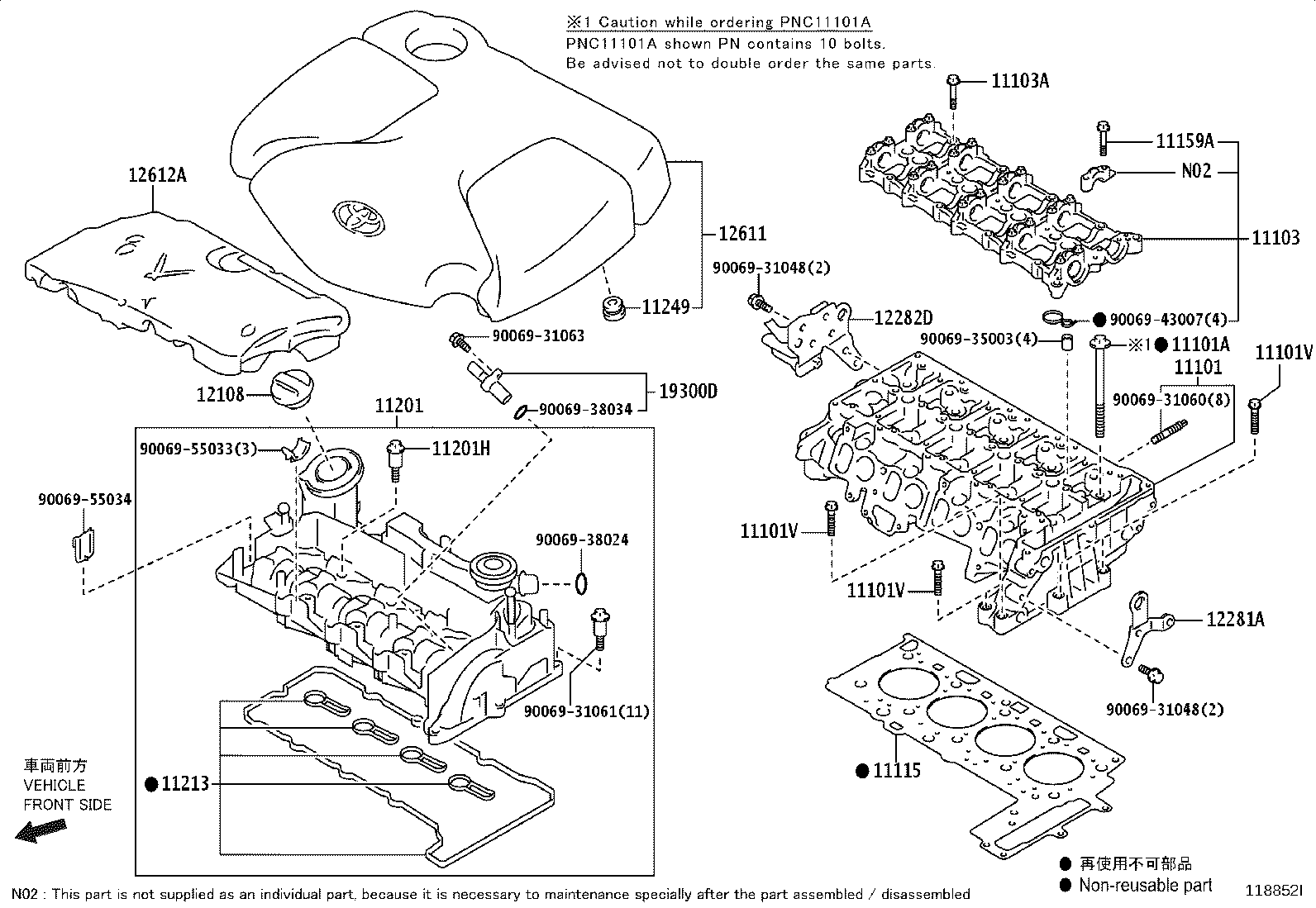

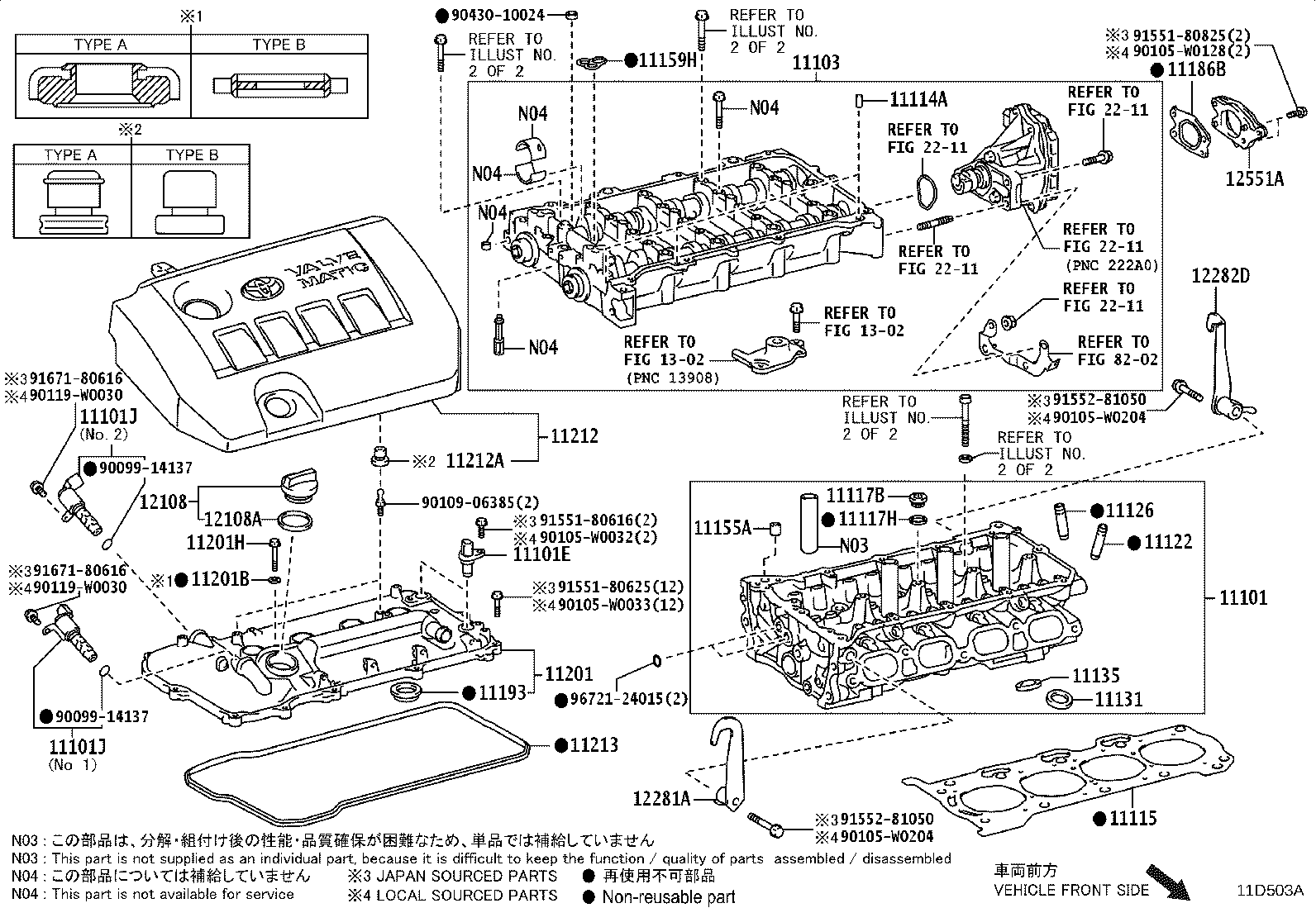

Cylinder Head

42 part groups · 5 illustrations

PNC	Description
11101	Head Sub-assy, Cylinder

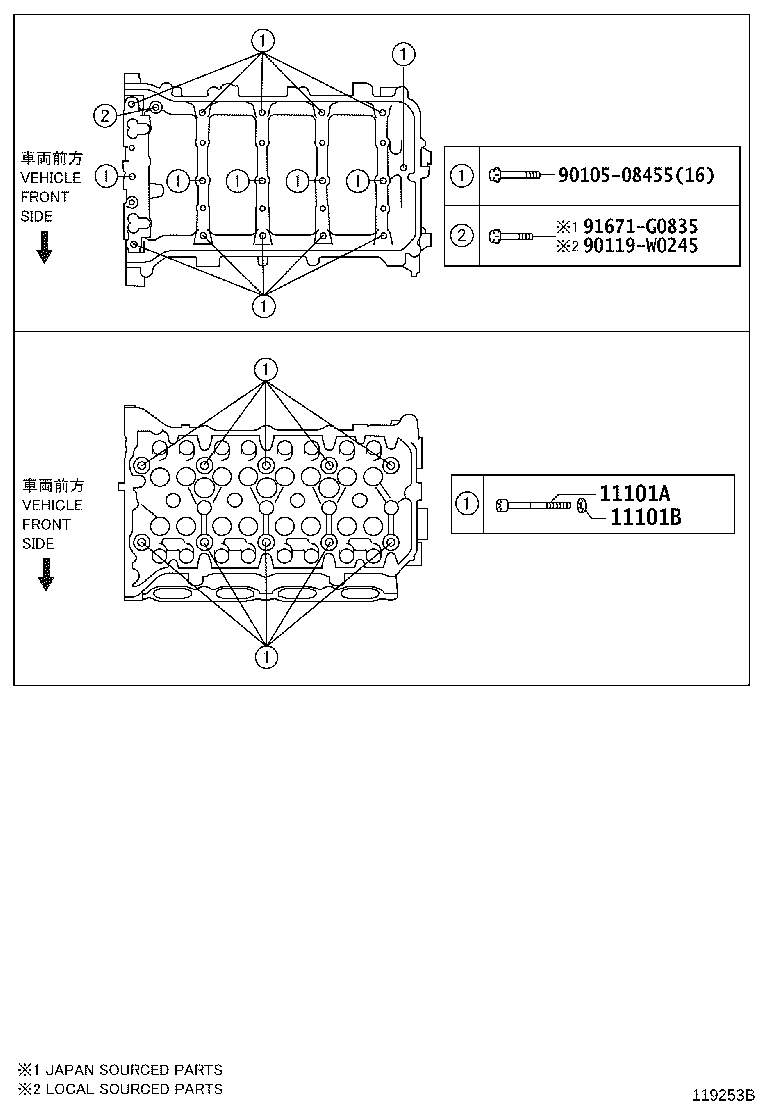

11101A	Bolt(FOR CYLINDER HEAD SET)
11101B	Washer, Plate(FOR CYLINDER HEAD SET)
11101E	Sensor, Cam Position
11101J	Valve Assy, Camshaft Timing Oil Control
11101V	Bolt(FOR CYLINDER HEAD SET SUB)
11103	Housing Sub-assy, Camshaft
11103A	Bolt(FOR CAMSHAFT HOUSING SET)
11114A	Pin, Straight
11115	Gasket, Cylinder Head
11117B	Plug, W/Head Taper Screw, NO.2
11117E	Plug, W/Head Straight Screw, NO.1
11117H	Gasket(FOR WATER HOLE)
11122	Bush, Intake Valve Guide
11126	Bush, Exhaust Valve Guide
11131	Seat, Intake Valve
11135	Seat, Exhaust Valve
11155A	Pin, Ring W/Head
11159A	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159C	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159H	Gasket, Camshaft Bearing Cap Oil Hole
11186B	Gasket, Camshaft Housing Rear Cover
11193	Gasket, Spark Plug Tube
11201	Cover Sub-assy, Cylinder Head
11201B	Washer, Seal(FOR CYLINDER HEAD COVER)
11201H	Bolt(FOR CYLINDER HEAD COVER)
11212	Cover, Cylinder Head, NO.2
11212A	Cushion, Cylinder Head Cover
11213	Gasket, Cylinder Head Cover
11214	Gasket, Cylinder Head Cover, NO.2
11249	Grommet, Cylinder Head Cover
12108	Cap Sub-assy, Oil Filler
12108A	Gasket(FOR OIL FILLER CAP)
12281A	Hanger, Engine, NO.1
12282D	Hanger, Engine, NO.2
12551A	Bracket, Vacuum Pump, NO.1
12611	Cover, Engine, NO.1
12612A	Cover, Engine, NO.2
12631A	Bracket, Engine Cover
15043B	Pipe Sub-assy, Camshaft Oil Delivery, RH
15044A	Pipe Sub-assy, Camshaft Oil Delivery, LH
19300D	Sensor Assy, Cam Position

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
