Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

9 part groups · 6 illustrations

Illustrations

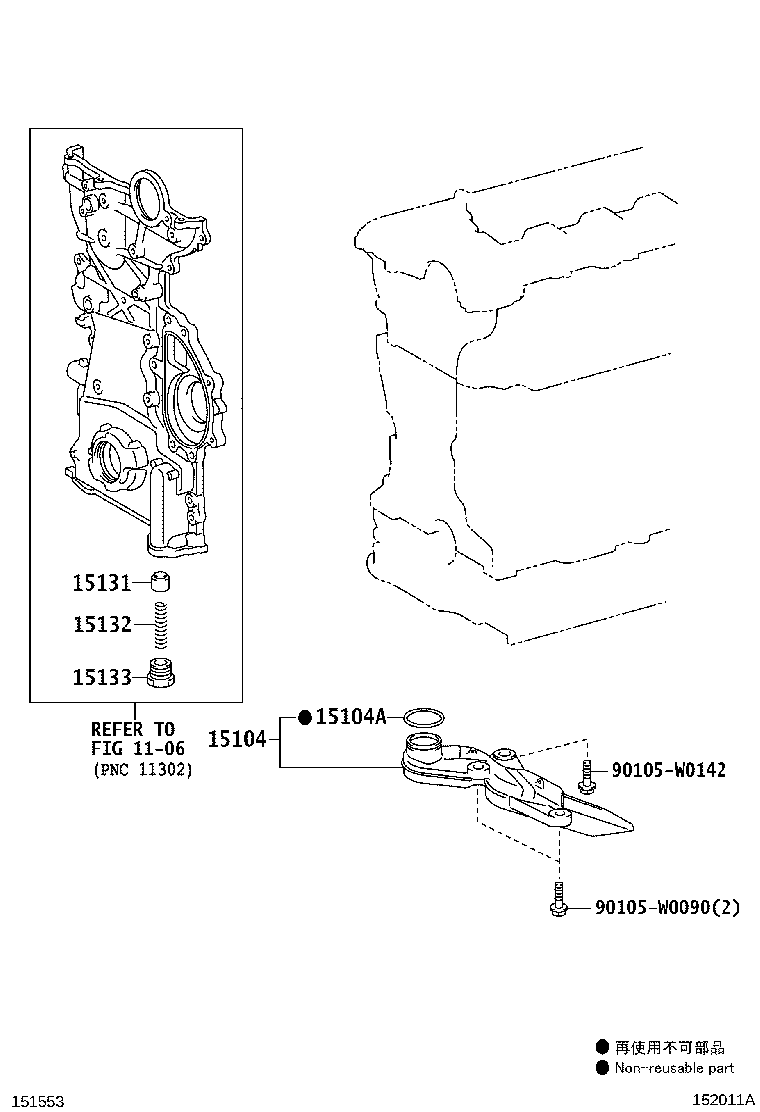

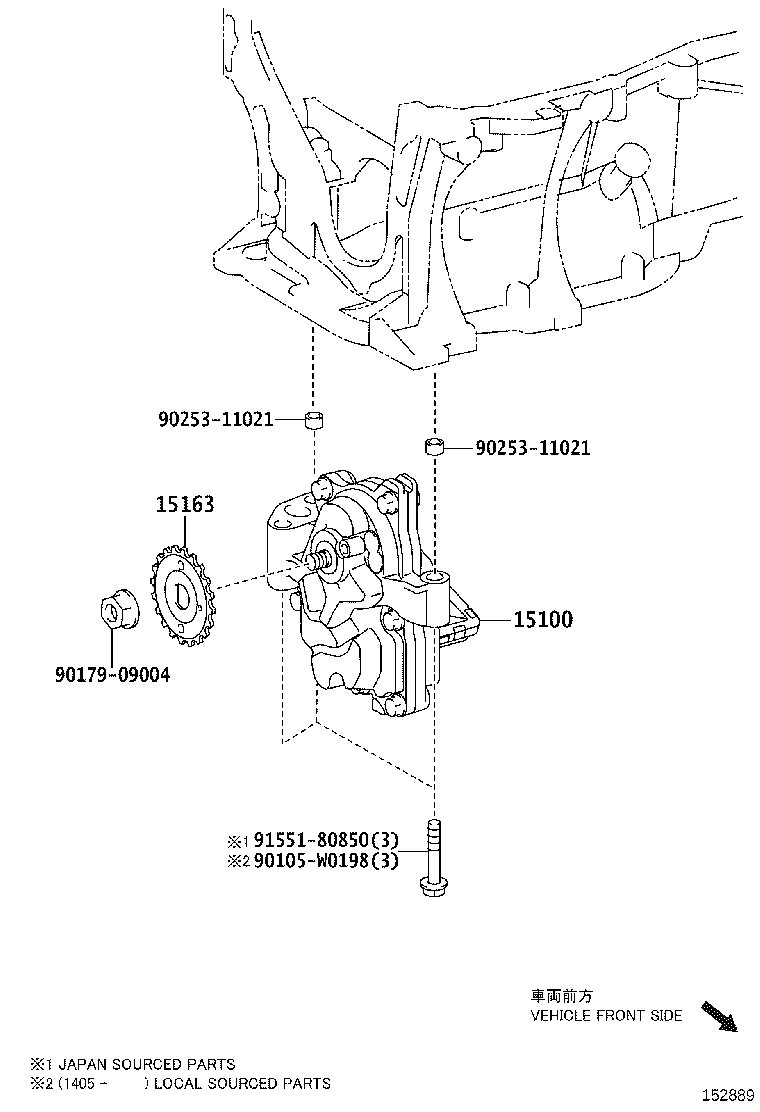

Figure 151553A 151553A 2009-02 → 2012-12 Figure 151553A 151553A 2012-12 → — Figure 152011A 152011A 2012-11 → — Figure 152012A 152012A 2012-11 → — Figure 152123B 152123B 2014-01 → — Figure 152889 152889 2008-02 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
