Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

6 part groups · 4 illustrations

Illustrations

Figure 151555A

151555A 2009-02 → 2012-12

Figure 151555A

151555A 2012-12 → —

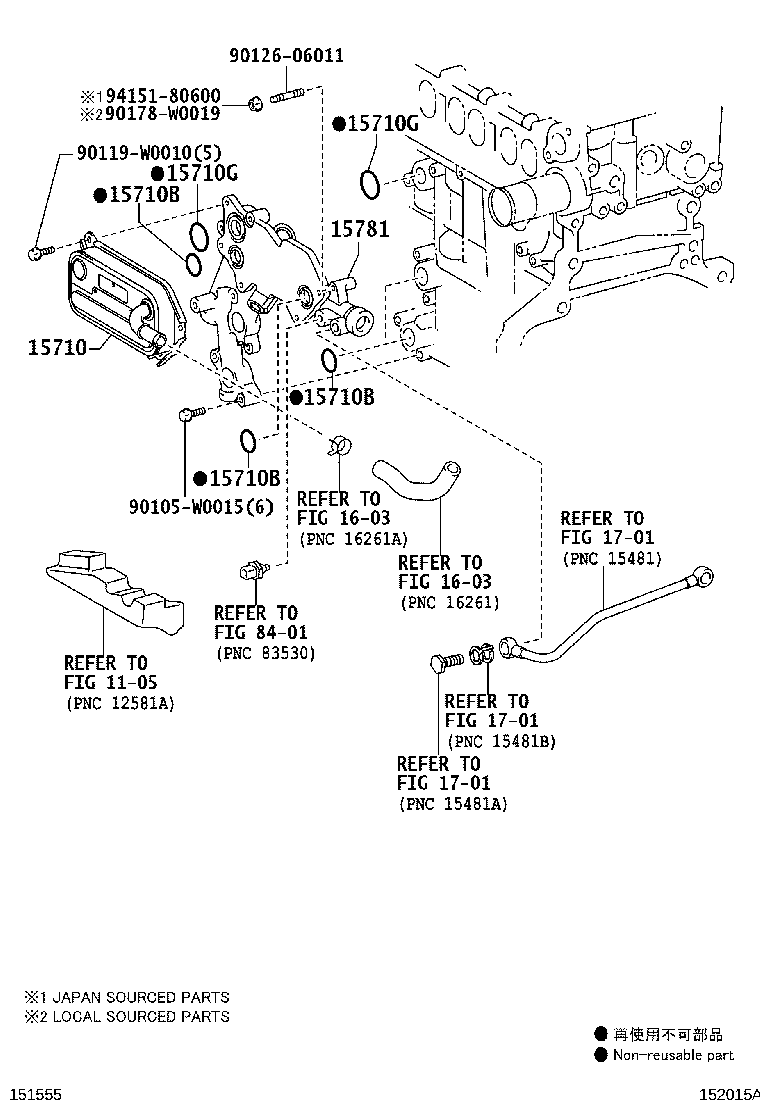

Figure 152015A

152015A 2012-11 → —

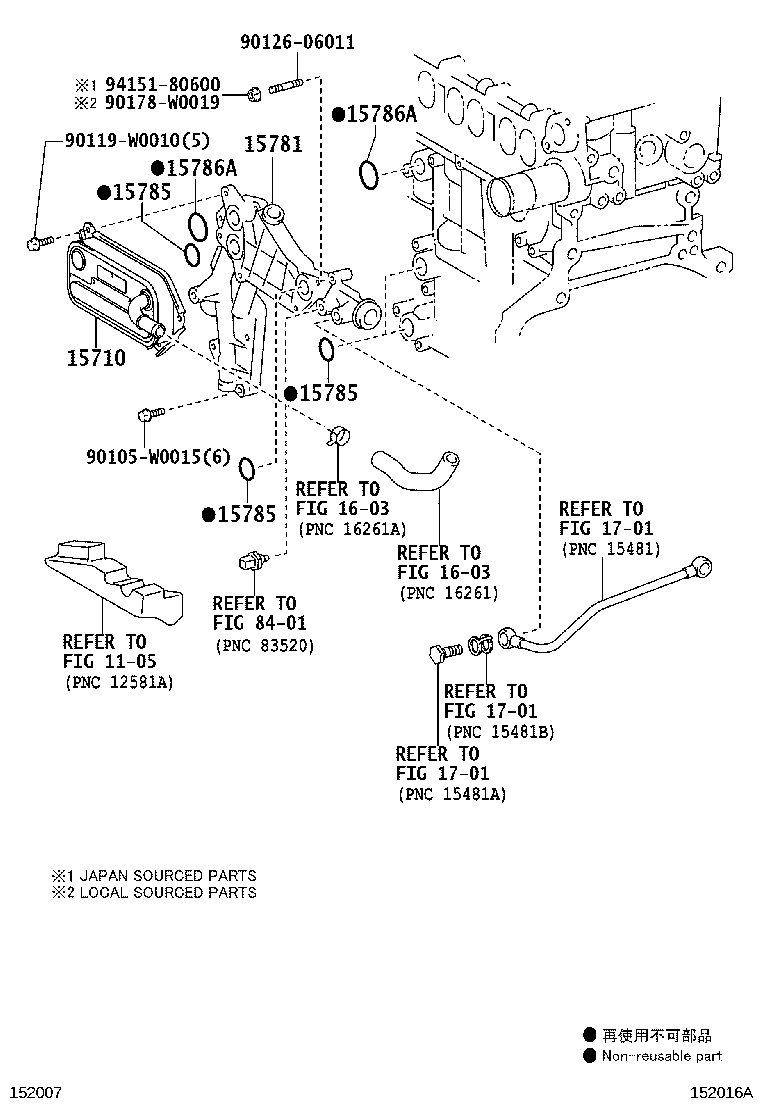

Figure 152016A

152016A 2012-11 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15710G	Ring, O, NO.2
15781	Bracket, Oil Cooler, NO.1
15785	Gasket, Oil Cooler
15786A	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
