Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

8 part groups · 5 illustrations

Illustrations

Figure 163712A

163712A 2009-02 → —

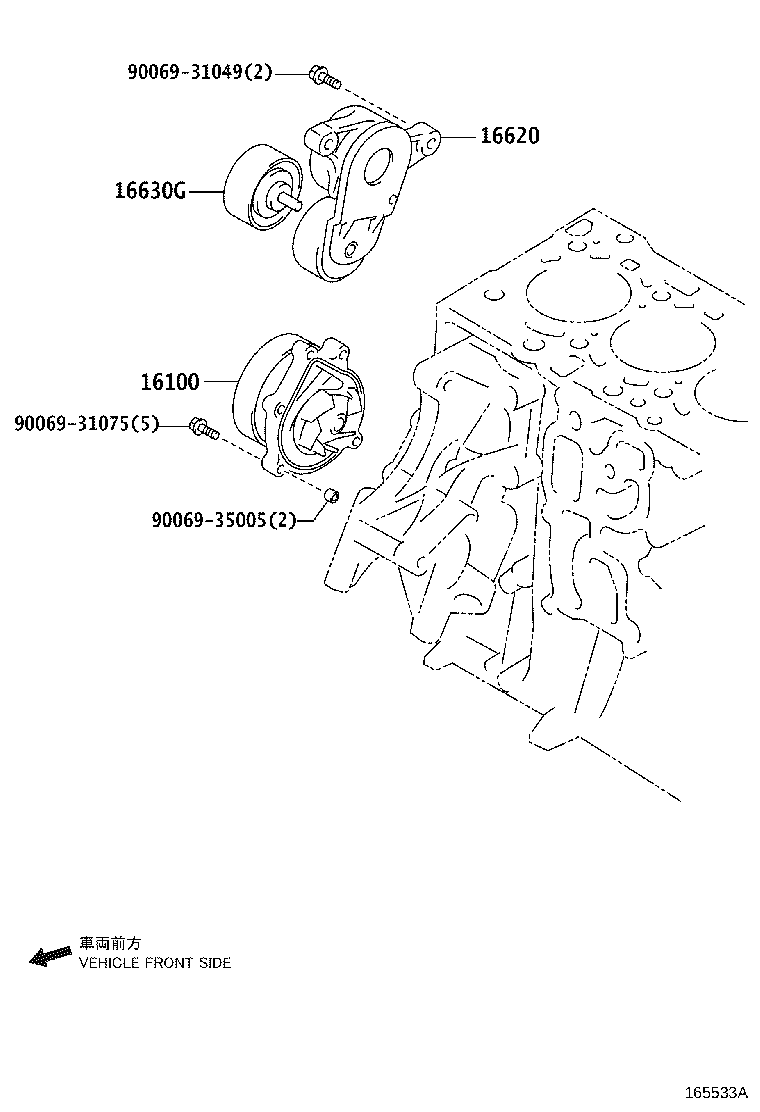

Figure 165533A

165533A 2014-01 → —

Figure 163982D

163982D 2009-02 → 2015-03

Figure 163982D

163982D 2009-02 → —

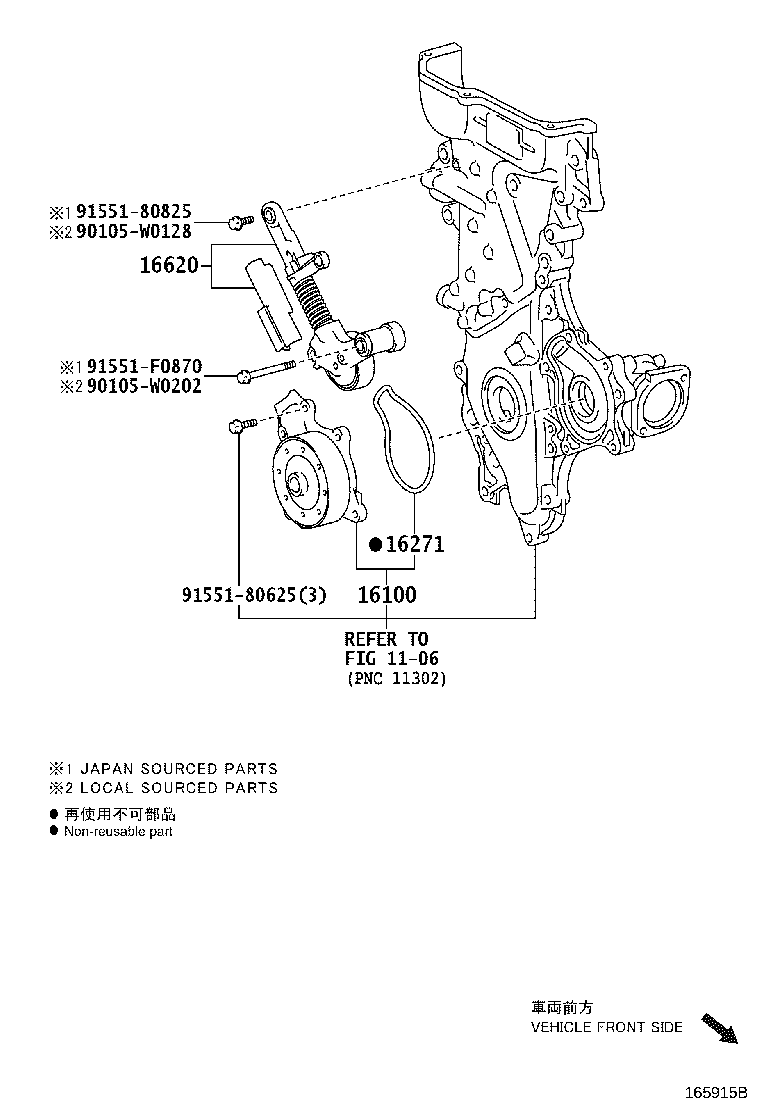

Figure 165915B

165915B 2015-03 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16603	Pulley Sub-assy, Idler, NO.1
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16630G	Pulley Assy, Idler
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
