Vacuum Piping

32 part groups · 9 illustrations

Illustrations

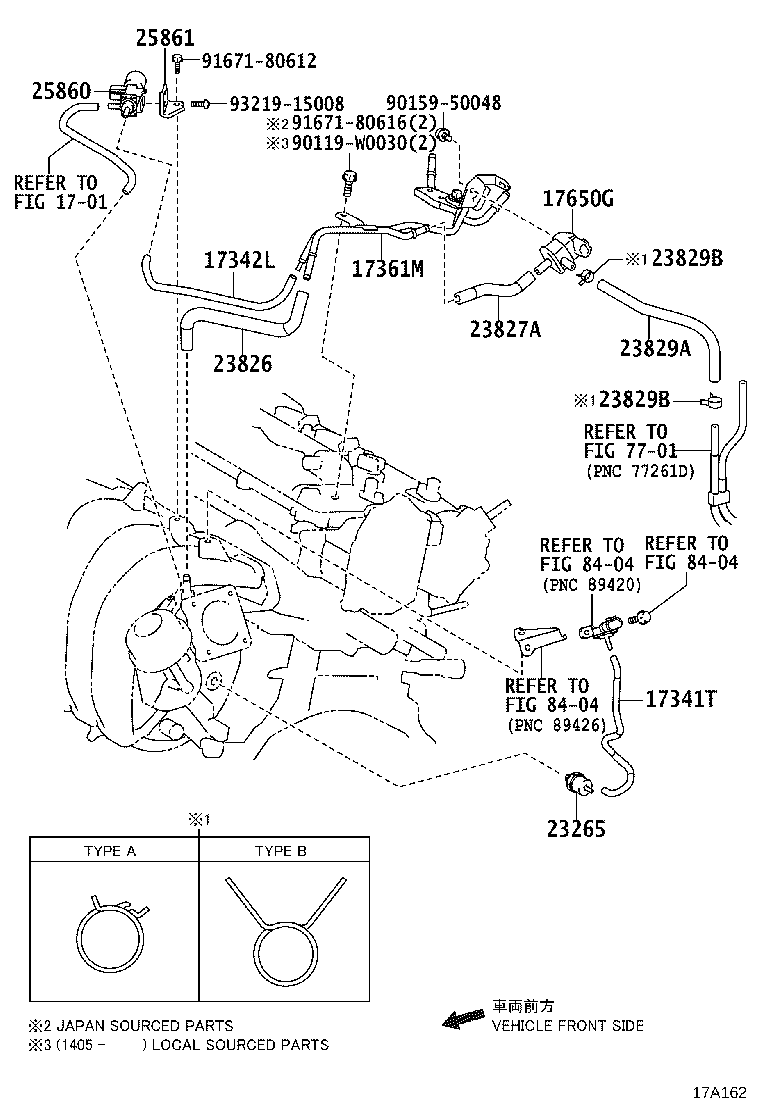

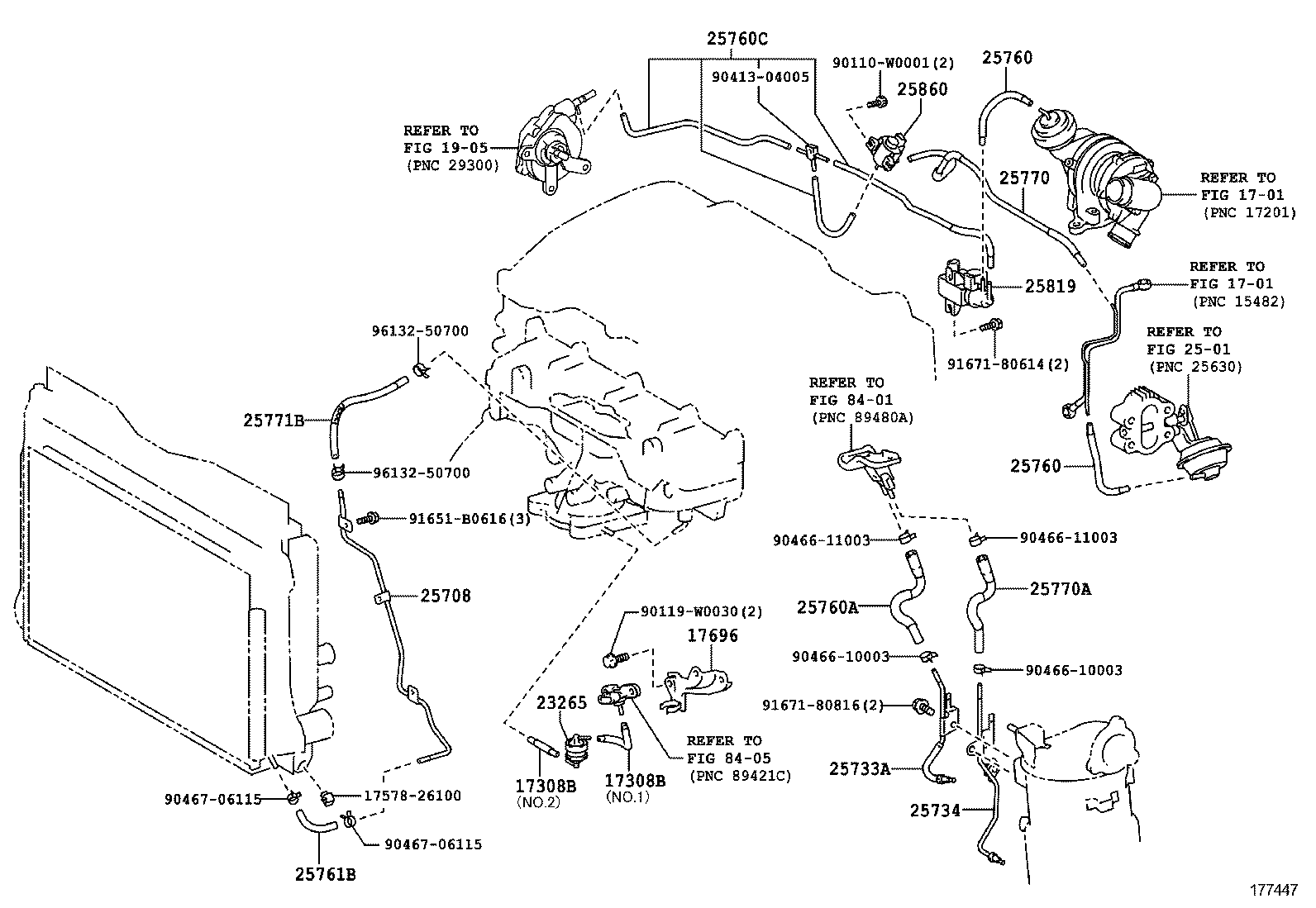

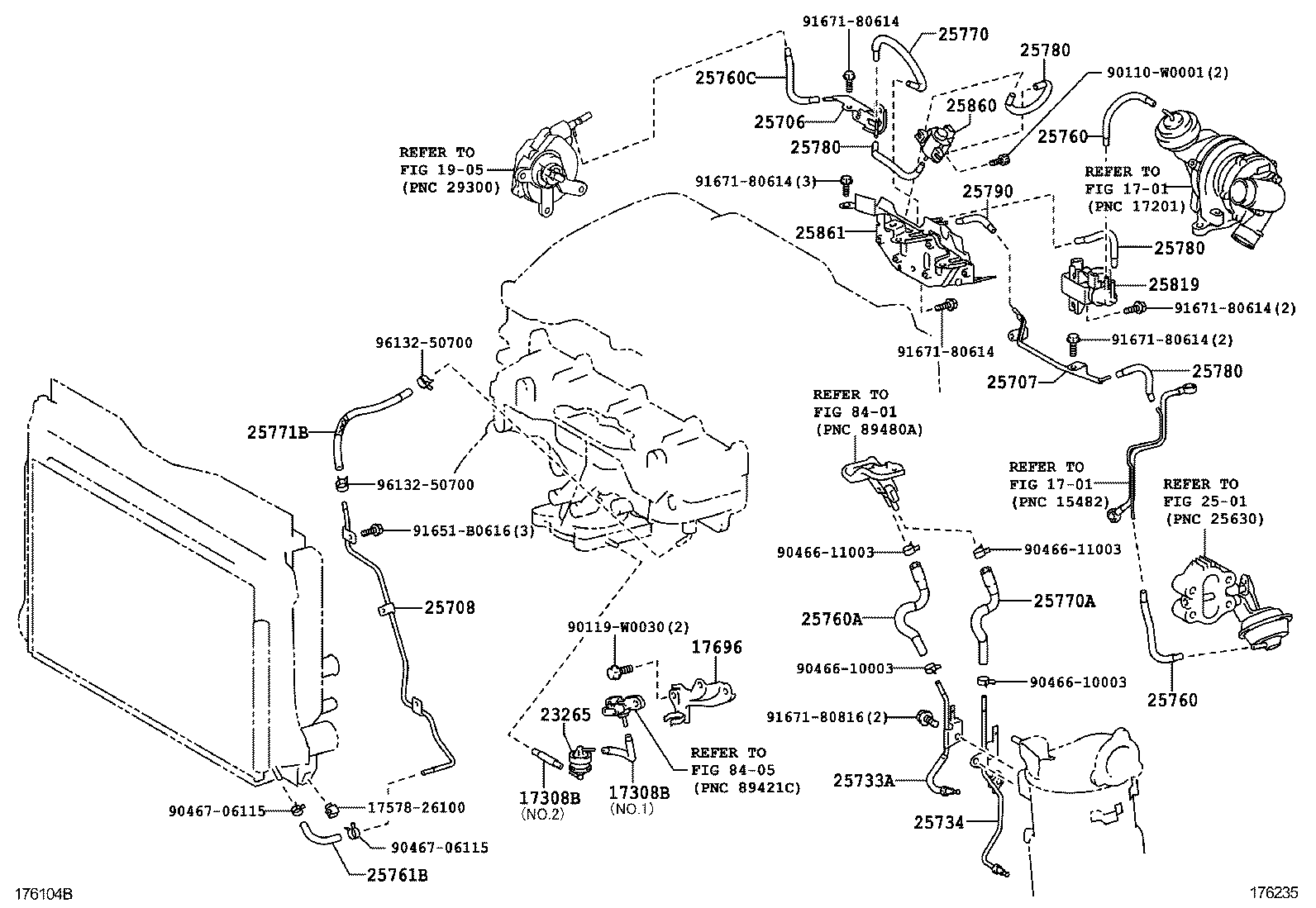

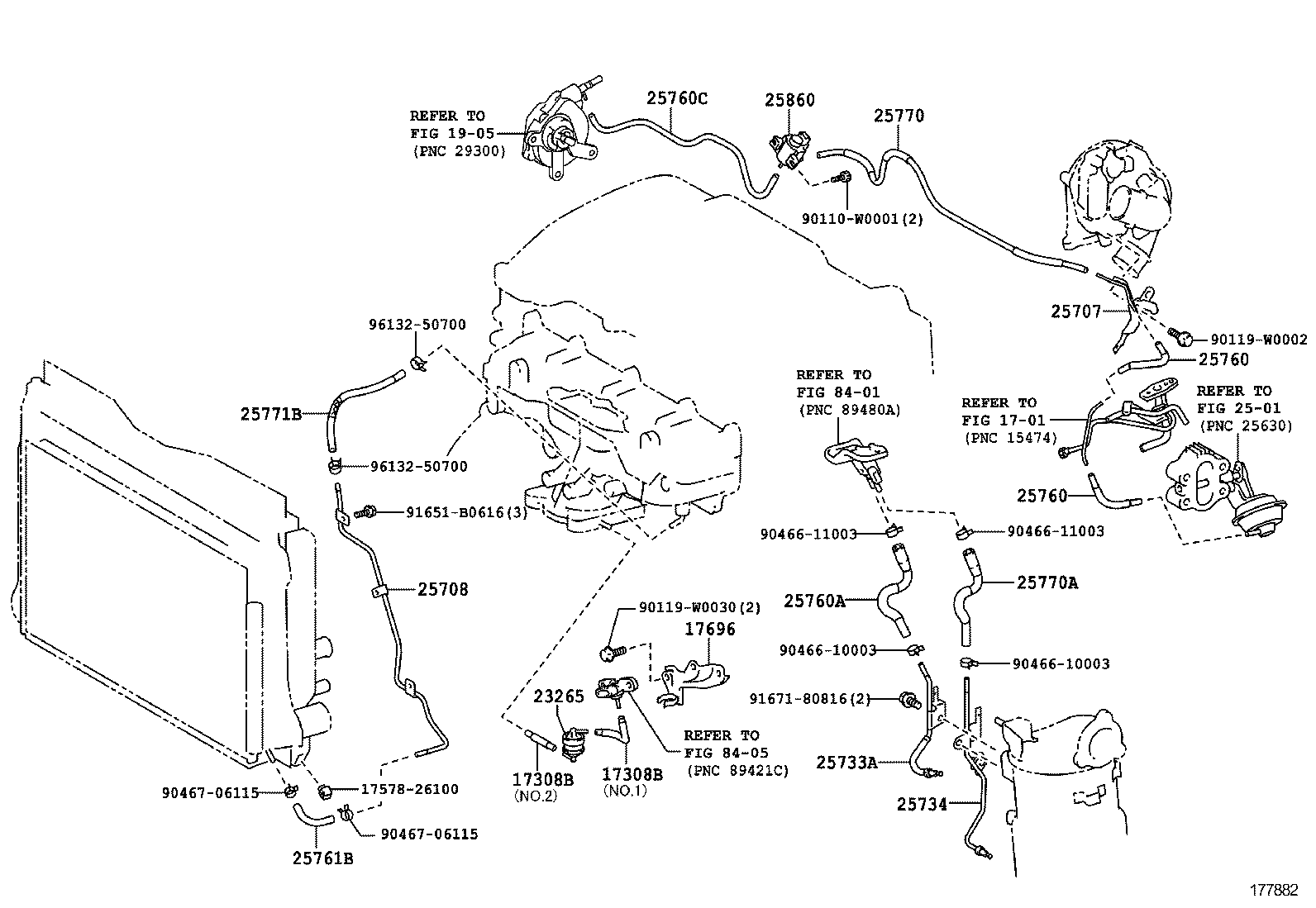

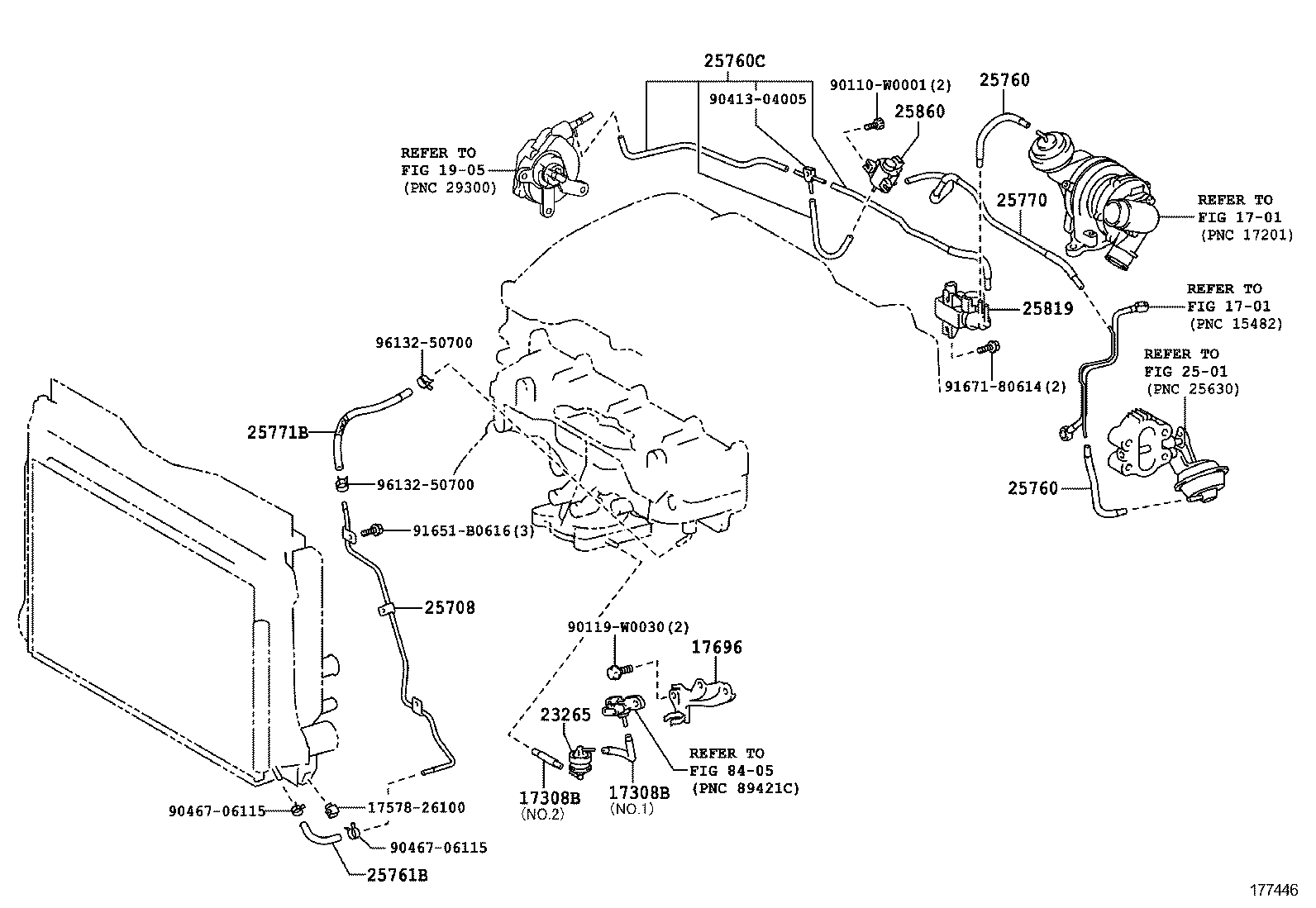

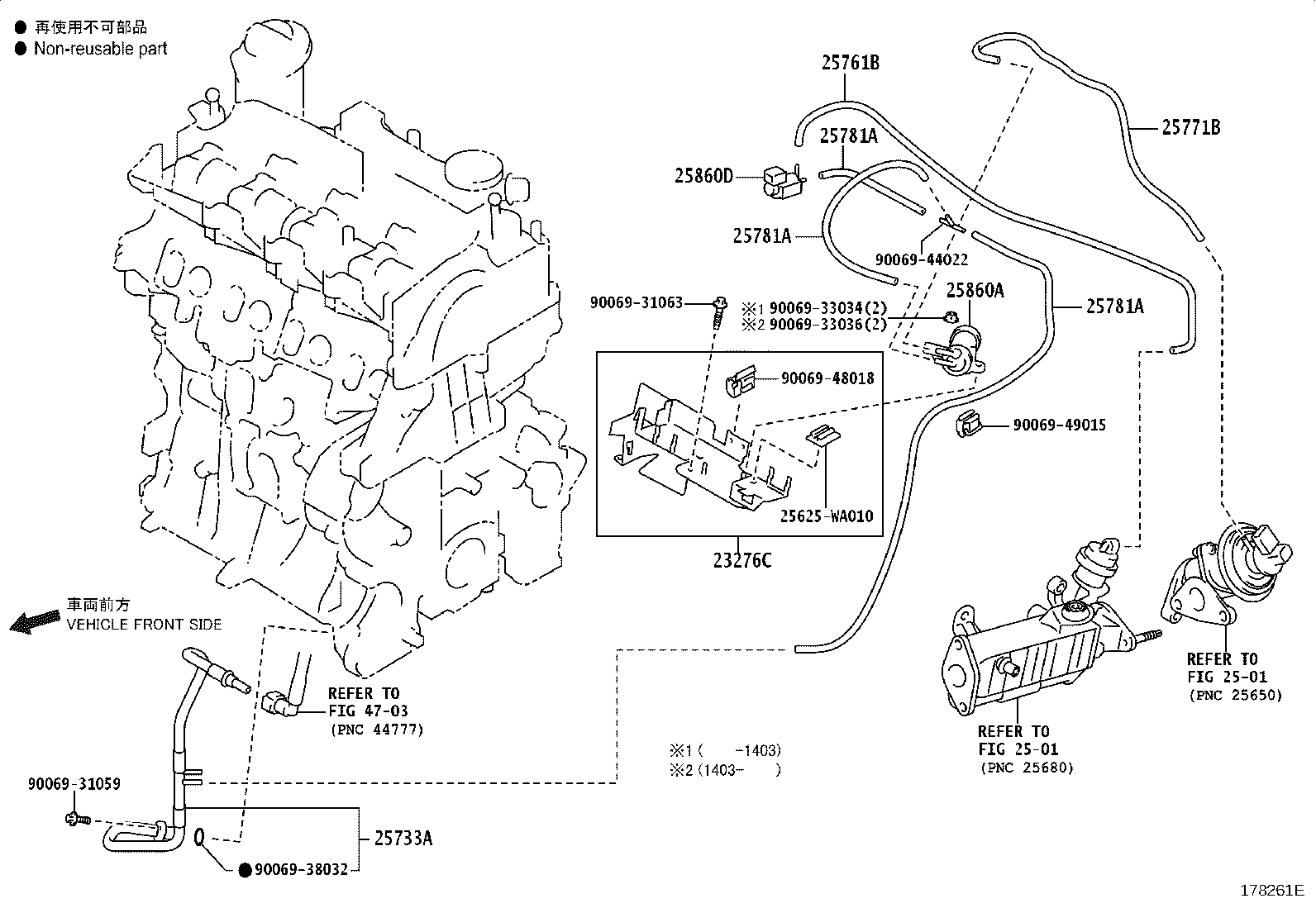

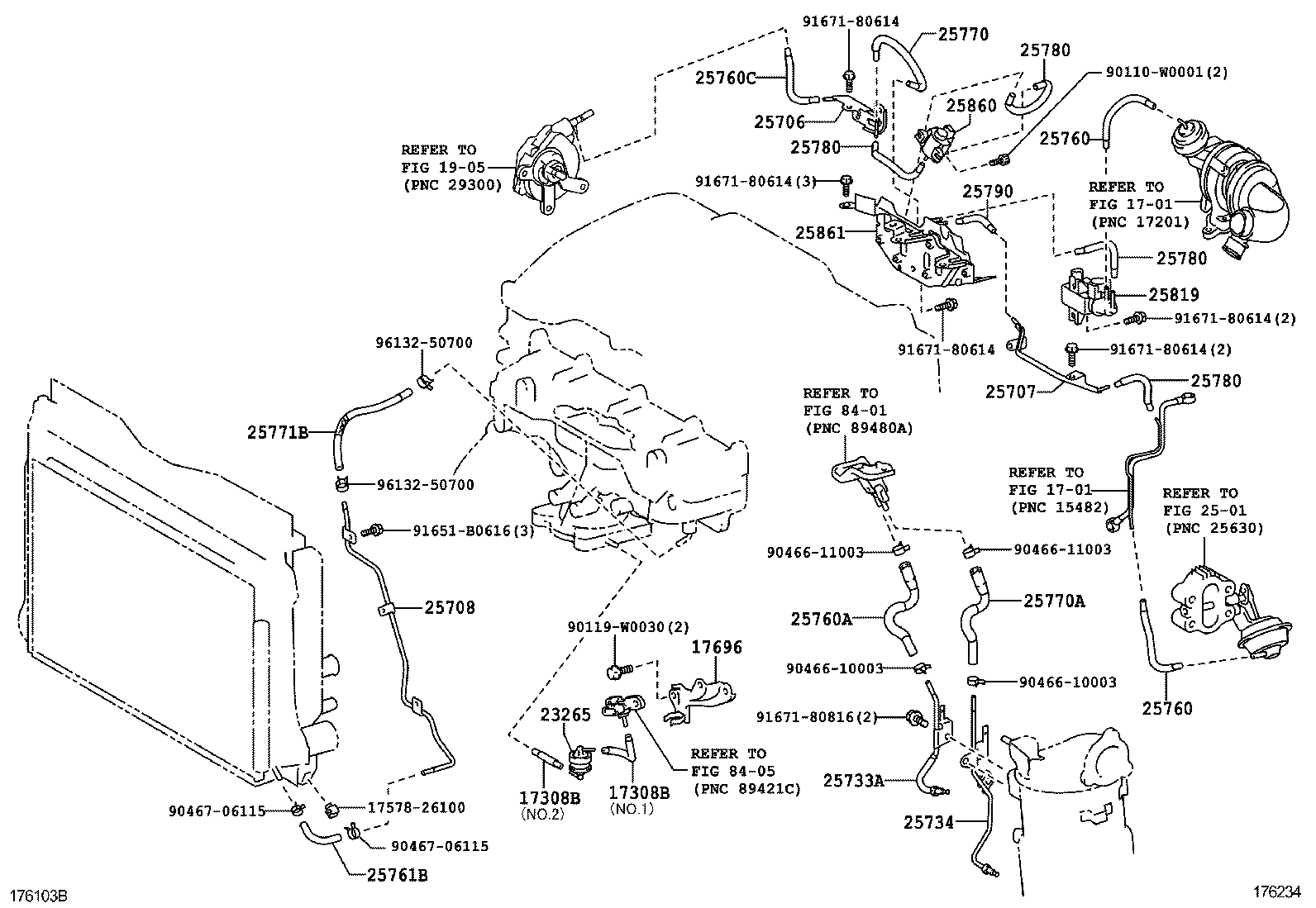

Figure 176233 176233 2009-02 → 2011-10 Figure 176234 176234 2009-02 → 2011-10 Figure 176235 176235 2009-02 → 2011-10 Figure 177446 177446 2011-10 → — Figure 177447 177447 2011-10 → 2012-12 Figure 177448 177448 2011-10 → — Figure 177882 177882 2012-11 → — Figure 178261E 178261E 2014-01 → — Figure 17A162 17A162 2009-02 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17361M Tube, Air
17650G Valve, Duty Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23276C Bracket, Vacuum Control Valve, NO.2
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25770A Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25781A Hose, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
