Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

5 part groups · 6 illustrations

Illustrations

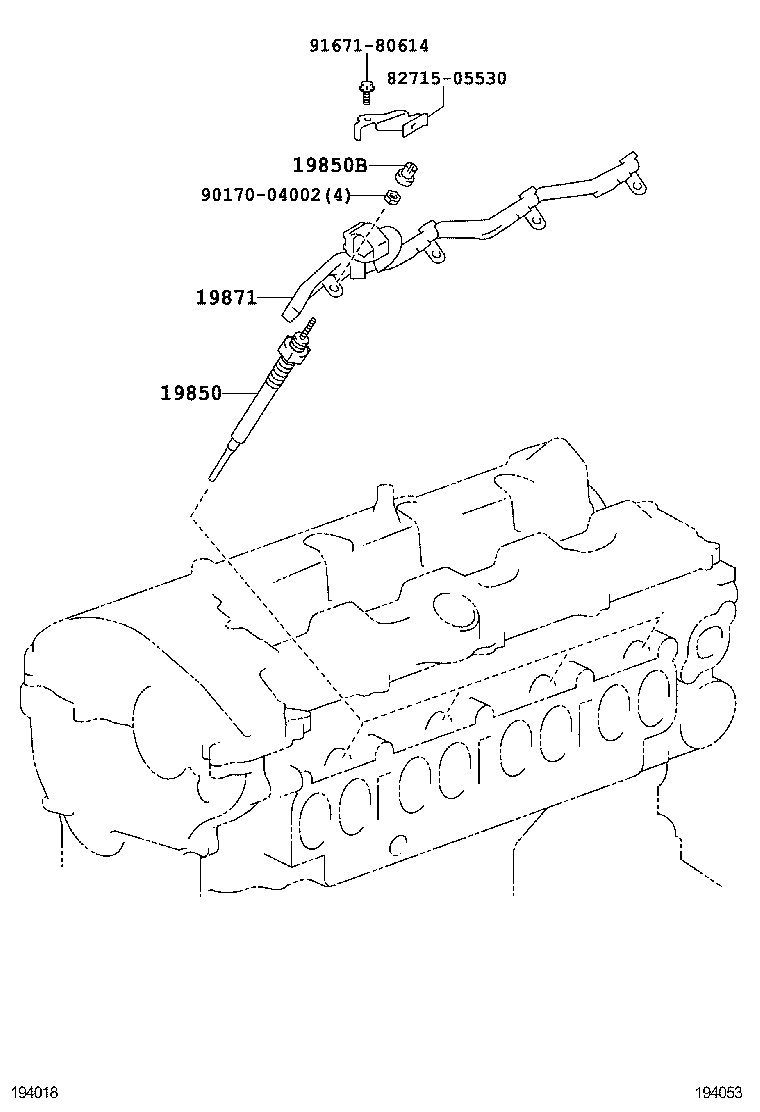

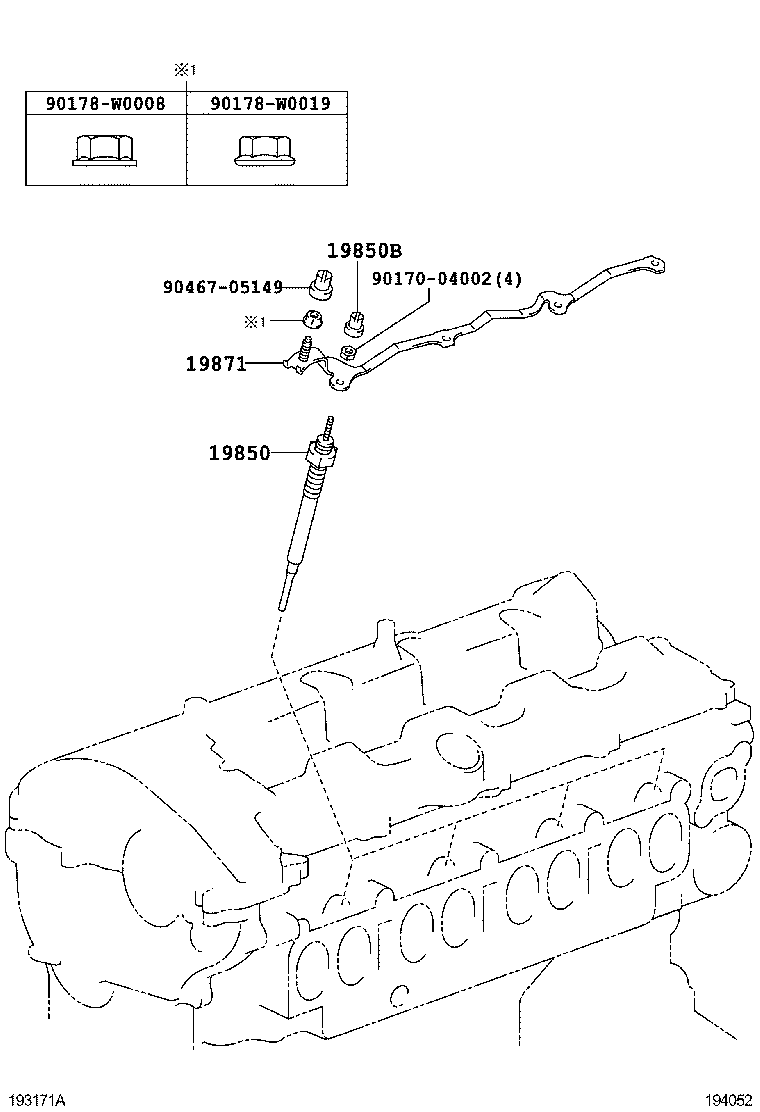

Figure 193171A 193171A 2009-02 → 2012-12 Figure 193171A 193171A 2012-12 → — Figure 194052 194052 2012-11 → — Figure 194053 194053 2012-11 → — Figure 194271A 194271A 2014-01 → — Figure 195259 195259 2009-02 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
