Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

15 part groups · 6 illustrations

Illustrations

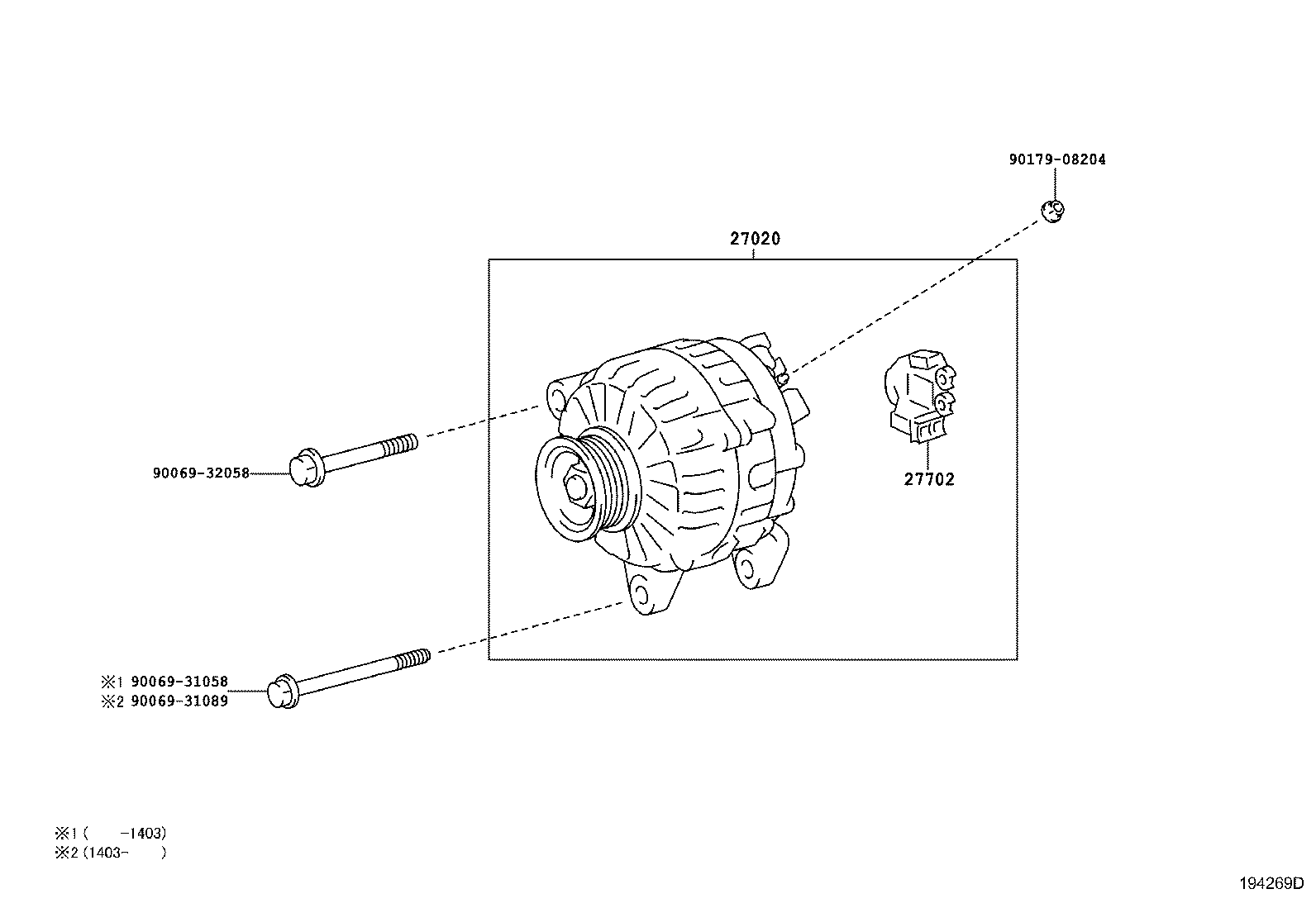

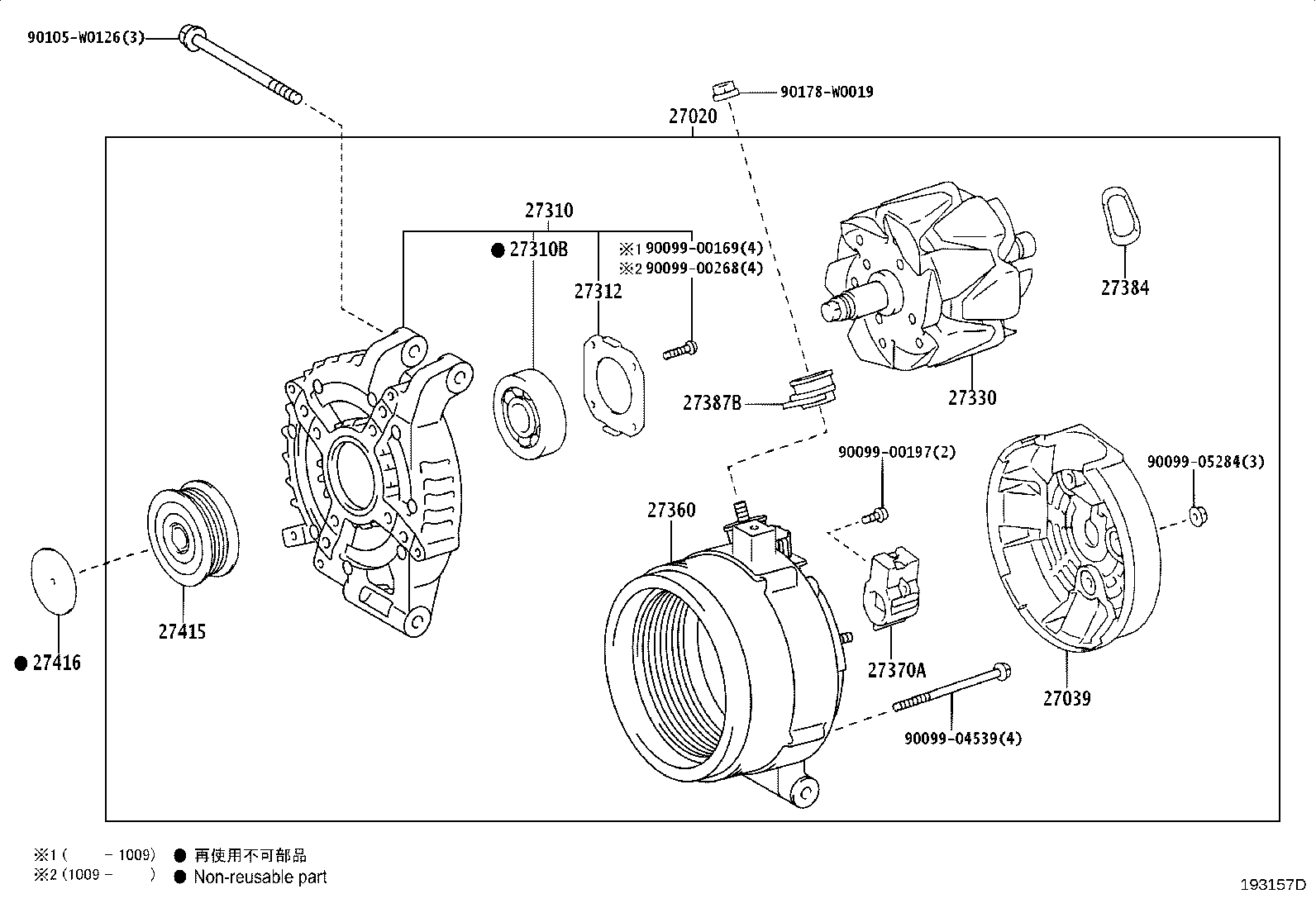

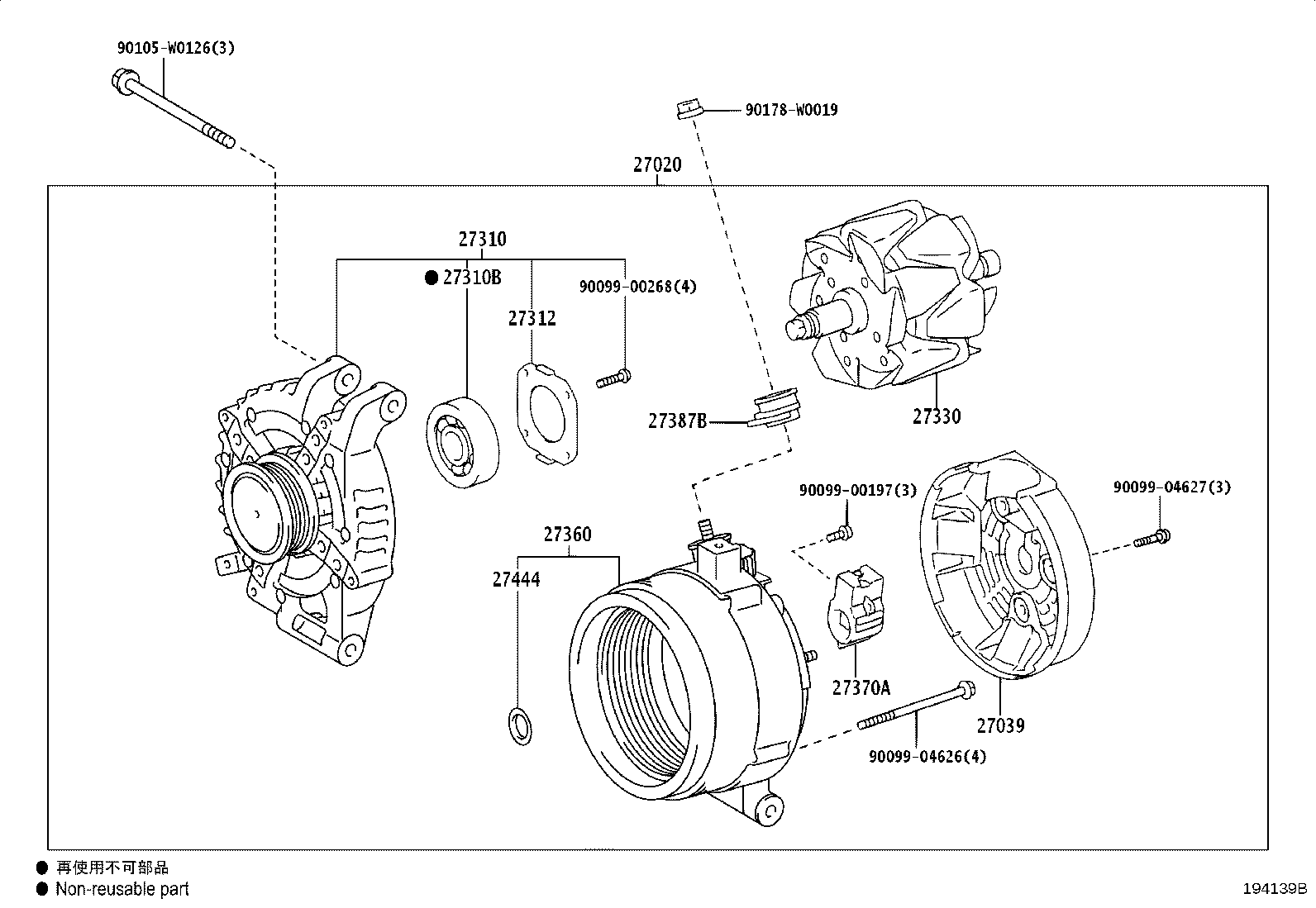

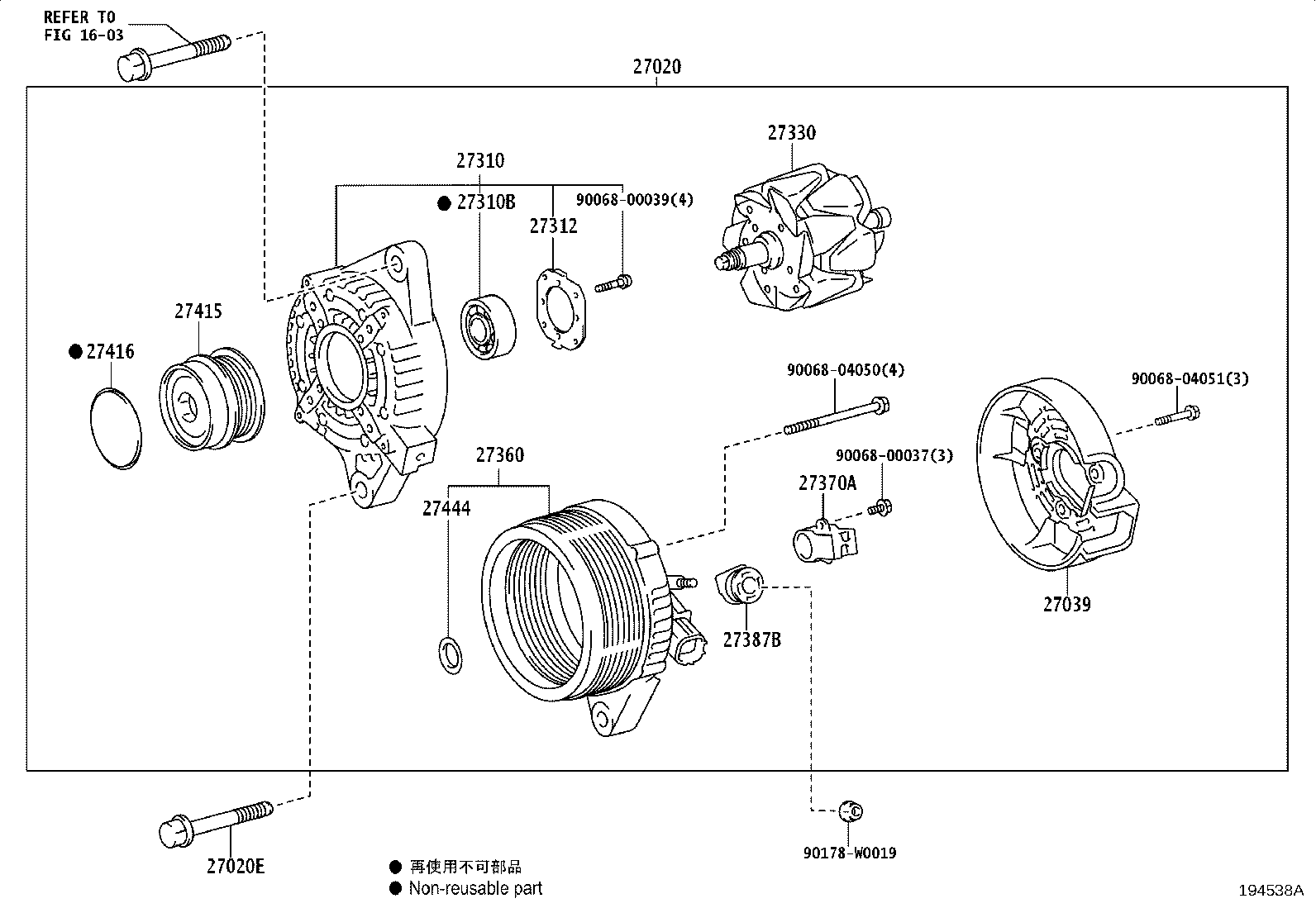

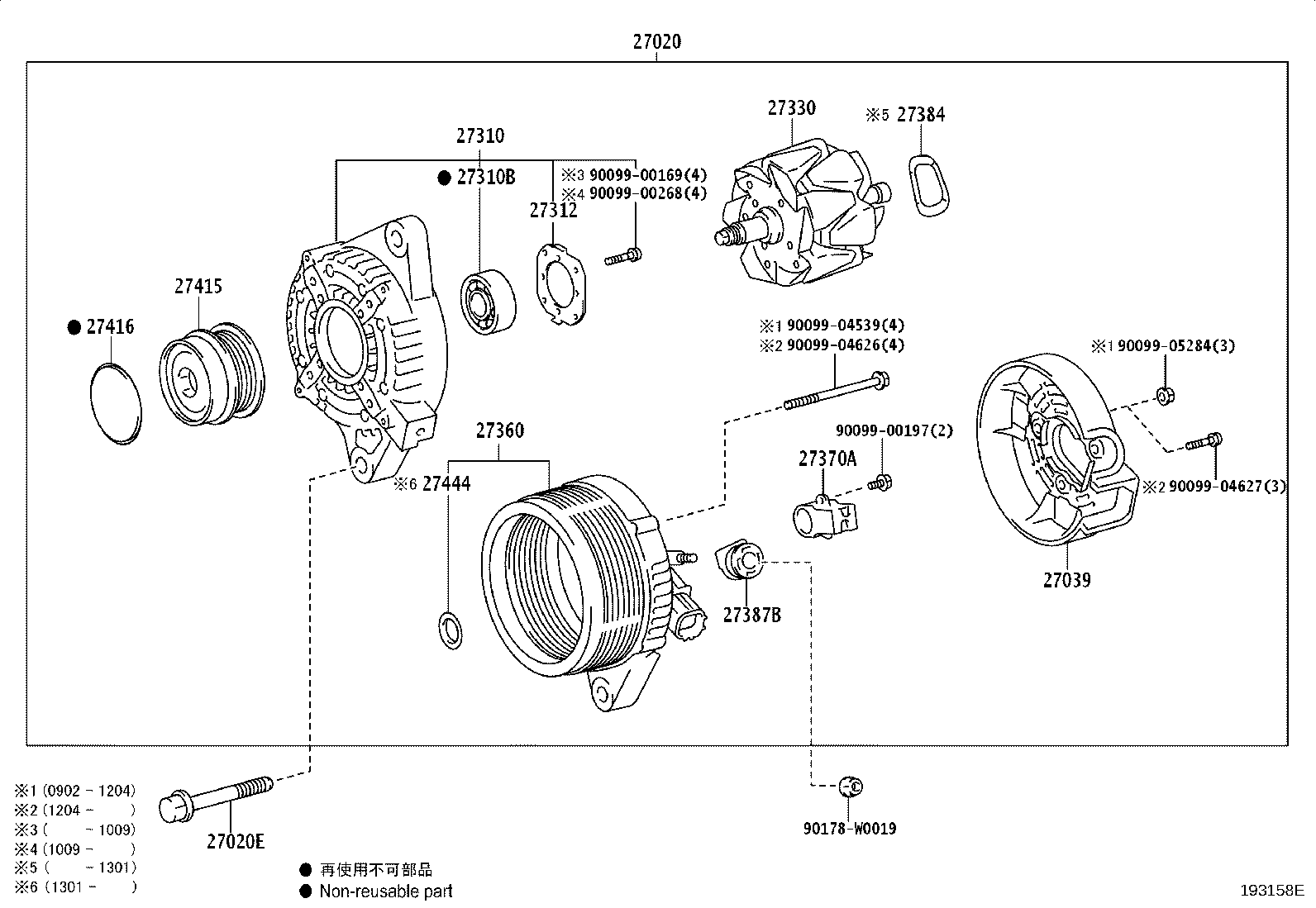

Figure 194051B 194051B 2009-02 → 2013-01 Figure 194139B 194139B 2013-01 → 2015-03 Figure 193157D 193157D 2009-02 → 2015-03 Figure 193158E 193158E 2009-02 → 2015-03 Figure 194538A 194538A 2015-03 → — Figure 194269D 194269D 2014-01 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370A Holder Assy, Alternator Brush
27384 Washer
27387B Insulator, Alternator Terminal
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
27702 Regulator Sub-assy Generator W/Brush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
