Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

12 part groups · 3 illustrations

Illustrations

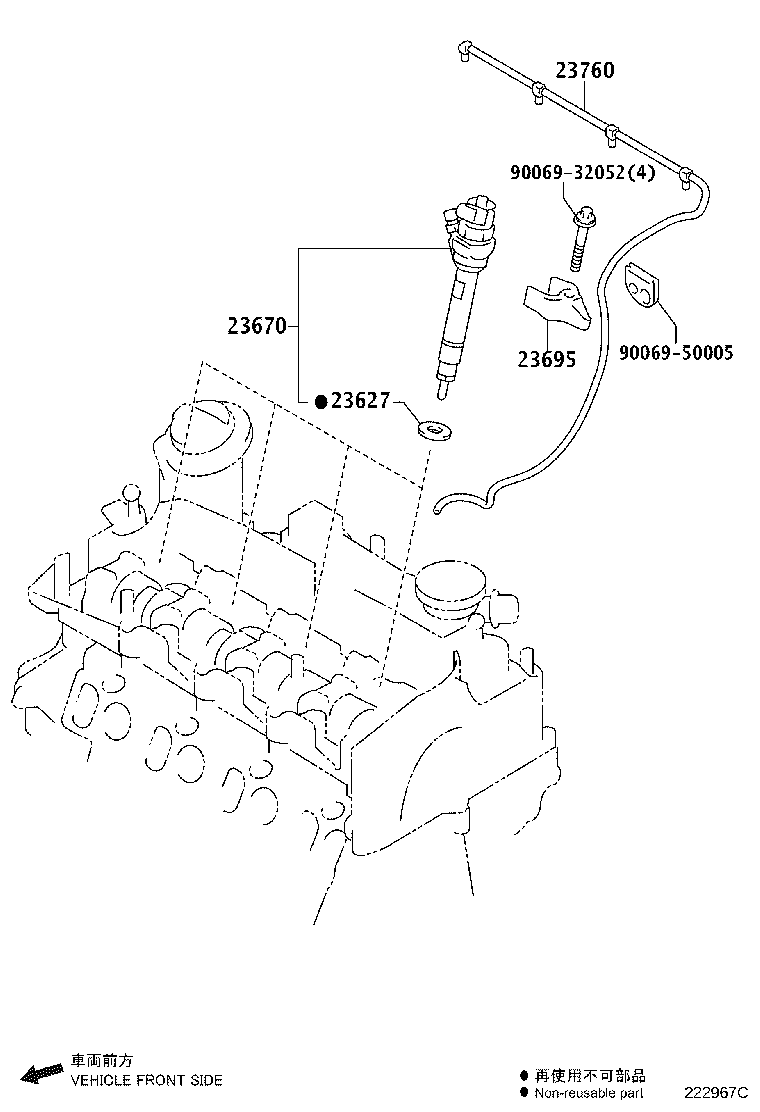

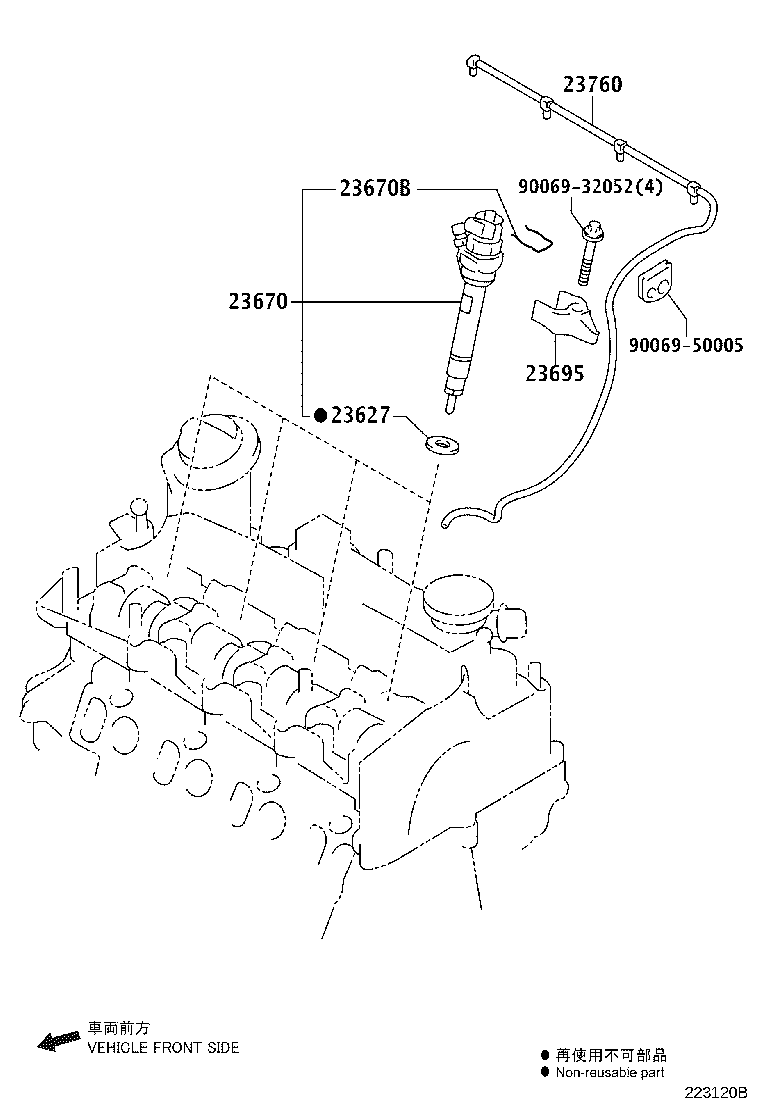

Figure 222333C 222333C 2009-02 → — Figure 223120B 223120B 2014-01 → 2015-03 Figure 222967C 222967C 2015-03 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23627 Ring, Packing, NO.1(FOR NOZZLE)
23670 Injector Assy
23670B Injector Clip
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23761A Pipe, Nozzle Leakage, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
