Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

13 part groups · 3 illustrations

Illustrations

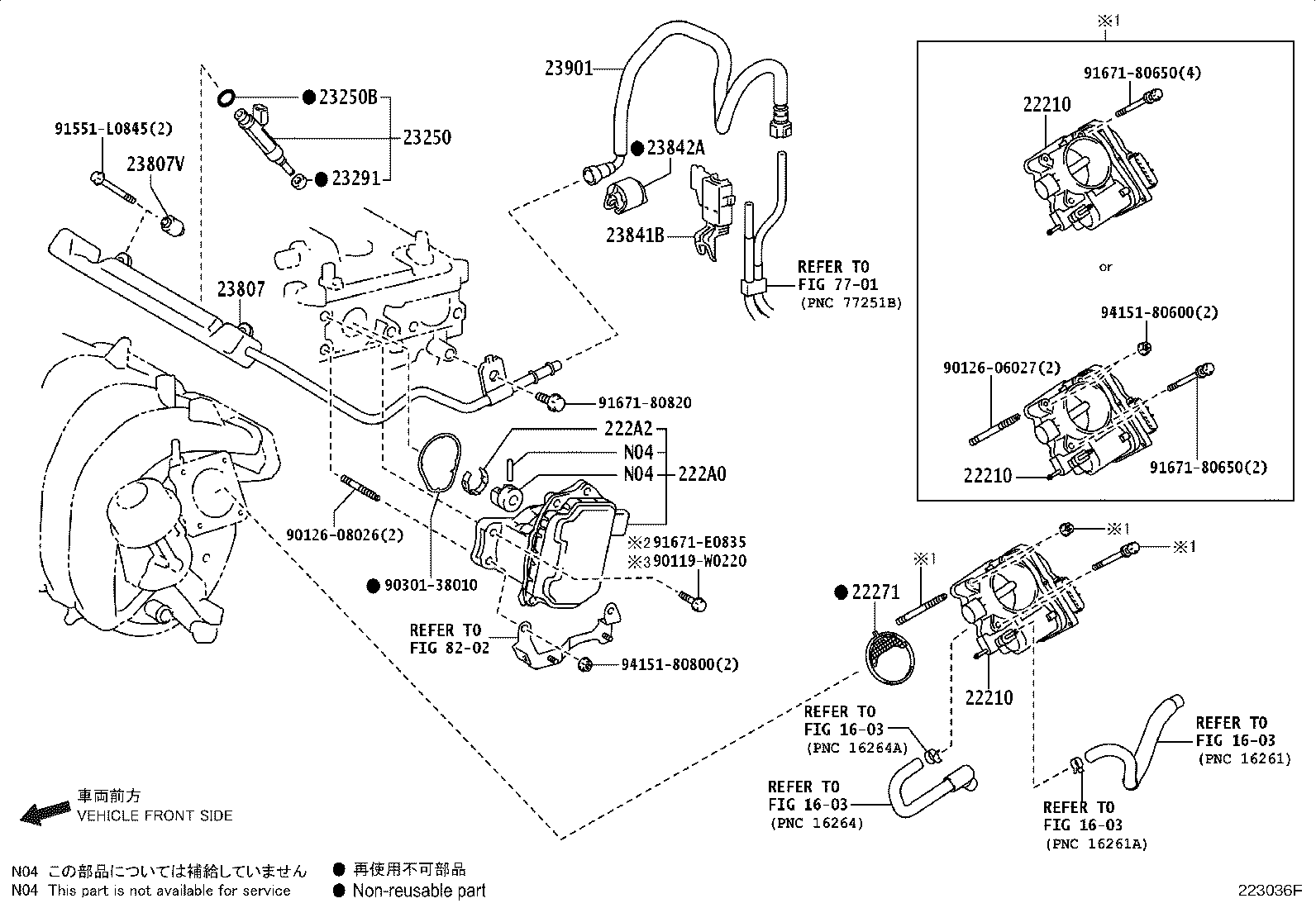

Figure 222969A 222969A 2014-01 → — Figure 223122A 223122A 2015-03 → — Figure 223036F 223036F 2009-02 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22271 Gasket, Throttle Body
222A0 Controller Assy, Continuously Variable Valve Lift
222A2 Clip, Valve Lift Control Actuator Connector
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
