Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

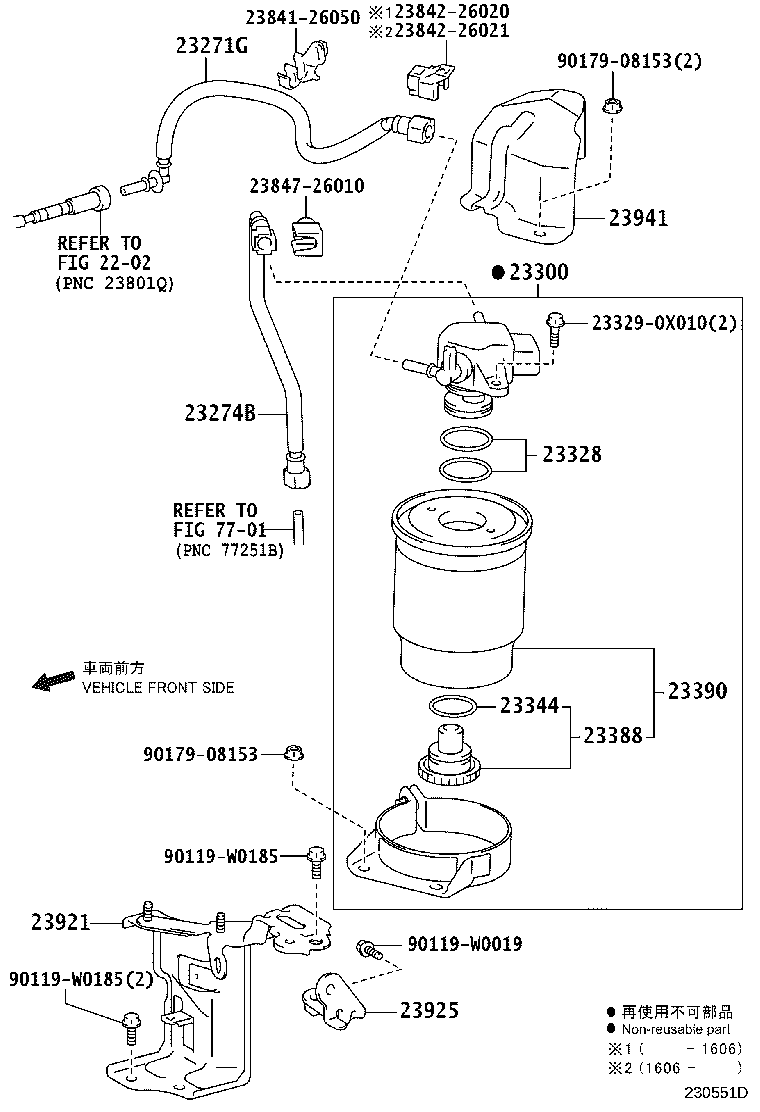

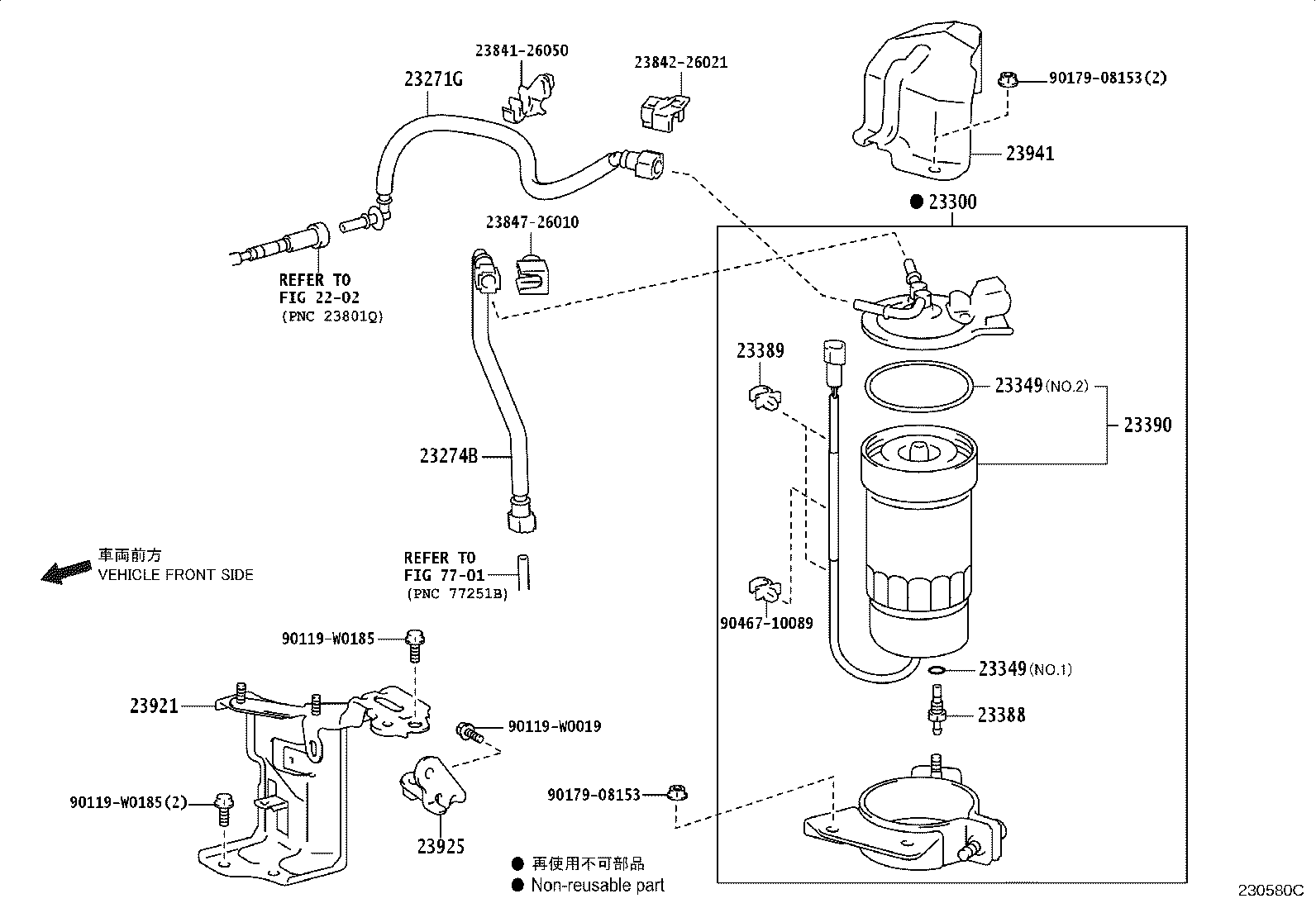

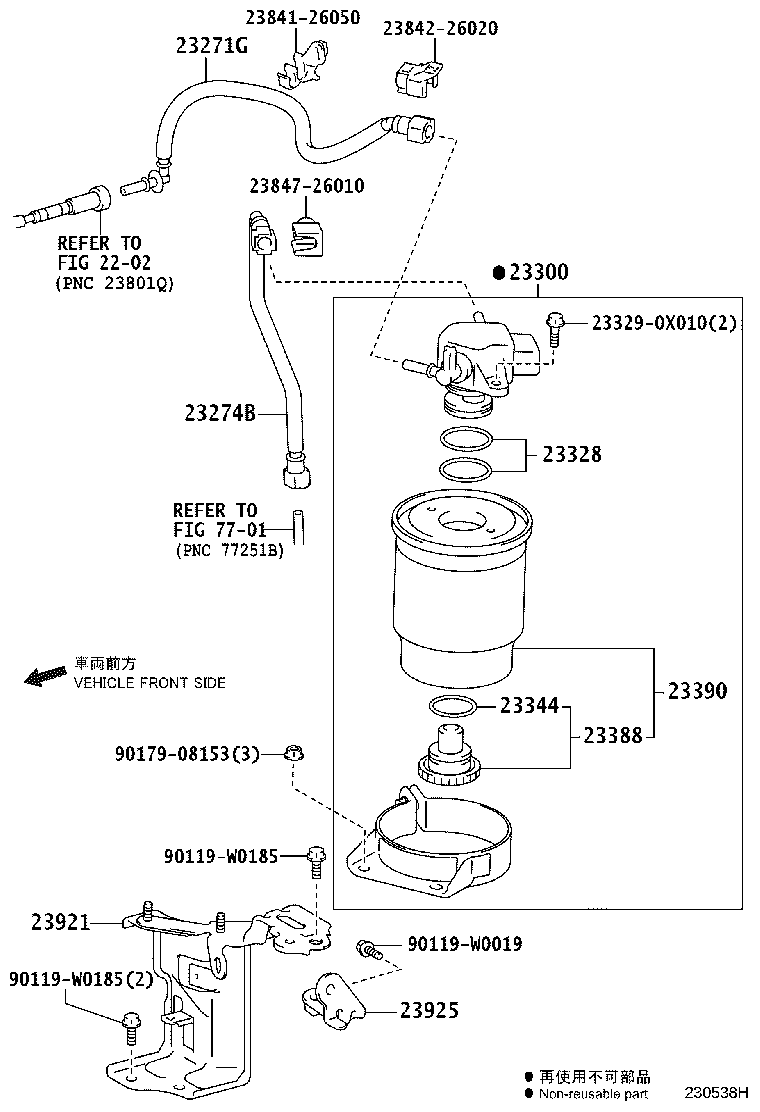

Fuel Filter
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23271G | Hose, Fuel |
| 23274B | Hose, Fuel, NO.3 |
| 23300 | Filter Assy, Fuel |
| 23303 | Element Sub-assy, Fuel Filter |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23344 | Gasket, Clamping Nut(FOR FUEL FILTER) |
| 23349 | Gasket, Fuel Sedimentor |
| 23380 | Cap Assy, Fuel Filter |
| 23388 | Plug, Fuel Filter Drain |
| 23389 | Clamp, Fuel Filter |
| 23389A | Clamp, Fuel Filter |
| 23390 | Element Assy, Fuel Filter |
| 23921 | Support, Fuel Filter |
| 23925 | Stay, Fuel Filter Support |
| 23931A | Cover, Fuel Filter |
| 23941 | Protector, Fuel Filter, NO.1 |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
