Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 3 illustrations

Illustrations

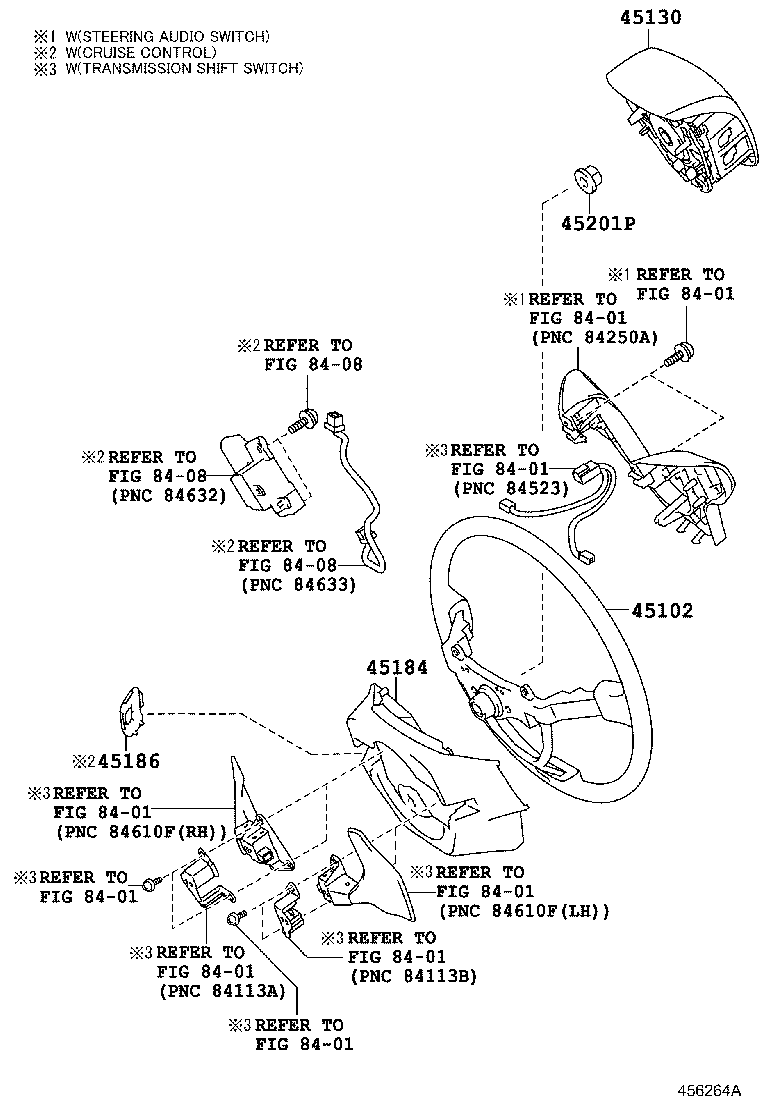

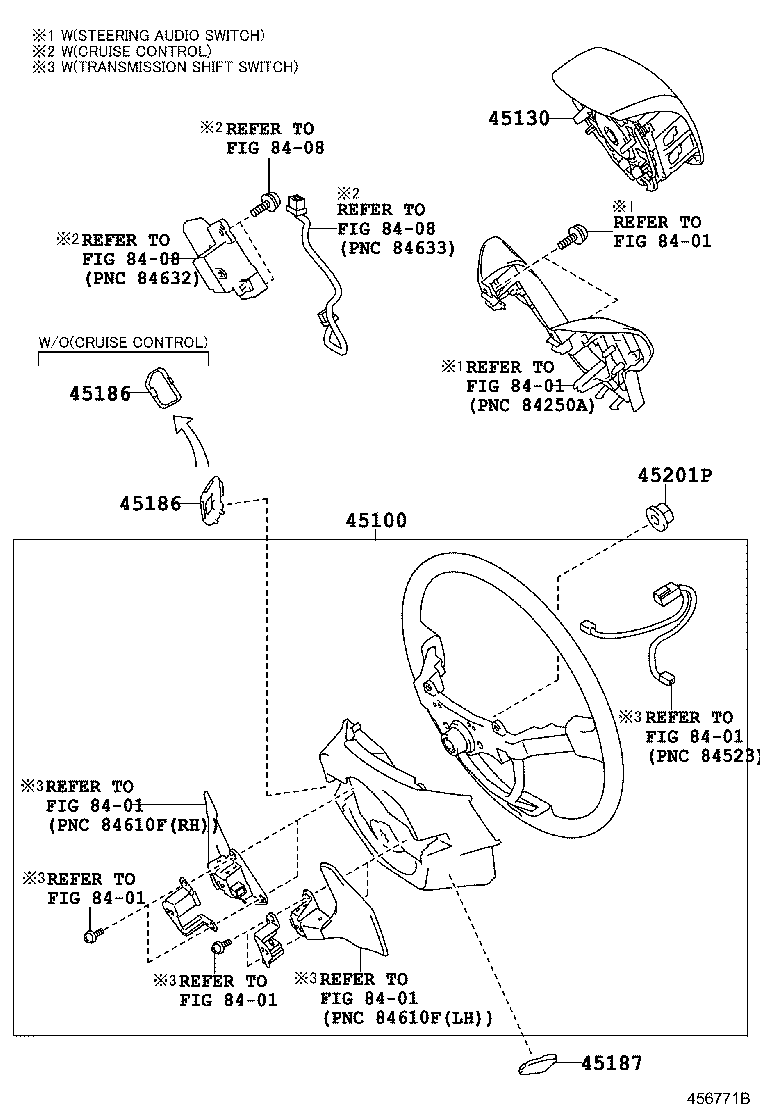

Figure 455282D 455282D 2009-02 → 2012-12 Figure 456264A 456264A 2012-11 → — Figure 456771B 456771B 2016-01 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
