Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

19 part groups · 3 illustrations

Illustrations

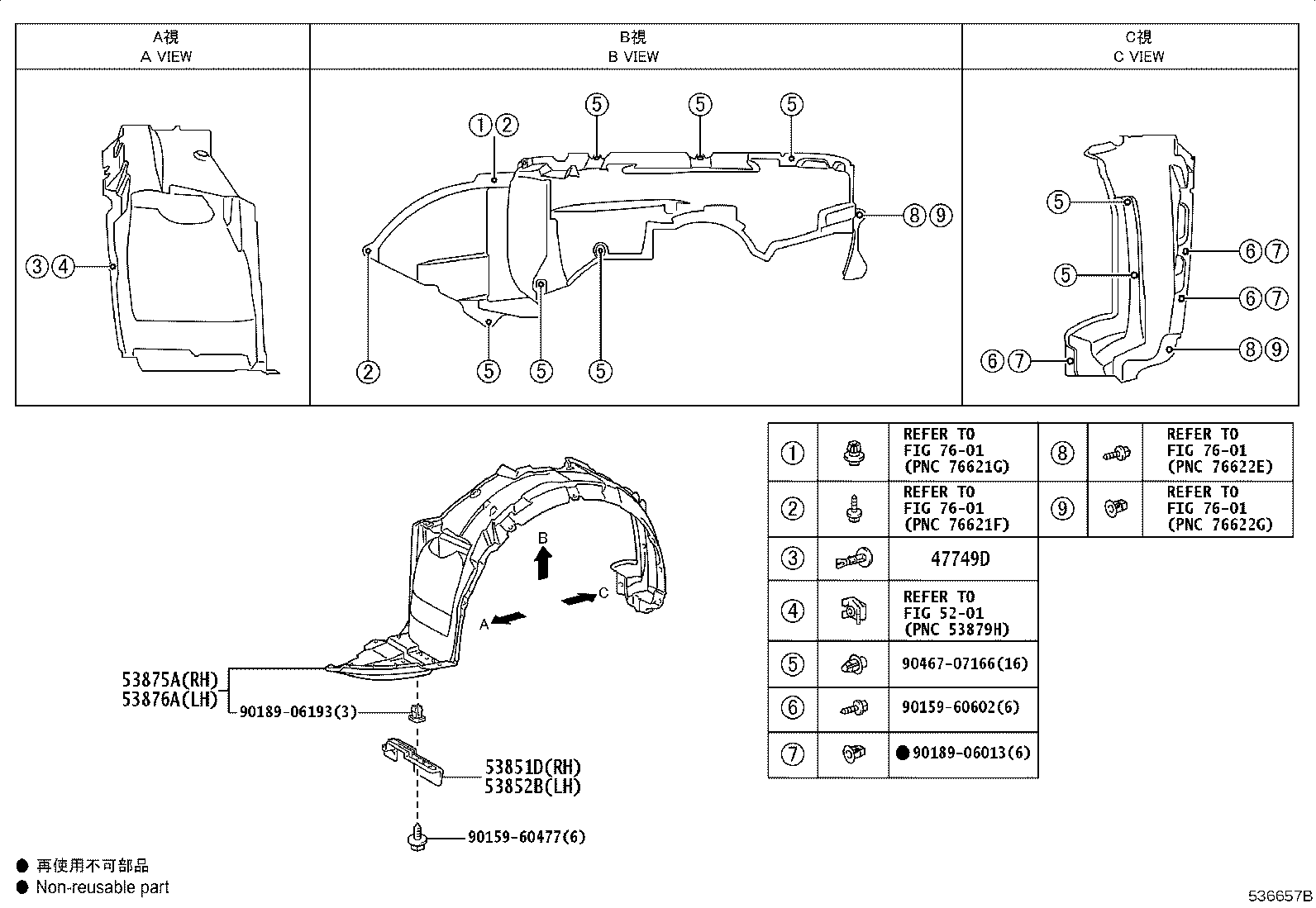

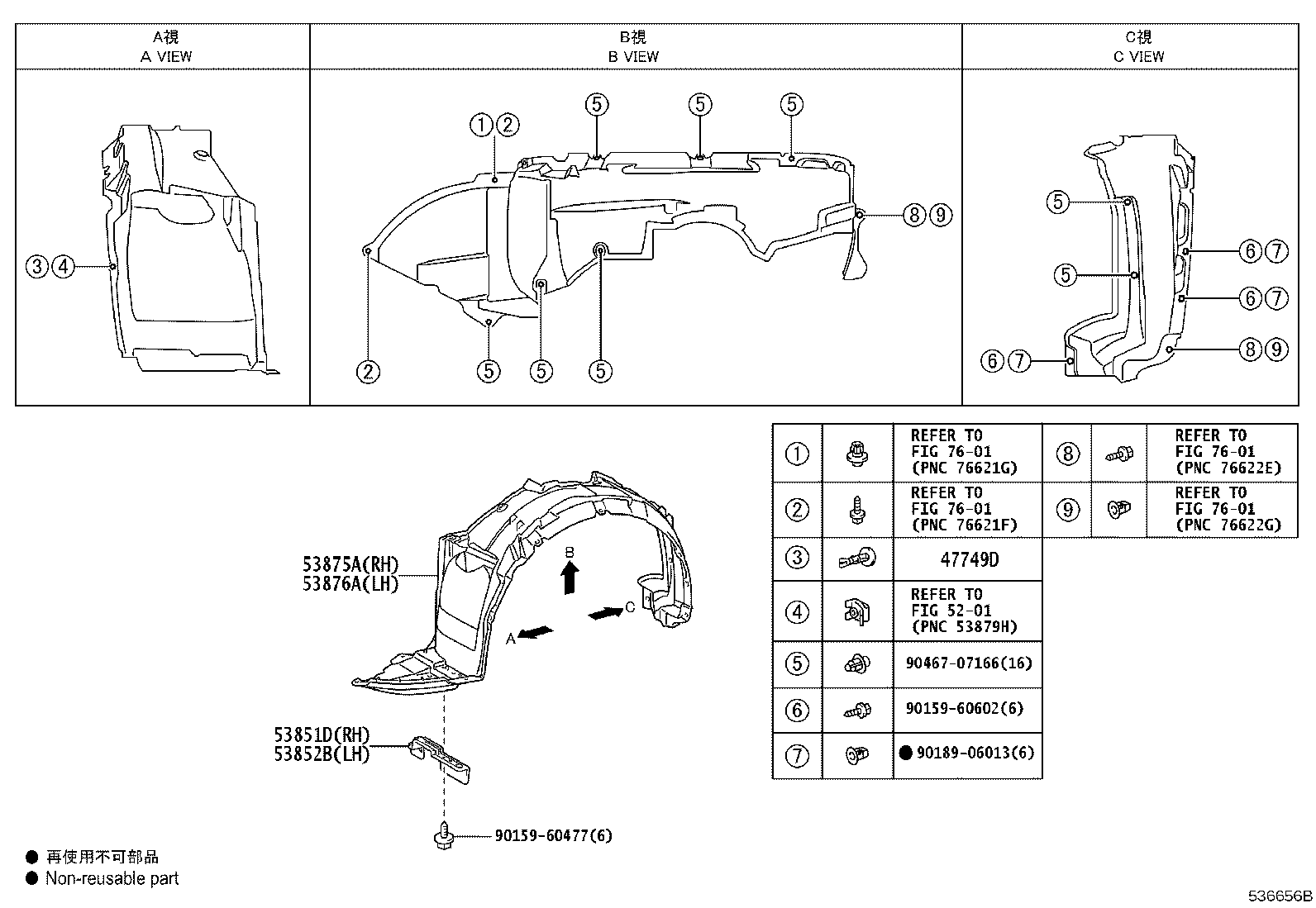

Figure 532941E 532941E 2009-02 → — Figure 536656B 536656B 2009-02 → 2012-12 Figure 536657B 536657B 2012-12 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813B Extension, Front Fender, RH
53814B Extension, Front Fender, LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
53882K Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
