Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

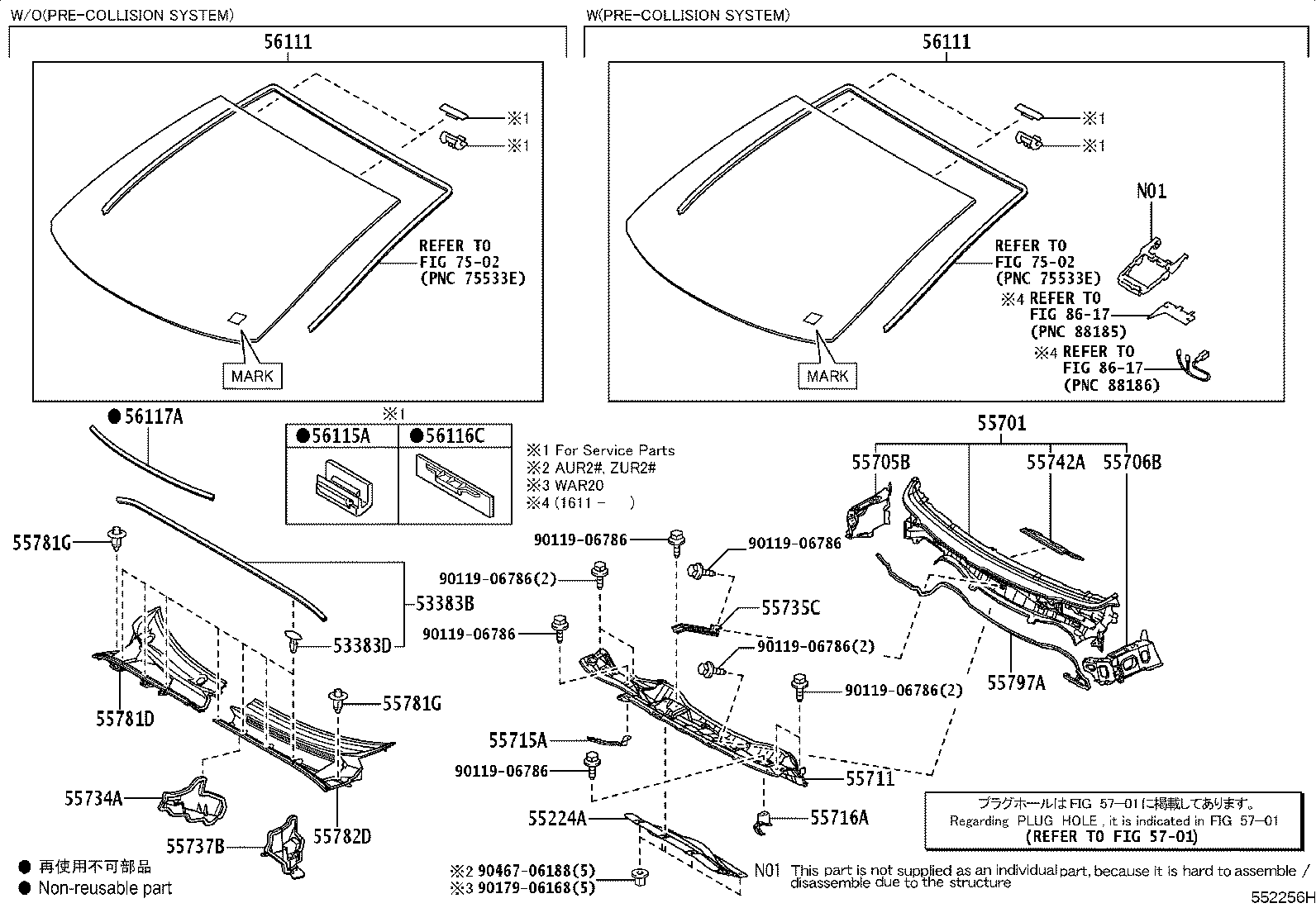

Cowl Panel & Windshield Glass
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 55224A | Insulator, Dash Panel, Outer NO.2 |
| 55701 | Panel Sub-assy, Cowl |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55711 | Panel, Cowl Top, Outer |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55734A | Plate, Water Guard, RH |
| 55735C | Reinforcement, Cowl Body Mounting, RH |
| 55736D | Reinforcement, Cowl Body Mounting, LH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55742A | Sheet, Cowl Top Insulator |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55797A | Seal, Cowl Water Extract |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
