Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 2 illustrations

Illustrations

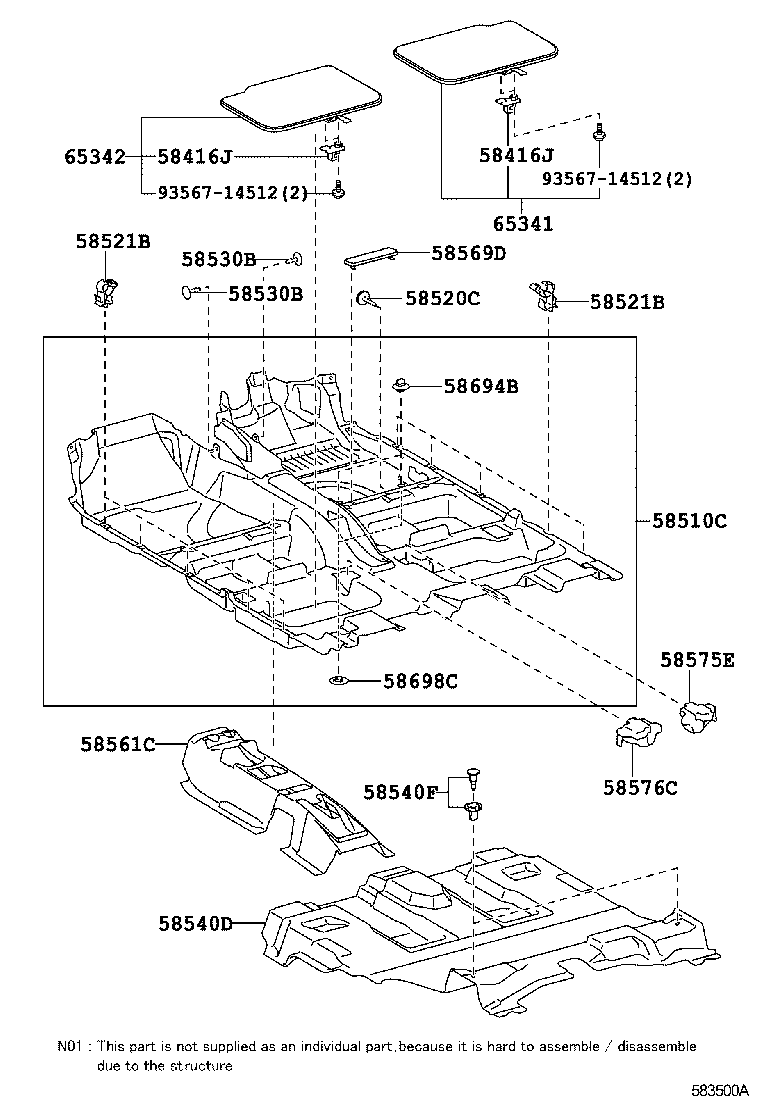

Figure 583499B 583499B 2009-02 → — Figure 583500A 583500A 2009-02 → —

Part groups

PNCDescription
58416J Bracket, Deck Board, NO.1
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58540D Carpet Assy, Floor, Rear
58540F Clip(FOR REAR FLOOR CARPET)
58561C Silencer, Front Floor, NO.1
58569D Cover, Front Floor Caution Plate
58575E Pad, Front Floor, Rear NO.1
58576C Pad, Front Floor, Rear NO.2
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
65341 Board, Floor, NO.1
65342 Board, Floor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
