Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

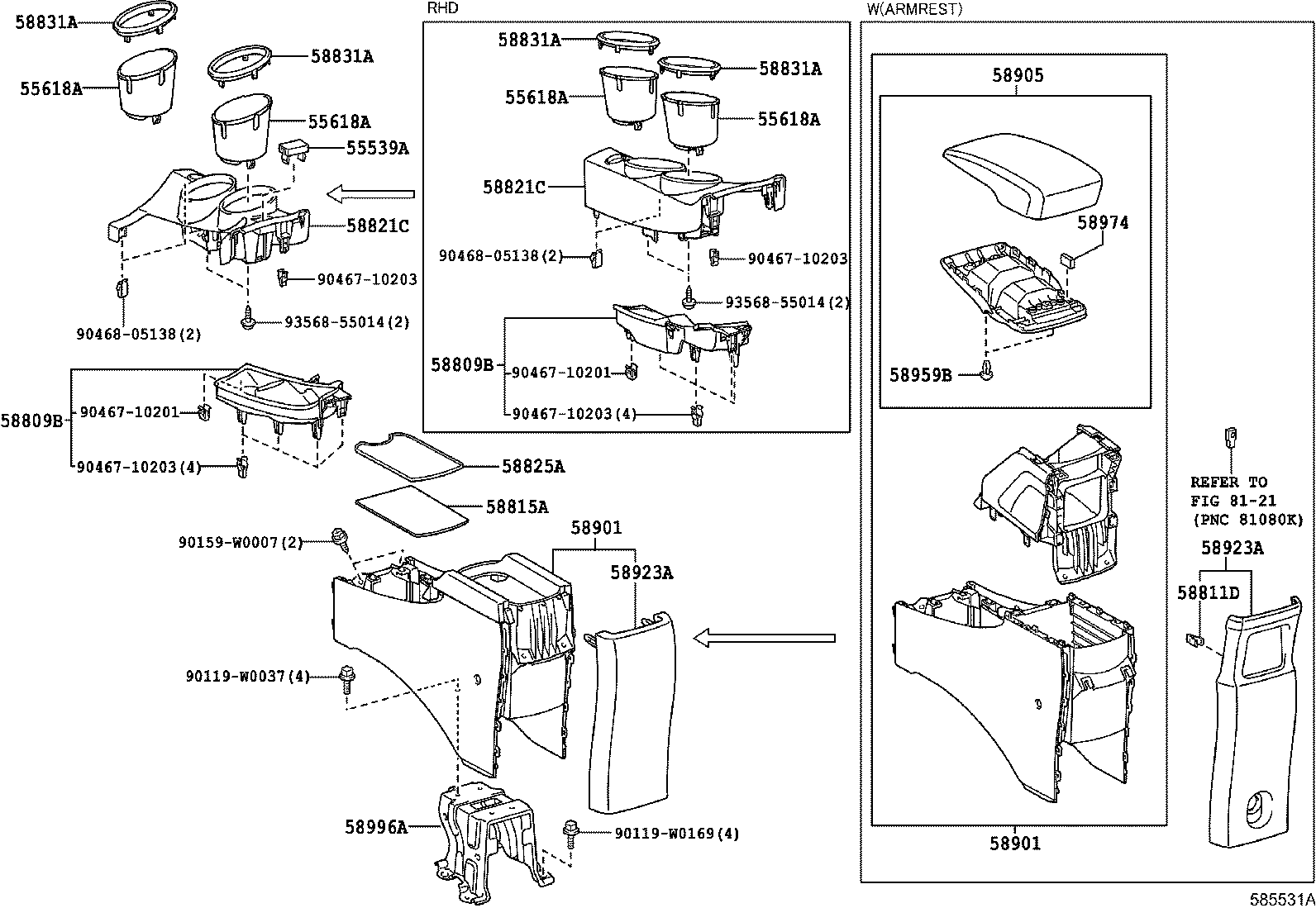

Console Box & Bracket
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55618A | Holder, Console Box Cup |
| 58809B | Cover Sub-assy, Parking Brake Hole |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58815A | Carpet, Console Box |
| 58821C | Panel, Console, Upper |
| 58825A | Pocket, Console Box |
| 58831A | Garnish, Console Upper Panel, Front |
| 58901 | Panel Sub-assy, Box |
| 58905 | Door Sub-assy, Console Compartment |
| 58923A | Panel, Console Rear End |
| 58959B | Cushion, Console Compartment Door |
| 58974 | Plate, Console Compartment Door Lock |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
