Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04
Roof Panel & Back Window Glass
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 61247F | Reinforcement, Roof Side Rail, Inner |
| 61248F | Reinforcement, Roof Side Rail, Inner, LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63104E | Reinforcement Sub-assy, Roof Panel, Rear |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63107B | Reinforcement Sub-assy, Roof Panel, RH |
| 63109C | Retainer Sub-assy, Roof Reinforcement |
| 63111 | Panel, Roof |
| 63113A | Panel, Roof, NO.3 |
| 63141H | Reinforcement, Roof Panel, Center |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63187C | Bracket, Roof Rack, NO.1 Rear RH |
| 63188B | Bracket, Roof Rack, NO.1 Rear LH |

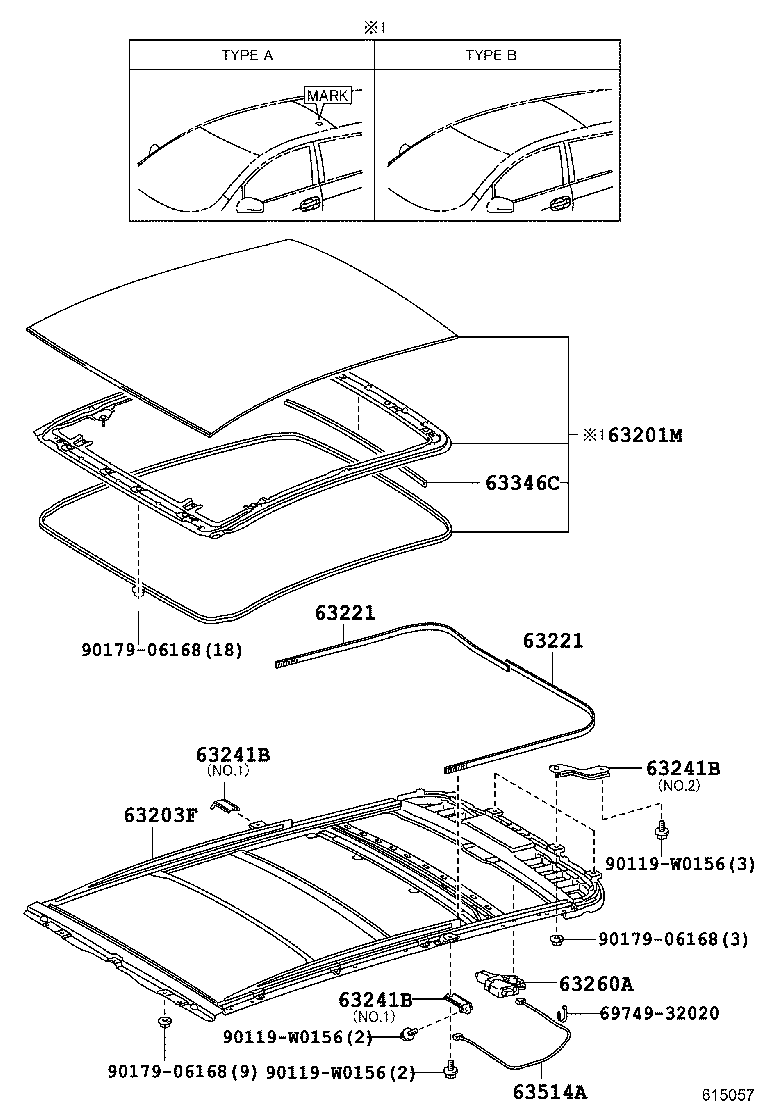

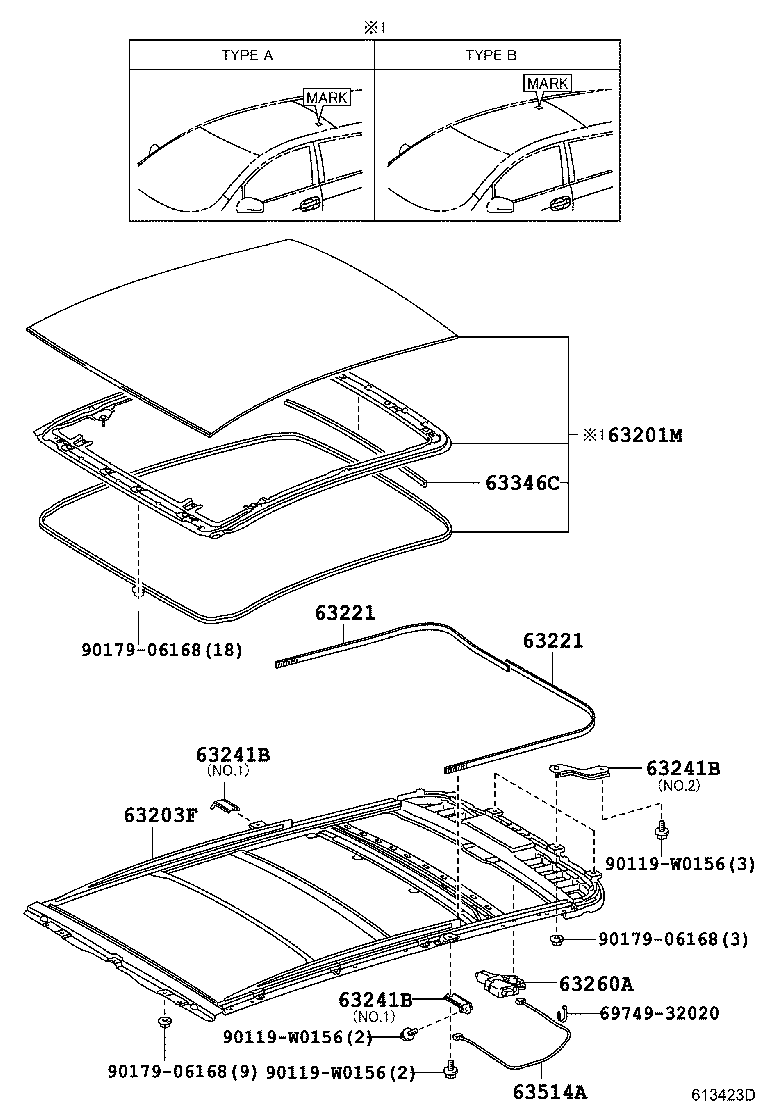

| 63201M | Glass Sub-assy, Roof Window, NO.1 |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63346C | Protector, Sunshade Trim, NO.6 |

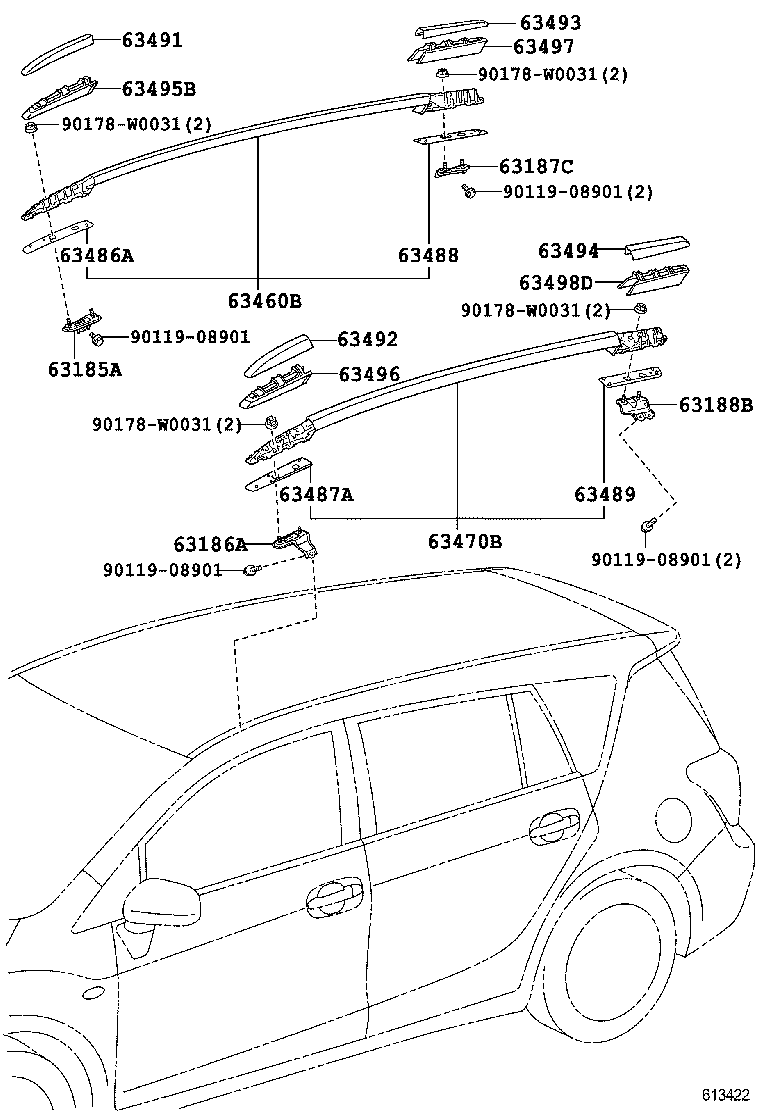

| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495B | Cover, Roof Rack Leg, Center RH |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 63497 | Cover, Roof Rack Lower, Rear RH |
| 63498D | Cover, Roof Rack Lower, Rear LH |
| 63514A | Wire, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
