Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04
Deck Board & Deck Trim Cover

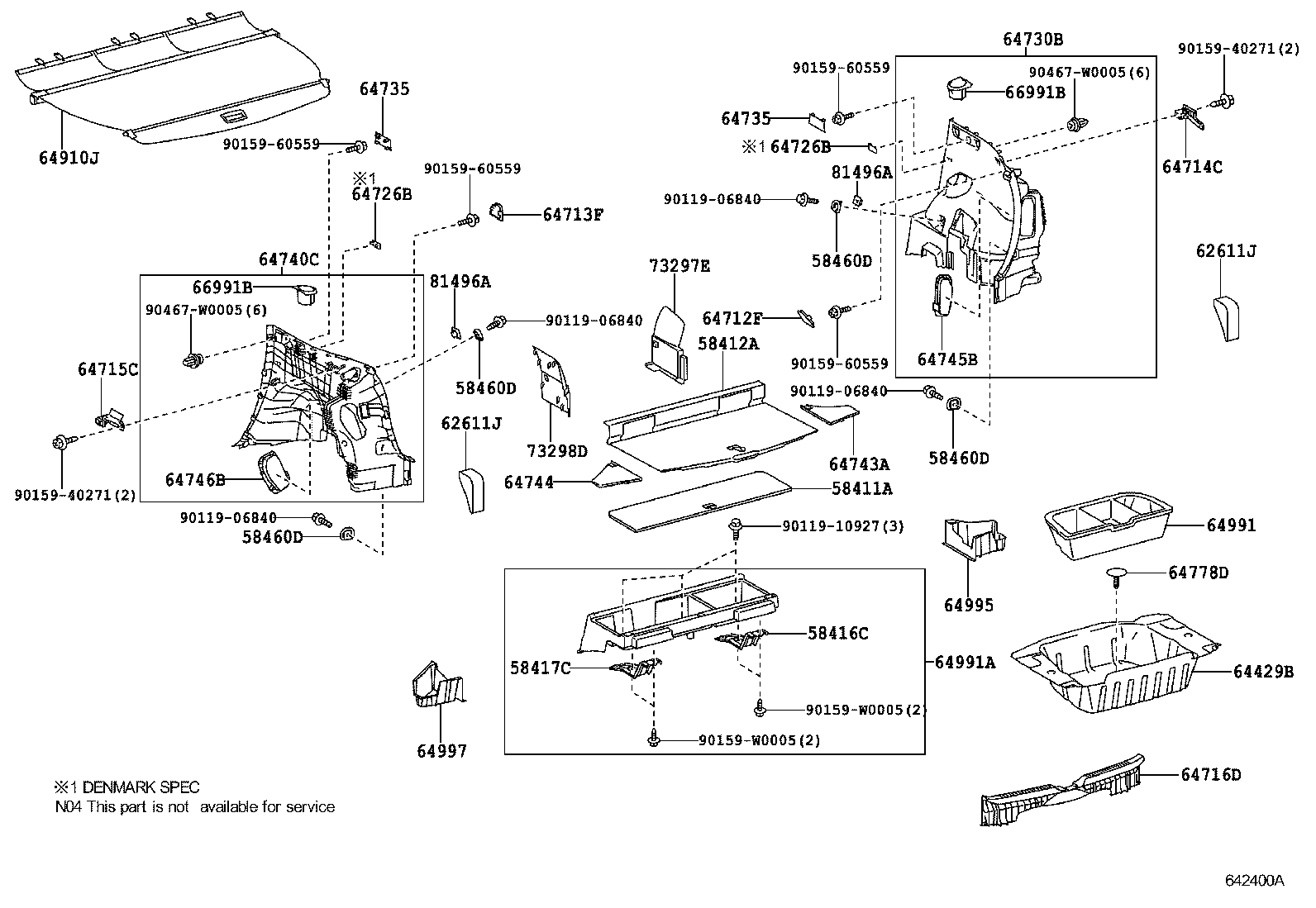

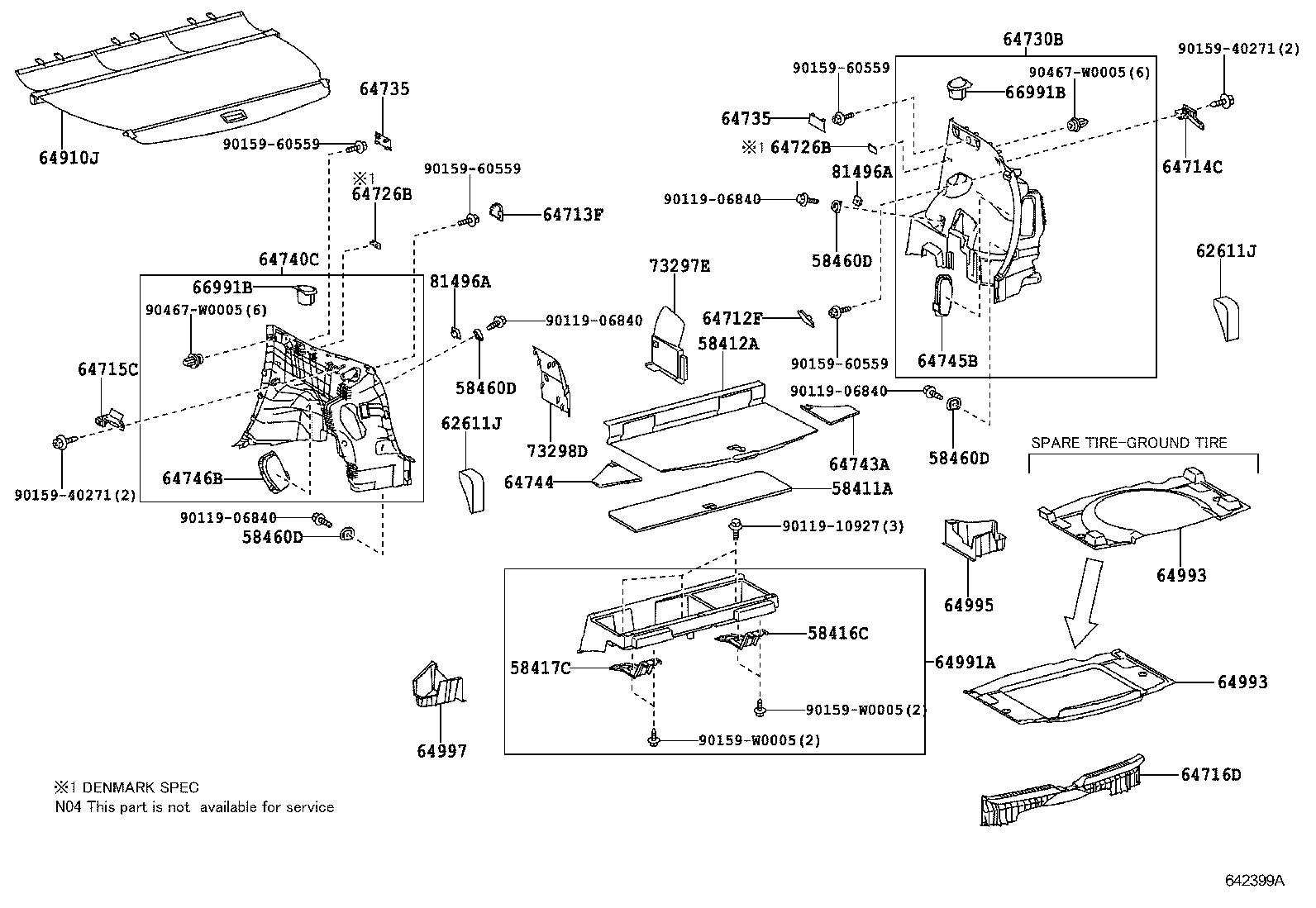

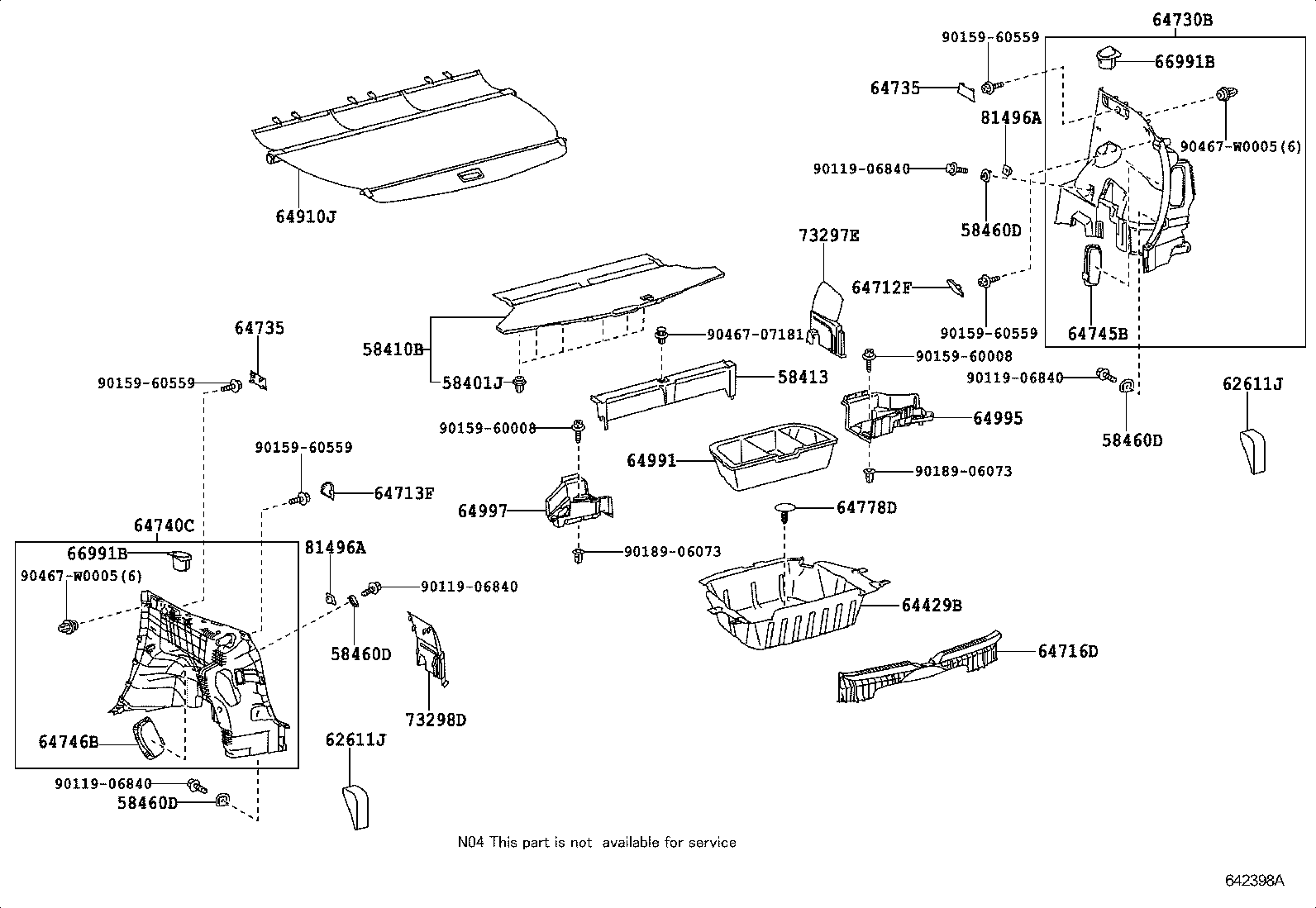

35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401J | Clip(FOR DECK BOAD) |
| 58410B | Board Assy, Deck |
| 58411A | Board, Deck, NO.1 |
| 58412A | Board, Deck, NO.2 |
| 58413 | Cover, Deck Rail |
| 58416C | Bracket, Deck Board, NO.1 RH |
| 58417C | Bracket, Deck Board, NO.1 LH |
| 58460D | Striker Assy, Luggage Hold Belt |
| 62611J | Pad, Quarter Wheel House |
| 64421A | Tray, Luggage Compartment |
| 64429B | Box, Luggage Room |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64716D | Cover, Deck Trim, Rear |
| 64726B | Clip, Deck Rear Trim |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64743A | Board, Deck Trim Side, Lower RH |
| 64744 | Board, Deck Trim Side, Lower LH |
| 64745B | Cover, Rear Combination Lamp Service, NO.2, RH |
| 64746B | Cover, Rear Combination Lamp Service, NO.2, LH |
| 64778D | Protector, Spare Wheel |
| 64910J | Cover Assy, Tonneau |
| 64991 | Box, Deck Floor, Front |
| 64991A | Box, Deck Floor, FR |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 66991B | Holder, Cup, NO.1 |
| 73297E | Cover, Deck Trim Side Belt Hole, RH |
| 73298D | Cover,Deck Trim Side Belt Hole, LH |
| 81496A | Guide, Rear Combination Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
