Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

22 part groups · 3 illustrations

Illustrations

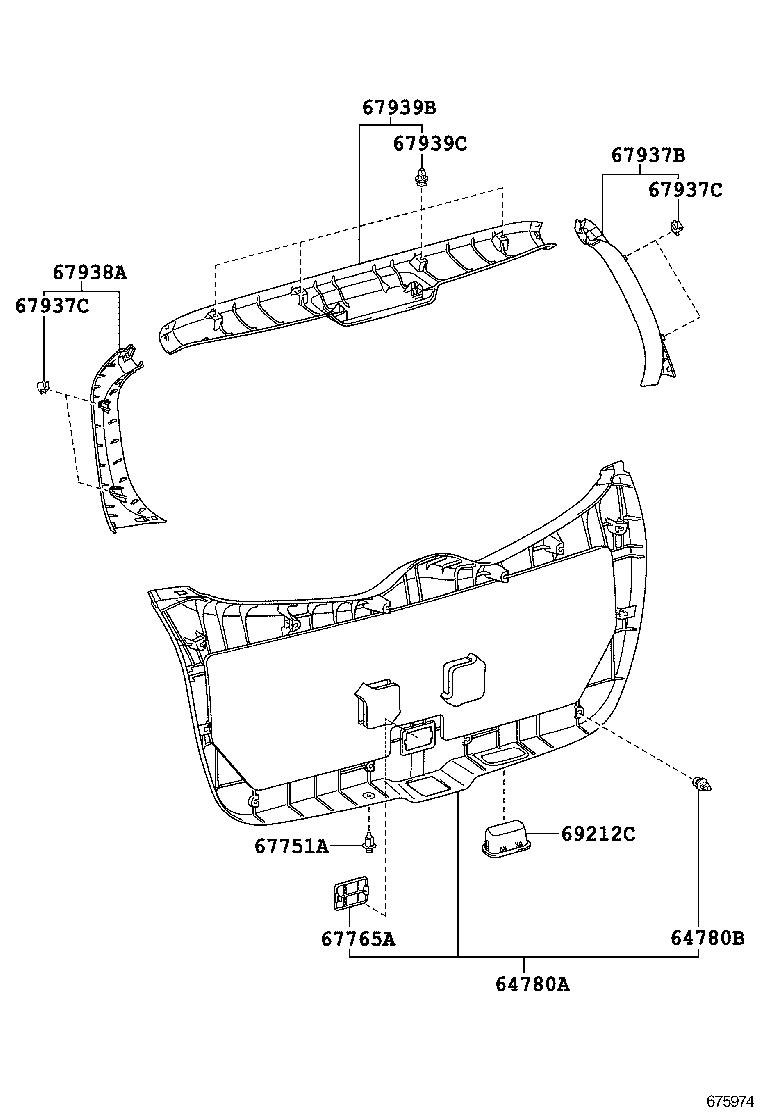

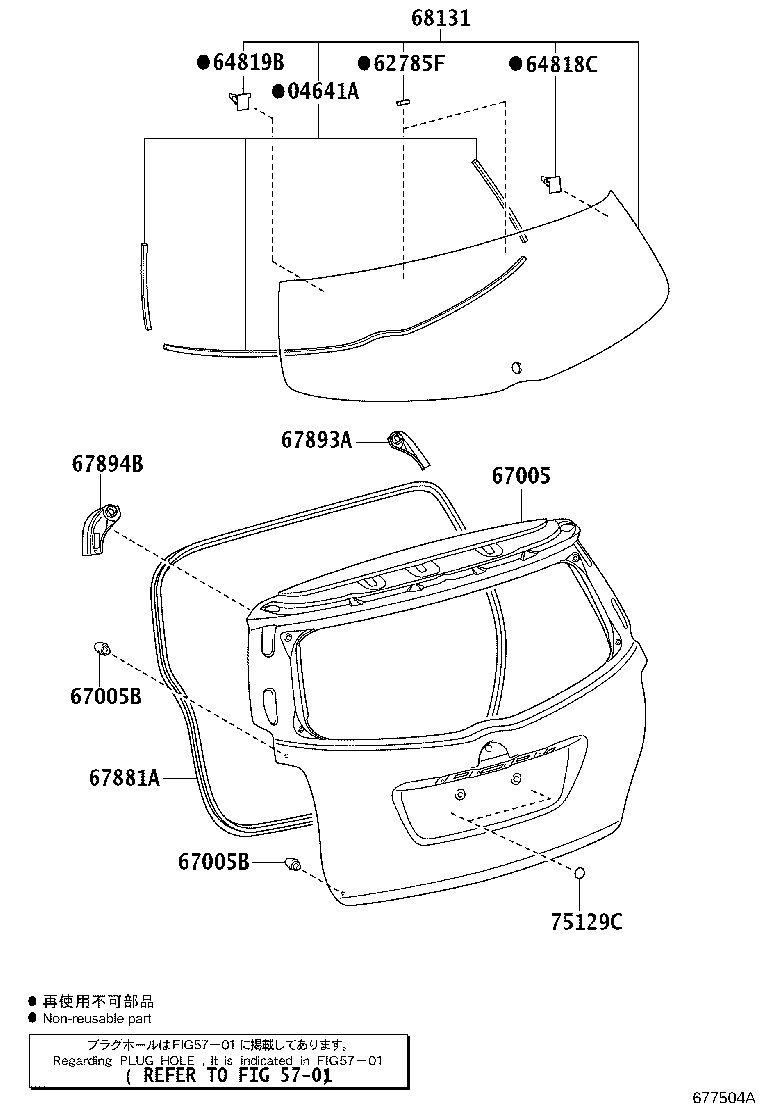

Figure 675973B 675973B 2009-02 → 2012-05 Figure 677504A 677504A 2012-05 → — Figure 675974 675974 2009-02 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
62785F Spacer, Back Door Glass
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64818C Spacer, Back Window Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67751A Clip(FOR BACK DOOR TRIM BOARD)
67765A Cover, Back Door Service Hole, NO.1
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
69212C Handle, Back Door Inside
75129C Cushion, Rear Licence Plate
75573C Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
