Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

103 part groups · 5 illustrations

Illustrations

715996E 2009-02 → —

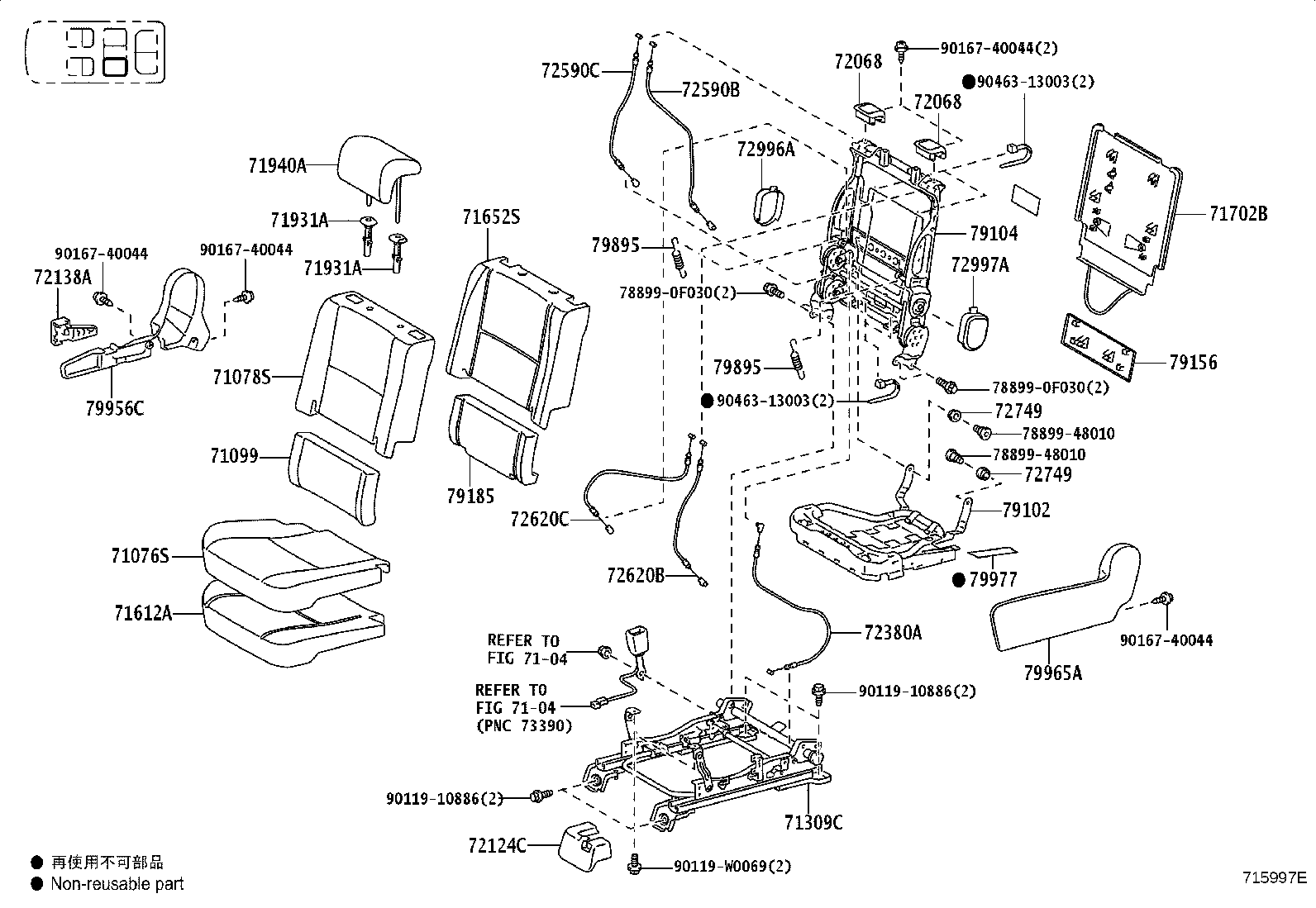

715997E 2009-02 → —

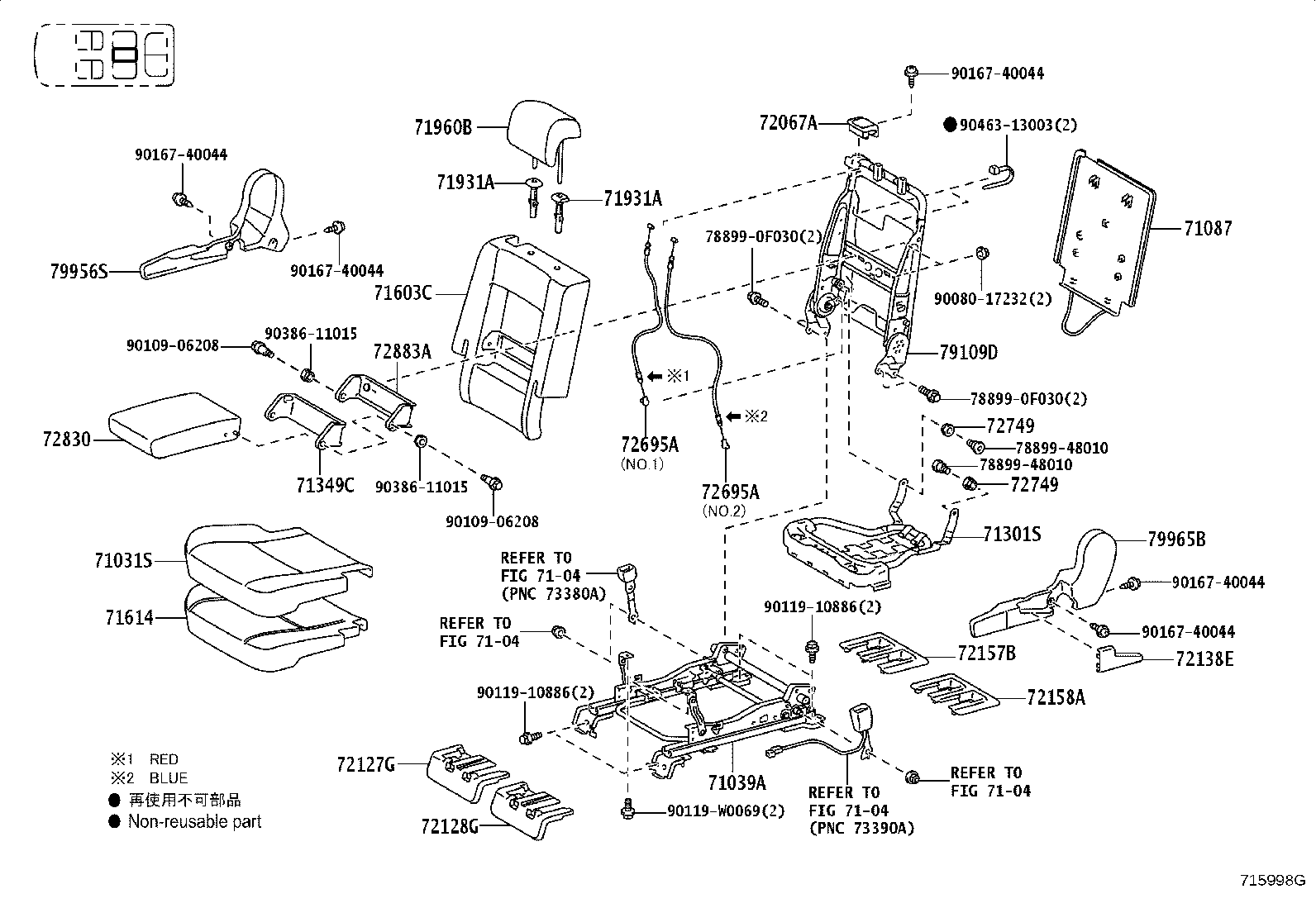

715998G 2009-02 → —

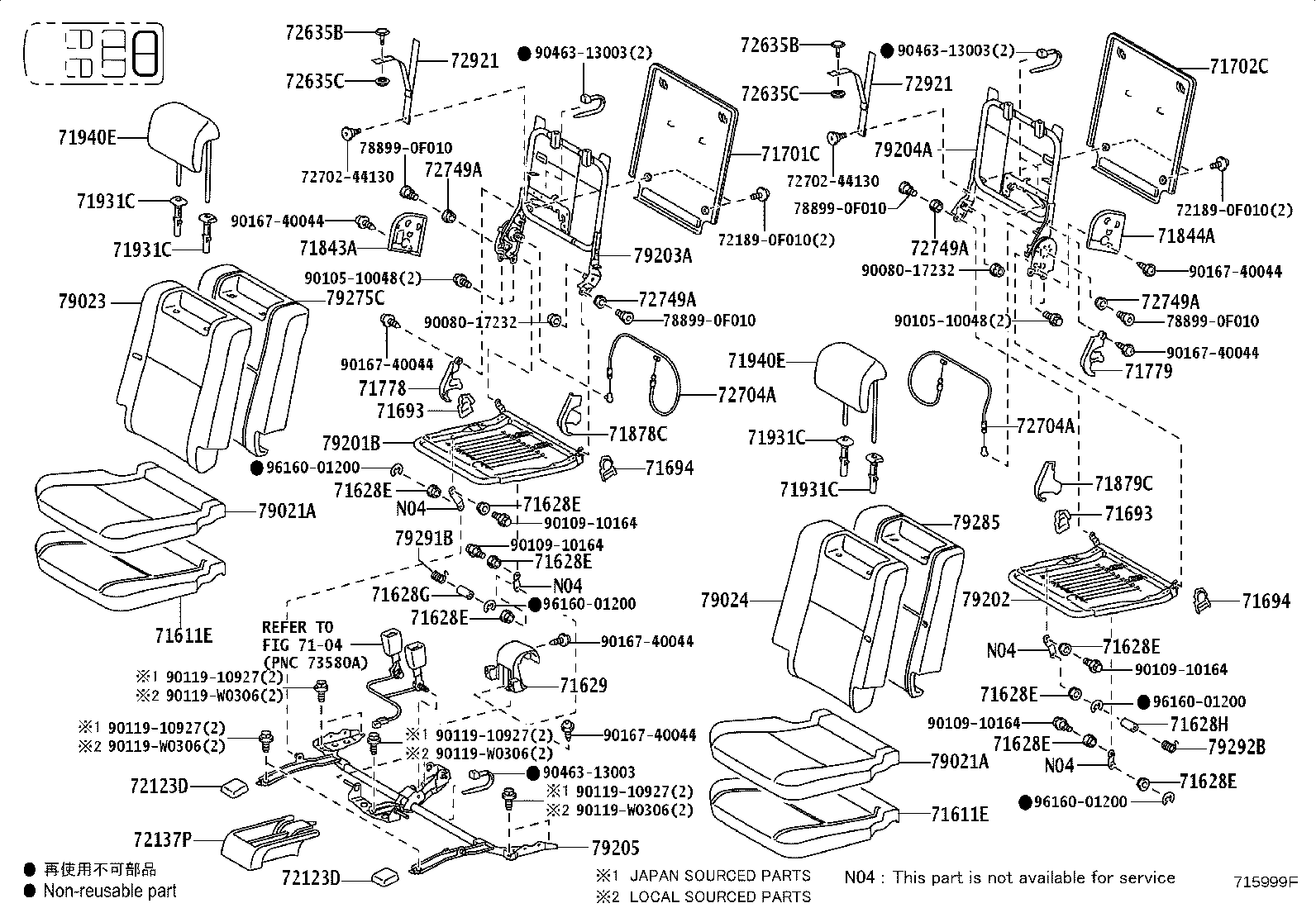

715999F 2009-02 → 2015-03

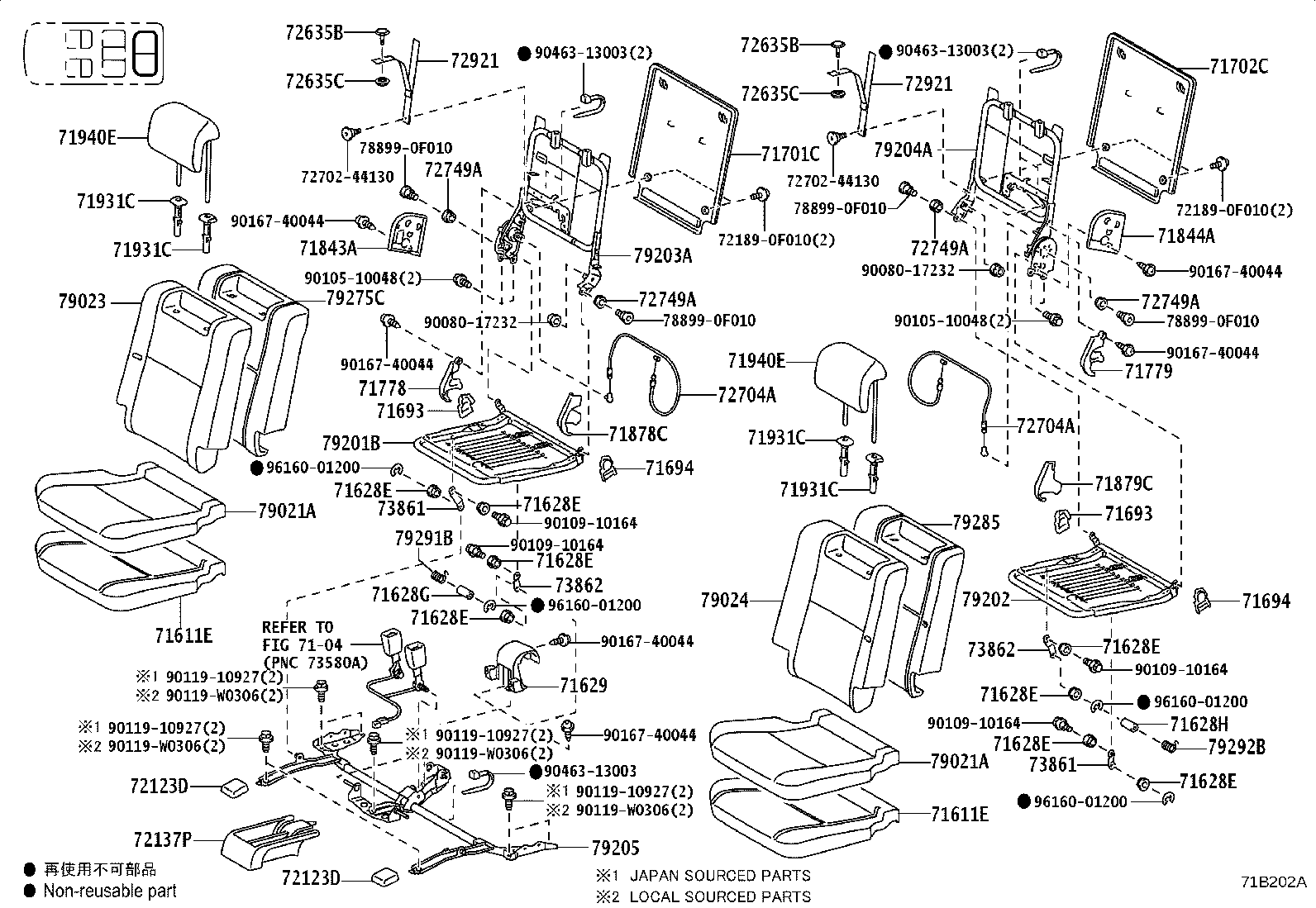

71B202A 2015-03 → —

Part groups

PNC	Description
71031S	Cover Sub-assy, Center Seat Cushion
71039A	Leg Sub-assy, Center Seat
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087	Board Sub-assy, Rear Seatback
71098	Cover Sub-assy, Rear Seatback, Lower RH
71099	Cover Sub-assy, Rear Seatback, Lower LH
71301S	Frame Sub-assy, Center Seat Cushion
71308E	Leg Sub-assy, Rear Seat, RH
71309C	Leg Sub-assy, Rear Seat, Rear LH
71349C	Cover, Rear Seatback Hinge
71603C	Pad Sub-assy, Rear Seatback W/Cover
71611A	Pad, Rear Seat Cushion, RH
71611E	Pad, Rear NO.2 Seat Cushion, A
71612A	Pad, Rear Seat Cushion, LH
71614	Pad, Rear Seat Cushion, Center
71628E	Spacer, Rear Seat Cushion
71628G	Spacer, Rear Seat Cushion, RH
71628H	Spacer, Rear Seat Cushion, LH
71629	Cover, Rear Seat Cushion Hinge
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71701B	Board Sub-assy, Rear Seatback, RH
71701C	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71702C	Board Sub-assy, Rear Seatback, LH
71778	Cover, Rear Seat Side Hinge Male, RH
71779	Cover, Rear Seat Side Hinge Male, LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71878C	Cover, Rear Seat Reclining, Inner RH
71879C	Cover, Rear Seat Reclining, Inner LH
71931A	Support, Rear Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
71940E	Headrest Assy, NO.2 Seat
71960B	Headrest Assy, Rear Seat, Center
72067	Lever Sub-assy, Rear Back Lock Control, RH
72067A	Lever, Rear Back Lock Control, Center
72068	Lever Sub-assy, Rear Back Lock Control, LH
72123C	Cover, Seat Track Bracket, Outer Front RH
72123D	Cover, Rear NO.2 Seat Track Bracket
72124C	Cover, Seat Track Bracket, Outer Front LH
72127G	Cover, Seat Track Bracket, Inner Front RH
72128G	Cover, Seat Track Bracket, Inner Front LH
72137D	Cover, Rear Seat Track, RH
72137P	Cover, Rear NO.2 Seat Track
72138A	Cover, Rear Seat Track, LH
72138E	Cover, Seat Track, Inner LH
72157B	Cover, Rear Seat Track Bracket, Inner RH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72380A	Cable Assy, Seat Adjuster Control, NO.2
72590B	Cable Assy, Reclining Remote Control
72590C	Cable Assy, Reclining Remote Control
72620B	Cable Assy, Rear NO.1 Seat Lock
72620C	Cable Assy, Rear NO.1 Seat Lock
72635B	Hook, Rear Seatback Lock(MALE)
72635C	Hook, Rear Seatback Lock(FEMALE)
72695A	Cable, Rear Seat Lock Control
72704A	Cable, Rear Seat Reclining Control
72749	Spacer, Rear Seat Reclining
72749A	Spacer, Rear Seat Reclining
72830	Armrest Assy, Rear Seat, Center
72883A	Bracket, Rear Seat Center Armrest, NO.1
72921	Strap, 3RD Seat
72996	Cover, Rear Seatback, RH
72996A	Cover, Rear Seatback
72997	Cover, Rear Seatback, LH
72997A	Cover, Rear Seatback, Inner LH
73861	Link, NO.2 Seat Suspension, NO.1
73862	Link, NO.2 Seat Suspension, NO.2
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79101B	Frame Sub-assy, NO.1 Seat Cushion, RH
79102	Frame Sub-assy, NO.1 Seat Cushion, LH
79103A	Frame Sub-assy, NO.1 Seatback, RH
79104	Frame Sub-assy, NO.1 Seatback, LH
79109D	Frame Sub-assy, Rear NO.1 Seatback, Center
79156	Board, Rear NO.1 Seatback
79175E	Pad, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79201B	Frame Sub-assy, NO.2 Seat Cushion, RH
79202	Frame Sub-assy, NO.2 Seat Cushion, LH
79203A	Frame Sub-assy, NO.2 Seatback, RH
79204A	Frame Sub-assy, NO.2 Seatback, LH
79205	Leg Sub-assy, NO.2 Seat
79275C	Pad, NO.2 Seatback, RH
79285	Pad, NO.2 Seatback, LH
79291B	Spring, NO.2 Seat Cushion, NO.1
79292B	Spring, Rear NO.2 Seat Cushion, NO.2
79895	Spring, Rear NO.1 Seatback
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH
79956S	Cover, Rear Seat Leg Side
79965	Cover, Rear Seat Leg Side, NO.2
79965A	Cover, Rear Seat Leg Side, NO.2
79965B	Cover, Rear Seat Leg Side, NO.2
79977	Felt, Seatback

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
