Toyota Verso
2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe
Supported model
Data version 2018-04

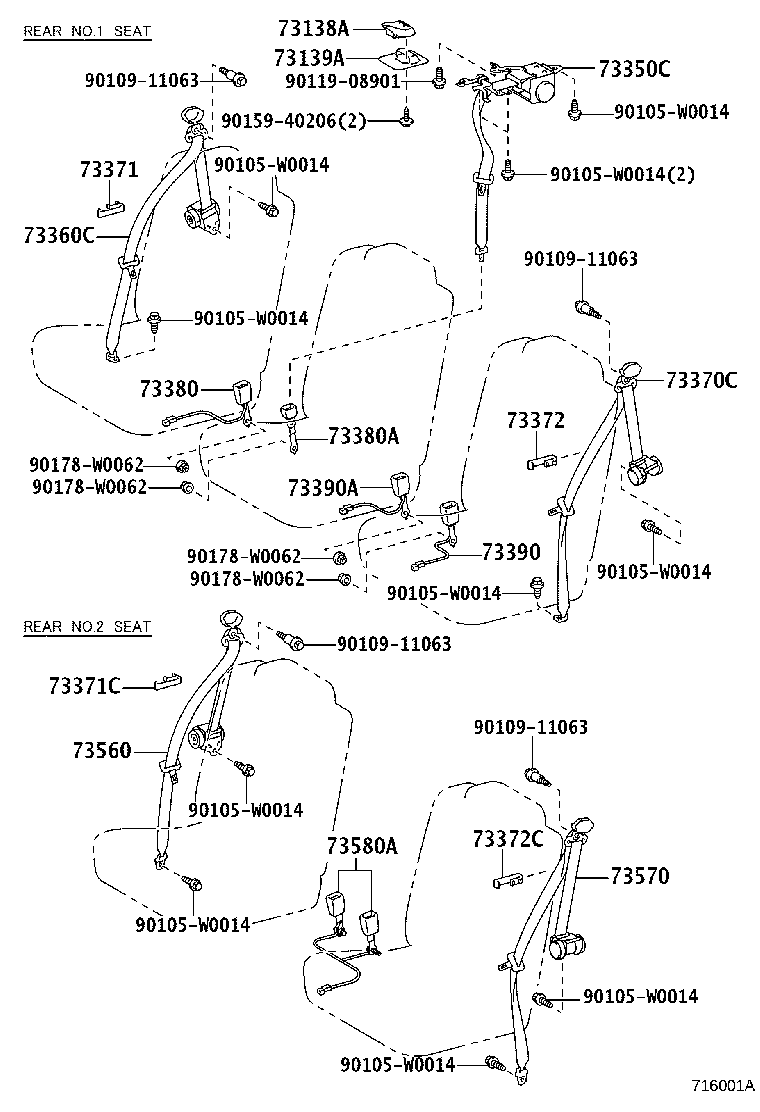

Seat Belt & Child Restraint Seat
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73136A | Cover, Shoulder Belt Anchor, LH |
| 73138A | Cover, Shoulder Belt Anchor, Upper LH |
| 73139A | Cover, Seat Belt Anchor |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73371 | Hanger, Rear Seat Shoulder Belt, RH |
| 73371C | Hanger, Rear NO.2 Seat Shoulder Belt, RH |
| 73372 | Hanger, Rear Seat Shoulder Belt, LH |
| 73372C | Hanger, Rear NO.2 Seat Shoulder Belt, LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73390A | Belt Assy, Rear Seat, Inner |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
