Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

15 part groups · 3 illustrations

Illustrations

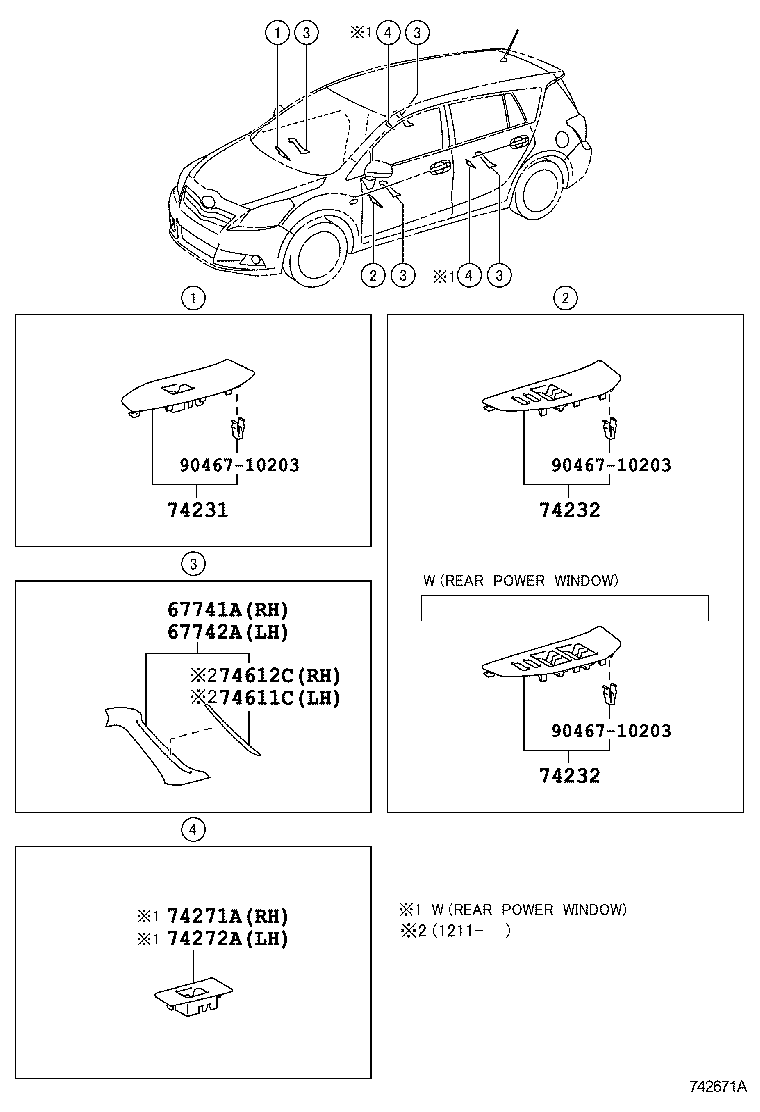

Figure 742670A 742670A 2009-02 → — Figure 742671A 742671A 2009-02 → — Figure 742669B 742669B 2009-02 → —

Part groups

PNCDescription
67741A Moulding, Front Door Trim, RH
67742A Moulding, Front Door Trim, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74611C Cover, Assist Grip, LH
74612 Cover, Assist Grip
74612C Cover, Assist Grip, RH
74620B Grip Assy, Assist, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
