Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

5 part groups · 3 illustrations

Illustrations

Figure 742686D

742686D 2009-02 → —

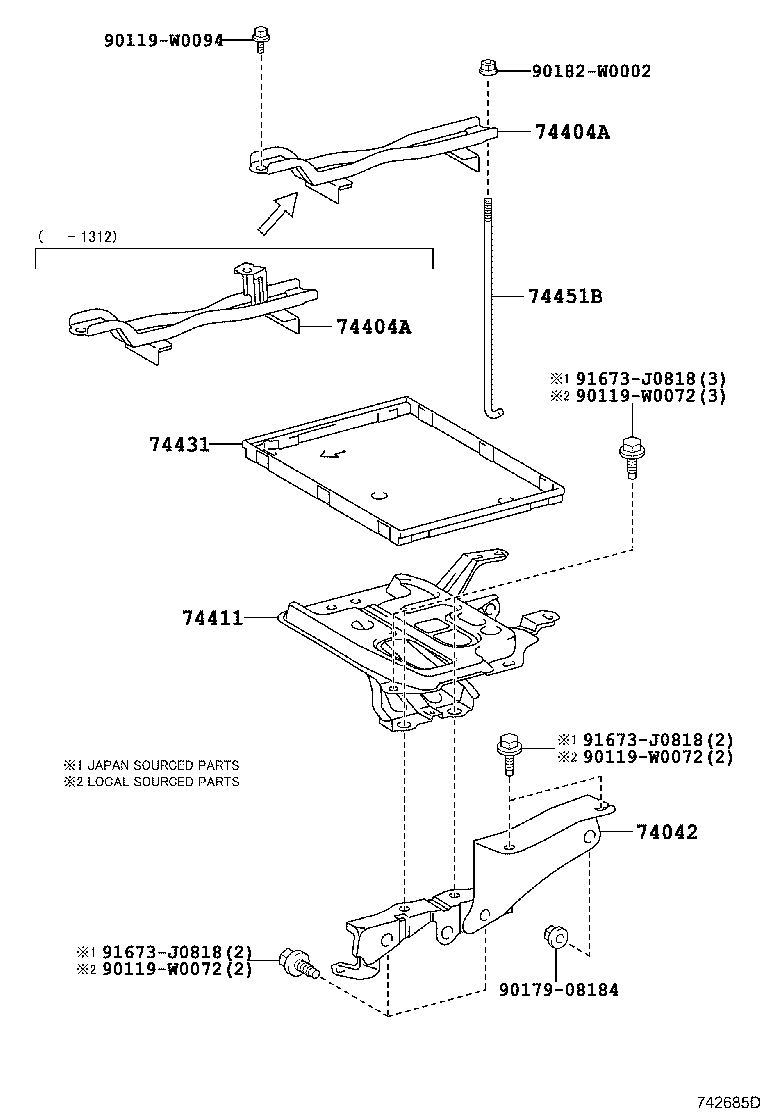

Figure 742685D

742685D 2009-02 → —

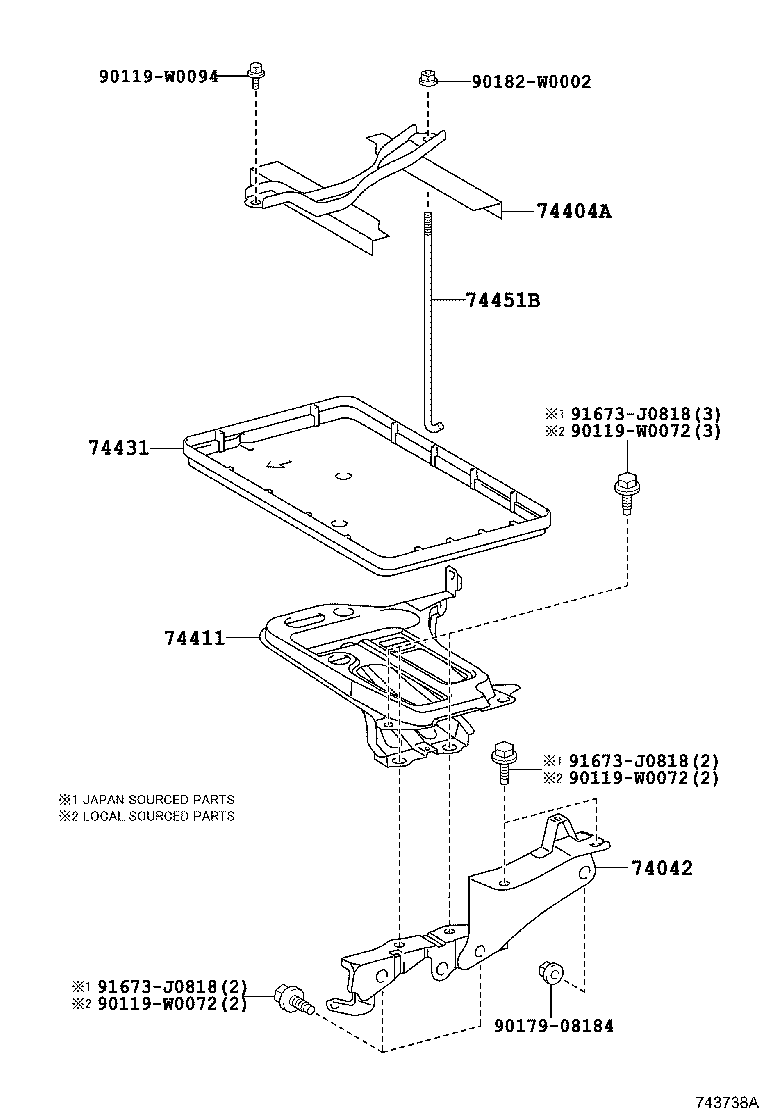

Figure 743738A

743738A 2014-01 → —

Part groups

PNC	Description
74042	Bracket Sub-assy, Battery
74404A	Clamp Sub-assy, Battery
74411	Carrier, Battery
74431	Tray, Battery
74451B	Bolt, Battery Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
