Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

20 part groups · 3 illustrations

Illustrations

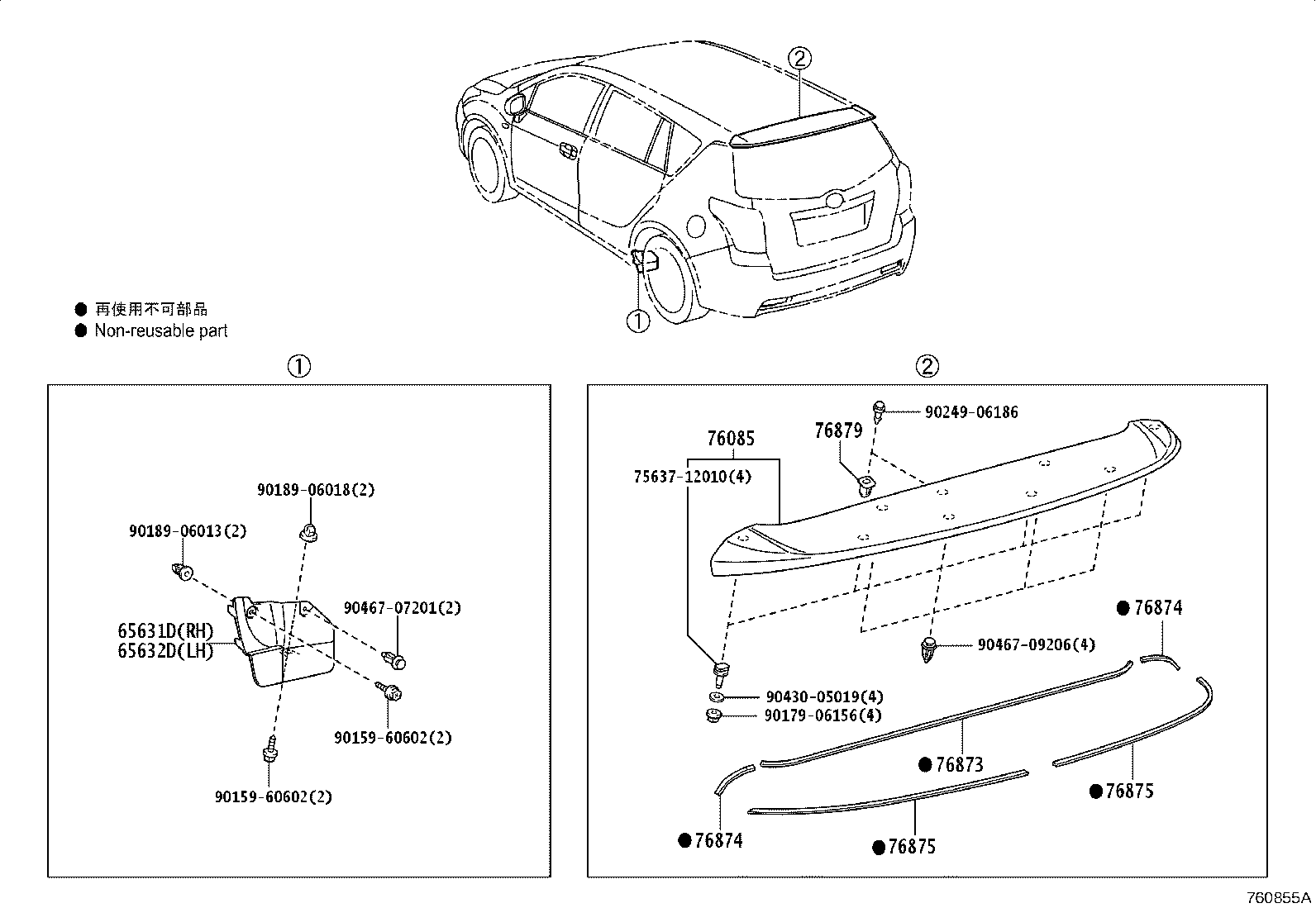

Figure 760854F 760854F 2009-02 → 2012-11 Figure 760856F 760856F 2012-11 → — Figure 760855A 760855A 2009-02 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76085 Spoiler Sub-assy, Rear
76621F Screw, NO.1
76621G Grommet, NO.1
76621K Clip, NO.1
76622E Screw, NO.3
76622F Grommet, NO.2
76622G Grommet, NO.3
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76869D Screw, NO.2
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76879 Clip, Rear Spoiler, NO.1
76915D Mudguard, Side, Front RH
76916D Mudguard, Side, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
