Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

20 part groups · 3 illustrations

Illustrations

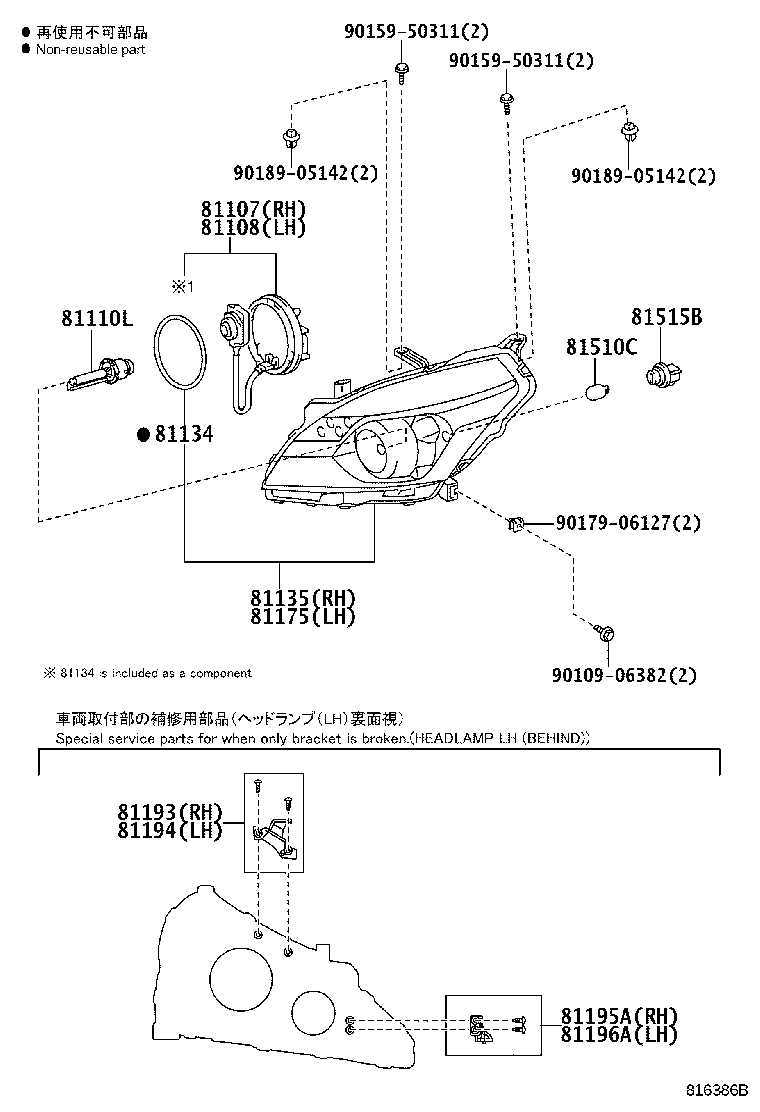

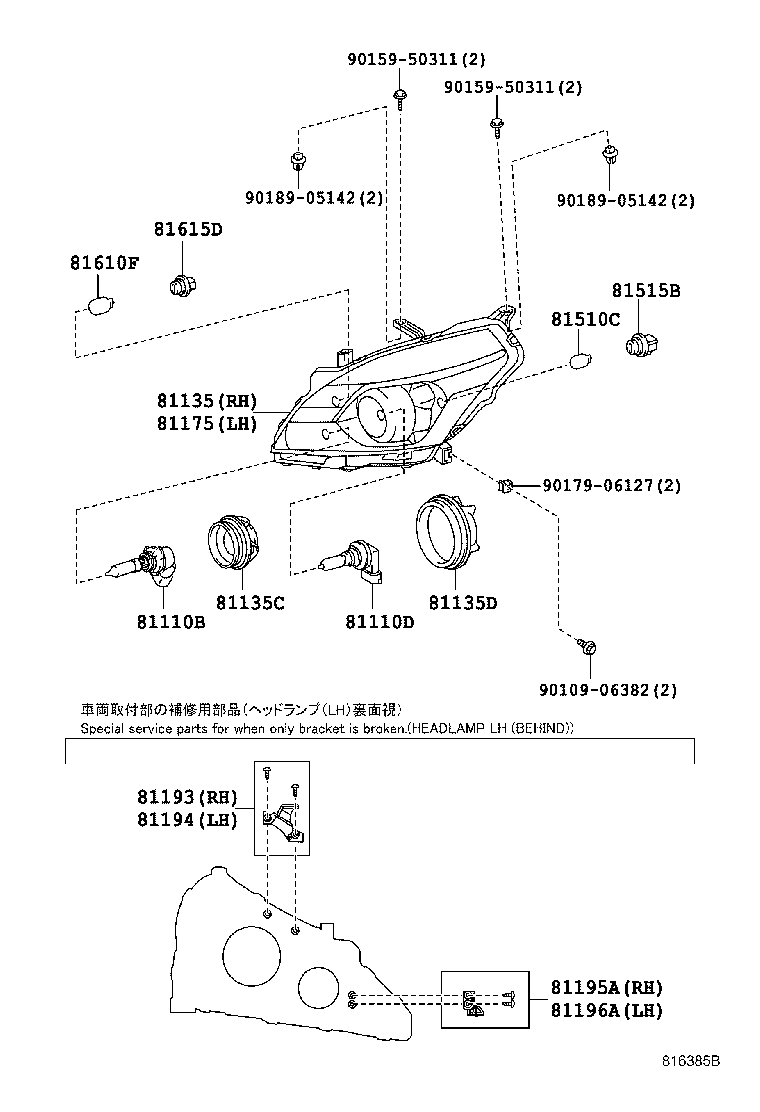

Figure 814898E 814898E 2009-02 → 2012-11 Figure 816385B 816385B 2012-11 → — Figure 816386B 816386B 2012-11 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81135D Cover, Headlamp Back, NO.2
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
