Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

21 part groups · 2 illustrations

Illustrations

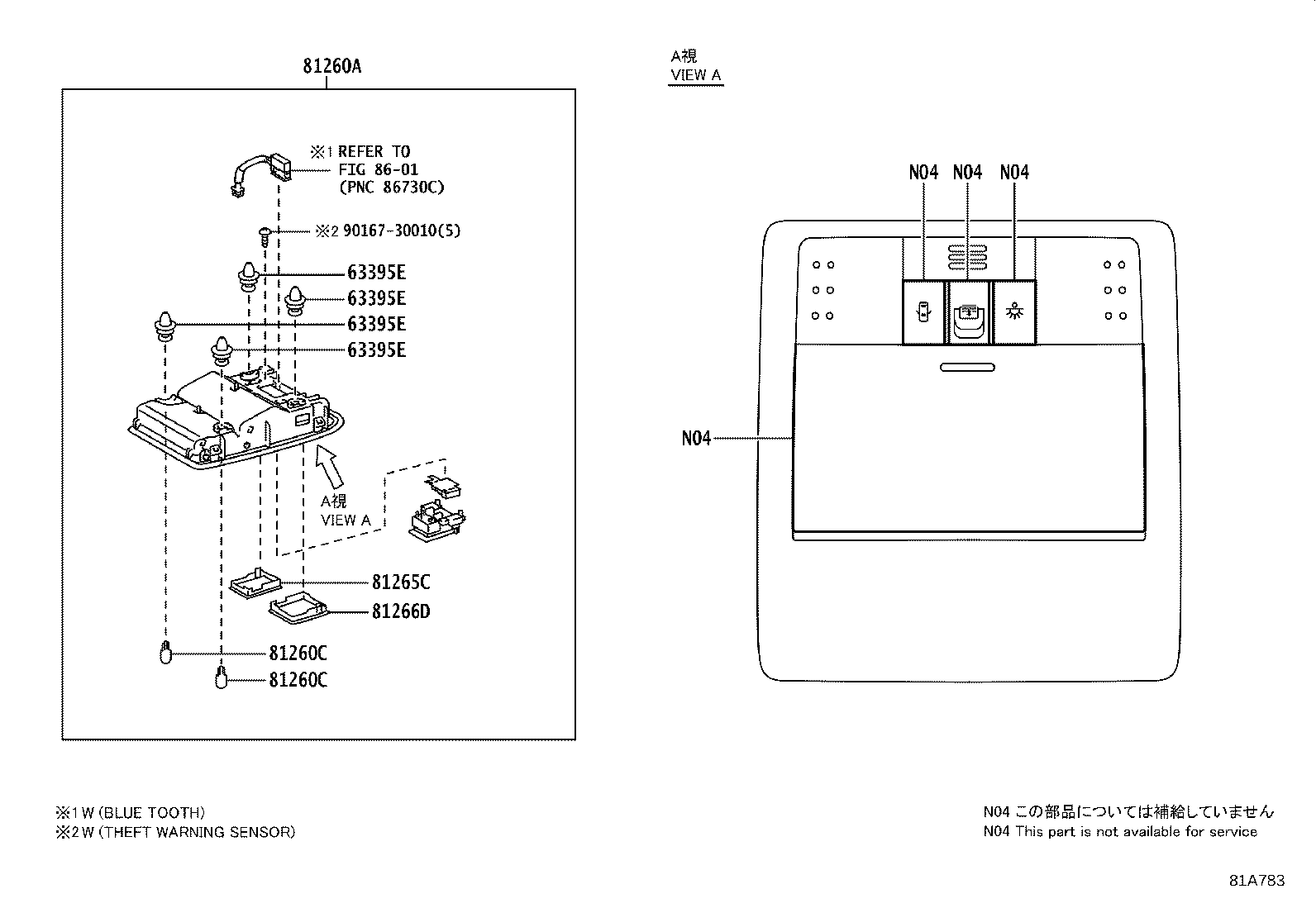

Figure 814893H 814893H 2009-02 → — Figure 81A783 81A783 2009-02 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080P Lamp Assy, Interior Illumination, NO.1 RH
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81248 Cover, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81251B Lens, Rear Room Lamp, RH
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81291A Lens, Rear Room Lamp, LH
81310B Bulb, Rear Room Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
