Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

135 part groups · 20 illustrations

Illustrations

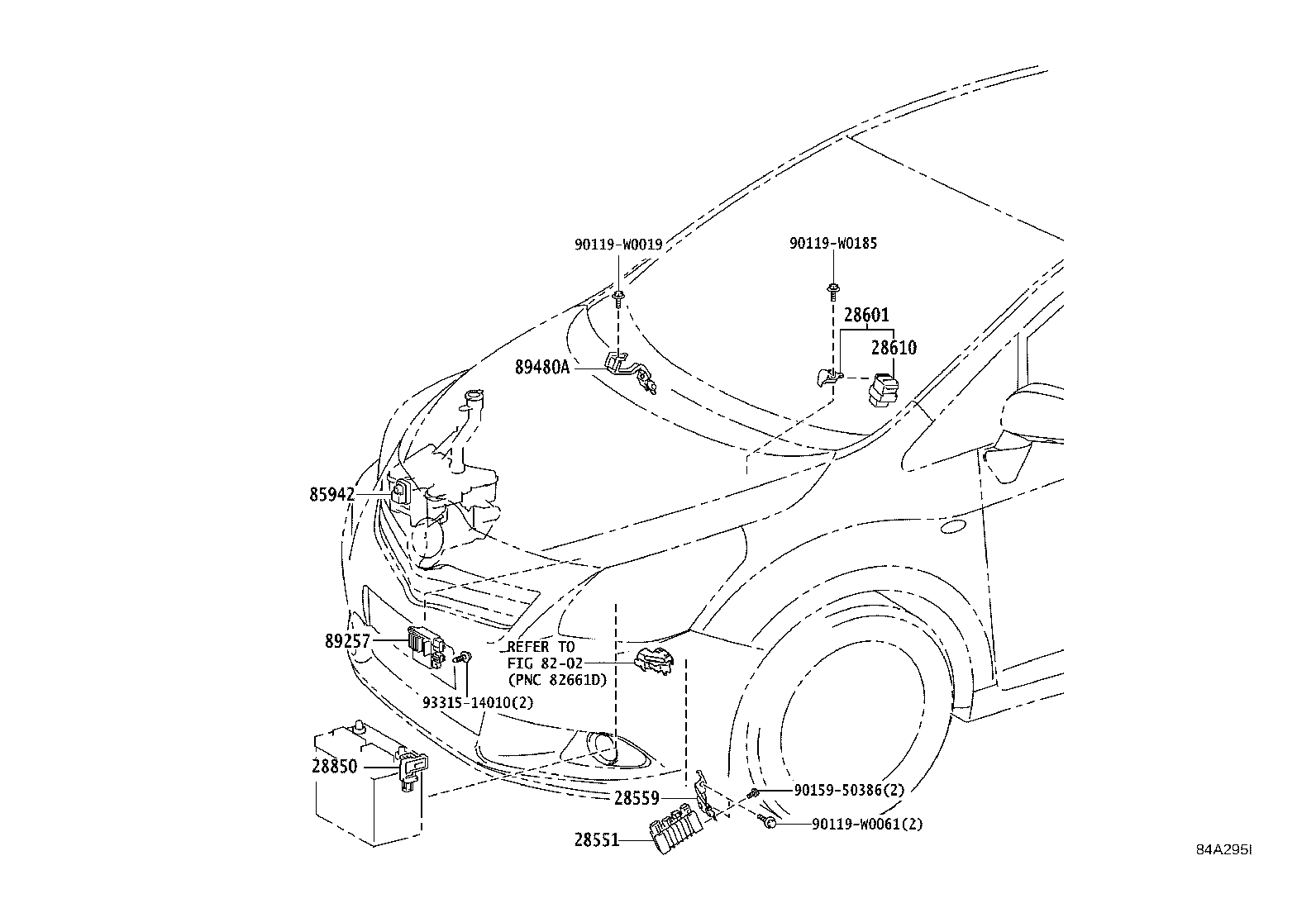

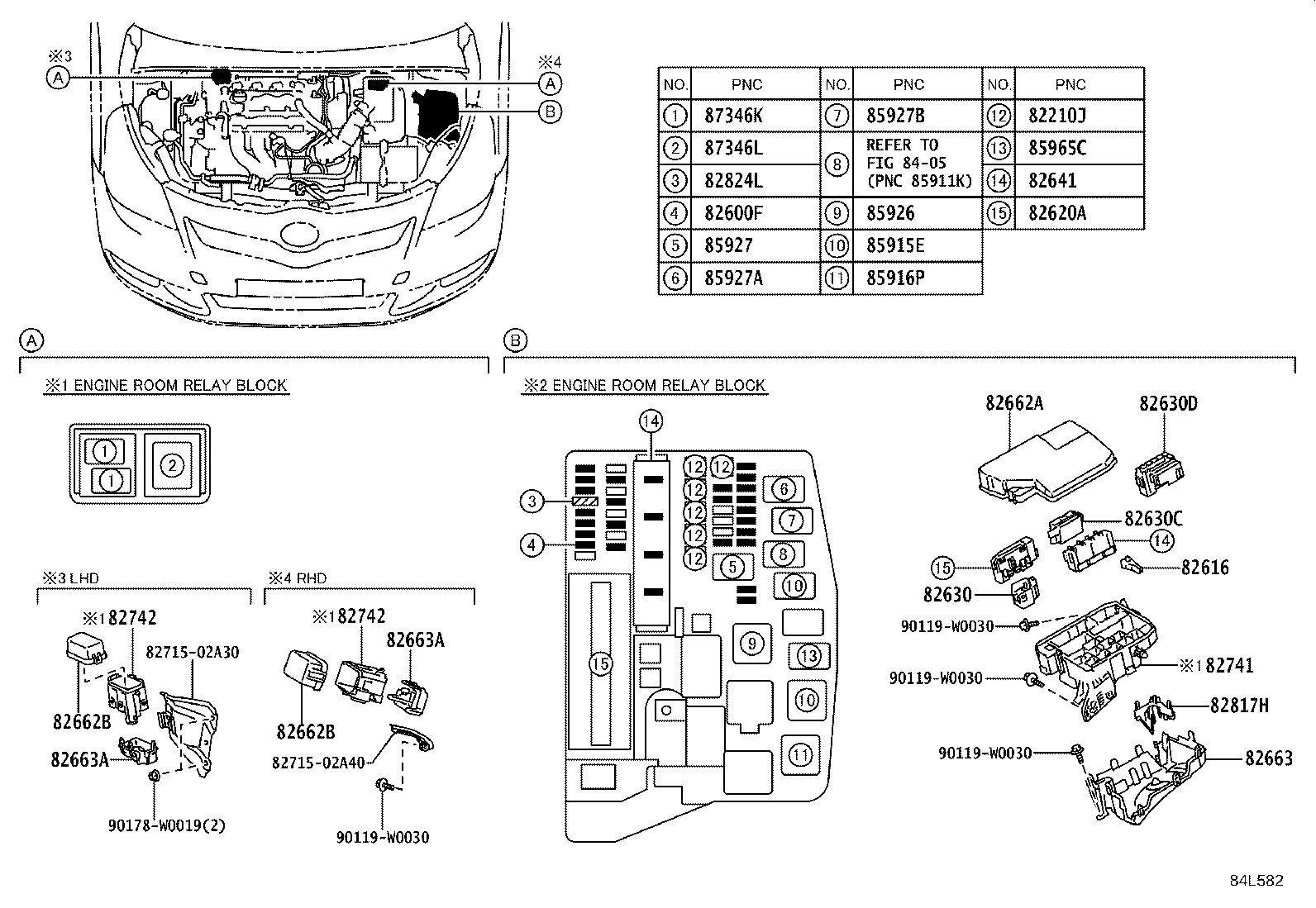

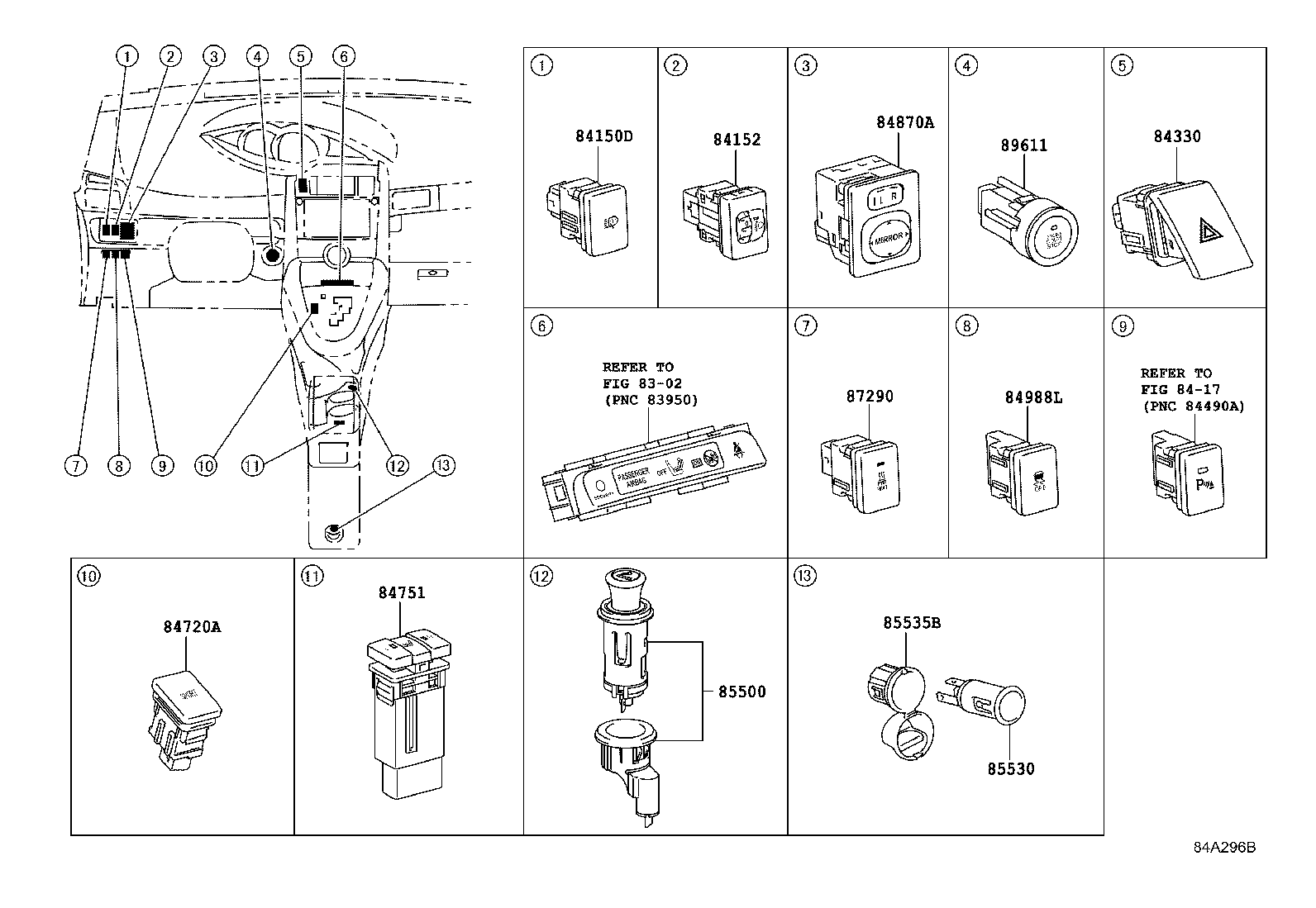

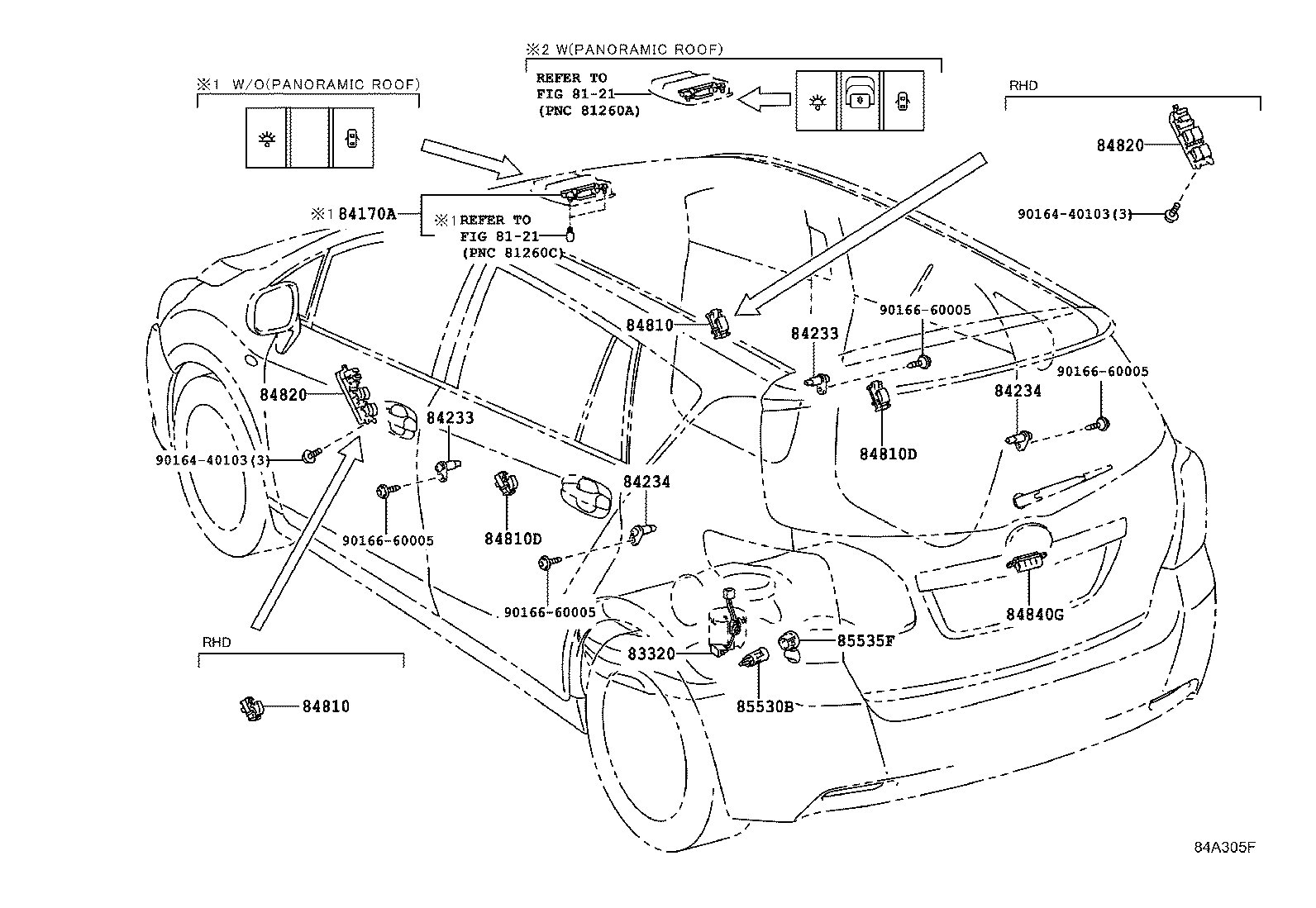

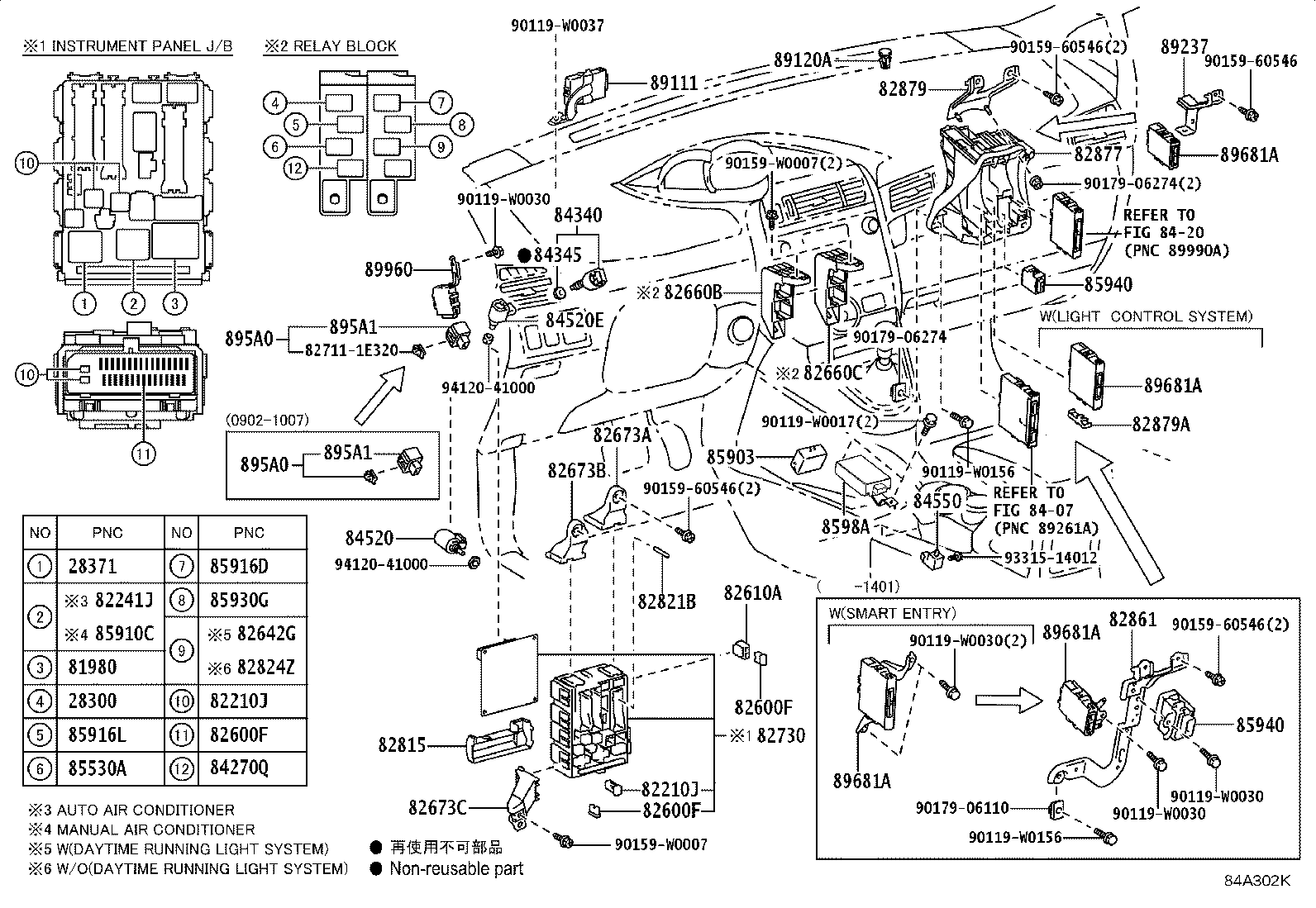

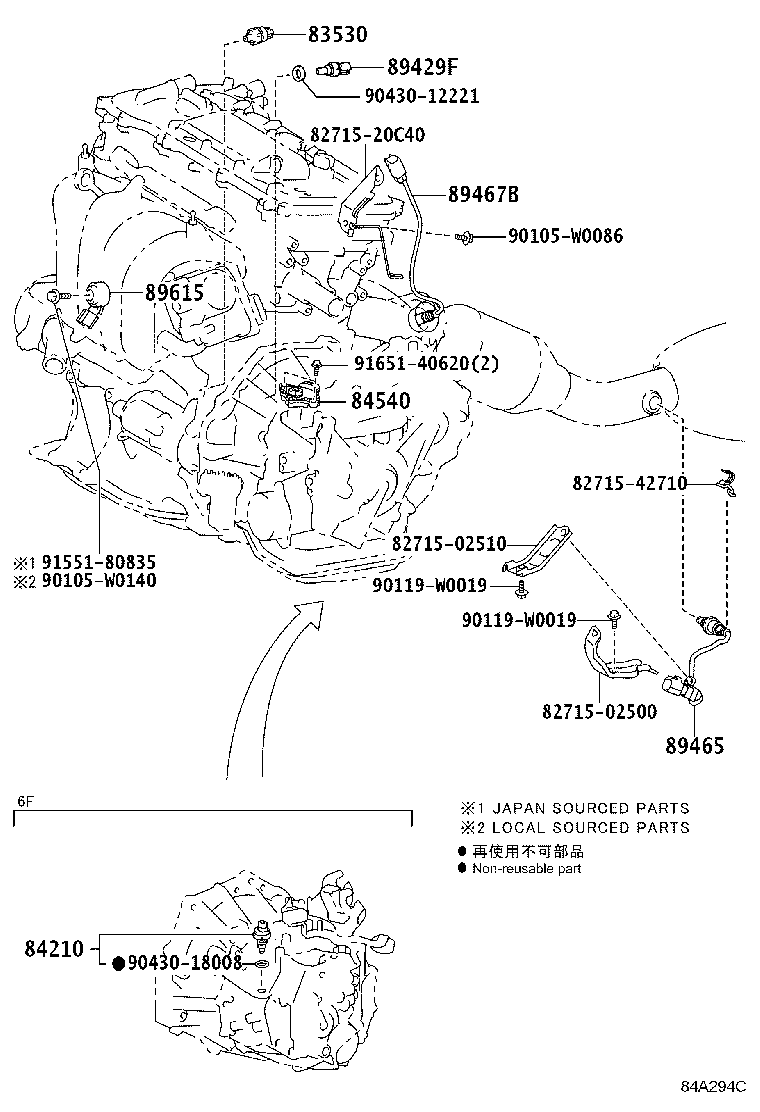

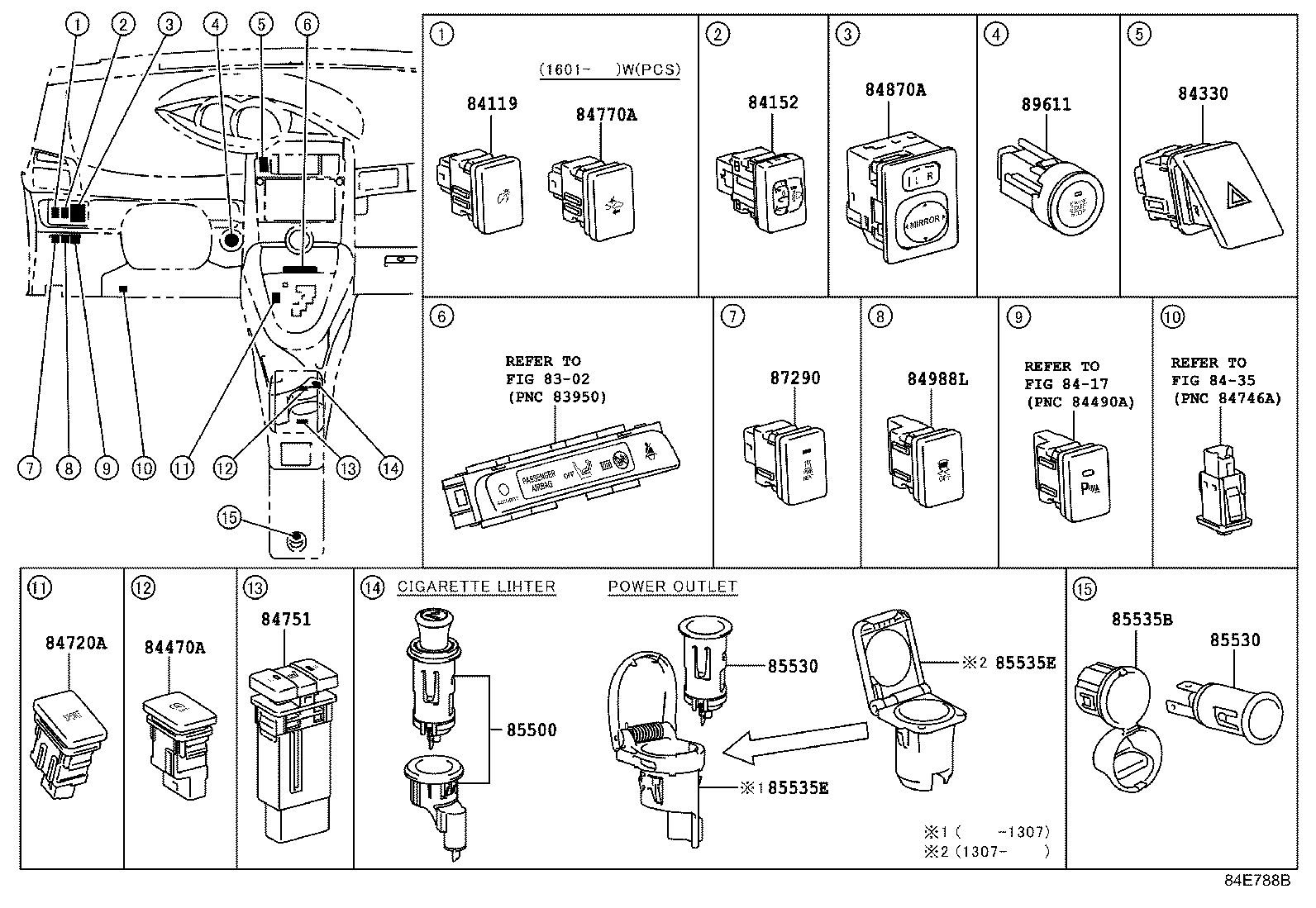

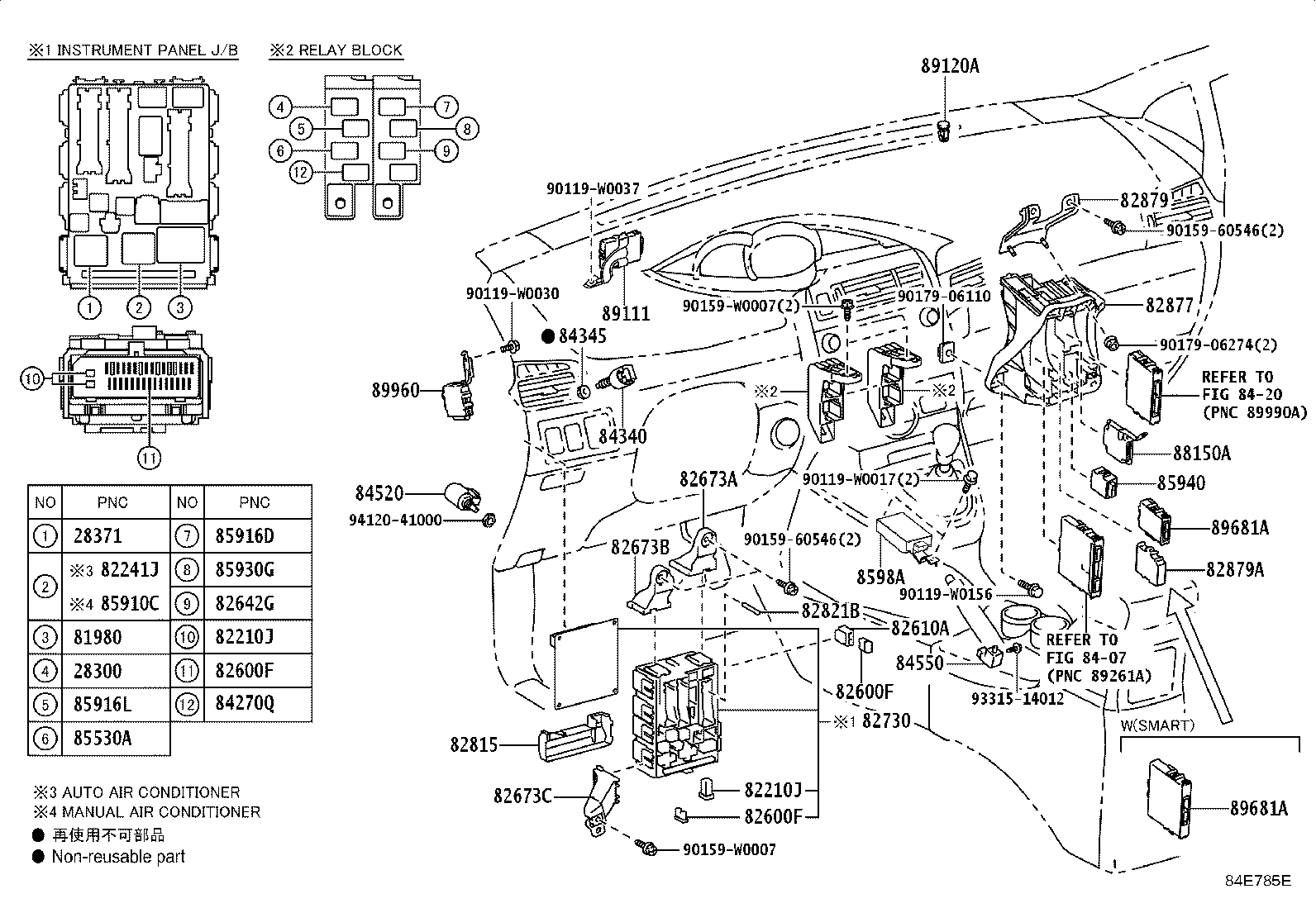

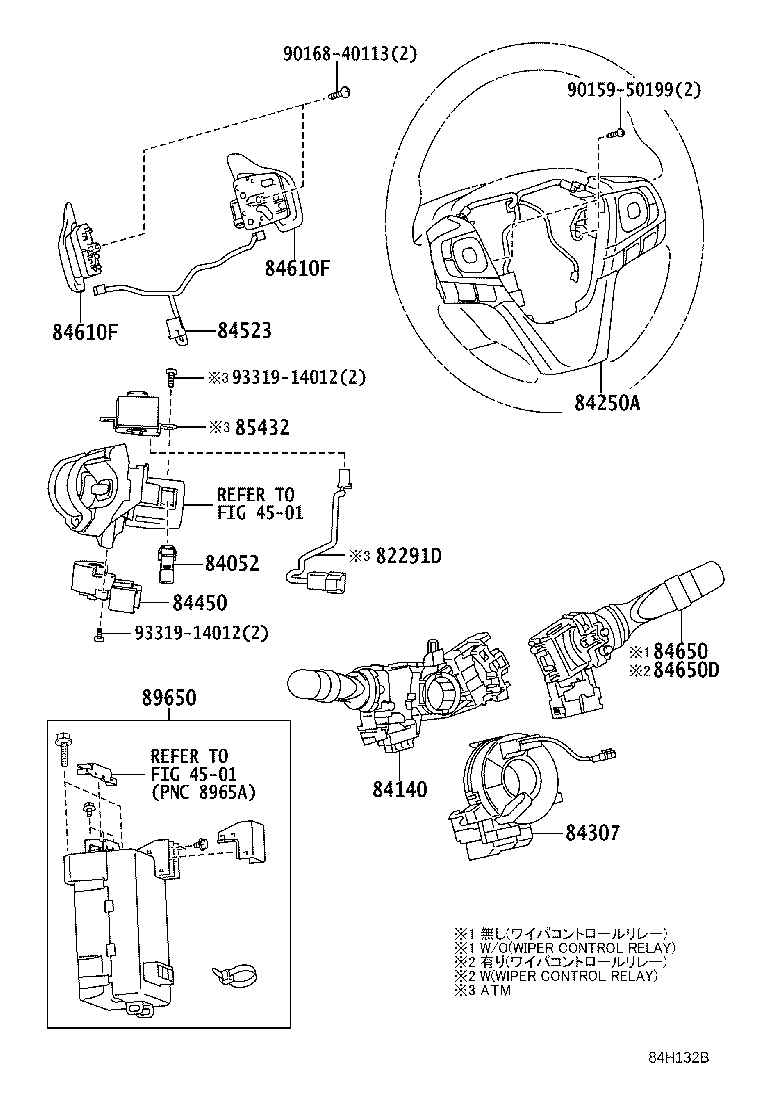

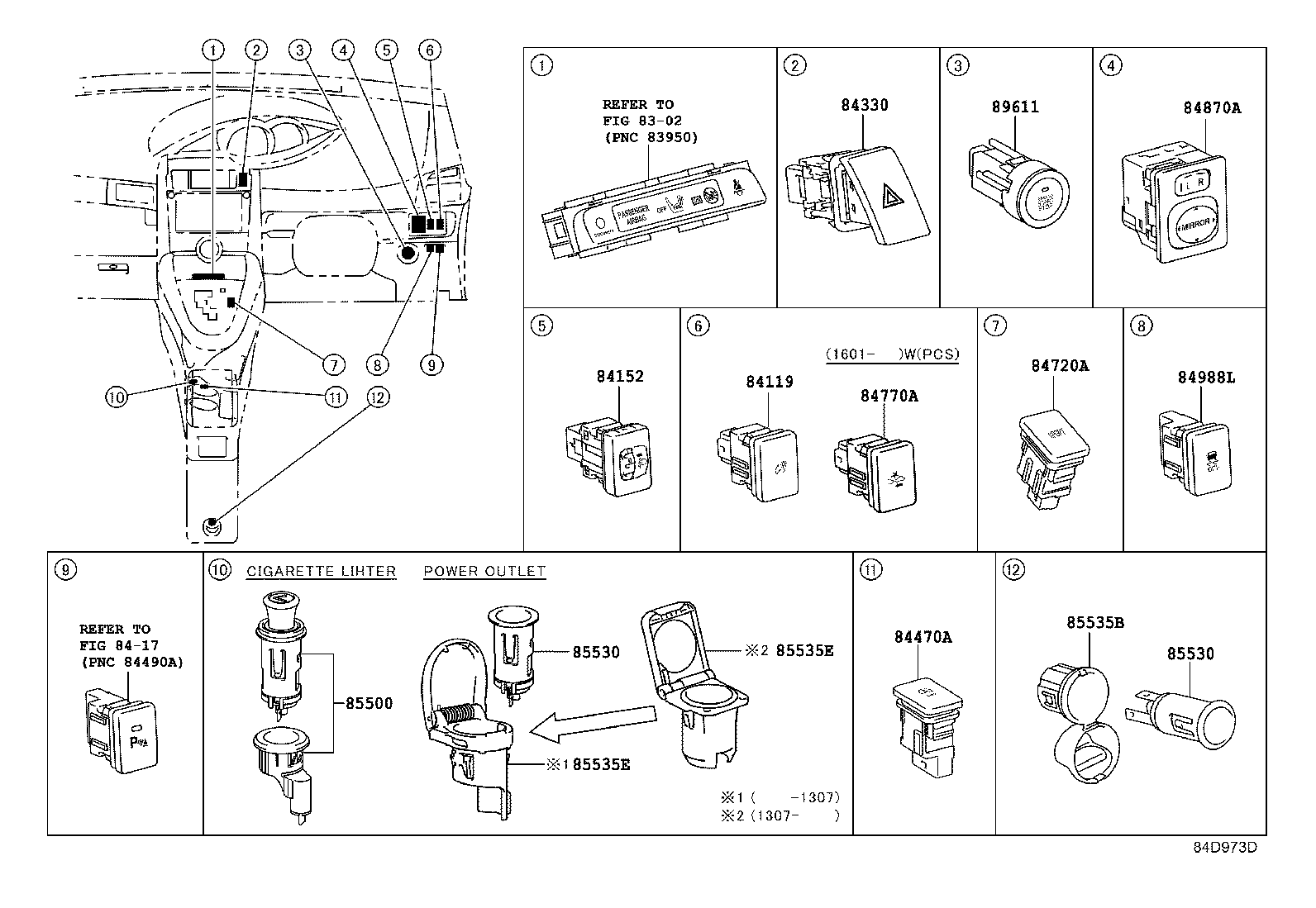

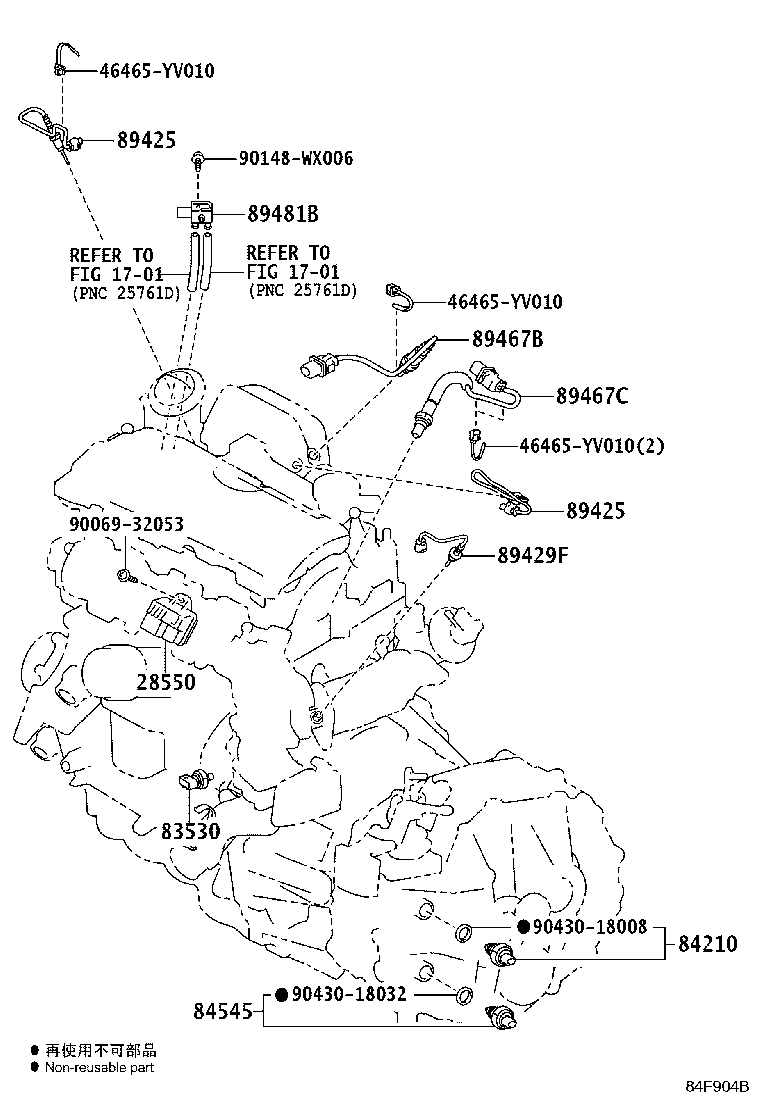

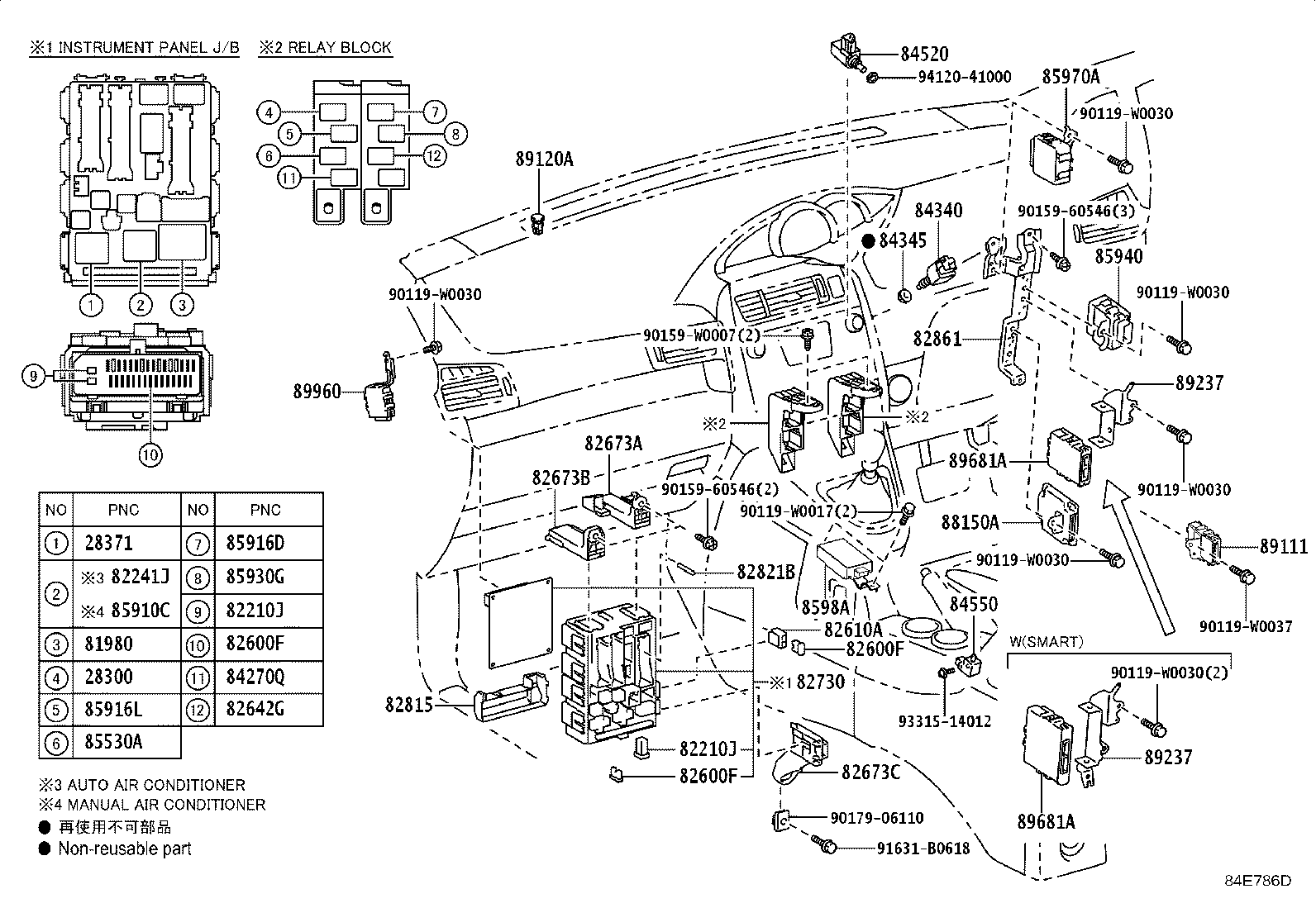

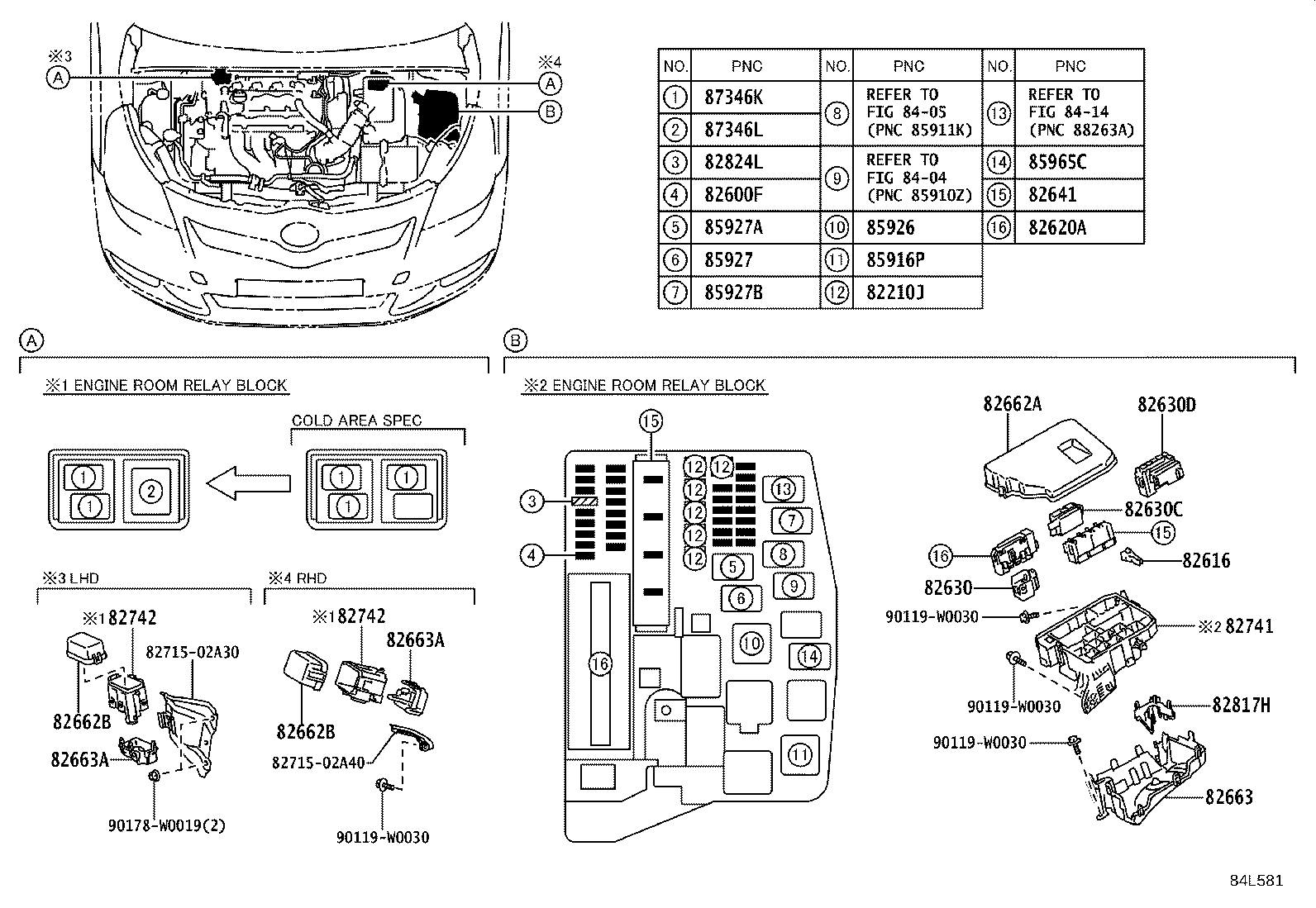

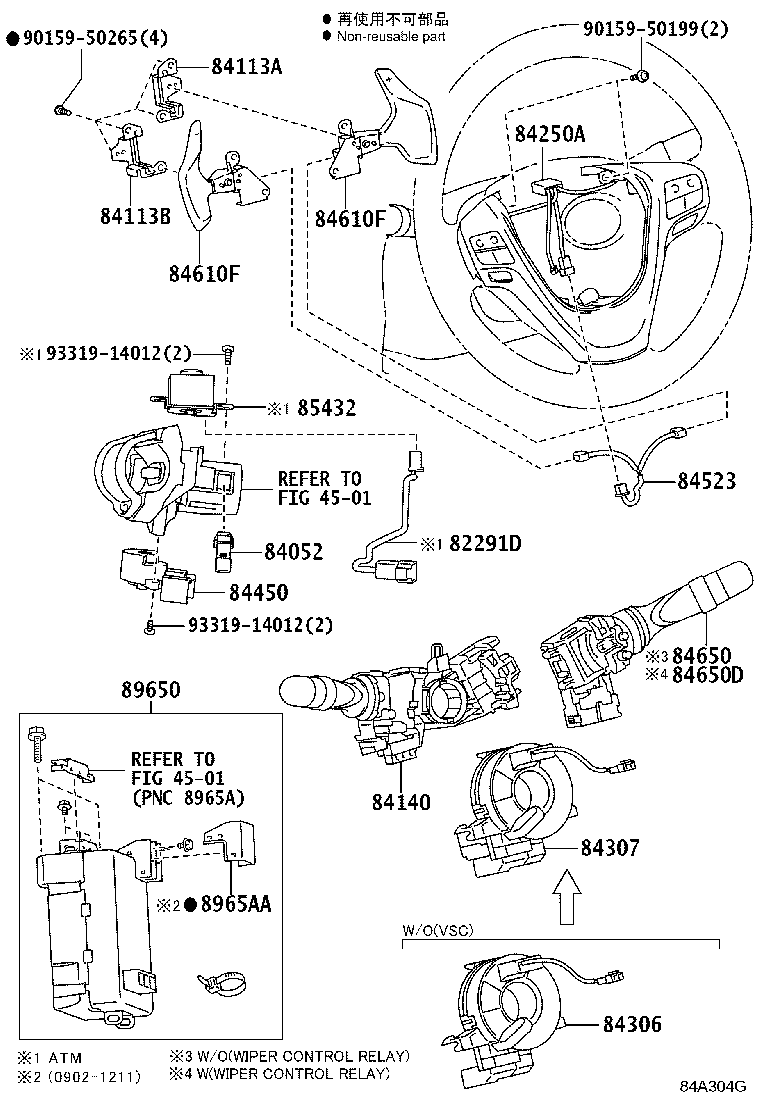

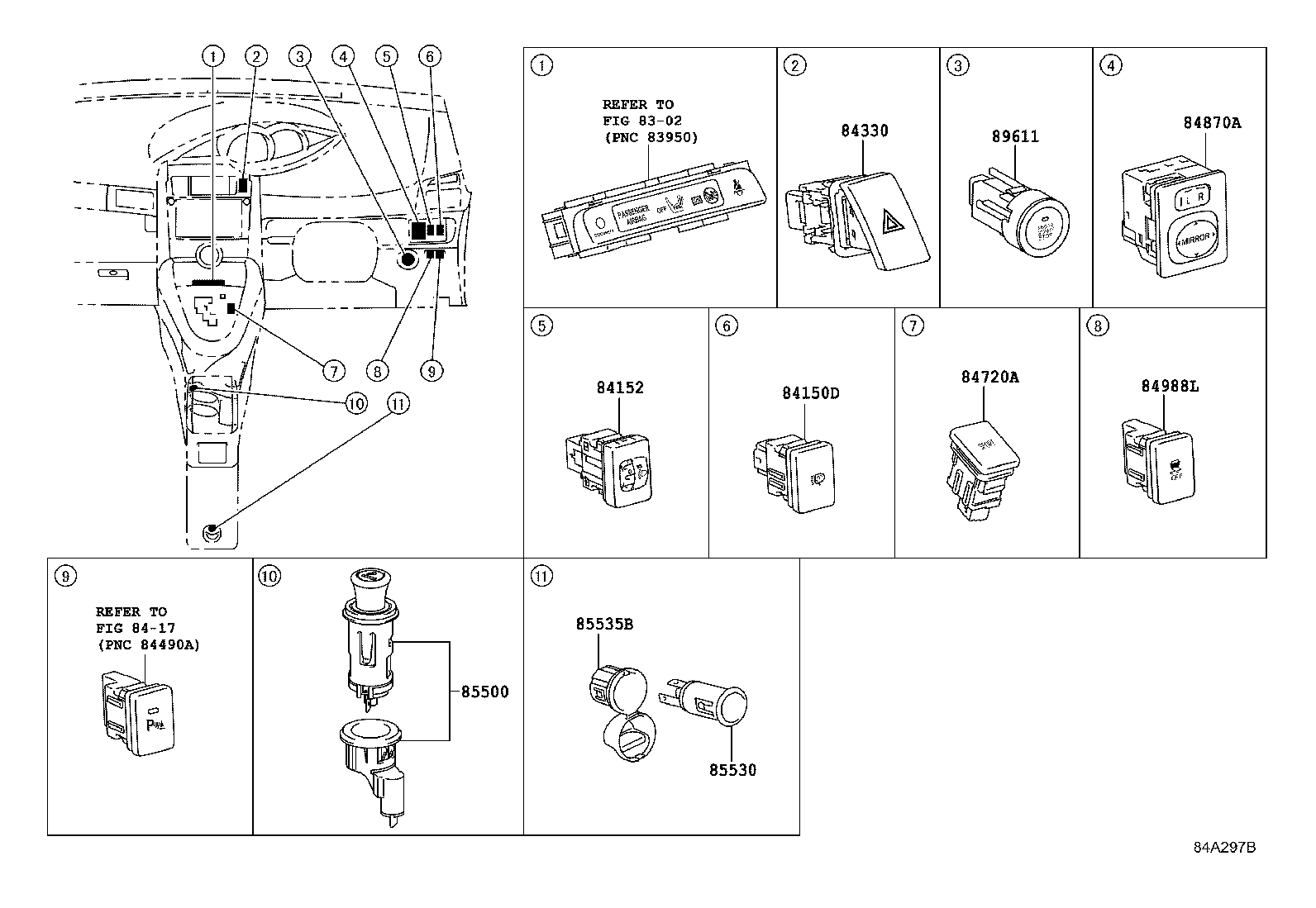

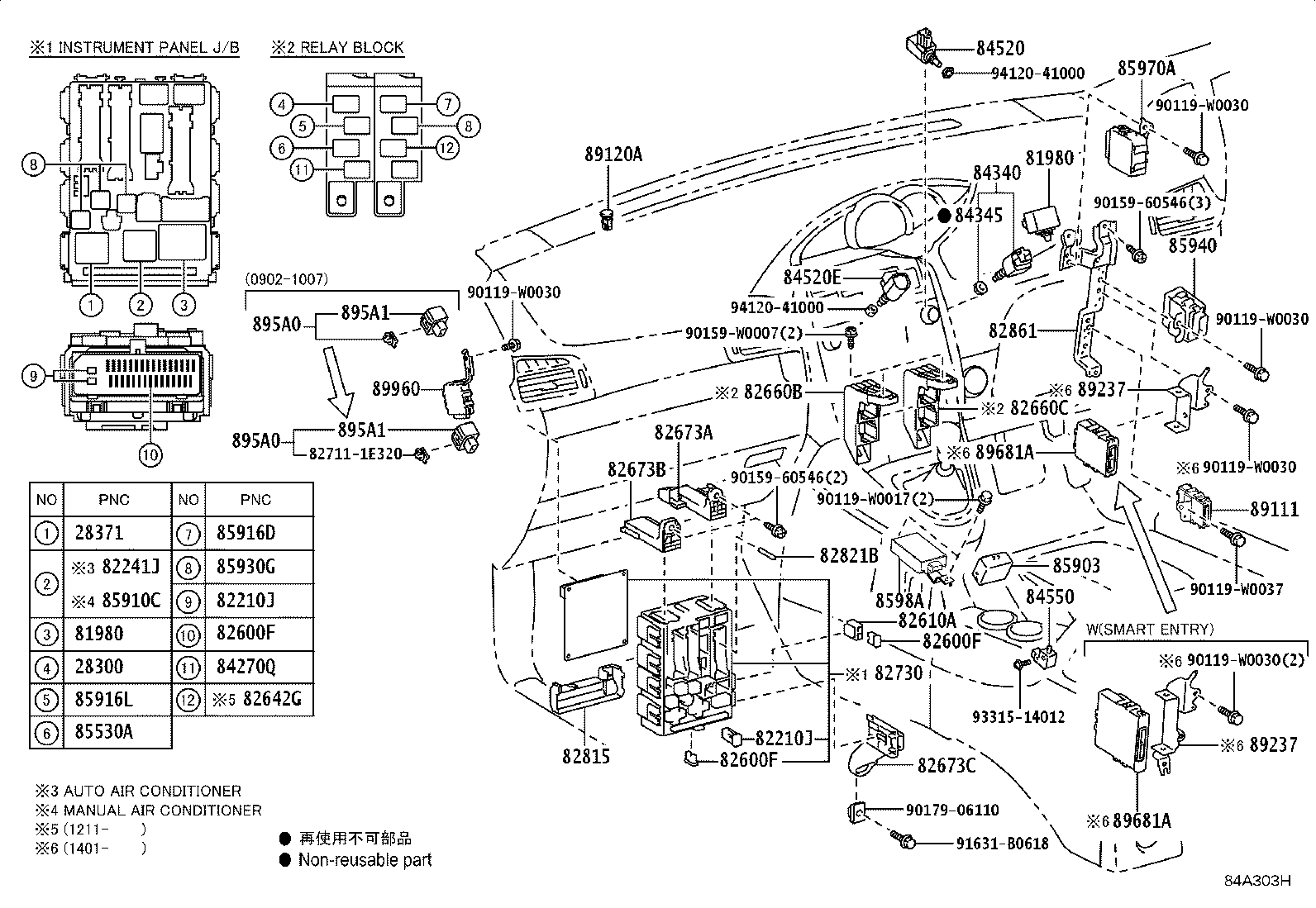

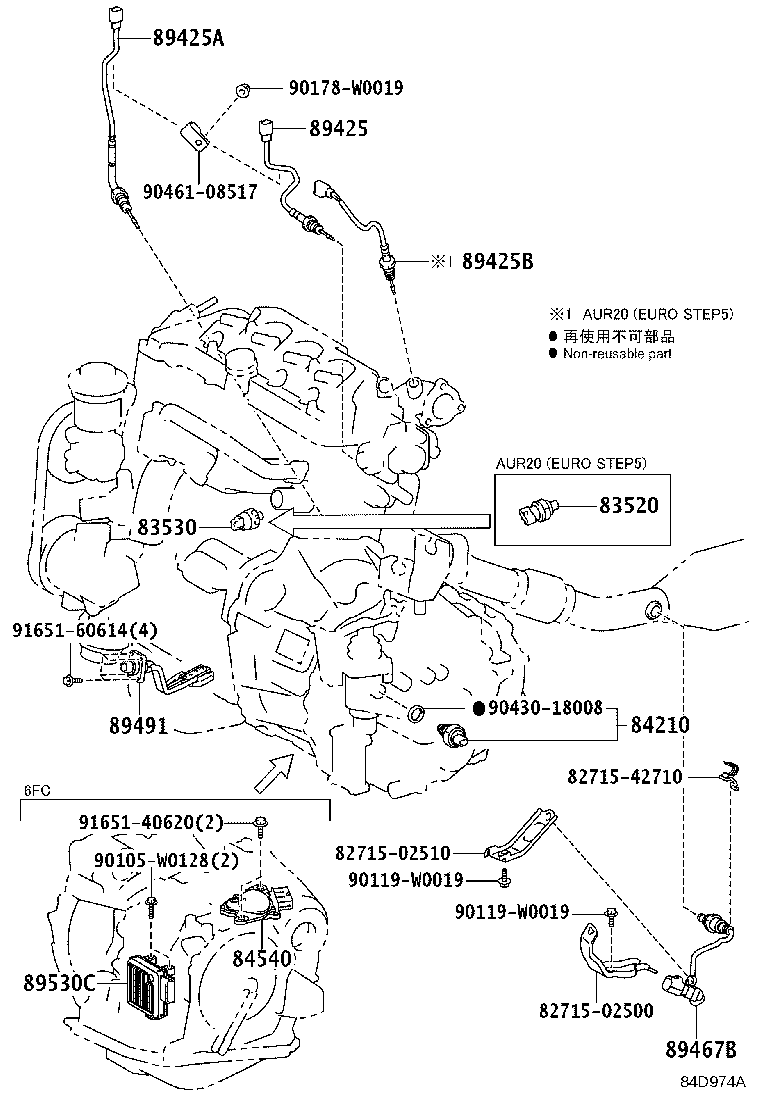

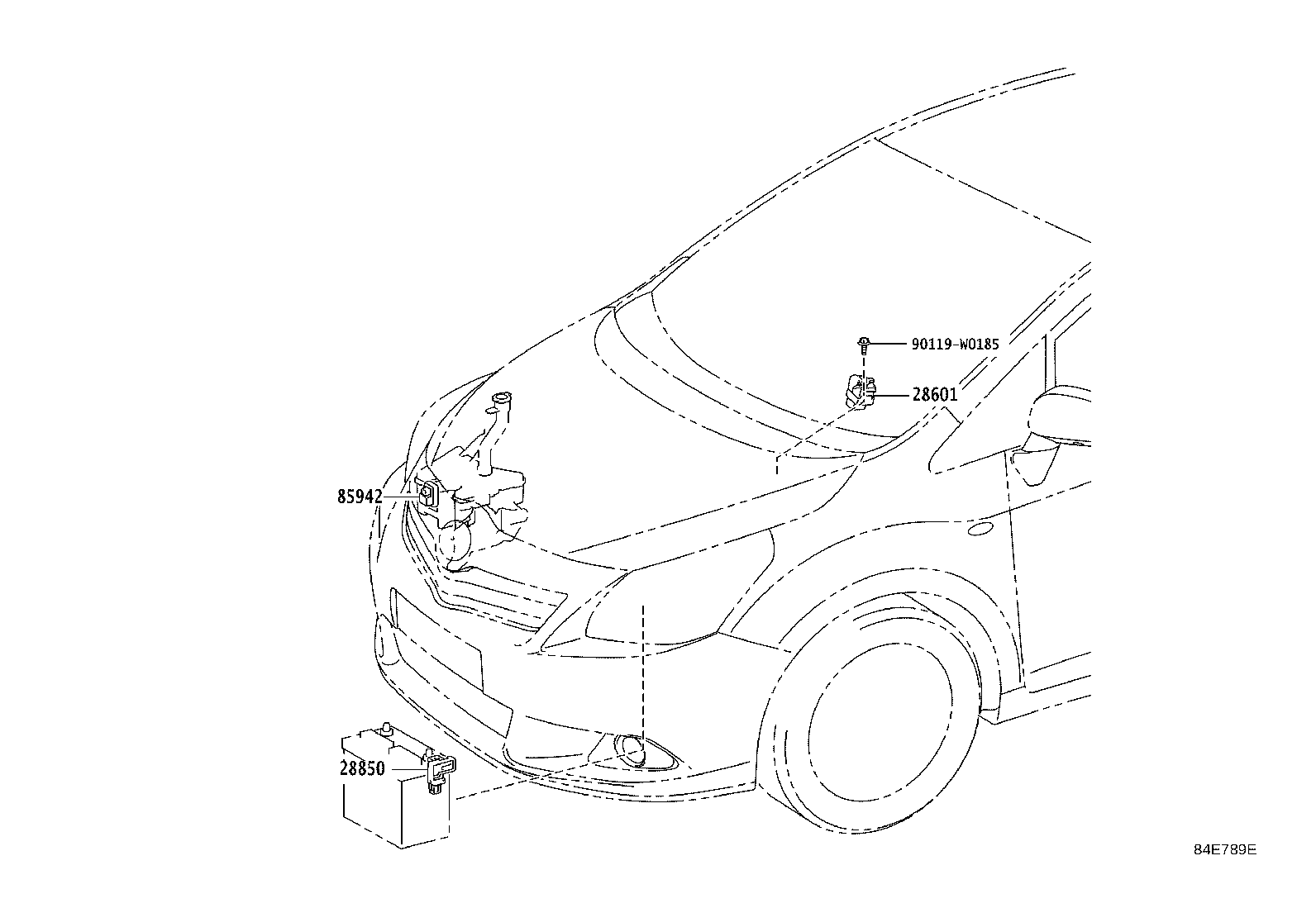

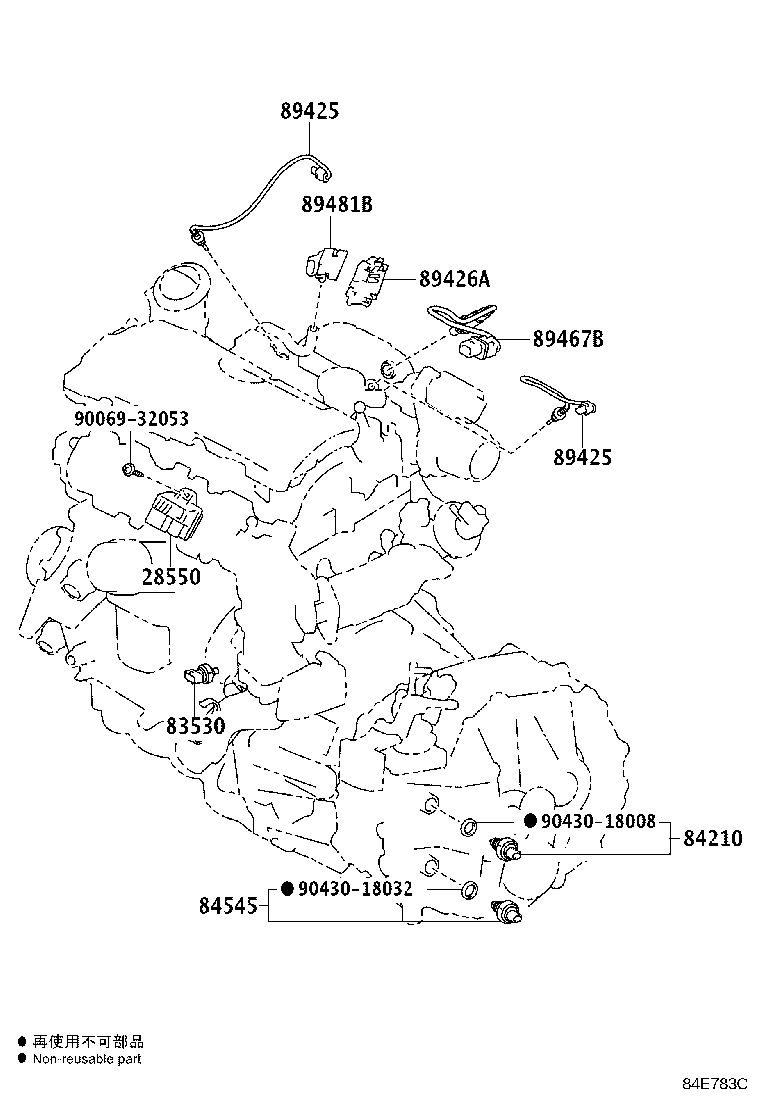

Figure 84A293B 84A293B 2009-02 → 2012-11 Figure 84D974A 84D974A 2012-11 → — Figure 84A294C 84A294C 2009-02 → — Figure 84E783C 84E783C 2014-01 → 2015-03 Figure 84F904B 84F904B 2015-03 → — Figure 84A295I 84A295I 2009-02 → — Figure 84E789E 84E789E 2014-01 → — Figure 84L581 84L581 2009-02 → — Figure 84L582 84L582 2014-01 → — Figure 84A302K 84A302K 2009-02 → — Figure 84E785E 84E785E 2014-01 → — Figure 84A303H 84A303H 2009-02 → — Figure 84E786D 84E786D 2014-01 → — Figure 84A296B 84A296B 2009-02 → 2012-11 Figure 84E788B 84E788B 2012-11 → — Figure 84A297B 84A297B 2009-02 → 2012-11 Figure 84D973D 84D973D 2012-11 → — Figure 84A304G 84A304G 2009-02 → 2016-01 Figure 84H132B 84H132B 2016-01 → — Figure 84A305F 84A305F 2009-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28550 Controller Assy, Glow Plug
28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28601 Glow Sub-assy, Plug Relay Set
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82241J Pin, Short
82291D Wire, TO Solenoid
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82630 Holder Assy, Fuse
82630C Holder Assy, Fuse
82630D Holder, Fuse
82641 Relay, Integration NO.1
82642G Relay, Panel
82660B Block Assy, Relay
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82815 Cover, Wiring Harness Protector
82817H Protector, Wiring Harness
82821B Cover, Connector
82824L Pin, Short
82824Z Pin, Short
82861 Bracket, Computer Integration, NO.1
82877 Box, Computer Integration, RH
82879 Adapter, Computer Integration Box
82879A Adapter, Computer Integration Box, NO.2
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84113A Bracket, Switch, NO.1
84113B Bracket, Switch, NO.2
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84170A Switch Assy, Room Lamp NO.1
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720A Switch Assy, Pattern Select, NO.1
84751 Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85535F Cover, Power Outlet Socket, Rear
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85915E Relay
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85965C Relay
85970A Relay Assy, Double Lock Door Control
8598A Battery, Door Control
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
88150A Computer Assy, Driving Support
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89237 Bracket, Computer Unit
89257 Computer, Cooling Fan
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89426A Bracket, Vacuum Sensor
89429F Sensor, Temperature
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89480A Sensor Assy, Differential Pressure
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
895A0 Relay Assy, Stop Lamp Control
895A1 Relay, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
8965AA Protector, Power Steering Computer
89681A Computer, Power Management Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
